2011 Peugeot 308 CC fuse

3
CONTENTS
Direction indicators 101
Hazard warning lamps 101
Horn 102
Emergency or assistance call 102
Tyre under-infl ation detection 103
Braking assistance systems 104
Trajectory control systems 105
Front seat belts 107
Airbags 110
Child seats 114
ISOFIX child seats 119„
„
„
„
„
„
„
„
„
„
„
SAFETY 101 Î 121
Parking brake 122
Manual gearbox 122
Gear shift indicator 123
Hill start assist 124
Automatic gearbox 125
Stop & Start 128
Speed limiter 131
Cruise control 133
Parking sensors 135„
„
„
„
„
„
„
„
„
DRIVING 122 Î 136
Bonnet 138
Running out of fuel (Diesel) 139
Petrol engines 140
Diesel engines 141
Checking levels 142
Checks 144„
„
„
„
„
„
CHECKS 137 Î 145
Temporary puncture repair kit 146
Changing a wheel 151
Changing a bulb 155
Changing a fuse 160
Battery 166
Energy economy mode 168
Changing a wiper blade 169
Towing the vehicle 169
Towing a trailer 171
Very cold climate screen 172
Accessories 172„
„
„
„
„
„
„
„
„
„
„
PRACTICAL
INFORMATION 146 Î 173
Petrol engines 174
Weights (petrol) 175
Diesel engines 176
Weights (Diesel) 177
Dimensions 178
Identifi cation markings 179„
„
„
„
„
„
TECHNICAL
DATA 174 Î 180
AUDIO EQUIPMENT
and TELEMATICS 181 Î 278
VISUAL
SEARCH 279 Î 282
ALPHABETICAL
INDEX 283 Î 287
Emergency or assistance 181
Peugeot Connect Media 185
Peugeot Connect Navigation 229
Peugeot Connect Sound 261„
„
„
„
7
89
1011

9
FAMILIARISATION


1.
Cruise control/speed limiter switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
12 V accessory socket.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Bonnet release.

12.
Fusebox.

13.
Manual headlamp height
adjustment.
Stop & Start button.

14.
Side adjustable air vent.

15.
Front side window demisting vent.

16.
Speaker (tweeter).

17.
Windscreen demisting vent.

INSTRUMENTS AND CONTROLS

3
53

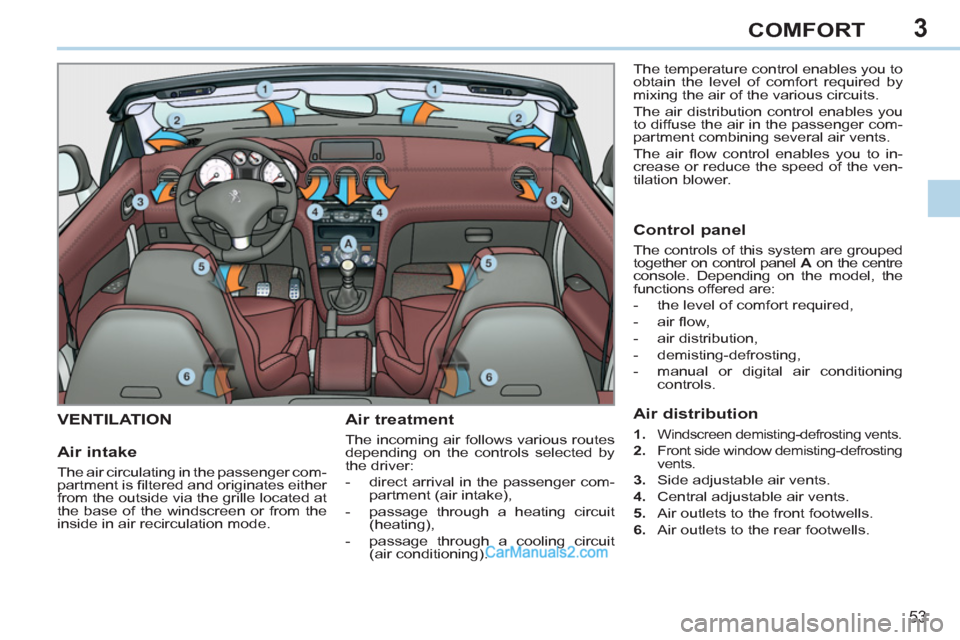

COMFORT








VENTILATION

Air treatment

The incoming air follows various routes
depending on the controls selected by
the driver:


- direct arrival in the passenger com-
partment (air intake),

- passage through a heating circuit
(heating),

- passage through a cooling circuit
(air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to in-
crease or reduce the speed of the ven-
tilation blower.

Air intake

The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.


Control panel

The controls of this system are grouped
together on control panel A
on the centre
console. Depending on the model, the
functions offered are:


- the level of comfort required,

- air fl ow,

- air distribution,

- demisting-defrosting,

- manual or digital air conditioning
controls.



Air distribution



1.
Windscreen demisting-defrosting vents.


2.
Front side window demisting-defrosting
vents.

3.
Side adjustable air vents.

4.
Central adjustable air vents.

5.
Air outlets to the front footwells.

6.
Air outlets to the rear footwells.

9
140
CHECKS














PETROL ENGINES

The various caps and covers allow
access for checking the levels of the
various fl uids and for replacing certain
components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.

4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

9
141
CHECKS













DIESEL ENGINES

The various caps and covers allow ac-
cess for checking the levels of the various
fl uids, for replacing certain components
and for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.

4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

* According to engine.

10
!
i
160
PRACTICAL INFORMATION
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying mal-
functions resulting from the installa-
tion of accessories not supplied and
not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
exceeds 10 milliamperes.

Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.





















CHANGING A FUSE


Access to tooling

The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
For access to them:


)
turn the screw a quarter of a turn to
the left,

)
unclip the cover by pulling the top
right,

)
disengage and pull away the cover,

)
remove carrier on the back of which
is fi tted the tweezer.



Changing a fuse

Before changing a fuse, you must:


)
identify and correct the cause of the
fault,

)

switch off all all electrical consumers,


)
immobilise the vehicle and switch
the ignition off,

)
identify the failed fuse using the al-
location tables and layout diagrams
in the following pages.

Good

Failed

Tweezer

When changing a fuse, you must:


)
use the special tweezer to extract
the fuse from its housing and check
its fi lament,

)
always replace the failed fuse with
a fuse of the same rating (same co-
lour); using a different rating may
cause faults (risk of fi re).
If the fuse fails again soon after it is
changed, have the electrical system
checked by a PEUGEOT dealer or a
qualifi ed workshop.

10
161
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).

Access to the fuses


)
refer to the paragraph "Access to
tooling".

Fuse tables


Fuse N°



Rating


Functions



F1



-

Not used.


F2



30 A

Earth for locking and deadlocking.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply.


F6



30 A

Rear one-touch electric windows, exterior door
opening controls.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
sun visor lighting, glove box lighting.


F8



20 A



Audio equipment, radio/telephone, multifunction screen, tyre
under-infl ation detection, interior storage compartments.



F9



30 A

Front 12 V socket, cigarette lighter.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

10
162
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



15 A

Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, retractable roof unit.


F13



5 A

Engine fusebox, airbags.


F14



15 A

Multifunction screen, amplifi er, hands-free kit,
rain/sunshine sensor, parking sensors control unit,
passenger's seat memory unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.


Fuse N°




Rating


Functions



G36




30 A

Driver and passenger heated seats.


G37




5 A

Trailer fuse box.


G38




30 A

Driver's seat memory unit.


G39



-
Not used.


G40




30 A

Hi-Fi amplifi er, passenger's seat memory unit.
