2011 Peugeot 308 CC glove box

6
96
FITTINGS





LOCKABLE, REFRIGERATED
GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.


)
To open the glove box, raise the
handle.
The lighting comes on when the lid is
opened.
The glove box is fi tted with an air vent A
,
which can be opened or closed. It dis-
tributes the same conditioned air as the
vents in the passenger compartment.








SUN VISOR

Component which protects against sunlight
from the front or the side, also equipped with
an illuminated courtesy mirror.


)
With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
BAG HOOK



)
Press the lower part of the hook to
unfold it.

)
Hang the strap of your bag on the
hook to secure it.

7
i
!
11 0
SAFETY





AIRBAGS

The airbags have been designed to max-
imise the safety of the occupants in the
event of violent collisions. They supple-
ment the action of the force-limiting seat
belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:


- in the event of a serious impact,
the airbags are deployed instanta-
neously and protect the occupants
of the vehicle; immediately after the
impact, the airbags defl ate rapidly
so that they do not hinder the visibil-
ity of the occupants or their possible
exit from the vehicle,

- in the event of a minor impact or
rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone is suf-
fi cient to provide maximum protec-
tion in these situations.

The deployment of one or more
airbags is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
some irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.

















Front airbags

System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and thorax.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

Deployment
The airbags are deployed simultaneously,
unless the passenger's front airbag is de-
activated, in the event of a serious front im-
pact to all or part of the front impact zone A
,
in the longitudinal centreline of the vehicle
on a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the tho-
rax and head of the front occupant of the
vehicle and the steering wheel, driver's
side, and the dashboard, passenger's
side to cushion their forward movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.


The airbags do not operate when
the ignition is off.

This equipment only operates once.
If a second impact occurs (during
the same or a subsequent acci-
dent), the airbag will not operate.

10
i
151
PRACTICAL INFORMATION

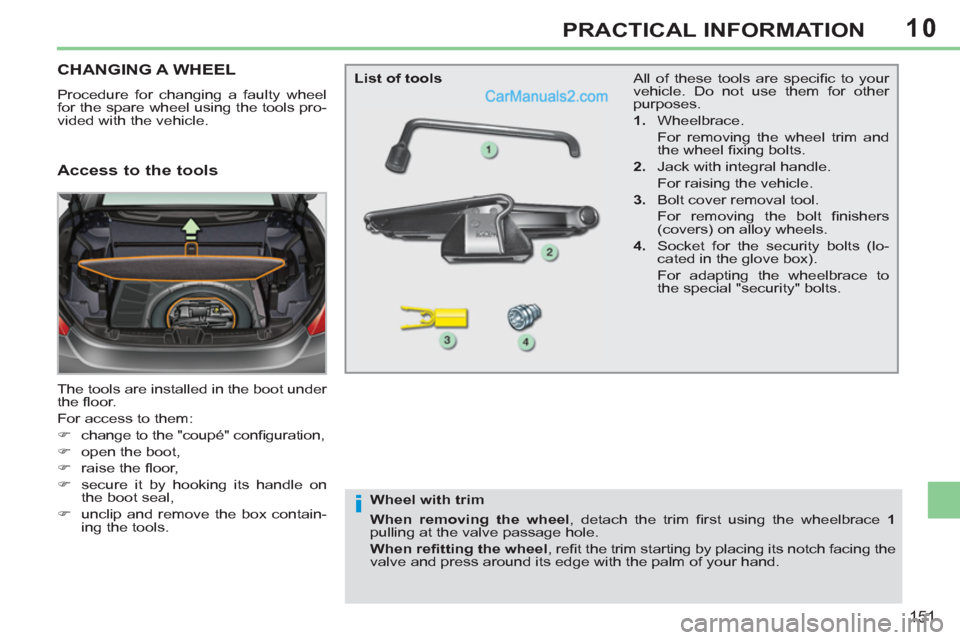

CHANGING A WHEEL

Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the fl oor.
For access to them:


)
change to the "coupé" confi guration,

)
open the boot,

)
raise the fl oor,

)
secure it by hooking its handle on
the boot seal,

)
unclip and remove the box contain-
ing the tools. All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.

2.
Jack with integral handle.
For raising the vehicle.

3.
Bolt cover removal tool.
For removing the bolt fi nishers
(covers) on alloy wheels.

4.
Socket for the security bolts (lo-
cated in the glove box).
For adapting the wheelbrace to
the special "security" bolts.

List of tools


Access to the tools


Wheel with trim

When removing the wheel
, detach the trim fi rst using the wheelbrace 1

pulling at the valve passage hole.

When refi tting the wheel
, refi t the trim starting by placing its notch facing the
valve and press around its edge with the palm of your hand.

10
161
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).

Access to the fuses


)
refer to the paragraph "Access to
tooling".

Fuse tables


Fuse N°



Rating


Functions



F1



-

Not used.


F2



30 A

Earth for locking and deadlocking.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply.


F6



30 A

Rear one-touch electric windows, exterior door
opening controls.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
sun visor lighting, glove box lighting.


F8



20 A



Audio equipment, radio/telephone, multifunction screen, tyre
under-infl ation detection, interior storage compartments.



F9



30 A

Front 12 V socket, cigarette lighter.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

212
07
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
1
3RADIONAV ESC TRAFFICMEDIAMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2
1
3
4
2RADIONAV ESC TRAFFICMEDIAMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

Connect the portable device (MP3 player, camcorder, camera…) to
the RCA sockets (white and red for audio; yellow for video) in the
glove box using a JACK/RCA audio cable.

Press the MEDIA button then press
it again or select the Media Menu
function and press OK to confi rm.

Select the AUX music source and
press OK to confi rm. Play begins
automatically.


Select "Select media" then "External
device (AV)" and press OK to
activate it.

External device



The display and management of the controls is via the portable
device.














USING AN EXTERNAL DEVICE (AUX)
AUDIO/VIDEO/RCA CABLE NOT SUPPLIED


If the external input is not activated, select "Ext. Device (Aux)
management" to activate it.


VIEWING A VIDEO DVD


Select the video source required ("DVD-Video", "External
device (AV)"). Press OK to confi rm. Play begins.

Press the MEDIA button to gain
access to the DVD menu at any time,
or to the functions of the Media Menu
which adjust the video (brightness/
contrast, image format…).
If the DVD does not appear on the
screen, press the MODE button to
gain access to the "MEDIA" screen
which displays the DVD screen.
Insert the DVD in the player. Play begins
automatically.

The 4-direction navigator and the chromed ring allow you to move
the DVD selection cursor. Change chapter by pressing the
or

button.

MUSIC MEDIA PLAYERS

280
VISUAL SEARCH
INTERIOR
