FAMILIARISATION

Remote control key



A.
Unfolding/Folding the key
(fi rst press this button).
Normal locking
(press once; fi xed lighting of
the direction indicators).

Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
60 litres. Unlocking and partial opening
of the boot
(press for more than two sec-
onds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped beam headlamps, sidelamps
and side spotlamps makes your ap-
proach to the vehicle easier.



89

In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the door sill lamps and the foot-
well lamps, comes on. or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).



70



94




83



ACCESS

Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.

9
FAMILIARISATION


1.
Cruise control/speed limiter switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
12 V accessory socket.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Bonnet release.

12.
Fusebox.

13.
Manual headlamp height
adjustment.
Stop & Start button.

14.
Side adjustable air vent.

15.
Front side window demisting vent.

16.
Speaker (tweeter).

17.
Windscreen demisting vent.

INSTRUMENTS AND CONTROLS

14
FAMILIARISATION

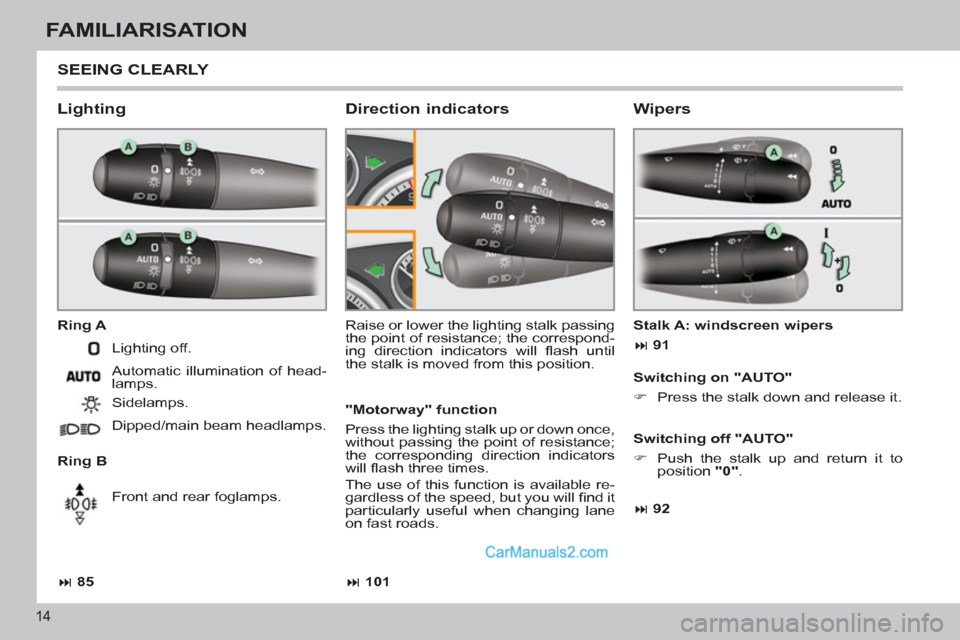

SEEING CLEARLY


Lighting


Ring A

Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash until
the stalk is moved from this position.

Direction indicators


Switching on "AUTO"


)
Press the stalk down and release it.




85


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear foglamps.
Stalk A: windscreen wipers



91




Wipers


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.



101





92

20






































ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
,
according to the type of gear selector,
without pressing the accelerator pedal
heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These attitudes contribute
towards a reduction in fuel consumption
and CO
2 emissions and also helps re-
duce the background traffi c noise.

When the traffi c is fl owing well, and if
you have cruise control, make use of
the system at speeds above 25 mph
(40 km/h).



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music, vid-
eo game...), you will contribute towards
limiting the consumption of electrical en-
ergy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

1
i
25
INSTRUMENTS and CONTROLS

*
According to country.









Instrument panel navigator associated
with the Peugeot Connect Media

Main menu


)
Press button 1
to open the main
menu and select one of the following
functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move on the
screen.

)
Press button 1
again to confi rm the
selection.

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


Choice of language
This menu allows you to select the lan-
guage used by the screen: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .

Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (mpg, km/l or
l/100 km).
This group of buttons permits:


- when stationary
, confi guration of
the vehicle's equipment and the
central screen settings (language,
units...),

- while driving
, scrolling through the
active functions (trip computer, navi-
gation...).

Controls
There are four buttons to control the in-
strument panel large screen:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous screen, exit
from the menu. The main menu and its associated
functions can only be accessed
when stationary, via buttons 1
to 4
.
A message appears in the cen-
tral screen, above a certain speed
threshold, indicating that the main
menu cannot be displayed.
Trip computer information can only
be displayed while driving, using
buttons 2
and 3
(refer to the "Trip
computer" section).

1
28
INSTRUMENTS and CONTROLS





Service


temporarily,
accompanied
by a message. Minor faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message
displayed in the screen:


- doors, boot or bonnet open,

- low engine oil level,

- low screenwash/headlamp wash reservoir
level,

- remote control battery fl at,

- low tyre pressures,

- saturation of the particle emission fi lter on
Diesel vehicles (see Checks - checking
levels/particle emissions fi lter).
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.

fi xed,
accompanied
by a message
and an audible
signal. Major faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message shown
in the screen and you must then contact
a
PEUGEOT dealer or a qualifi ed workshop.

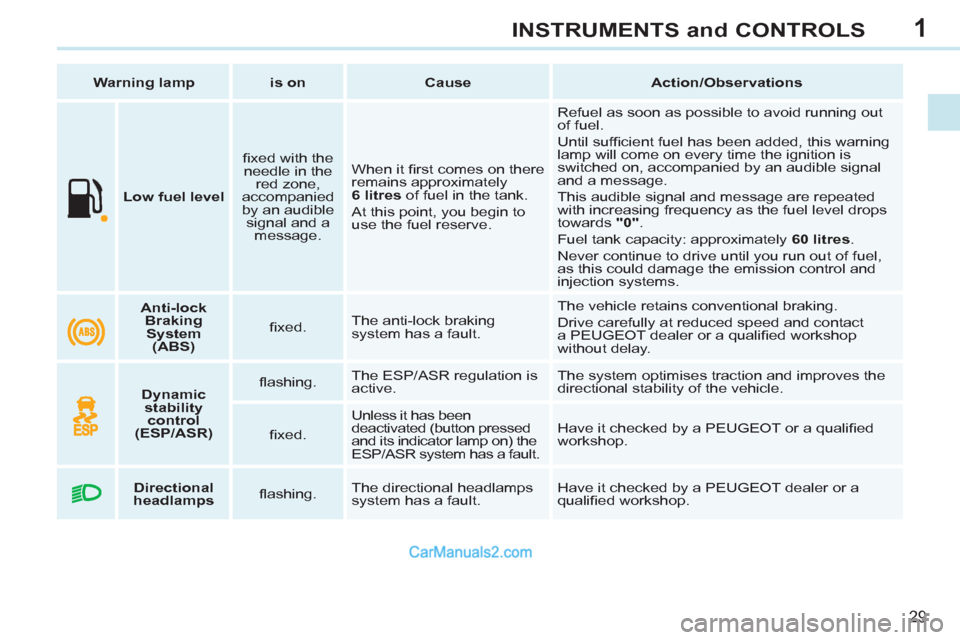

Warning lamp



is on



Cause



Action/Observations




Engine
autodiagnosis
system

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.


fi xed. The emission control
system has a fault. The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or qualifi ed workshop without delay.

1
29
INSTRUMENTS and CONTROLS





Low fuel level


fi xed with the
needle in the
red zone,
accompanied
by an audible
signal and a
message. When it fi rst comes on there
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve. Refuel as soon as possible to avoid running out
of fuel.
Until suffi cient fuel has been added, this warning
lamp will come on every time the ignition is
switched on, accompanied by an audible signal
and a message.
This audible signal and message are repeated
with increasing frequency as the fuel level drops
towards "0"
.
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run out of fuel,
as this could damage the emission control and
injection systems.

Warning lamp



is on



Cause



Action/Observations






Anti-lock
Braking
System
(ABS)


fi xed. The anti-lock braking
system has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a PEUGEOT dealer or a qualifi ed workshop
without delay.




Dynamic
stability
control
(ESP/ASR)


fl ashing. The ESP/ASR regulation is
active. The system optimises traction and improves the
directional stability of the vehicle.

fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
ESP/ASR system has a fault. Have it checked by a PEUGEOT or a qualifi ed
workshop.




Directional
headlamps


fl ashing. The directional headlamps
system has a fault. Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
