Page 5 of 292
3
CONTENTS
Direction indicators 101
Hazard warning lamps 101
Horn 102
Emergency or assistance call 102
Tyre under-infl ation detection 103
Braking assistance systems 104
Trajectory control systems 105
Front seat belts 107
Airbags 110
Child seats 114
ISOFIX child seats 119 „
„
„
„
„
„
„
„
„
„
„
SAFETY 101 Î 121
Parking brake 122
Manual gearbox 122
Gear shift indicator 123
Hill start assist 124
Automatic gearbox 125
Stop & Start 128
Speed limiter 131
Cruise control 133
Parking sensors 135 „
„
„
„
„
„
„
„
„
DRIVING 122 Î 136
Bonnet 138
Running out of fuel (Diesel) 139
Petrol engines 140
Diesel engines 141
Checking levels 142
Checks 144 „
„
„
„
„
„
CHECKS 137 Î 145
Temporary puncture repair kit 146
Changing a wheel 151
Changing a bulb 155
Changing a fuse 160
Battery 166
Energy economy mode 168
Changing a wiper blade 169
Towing the vehicle 169
Towing a trailer 171
Very cold climate screen 172
Accessories 172 „
„
„
„
„
„
„
„
„
„
„
PRACTICAL
INFORMATION 146 Î 173
Petrol engines 174
Weights (petrol) 175
Diesel engines 176
Weights (Diesel) 177
Dimensions 178
Identifi cation markings 179 „
„
„
„
„
„
TECHNICAL
DATA 174 Î 180
AUDIO EQUIPMENT
and TELEMATICS 181 Î 278
VISUAL SEARCH 279 Î 282
ALPHABETICAL
INDEX 283 Î 287
Emergency or assistance 181
Peugeot Connect Media 185
Peugeot Connect Navigation 229
Peugeot Connect Sound 261 „
„
„
„
7
89
1011
Page 12 of 292
10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Steering wheel adjustment control.
2.
Cruise control/speed limiter
switches.
3.
Lighting and direction indicator
control stalk.
4.
Central adjustable air vents.
5.
Multifunction screen.
6.
Sunshine sensor.
7.
Passenger’s airbag.
8.
Glove box/Audio/video sockets/
Fusebox.
9.
Bonnet release.
10.
Retractable roof control.
Control for all four windows.
11 .
Storage compartment or instrument
panel navigator associated with the
Peugeot Connect Media.
12.
"AIRWAVE" system controls.
13.
Front armrest.
14.
Front ashtray.
15.
Heating/air conditioning controls.
16.
Audio and telematics system.
17.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.
Page 55 of 292
3
53
COMFORT

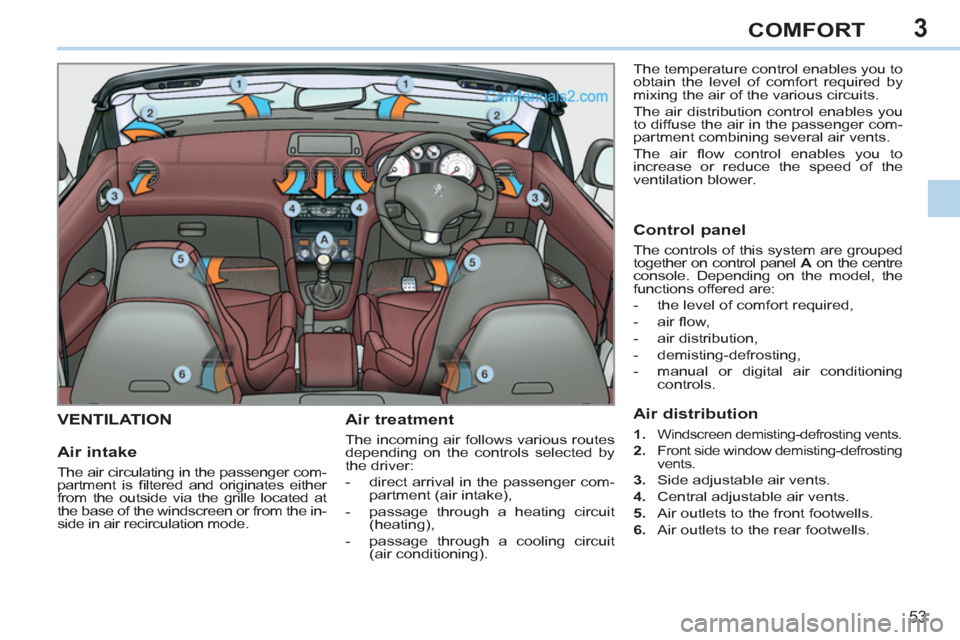

VENTILATION
Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit
(heating),
- passage through a cooling circuit
(air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the in-
side in air recirculation mode.
Control panel
The controls of this system are grouped
together on control panel A
on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- air fl ow,
- air distribution,
- demisting-defrosting,
- manual or digital air conditioning
controls.
Air distribution
1.
Windscreen demisting-defrosting vents.
2.
Front side window demisting-defrosting
vents.
3.
Side adjustable air vents.
4.
Central adjustable air vents.
5.
Air outlets to the front footwells.
6.
Air outlets to the rear footwells.
Page 98 of 292
6
96
FITTINGS
LOCKABLE, COOLED GLOVE
BOX
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.
)
To open the glove box, raise the
handle.
It is illuminated when the lid is opened.
The glove box is fi tted with an air vent A
,
which can be opened or closed. This dis-
tributes the same cooled air as the vents
in the passenger compartment.
The glove box also gives access to the
dashboard fusebox (refer to the section
"Practical information - § Changing a
fuse").
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped with
an illuminated courtesy mirror.
)
With the ignition on, raise the concealing
fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.
Page 142 of 292
9
140
CHECKS
PETROL ENGINES
The various caps and covers allow access
for checking the levels of the various fl uids
and for replacing certain components.
1.
Power steering reservoir.
2.
Screenwash and headlamp wash
reservoir.
3.
Coolant reservoir.
4.
Brake fl uid reservoir.
5.
Battery/Fuses.
6.
Fusebox.
7.
Air fi lter.
8.
Engine oil dipstick.
9.
Engine oil fi ller cap.
Page 143 of 292
9
141
CHECKS
DIESEL ENGINES
The various caps and covers allow ac-
cess for checking the levels of the various
fl uids, for replacing certain components
and for priming the fuel system.
1.
Power steering reservoir.
2.
Screenwash and headlamp wash
reservoir.
3.
Coolant reservoir.
4.
Brake fl uid reservoir.
5.
Battery/Fuses.
6.
Fusebox.
7.
Air fi lter.
8.
Engine oil dipstick.
9.
Engine oil fi ller cap.
10.
Priming pump * .
11 .
Bleed screw * .
* According to engine.
Page 162 of 292
10
!
i
160
PRACTICAL INFORMATION
PEUGEOT will not accept responsibility
for the cost incurred in repairing your ve-
hicle or for rectifying malfunctions result-
ing from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accord-
ance with its instructions, in particular
when the combined consumption of all
of the additional equipment connected
exceeds 10 milliamperes.
Installing electrical accessories
Your vehicle’s electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT deal-
er or a qualifi ed workshop.

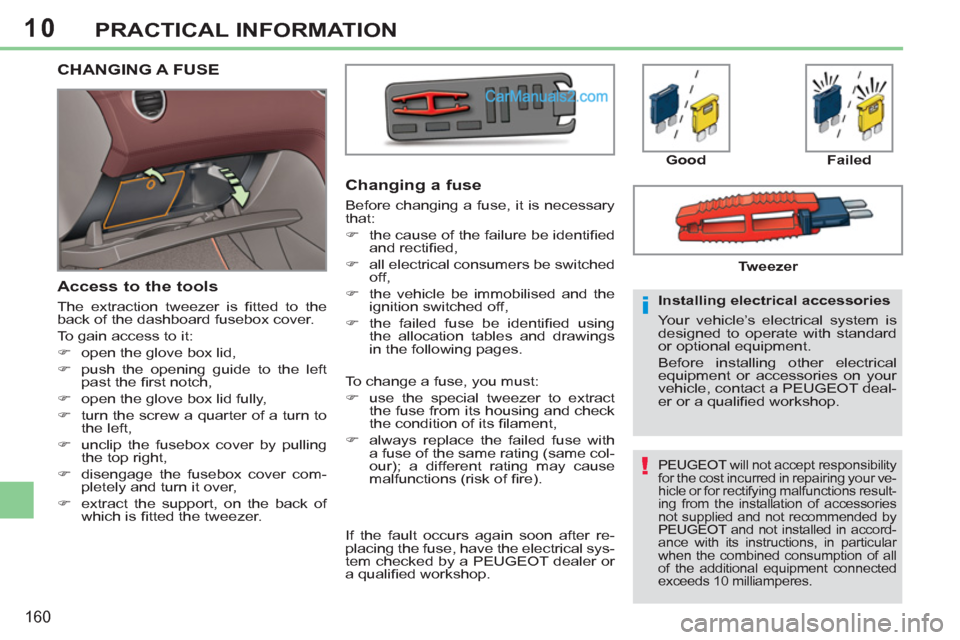

CHANGING A FUSE
Access to the tools
The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to it:
)
open the glove box lid,
)
push the opening guide to the left
past the fi rst notch,
)
open the glove box lid fully,
)
turn the screw a quarter of a turn to
the left,
)
unclip the fusebox cover by pulling
the top right,
)
disengage the fusebox cover com-
pletely and turn it over,
)
extract the support, on the back of
which is fi tted the tweezer.
Changing a fuse
Before changing a fuse, it is necessary
that:
)
the cause of the failure be identifi ed
and rectifi ed,
)
all electrical consumers be switched
off,
)
the vehicle be immobilised and the
ignition switched off,
)
the failed fuse be identifi ed using
the allocation tables and drawings
in the following pages.
Good
Failed
Tweezer
To change a fuse, you must:
)
use the special tweezer to extract
the fuse from its housing and check
the condition of its fi lament,
)
always replace the failed fuse with
a fuse of the same rating (same col-
our); a different rating may cause
malfunctions (risk of fi re).
If the fault occurs again soon after re-
placing the fuse, have the electrical sys-
tem checked by a PEUGEOT dealer or
a qualifi ed workshop.
Page 163 of 292
10
161
PRACTICAL INFORMATION
Dashboard fuses
The fusebox is located in the lower left
of the dashboard.
Access to the fuses
)
refer to the paragraph "Access to
the tools".
Fuse tables
Fuse N°
Rating
Functions
F1
-
Not used.
F2
30 A
Locking and deadlocking earth.
F3
5 A
Airbags and pretensioners control unit.
F4
10 A
Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.
F5
30 A
Front one-touch electric windows, folding mirrors
supply.
F6
30 A
Rear one-touch electric windows, exterior door
opening controls.
F7
5 A
Front and rear courtesy lamps, map reading lamps,
sun visor lighting, glove box lighting.
F8
20 A
Audio equipment, audio/telephone, multifunction screen, tyre
under-infl ation detection, interior storage compartments.
F9
30 A
Front 12 V socket, cigarette lighter.
F10
15 A
Steering mounted controls, alarm siren,
alarm control unit.
F11
15 A
Low current ignition switch.
