10
162

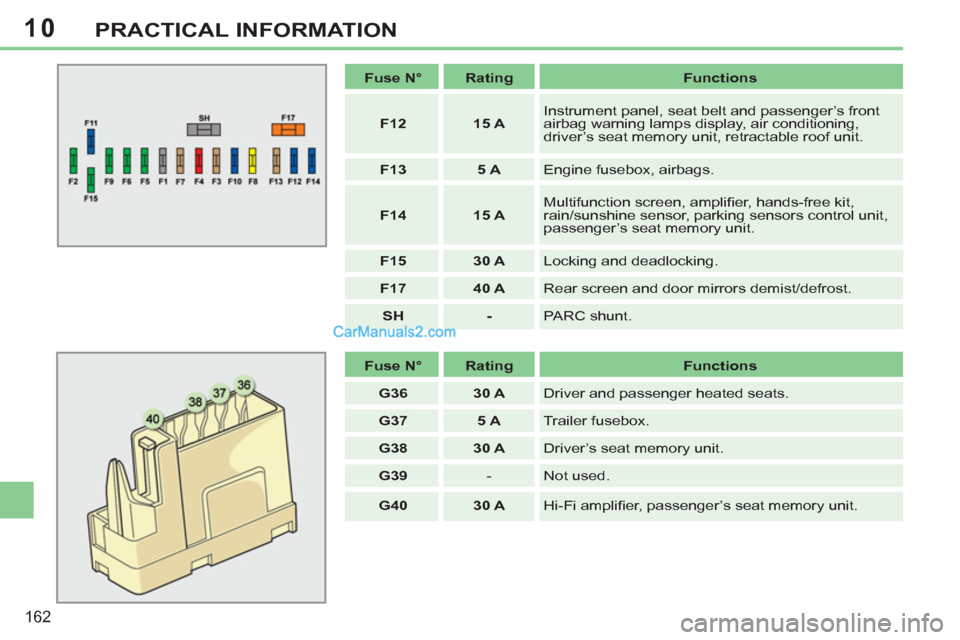

PRACTICAL INFORMATION


Fuse N°



Rating



Functions




F12



15 A

Instrument panel, seat belt and passenger’s front
airbag warning lamps display, air conditioning,
driver’s seat memory unit, retractable roof unit.


F13



5 A

Engine fusebox, airbags.


F14



15 A

Multifunction screen, amplifi er, hands-free kit,
rain/sunshine sensor, parking sensors control unit,
passenger’s seat memory unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.


Fuse N°



Rating



Functions




G36



30 A

Driver and passenger heated seats.


G37



5 A

Trailer fusebox.


G38



30 A

Driver’s seat memory unit.


G39


- Not used.


G40



30 A

Hi-Fi amplifi er, passenger’s seat memory unit.

10
i
i
171

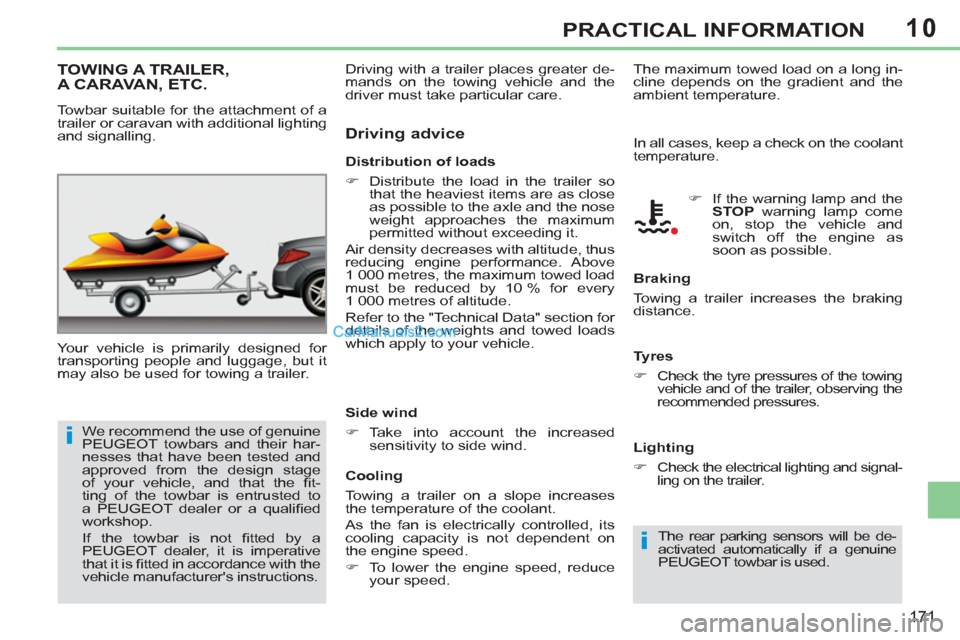

PRACTICAL INFORMATION





TOWING A TRAILER,
A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.

Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

Driving advice

We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to
a PEUGEOT dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted in accordance with the
vehicle manufacturer's instructions. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
In all cases, keep a check on the coolant
temperature.

Braking
Towing a trailer increases the braking
distance.

Tyres


)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.


Lighting


)
Check the electrical lighting and signal-
ling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.

10
i
!
172

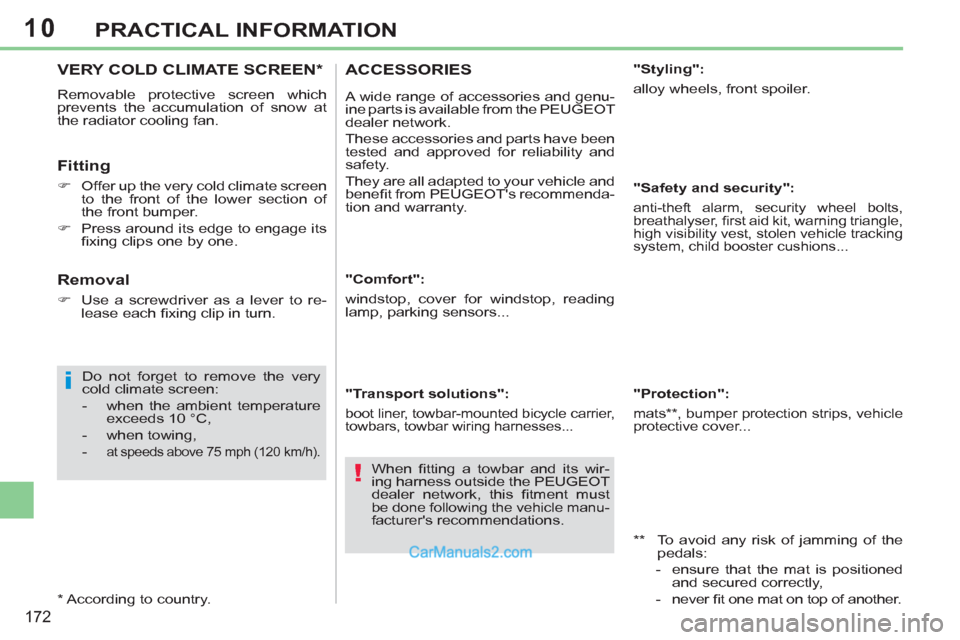

PRACTICAL INFORMATION








VERY COLD CLIMATE SCREEN *

Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.

Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.

Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,

-
at speeds above 75 mph (120 km/h).



* According to country.


Removal



)
Use a screwdriver as a lever to re-
lease each fi xing clip in turn.

"Comfort":
windstop, cover for windstop, reading
lamp, parking sensors...

"Transport solutions":

boot liner, towbar-mounted bicycle carrier,
towbars, towbar wiring harnesses...





ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
"Styling":
alloy wheels, front spoiler.

"Safety and security":

anti-theft alarm, security wheel bolts,
breathalyser, fi rst aid kit, warning triangle,
high visibility vest, stolen vehicle tracking
system, child booster cushions...


** To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.

"Protection":

mats ** , bumper protection strips, vehicle
protective cover...

When fi tting a towbar and its wir-
ing harness outside the PEUGEOT
dealer network, this fi tment must
be done following the vehicle manu-
facturer's recommendations.

279
VISUAL SEARCH
EXTERIOR


Boot ...................................... 80, 82
Temporary tyre repair kit ....146-150
Changing a wheel ..............151-154


- tools

- removing/refi tting


Changing bulbs..................158-159


- rear lamps

- 3rd brake lamp

- number plate lamps

Parking sensors .................135-136
Towbar ...................................... 171
Towing ...............................169-170
Remote control key................70-74


- opening/closing

- unlocking/partial opening of the
boot

- anti-theft protection

- starting

- battery


Accessories .......................172-173
Retractable roof .........................6-7

Fuel tank ................................83-84
Door mirrors ...........................67-68
Side spotlamps ................... 89, 157

Doors .....................................79-81


- opening/closing

- central locking

- emergency locking
Alarm .....................................75-76
Electric windows ....................77-78
Lighting controls ....................85-89
Directional lighting ...................... 90
Headlamp height adjustment ....89-90
Changing bulbs..................155-157


- front lamps

- foglamps

- direction indicator repeaters



Braking assistance ................... 104
Trajectory control ...................... 105
Tyre under-inflation detection .... 103
Tyre pressures .................. 150, 179

284

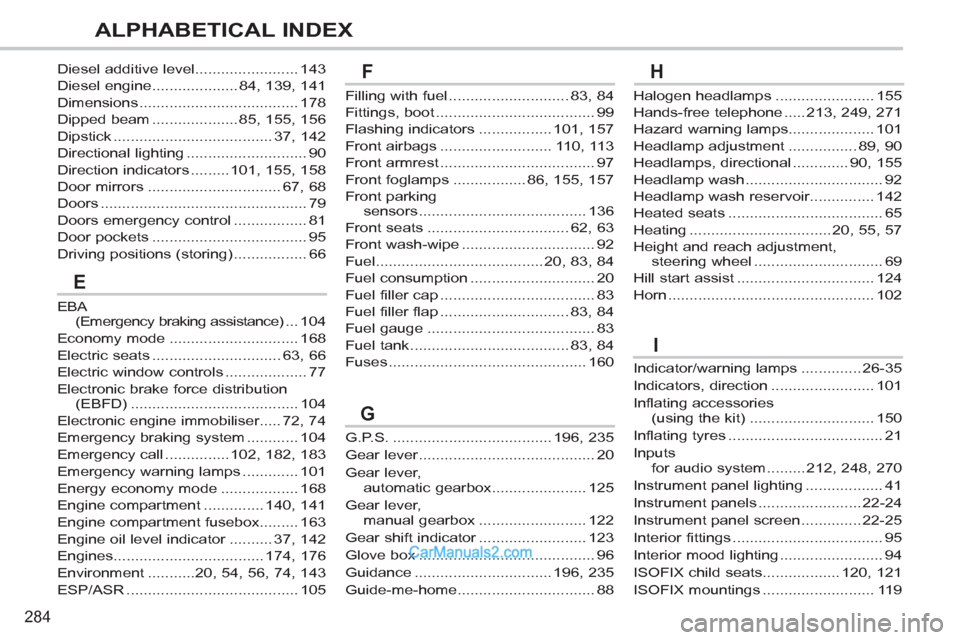

ALPHABETICAL INDEX
Halogen headlamps ....................... 155
Hands-free telephone ..... 213, 249, 271
Hazard warning lamps.................... 101
Headlamp adjustment ................ 89, 90
Headlamps, directional ............. 90, 155
Headlamp wash ................................ 92
Headlamp wash reservoir............... 142
Heated seats .................................... 65
Heating ................................. 20, 55, 57
Height and reach adjustment,
steering wheel .............................. 69
Hill start assist ................................ 124
Horn ................................................ 102 Diesel additive level........................ 143
Diesel engine .................... 84, 139, 141
Dimensions ..................................... 178
Dipped beam .................... 85, 155, 156
Dipstick ..................................... 37, 142
Directional lighting ............................ 90
Direction indicators ......... 101, 155, 158
Door mirrors ............................... 67, 68
Doors ................................................ 79
Doors emergency control ................. 81
Door pockets .................................... 95
Driving positions (storing) ................. 66
EBA
(Emergency braking assistance) ... 104
Economy mode .............................. 168
Electric seats .............................. 63, 66
Electric window controls ................... 77
Electronic brake force distribution
(EBFD) ....................................... 104
Electronic engine immobiliser..... 72, 74
Emergency braking system ............ 104
Emergency call ............... 102, 182, 183
Emergency warning lamps ............. 101
Energy economy mode .................. 168
Engine compartment .............. 140, 141
Engine compartment fusebox......... 163
Engine oil level indicator .......... 37, 142
Engines................................... 174, 176
Environment ...........20, 54, 56, 74, 143
ESP/ASR ........................................ 105G.P.S. ..................................... 196, 235
Gear lever ......................................... 20
Gear lever,
automatic gearbox ...................... 125
Gear lever,
manual gearbox ......................... 122
Gear shift indicator ......................... 123
Glove box ......................................... 96
Guidance ................................ 196, 235
Guide-me-home................................ 88
E
F
G
H
I
Filling with fuel ............................ 83, 84
Fittings, boot ..................................... 99
Flashing indicators ................. 101, 157
Front airbags .......................... 110, 113
Front armrest .................................... 97
Front foglamps ................. 86, 155, 157
Front parking
sensors ....................................... 136
Front seats ................................. 62, 63
Front wash-wipe ............................... 92
Fuel....................................... 20, 83, 84
Fuel consumption ............................. 20
Fuel filler cap .................................... 83
Fuel filler flap .............................. 83, 84
Fuel gauge ....................................... 83
Fuel tank ..................................... 83, 84
Fuses .............................................. 160
Indicator/warning lamps .............. 26-35
Indicators, direction ........................ 101
Inflating accessories
(using the kit) ............................. 150
Inflating tyres .................................... 21
Inputs
for audio system ......... 212, 248, 270
Instrument panel lighting .................. 41
Instrument panels ........................ 22-24
Instrument panel screen .............. 22-25
Interior fittings ................................... 95
Interior mood lighting ........................ 94
ISOFIX child seats.................. 120, 121
ISOFIX mountings .......................... 119

286
ALPHABETICAL INDEX
SIM card ......................................... 216
Snow chains ................................... 179
Spare wheel ................................... 151
Speed limiter .................................. 131
Speedometer ............................... 22-24
Stability control (ESP) .................... 105
Starting the vehicle ................... 72, 125
Steering mounted controls ... 190, 231, 263
Stopping the vehicle ................. 72, 125
Stop & Start ......................... 52, 57, 83,
128, 138, 144, 166
Storage ....................................... 95, 97
Storage box .............................. 98, 100
Storage compartments ..................... 95
Storage net ....................................... 99
Storing the driving positions ............. 66
Stowing rings .................................... 99
Sun visor .......................................... 96
Synchronising the remote control ..... 73
Systems, ASR and ESP ................. 105 Satellite navigation system ..... 196, 235
Screen,
colour 16/9 .........191, 219, 232, 253
Screen, monochrome C ................... 50
Screen, multifunction (with audio
equipment) .................42, 45, 47, 49
Screen-wash reservoir ................... 143
Screen menu map .......... 219, 253, 274
Screenwash fluid level.............. 92, 143
Seat adjustment ......................... 62, 63
Seat belts ............................... 107, 109
Serial number, vehicle .................... 179
Service indicator ............................... 38
Servicing ........................................... 20
Setting the clock ............. 218, 252, 273
Short-cut menus ............. 192, 233, 234
Sidelamps ...................85, 87, 155, 158
Side repeater .................................. 157
Side spotlamps ......................... 89, 157Table of weights...................... 175, 177
Tables of engines ................... 174, 176
Tables of fuses ............................... 160
Tank, fuel .......................................... 84
Technical data ......................... 174-179
Telephone ...............182, 183, 213, 249
Temperature control
for heated seats ........................... 65
Temporary tyre repair kit ........ 100, 146
Third brake lamp ............................ 158 Resetting the service indicator ......... 39
Resetting the trip recorder ................ 40
Retractable colour screen .... 45, 47, 49
Retractable roof .......................... 6, 100
Rev counter ................................. 22-24
Reversing lamps ............................. 158
Roll-over bars ........................... 66, 106
Routine checks ....................... 144, 145
Routine maintenance ....................... 20
Running out of fuel (Diesel)............ 139
R
S
T
Radio .............................. 207, 245, 265
Rear armrest .................................... 66
Rear foglamps .......................... 86, 158
Rear head restraints ......................... 66
Rear lamps ..................................... 158
Rear parking sensors ..................... 135
Rear screen (demisting) ................... 56
Rear seats ................................ 66, 106
Rear view mirror ............................... 69
Recharging the battery ................... 167
Reduction of electrical load ............ 168
Refitting a wheel ............................. 154
Reinitialising partial opening
of the windows ............................. 78
Reinitialising the electric windows .... 78
Reinitialising the remote control ....... 73
Remote control ............................ 70-74
Removable screen (snow shield) ... 172
Removing a wheel .......................... 153
Removing the mat ............................ 98
Repair kit, puncture ................ 100, 146
Replacing bulbs ....................... 155-159
Replacing fuses ....................... 160-165
Replacing the air filter .................... 144
Replacing the oil filter ..................... 144
Replacing the particle
emission filter ............................. 144
Replacing the passenger
compartment filter ...................... 144
Replacing wiper blades ............ 93, 169
