2011 Peugeot 3008 Hybrid 4 ECO mode

136

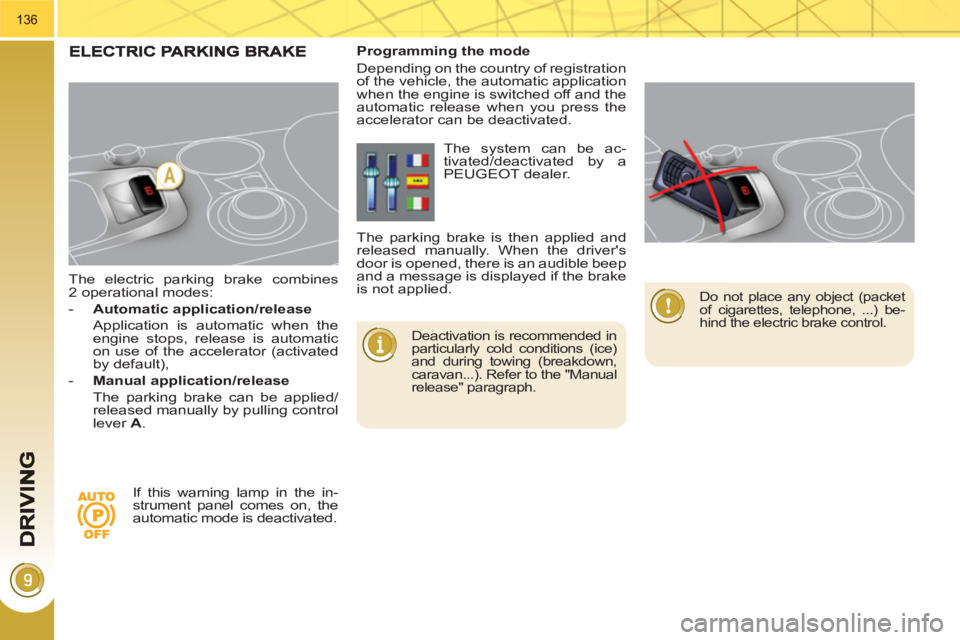

The electric parking brake combines
2 operational modes:


- Automatic application/release

Application is automatic when the
engine stops, release is automatic
on use of the accelerator (activated
by default),

- Manual application/release

The parking brake can be applied/
released manually by pulling control
lever A
.


Deactivation is recommended in
particularly cold conditions (ice)
and during towing (breakdown,
caravan...). Refer to the "Manual
release" paragraph.



Programming the mode
Depending on the country of registration
of the vehicle, the automatic application
when the engine is switched off and the
automatic release when you press the
accelerator can be deactivated.
If this warning lamp in the in-
strument panel comes on, the
automatic mode is deactivated. The system can be ac-
tivated/deactivated by a
PEUGEOT dealer.
The parking brake is then applied and
released manually. When the driver's
door is opened, there is an audible beep
and a message is displayed if the brake
is not applied.


Do not place any object (packet
of cigarettes, telephone, ...) be-
hind the electric brake control.

147

On a steep descent or in the
event of sharp acceleration,
the speed limiter will not be
able to prevent the vehicle from ex-
ceeding the programmed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- do not fi t one mat on top of an-
other.

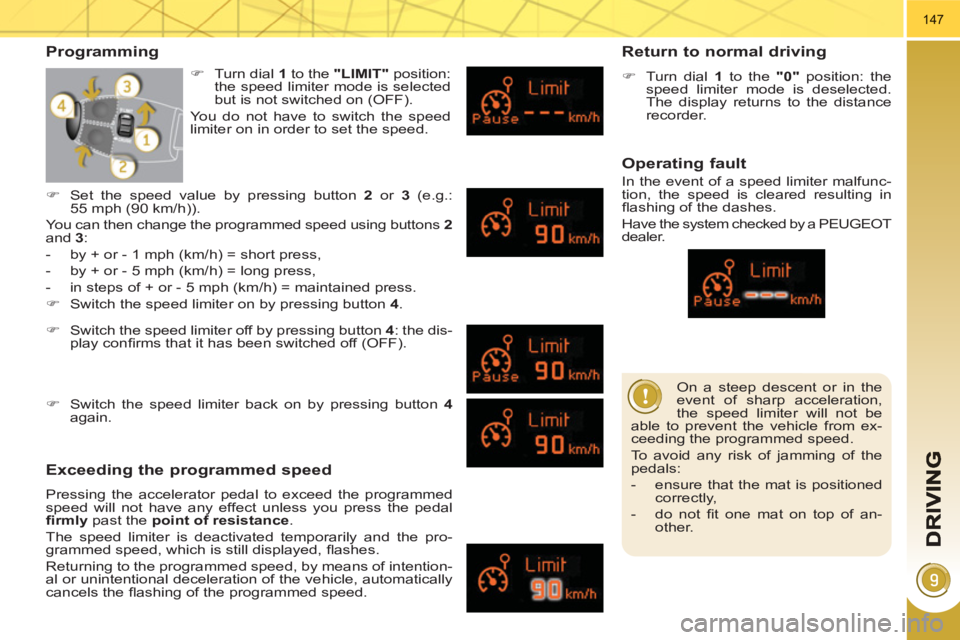

Programming
Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the programmed speed.
Return to normal driving



)
Turn dial 1
to the "0"
position: the
speed limiter mode is deselected.
The display returns to the distance
recorder.

Operating fault

In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have the system checked by a PEUGEOT
dealer.

)
Switch the speed limiter off by pressing button 4
: the dis-
play confi rms that it has been switched off (OFF).

)
Switch the speed limiter back on by pressing button 4

again.


)
Set the speed value by pressing button 2
or 3
(e.g.:
55 mph (90 km/h)).
You can then change the programmed speed using buttons 2

and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.


)
Switch the speed limiter on by pressing button 4
.

)
Turn dial 1
to the "LIMIT"
position:
the speed limiter mode is selected
but is not switched on (OFF).
You do not have to switch the speed
limiter on in order to set the speed.

148

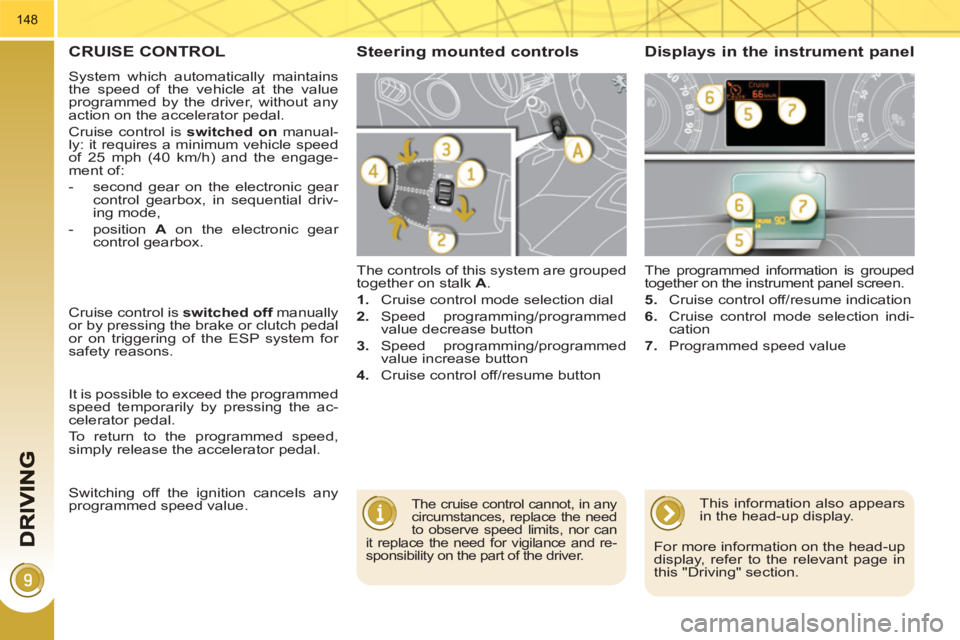

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
Cruise control is switched on
manual-
ly: it requires a minimum vehicle speed
of 25 mph (40 km/h) and the engage-
ment of:


- second gear on the electronic gear
control gearbox, in sequential driv-
ing mode,

- position A
on the electronic gear
control gearbox.
The controls of this system are grouped
together on stalk A
.


1.
Cruise control mode selection dial

2.
Speed programming/programmed
value decrease button

3.
Speed programming/programmed
value increase button

4.
Cruise control off/resume button The programmed information is grouped
together on the instrument panel screen.

5.
Cruise control off/resume indication

6.
Cruise control mode selection indi-
cation

7.
Programmed speed value
Steering mounted controls Displays in the instrument panel

The cruise control cannot, in any
circumstances, replace the need
to observe speed limits, nor can
it replace the need for vigilance and re-
sponsibility on the part of the driver.

Cruise control is switched off
manually
or by pressing the brake or clutch pedal
or on triggering of the ESP system for
safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.





This information also appears
in the head-up display.
For more information on the head-up
display, refer to the relevant page in
this "Driving" section.

149
When the cruise control is
switched on, be careful if you
maintain the pressure on one
of the programmed speed changing
buttons: this may result in a very rapid
change in the speed of your vehicle.
Do not use the cruise control on slip-
pery roads or in heavy traffi c.
On a steep descent, the cruise con-
trol will not be able to prevent the
vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- never fi t one mat on top of another.

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed in the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-
cels the fl ashing of the speed.
Return to normal driving



)
Turn dial 1
to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.

Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer.

)
Set the programmed speed by ac-
celerating to the required speed,
then press button 2
or 3
(e.g.:
70 mph (110 km/h)).


)
Switch off the cruise control by pressing button 4
: the
display confi rms that it has been switched off (OFF).

)
Switch the cruise control back on by pressing button 4

again.

You can then change the programmed speed using buttons 2

and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.

)
Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(OFF).

PRACTICAL INFORMATION
186
Let the engine run for the
duration specifi ed to ensure
that the battery charge is suf-
fi cient.
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl at battery prevents the engine
from starting (refer to the "Battery"
paragraph). If the telephone is being used
at this time:


- it will be maintained for 5 min-
utes with the hands-free kit of
your Peugeot Connect Sound,
Peugeot Connect Nav,

- it will still be possible to fi nish the
call with the Peugeot Connect
Media.



Exiting economy mode

These functions are reactivated auto-
matically next time the vehicle is driven.


)
In order to resume the use of these
functions immediately, start the en-
gine and let it run:


- for less than ten minutes, to use
the equipment for approximately
fi ve minutes,

- for more than ten minutes, to use
the equipment for up to approxi-
mately thirty minutes.

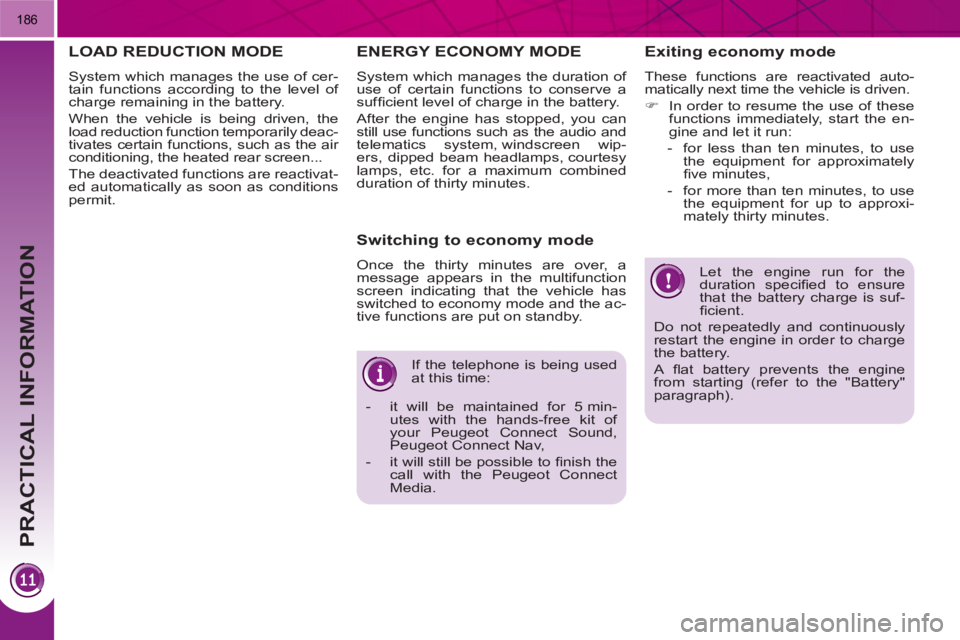

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.

Switching to economy mode

Once the thirty minutes are over, a
message appears in the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.

203
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

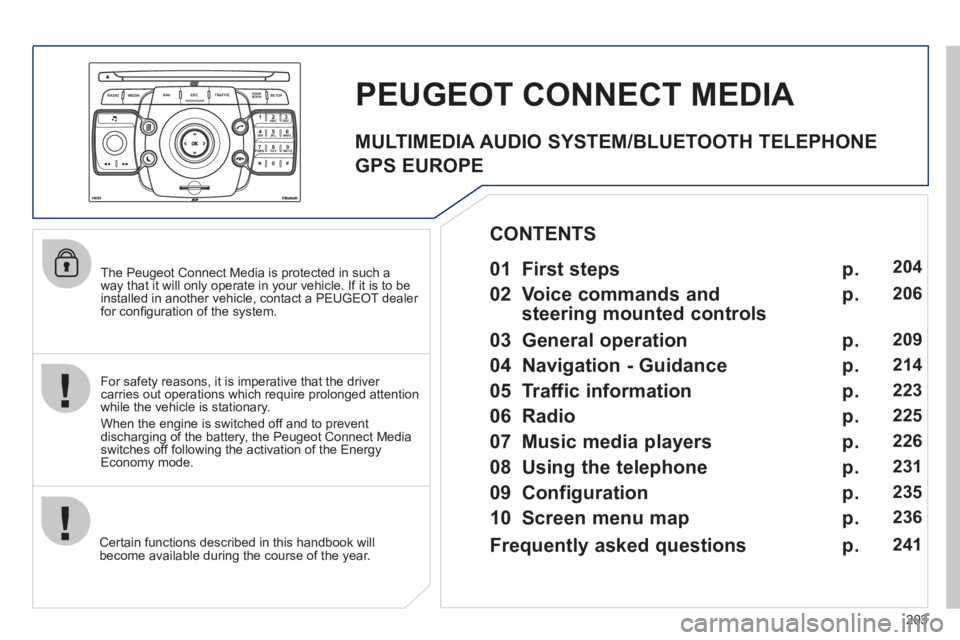

The Peugeot Connect Media is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.

Certain functions described in this handbook will
become available during the course of the year.

PEUGEOT CONNECT MEDIA


For safety reasons, it is imperative that the driver carries out operations which require prolonged attention
while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the Peugeot Connect Mediaswitches off following the activation of the Energy Economy mode.


01 First steps

02 Voice commands and
steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Using the telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 204
206
209
214
223
225
226
231
235
2
36

CONTENTS

Frequently asked questions p.
241


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE

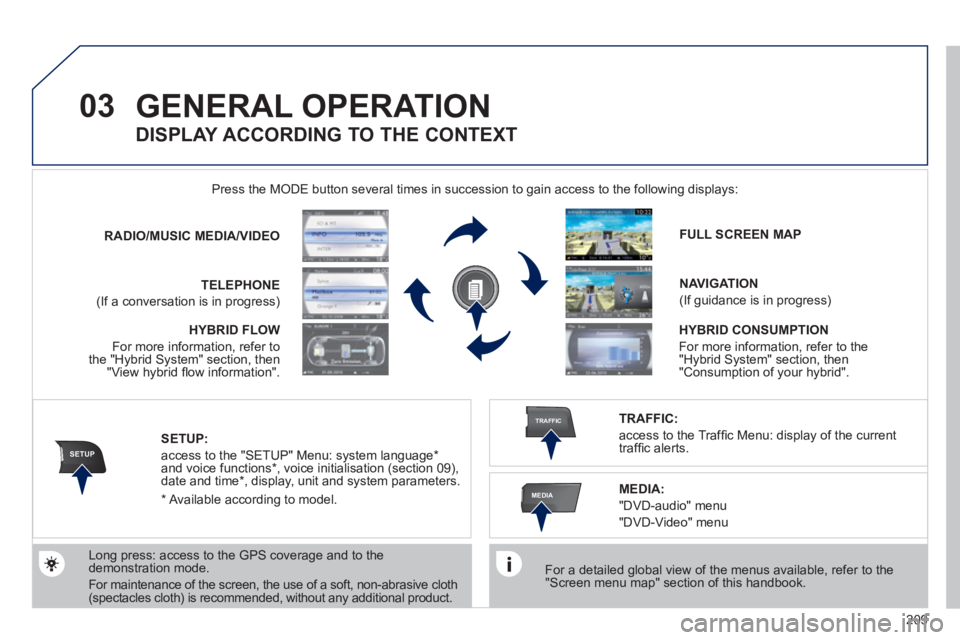

209
03
SETUP
TRAFFIC
MEDIA
GENERAL OPERATION

For a detailed global view of the menus available, refer to the "Screen menu map" section of this handbook.
Press the M
ODE button several times in succession to gain access to the following displays:


Long press: access to the GPS coverage and to the demonstration mode.

For maintenance of the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any additional product. RADIO
/MUSIC MEDIA/VIDEO
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION
(If guidance is in progress)
SETUP:
access to the "SETUP" Menu: system language *

and voice functions * , voice initialisation (section 09),
date and time * , display, unit and system parameters.
TRAFFIC:
access to the Traffi c Menu: display of the current
traffi c alerts.










DISPLAY ACCORDING TO THE CONTEXT
MEDIA:
"DVD-audio" menu
"DVD-Video" menu

*
Available according to model. HYBRID FLO
W
For more information, refer to
the "Hybrid System" section, then"View hybrid fl ow information".
HYBRID CONSUMPTION
For more information, refer to the
"Hybrid System" section, then"Consumption of your hybrid".

225
06
11
2
NAV ESC TRAFFICRADIOMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
RADIO
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

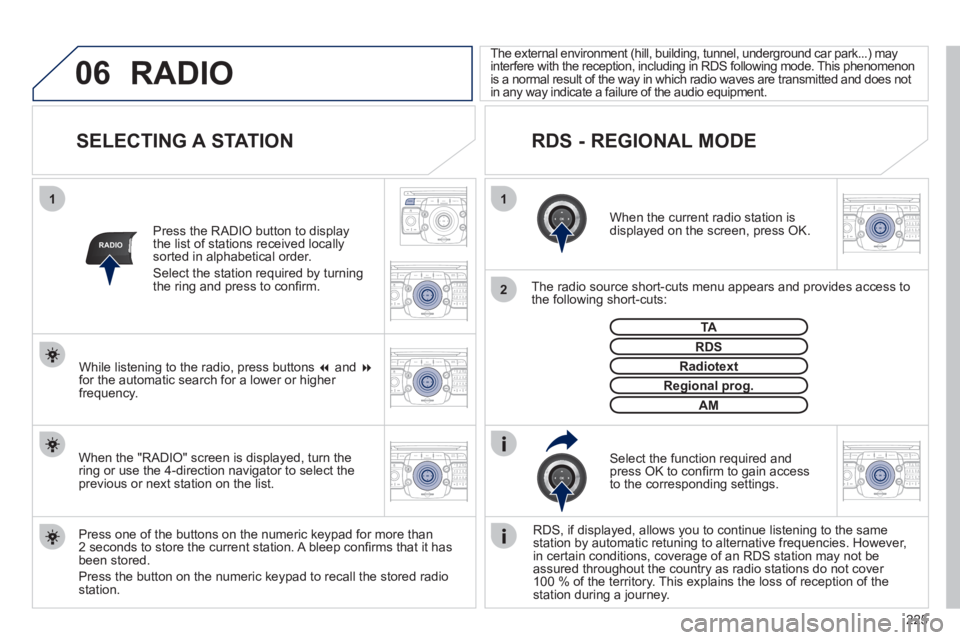

SELECTING A STATION


When the current radio station isdisplayed on the screen, press OK.

The radio source short-cuts menu a
ppears and provides access to
the following short-cuts:

Select the function required and press OK to confi rm to gain access
to the corresponding settings.
TA

RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the station during a journey.
The external environment
(hill, building, tunnel, underground car park...) mayinterfere with the reception, including in RDS following mode. This phenomenon
is a normal result of the way in which radio waves are transmitted and does not
in any way indicate a failure of the audio equipment.

RDS - REGIONAL MODE
Regional prog.gpg
Radiotext
RDS
Press the RADIO button to display
the list of stations received locally sorted in alphabetical order.
Select the station required by turningthe ring and press to confi rm.
Press one o
f the buttons on the numeric keypad for more than2 seconds to store the current station. A bleep confi rms that it has been stored.
Press the button on the numeric ke
ypad to recall the stored radiostation.

AM

RADIO
When the "RADIO" screen is displayed, turn thering or use the 4-direction navigator to select the previous or next station on the list. While listenin
g to the radio, press buttons  and for the automatic search for a lower or higher
frequency.
