CHECKS
157

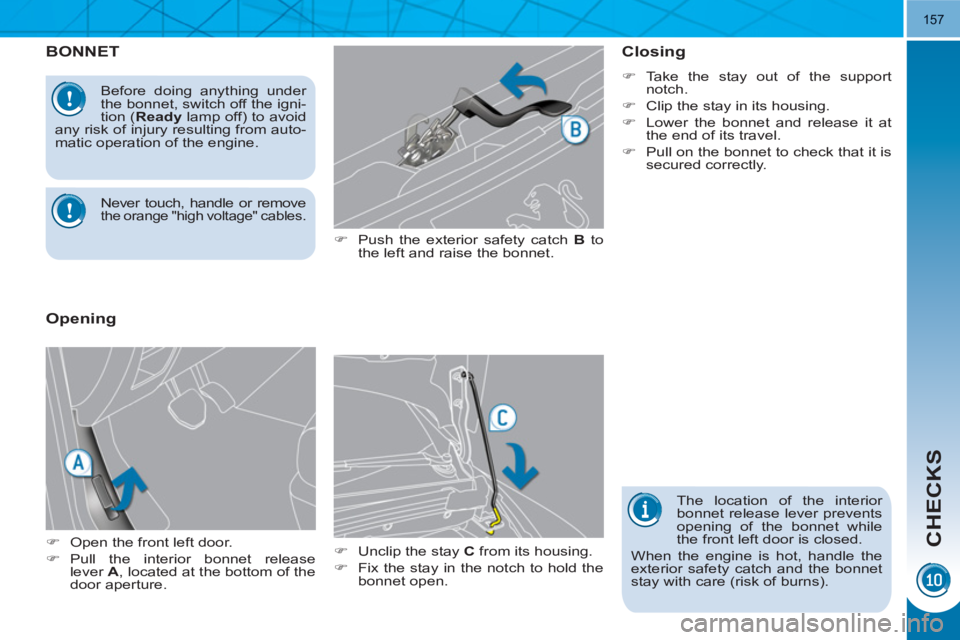

BONNET

)
Push the exterior safety catch B
to
the left and raise the bonnet.

)
Unclip the stay C
from its housing.

)
Fix the stay in the notch to hold the
bonnet open.


Closing



)
Take the stay out of the support
notch.

)
Clip the stay in its housing.

)
Lower the bonnet and release it at
the end of its travel.

)
Pull on the bonnet to check that it is
secured correctly.



Opening

The location of the interior
bonnet release lever prevents
opening of the bonnet while
the front left door is closed.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).





Before doing anything under
the bonnet, switch off the igni-
tion ( Ready
lamp off) to avoid
any risk of injury resulting from auto-
matic operation of the engine.


)
Open the front left door.

)
Pull the interior bonnet release
lever A
, located at the bottom of the
door aperture.





Never touch, handle or remove
the orange "high voltage" cables.

CHECKS
158
RUNNING OUT OF FUEL(DIESEL)
The fuel system must be primed if you
run out of fuel; refer to the engine com-
partment view on the "Diesel engine"
page.
If the engine does not start fi rst time,
don't keep trying.
Operate the priming pump again, then
the starter motor.

2 litre Turbo HDI engine



)
Fill the fuel tank with at least fi ve
litres of Diesel.

)
Open the bonnet.

)
Unclip the style cover for access to
the priming pump.

)
Slacken the bleed screw.

)
Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe with the
green connector.

)
Retighten the bleed screw.

)
Operate the starter until the engine
starts.

)
Put the style cover back in position
and clip it in place.

)
Close the bonnet.






Before doing anything under
the bonnet, switch off the igni-
tion ( Ready
lamp off) to avoid
any risk of injury resulting from auto-
matic operation of the motor.

CHECKS
160
CHECKING LEVELS

Brake fluid level

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may oper-
ate after the vehicle has been switched
off, even if the engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Oil level

The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or us-
ing the dipstick. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.


Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.

Screenwash and headlamp
wash fluid

In the case of vehicles fi tted
with headlamp washers, the
minimum level of this fl uid is
indicated by an audible signal
and a message on the multi-
function screen.
Top up the level when you stop the ve-
hicle.
Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations.


Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.

Changing the coolant
The coolant does not have to be
changed.

Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.



Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the
fan. This can operate with the ignition off.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

When working under the bon-
net, take care, as certain areas
of the engine may be extreme-
ly hot (risk of burns).





Before doing anything under
the bonnet, switch off the igni-
tion ( Ready
lamp off) to avoid
any risk of injury resulting from auto-
matic operation of the motor.
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer.

CHECKS
161
Avoid prolonged contact of
used oil or fl uids with the skin.

Most of these fl uids are
harmful to health or indeed
very corrosive.
Do not discard used oil or
fl uids into sewers or onto the
ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.










Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by illumi-
nation of the service warning lamp, ac-
companied by an audible warning and a
message in the multifunction screen.








Used products
CHECKS

12 V battery

The battery does not require
any maintenance.

However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.


Air filter

Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment (e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary

(refer to the "Engines" paragraph).


Oil filter

Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.

Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record.
Otherwise, have them checked by a
PEUGEOT dealer.





Before doing anything under
the bonnet, switch off the igni-
tion ( Ready
lamp off) to avoid
any risk of injury resulting from auto-
matic operation of the motor.

PRACTICAL INFORMATION
183
12 V BATTERY
Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.
Your vehicle is fi tted with a conventional
12 V battery, located under the bonnet,
in addition to the high voltage battery
used by the hybrid system.
In certain conditions, if the 12 V battery
is too discharged to activate the hybrid
system, recharging from another con-
ventional 12 V battery is possible.
Do not carry out this recharge if the
Ready
lamp is on.


Access to the battery

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain ac-
cess to the two terminals,

)
unclip the fusebox to remove the
battery, if necessary.





Disconnecting the cables



)
Raise the locking tab fully.



Reconnecting the cables



)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the po-
sitioning lug and then lowering the
tab 2
.
Do not force the tab as locking
will not be possible if the clip is
not positioned correctly; start
the procedure again.
Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the motor.

TECHNICAL DATA
197
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracing of your vehicle.

If the infl ation pressures are
too low, this increases fuel
consumption.

The infl ation pressures must
be checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number
(VIN) under the bonnet.


This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number (VIN)
on the windscreen lower cross-
member.


This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.


The VIN is indicated on a self-
destroying label affi xed to the door
aperture, on the right-hand side.
D.
Tyre/paint label.


This label is affi xed to the door
aperture, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

ALPHABETICAL INDEX
266
Accessories ........................191, 192
Accessories socket,
12 volt ...................... 106, 108, 114
Adjustable boot fl oor ................... 114
Adjusting headlamps ....................99
Adjusting head restraints ..............74
Adjusting seat belt height ...........129
Adjusting the steering wheel.........78
Air conditioning (digital) ..........68, 69
Air fi lter .......................................161
Air vents........................................67
Alarm ............................................86
Anti-pinch.............................. 88, 112
Anti-theft steering lock ..................83
Armrest .......................................106
Assistance call ....................200, 201
Audible warning ..........................126
Audio/video sockets....................230
Audio streaming
(Bluetooth) ...............................258
Audio systems ....................203, 247
Automatic illumination
of headlamps .......................96, 99
Automatic operation of hazard
warning lamps .........................126
Automatic rain sensitive
windscreen wipers ...........100, 102
Auxiliary sockets .................230, 256Bluetooth (telephone) .........231, 257
Bonnet ........................................157
Bonnet stay.................................157
Boot lamp ...................................105
Boot lid..........................................92
Brake discs .................................162
Brake lamps................................174
Brake pads .................................162
Brakes ........................................162
Capacity, fuel tank ........................94
CD MP3 ..............................227, 253
Central locking ........................82, 91
Changing a bulb ................. 172-175
Changing a fuse ................. 176-182
Changing a wheel ............... 169-171
Changing a wiper blade ......102, 187
Changing the date ..............235, 259
Changing the remote
control battery ............................84
Changing the time ..............235, 259
Checking levels ..................160, 161
Checking the engine oil level ........56
Checking tyre pressures
(using the kit) ...........................168
Checks................................ 157-162
Child lock ....................................125
Children .......117-125, 131, 133, 135
Child seats ................................. 117
Child seats, conventional.... 118, 120
Child seats, Isofi x ...............123, 124
Closing the boot................82, 92, 93
Closing the doors....................82, 90
Cold climate screen ....................190
Connectors,
audio ....... 107, 108, 230, 254, 256Control for panoramic
sunroof blind ............................ 112
Control stalk, wipers ........... 100-102
Coolant level .........................53, 160
Coolant temperature .....................53
Coolant temperature indicator ......53
Courtesy lamps...........................103
Courtesy mirror ...........................107
Cruise control .............................148
Cup holder ..................................106
Curtain airbags ...................134, 135
A
C
Battery ......................... 39, 161, 183
Battery, remote control ...........84, 85
Battery recharge .........................184
Blind for panoramic sunroof........ 112
Blinds .......................................... 116
Bluetooth (hands-free) ........231, 257
B
Dashboard fusebox ....................177
Date (display) .....................235, 259
Daytime running lamps .........98, 172
Deactivating ESP ........................128
Deactivating
the passenger airbag ...............133
Deadlocking ..................................82
Defrosting .....................................68
Dials and gauges ..........................43
Diesel............................................95
Diesel additive level ....................161
Diesel engine ................ 36, 95, 158,
159, 194, 195
Dimensions .................................196
Dipped beam ........................96, 172
Dipstick .................................56, 160
Direction indicators .... 126, 173, 174
Door mirrors ..................................79
Doors ............................................90
Doors emergency control .............92
Door POCKETS..........................106
Dynamic emergency braking ......139
D

ALPHABETICAL INDEX
268
Main beam ....................................96
Manufacturer's
identifi cation plates ..................197
Map reading lamps .....................103
Markings, identifi cation ...............197
Mat..............................................109
Menu, main .................................250
Mini fuel level ..........................51, 94
Misfuel prevention ........................95
Monochrome screen ...........250, 261
Motorway function
(direction indicators) ................126
Mountings for ISOFIX seats .......122
MP3 CD ..............................227, 253
Multifunction screen (with
audio equipment) ...........58, 61, 63
Music media players ...........226, 254Paint colour code ........................197
Panoramic sunroof ..................... 112
Parking brake .....................136, 162
Particle emission fi lter.........161, 162
Passenger compartment fi lter.....161
PEUGEOT call button .........200, 201
Peugeot Connect Assistance ...200, 201
Peugeot Connect Media ........44, 61,
64, 203-245
Peugeot Connect SOS .......200, 201
Peugeot Connect
Sound ........................ 58, 247-265
PEUGEOT services ............200, 201
PIN code .....................................233
M
P
Oil fi lter .......................................161
Oil level .................................56, 160
Opening the bonnet ....................157
Opening the boot ..............81, 92, 93
Opening the doors ..................81, 90
Opening the panoramic
sunroof blind ............................ 112
Opening the retractable screen ....63
Opening the tailgate .........81, 92, 93
Operation
indicator lamps .................... 45-52
O
Player, CD MP3 ..................227, 253
Priming the fuel system ..............158
Protecting
children .....117-125, 131, 133, 135
Puncture .....................................163 Level, brake fl uid ........................160
Level, headlamp wash ........101, 160
Level, power steering fl uid ..........160
Levels and checks .............. 160-162
Lighting, guide-me home ........98, 99
Lighting, interior ..................103, 104
Lighting bulbs
(replacement) .................. 172-175
Lighting DIMMER .........................57
Lighting stalk.................................96
Loading .......................................190
Load reduction mode ..................186
Locating your vehicle ....................82
Locking from the inside.................91
Long objects, transporting .... 75, 111Navigation...................................214
Number plate lamps ...................175
N
Radio ..................................225, 251
Rear armrest............................... 111
Rear foglamps ............. 97, 174, 175
Rear head restraints .....................76
Rear multimedia ......................... 110
Rear parcel shelf ........................ 115
Rear parking sensors .................154
Rear reading lamps ....................103
Rear screen (demisting) ...............68
Rear seats ....................................76
Rear view mirror ...........................80
Rear wash-wipe ..........................101
Rear wiper ..................................101
Recharging the battery ...............184
Reduction of electrical load ........186
Refi tting a wheel .........................171
Reinitialising
the electric windows ..................89
Reinitialising
the remote control ......................84
Remote control ....................... 81-85
Removable screen
(snow shield) ...........................190
Removing a wheel ......................170
Removing the mat ......................109
Repair kit, puncture ....................163
Replacing bulbs .................. 172-175
Replacing fuses .................. 176-182
Replacing the air fi lter .................161
Replacing the oil fi lter .................161
Replacing the particle
emission fi lter ...........................162
R
