2
CONTENTS
Instrument panels 19Indicator and warning lamps 20Indicators 28Adjustment buttons 32Screens without audio system 33Screens with audio system 3516/9 colour screen(Peugeot Connect Navigation) 40Trip computer 42
„ „ „ „ „ „ „
„
Ventilation 45Heating 47Manual air conditioning 47Rear screen demist - defrost 49Digital air conditioning 50Front seats 52Rear seats 54Mirrors 57Steering wheel adjustment 59Interior fi ttings 59
„ „ „ „ „ „ „ „ „ „
COMFORT 45 Î67
Remote control key 68Window controls 72Rear quarter windows 73Doors 74
Boot 76Panoramic sunroof 78Fuel tank 79Misfuel prevention 81
„ „ „ „ „ „ „ „
ACCESS 68 Î81
Lighting control stalk 82Headlamp adjustment 85Wiper control stalk 86Courtesy lamps 89
„ „ „ „
VISIBILITY 82 Î 89
Child seats 90Isofi x child seats 96Child lock 100
„ „ „
CHILD
SAFETY 90 Î 100 FAMILIARISATION 4
Î 16
INSTRUMENTS and
CONTROLS 19 Î445
4
3
2
1
ECO-DRIVING 17 Î18

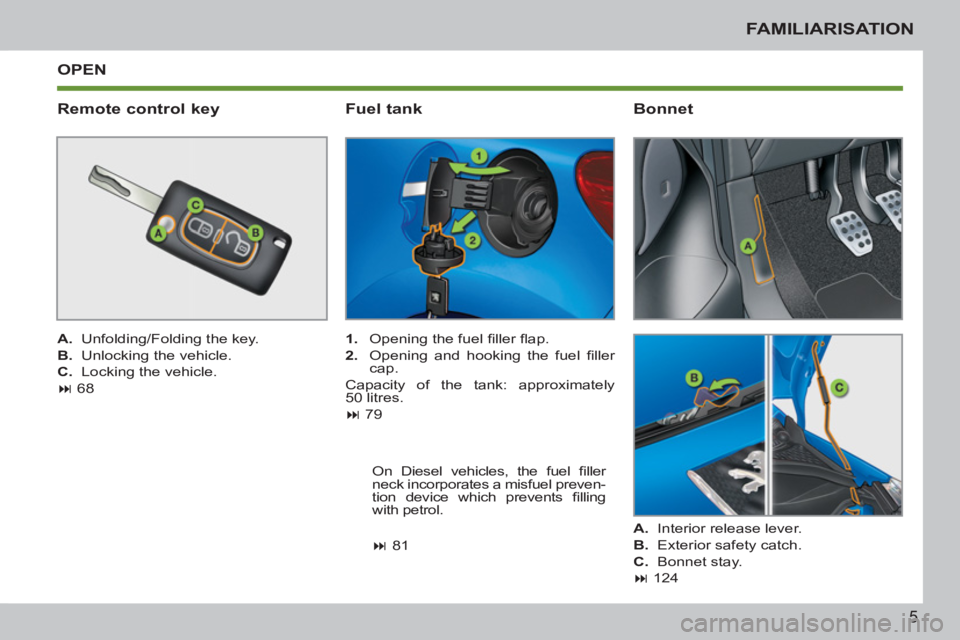

Page 7 of 248
5
FAMILIARISATION
OPEN
Remote control key
A.
Unfolding/Folding the key.
B.
Unlocking the vehicle.
C.
Locking the vehicle.
68
Fuel tank
1.
Opening the fuel fi ller fl ap.
2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
50 litres.
79
Bonnet
A.
Interior release lever.
B.
Exterior safety catch.
C.
Bonnet stay.
124
On Diesel vehicles, the fuel fi ller
neck incorporates a misfuel preven-
tion device which prevents fi lling
with petrol.
81
Page 25 of 248
1
!
INSTRUMENTS and CONTROLS
23
Warning lamps
When the engine is running or the
vehicle is being driven, the illumination
of one of the following warning lamps
indicates a fault which requires action
on the part of the driver. Any fault resulting in the illumination of a warning lamp must be investigated
further by reading the associated message in the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer
or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fi xed, alone
or associated
with another
warning lamp,
accompanied
by an audible
signal and a
message on
the screen. Illumination of the warning
lamp is associated with a
serious braking system or
engine coolant temperature
problem. Stop as soon as it is safe to do so as the engine
may cut out when driving.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualifi ed workshop.
Service
temporarily. Minor problems have
occurred for which there is
no specifi c warning lamp. Identify the problem by reading the message
shown in the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § particle
emissions fi lter").
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.
fi xed. Major problems have
occurred for which there is
no specifi c warning lamp. Identify the problem by reading the message
shown in the screen and contact a PEUGEOT
dealer or a qualifi ed workshop.
Page 59 of 248
2
!
i
COMFORT
57
MIRRORS
Door mirrors
Adjustable mirror providing the lateral
rearward vision necessary for overtak-
ing or parking.
Folding
)
from outside: lock the vehicle using
the remote control or the key.
)
from inside: with the ignition on, pull
switch A
rearwards.
Manual model
Adjustment
)
Move the lever in all four directions
to adjust the mirror.
The folding and unfolding of the
door mirrors can be deactivated
by a PEUGEOT dealer or a quali-
fi ed workshop.
Folding
)
When parked, fold the mirror manu-
ally to protect it.
Unfolding
)
Before starting, unfold the mirror.
Electric model
Adjustment
)
Slide switch A
to the right or to the left
to select the corresponding mirror.
)
Move knob B
in all four directions to
adjust.
)
Return switch A
to the centre position.
Unfolding
)
from outside: unlock the vehicle us-
ing the remote control or the key.
)
from inside: with the ignition on, pull
switch A
rearwards.
The objects observed are, in reality,
closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.
Page 70 of 248
3
i
ACCESS
68
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft.
Unfolding the key
)
First press button A
to unfold the
key.
Unlocking the vehicle
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Locking the vehicle
)
Press the open padlock to
unlock the vehicle.
Unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Normal locking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking using the remote control
)
Press the closed padlock
to lock the vehicle.
)
Press the closed padlock
for more than two seconds
to close the windows auto-
matically in addition to lock-
ing (with sequential electric
windows).
If one of the doors or the boot is
still open, the central locking does
not take place.
Normal locking using the remote
control
Page 72 of 248
3
i
ACCESS
70
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release the
key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition
on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
)
press the closed padlock, the cour-
tesy lights come on and the direction
indicators fl ash for a few seconds.
Key in ignition
If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.
Page 73 of 248
3
!
ACCESS
71
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.
Page 76 of 248
3ACCESS
74
DOORS
)
After unlocking the vehicle using the
remote control or the key, pull the
door handle.
From inside
)
Pull the front door control to open
the door; this unlocks the vehicle
completely.
)
Pull the rear door control to open
the door; this unlocks the door con-
cerned only.
Closing
If a door is not closed correctly:
- when the engine is running,
this warning lamp comes
on, accompanied by a mes-
sage in the multifunction
screen for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
in the multifunction screen for a few
seconds.
Opening
From outside
