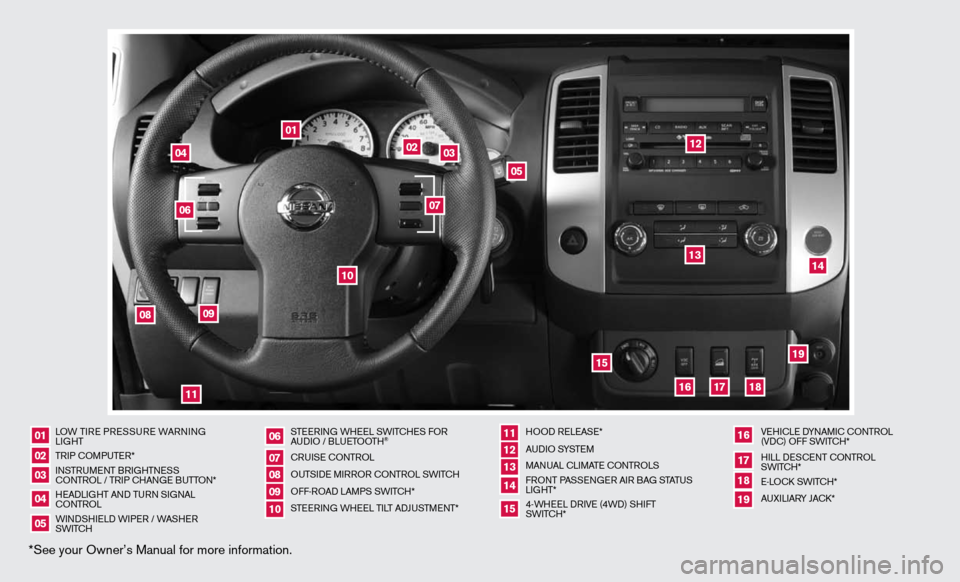

2011 NISSAN XTERRA climate control

*See your Owner’s Manual for more information.
LOW TiRe PR eSS uRe WAR ninG
Li GHT
TR iP c OMP uTeR*
in STRuMen T BRiGHTneSS
c O nTROL / TR iP c HAn Ge B uTTO n*
H eAd LiGHT And Tu Rn S iG nAL
cOn TROL
W ind SHieL d W iPeR / WASHeR
SWi TcH STee
Rin G WH eeL SW iTc HeS fOR
A udi O / BLueTOOTH
®
cR uiSe cOn TROL
Ou TSide MiRROR cOnTROL SWi TcH
O ff -ROA d LAMPS SW iT c H*
STee Rin G WH eeL Ti LT Ad Ju STM enT* HOO
d ReLeAS e*
A udi O SYSTe M
MAnu AL cLiMATe c OnTROLS
f RO nT PASS enGeR Ai R BAG STATu S
Li GHT*
4-WH eeL d RiVe (4Wd) SH ifT
SW iTc H* Ve
Hic Le d YnAM ic cOnTROL
(Vdc) O ff SWiTc H*
H iLL de ScenT c OnTROL
SW iTc H*
e-LO ck SW iTc H*
A u XiLiARY JA ck*
0102030405
0607080910
1112131415
16171819
01
02
03
05
1213
14
15
16
17
18
19
07
08
09
11
10
0604

This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand
the important safety warnings, features, operation and maintenance of your
vehicle. All information, specifications, photographs and illustrations in this
publication are those in effect at the time of printing. niSSA n reserves the
right to change specifications or design without notice and without obligation.
TABLe O f cOnTenTS
Additional information about your vehicle is also available in your
Owner’s Manual, electronic Quick Reference Guide ( eQRG) and at
www.nissanusa.com.
Ess Ential i nformation
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
Tire Pressure Monitoring System (TPMS) ...........................2
first DrivE fEatur Es
Remote k eyless entry System .................................... 3
Seat Adjustments .............................................. 3
Outside Mirror control Switch .................................... 3
Starting/Stopping the engine ..................................... 4
Headlight control Switch ........................................ 4
Windshield Wiper Switch ........................................ 5
climate controls ............................................... 5
f M/AM/XM
® Radio with cd changer (if so equipped) ................6
Parking Brake .................................................. 6
Liftgate Release ................................................ 7
fuel-filler door ................................................. 7
s ystE m Gui DE
cruise control ................................................. 8
Bluetooth
® Hands-free Phone System (if so equipped) ................8
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secured
in child restraints or seat belts according to their age and weight.
• Do not drink and drive.
for more information, refer to the “ safety –– seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.

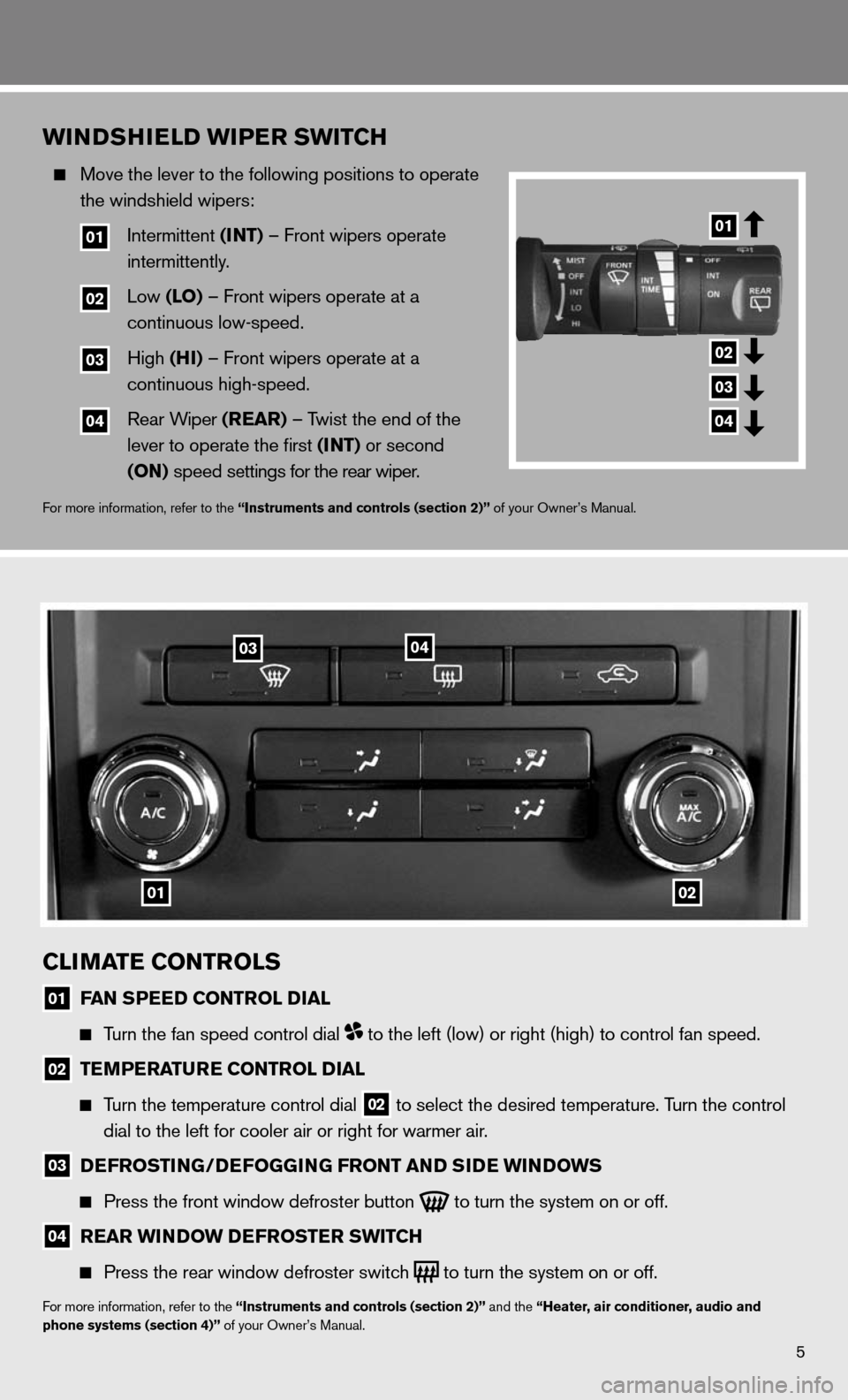

WinDsH iE lD Wi PEr sWit CH
Move the lever to the following positions to operate
the windshield wipers:

01 intermittent (int) – front wipers operate
intermittently.

02 Low (lo) – front wipers operate at a
continuous low-speed.

03 High (H i) – front wipers operate at a
continuous high-speed.

04 Rear Wiper (r Ear) – Twist the end of the
lever to operate the first (int) or second
(on) speed settings for the rear wiper.
for more information, refer to the “instruments and controls (section 2)” of your Owner’s Manual.
ClimatE Controls
01 fan s
PEED Control D ial

Turn the fan speed control dial to the left (low) or right (high) to control fan speed.
02 tE
mPE ratur E Control D ial

Turn the temperature control dial
02 to select the desired temperature. Turn the control
dial to the left for cooler air or right for warmer air.
03 DE
frostin G/DEfoGG inG front an D siDE Win Do Ws

Press the front window defroster button
to turn the system on or off.

04 r
Ear Win Do W DE frostE r sWitCH

Press the rear window defroster switch
to turn the system on or off.
f
or more information, refer to the “instruments and controls (section 2)” and the “Heater, air conditioner, audio and
phone systems (section 4)” of your Owner’s Manual.
0102
0304
01
02
03
04
5
