2011 NISSAN XTERRA stop start

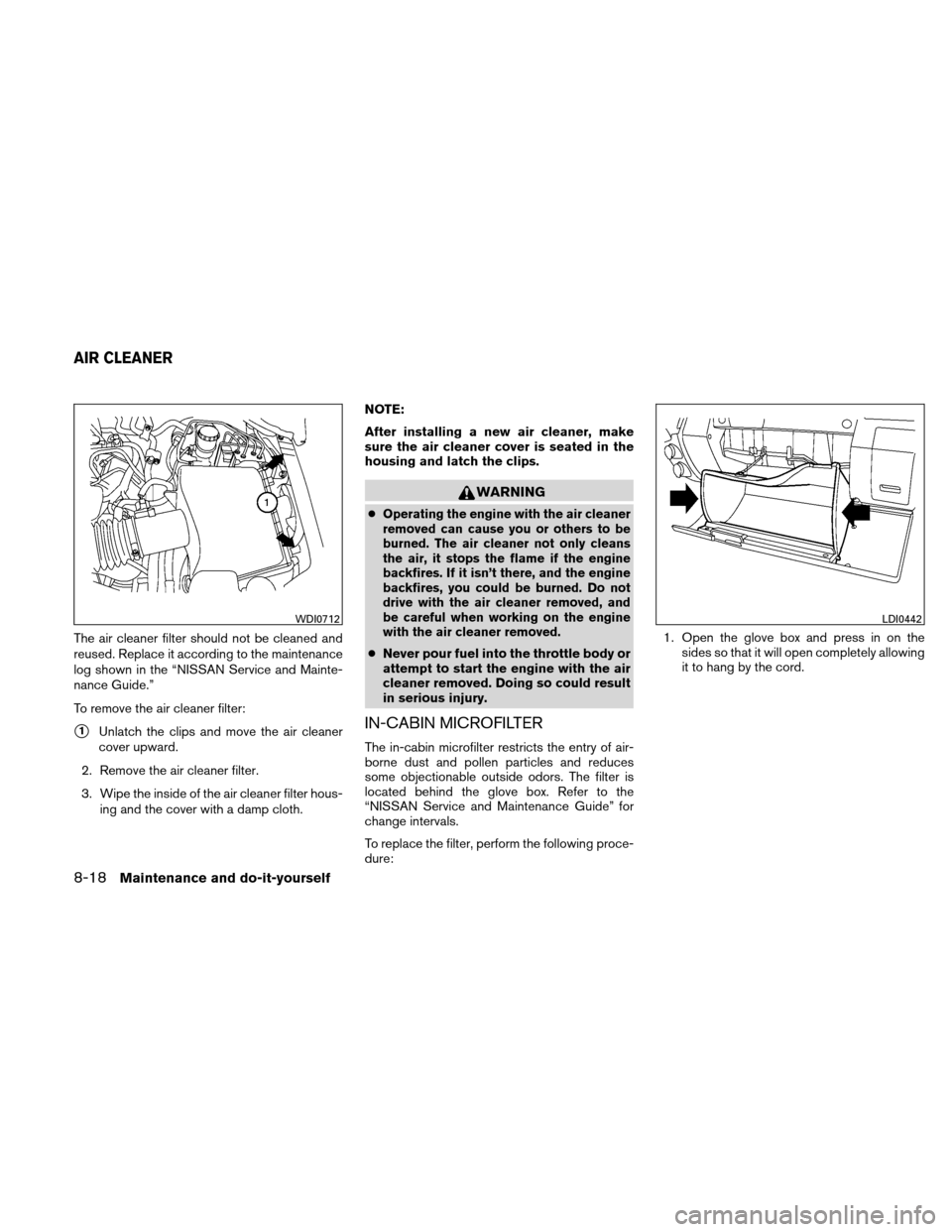

The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “NISSAN Service and Mainte-
nance Guide.”
To remove the air cleaner filter:
1Unlatch the clips and move the air cleaner
cover upward.
2. Remove the air cleaner filter.
3. Wipe the inside of the air cleaner filter hous- ing and the cover with a damp cloth. NOTE:
After installing a new air cleaner, make
sure the air cleaner cover is seated in the
housing and latch the clips.
WARNING
●Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans
the air, it stops the flame if the engine
backfires. If it isn’t there, and the engine
backfires, you could be burned. Do not
drive with the air cleaner removed, and
be careful when working on the engine
with the air cleaner removed.
●
Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry of air-
borne dust and pollen particles and reduces
some objectionable outside odors. The filter is
located behind the glove box. Refer to the
“NISSAN Service and Maintenance Guide” for
change intervals.
To replace the filter, perform the following proce-
dure: 1. Open the glove box and press in on the
sides so that it will open completely allowing
it to hang by the cord.
WDI0712LDI0442
AIR CLEANER
8-18Maintenance and do-it-yourself

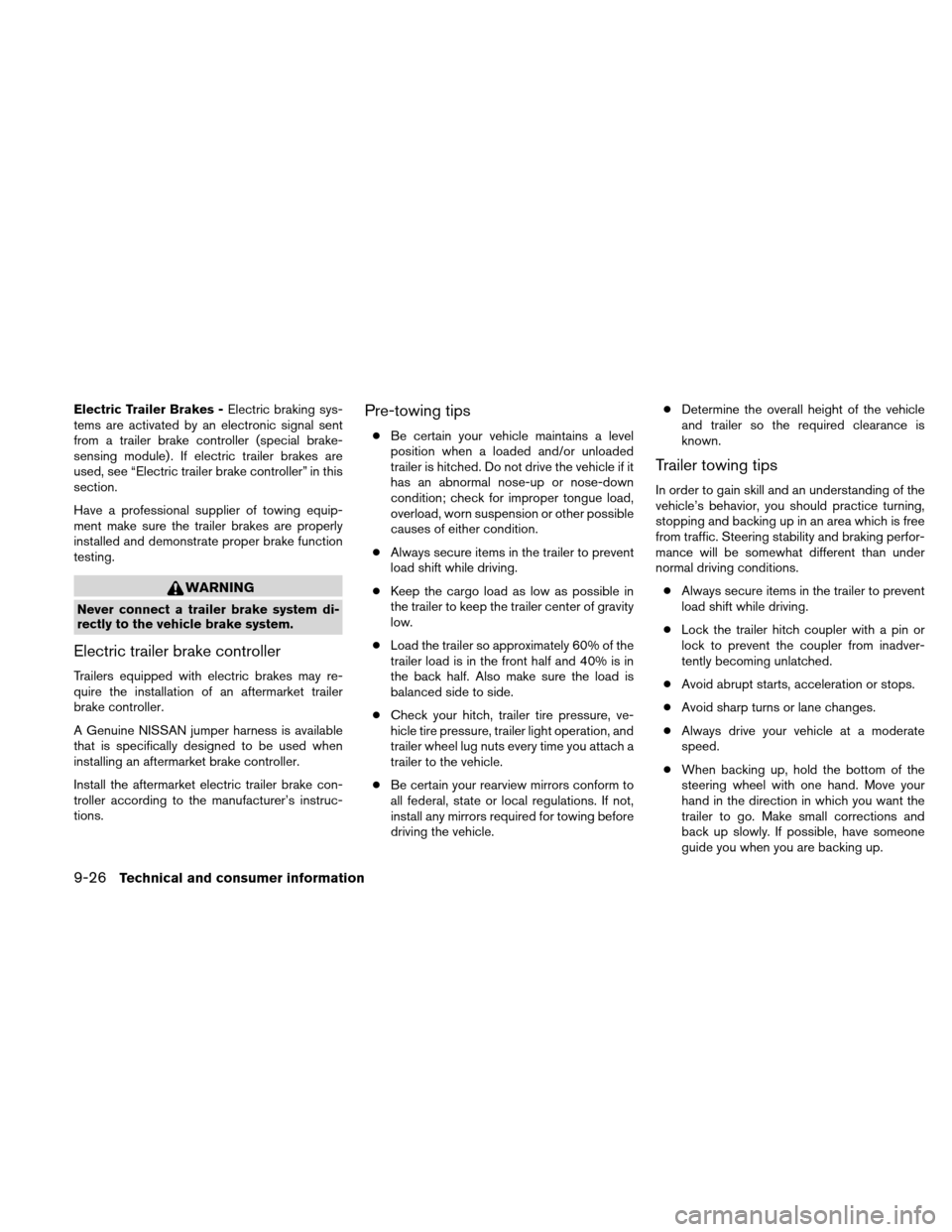

Electric Trailer Brakes -Electric braking sys-
tems are activated by an electronic signal sent
from a trailer brake controller (special brake-
sensing module) . If electric trailer brakes are
used, see “Electric trailer brake controller” in this
section.
Have a professional supplier of towing equip-
ment make sure the trailer brakes are properly
installed and demonstrate proper brake function
testing.
WARNING
Never connect a trailer brake system di-
rectly to the vehicle brake system.
Electric trailer brake controller
Trailers equipped with electric brakes may re-
quire the installation of an aftermarket trailer
brake controller.
A Genuine NISSAN jumper harness is available
that is specifically designed to be used when
installing an aftermarket brake controller.
Install the aftermarket electric trailer brake con-
troller according to the manufacturer’s instruc-
tions.
Pre-towing tips
● Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.
● Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle. ●
Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
9-26Technical and consumer information

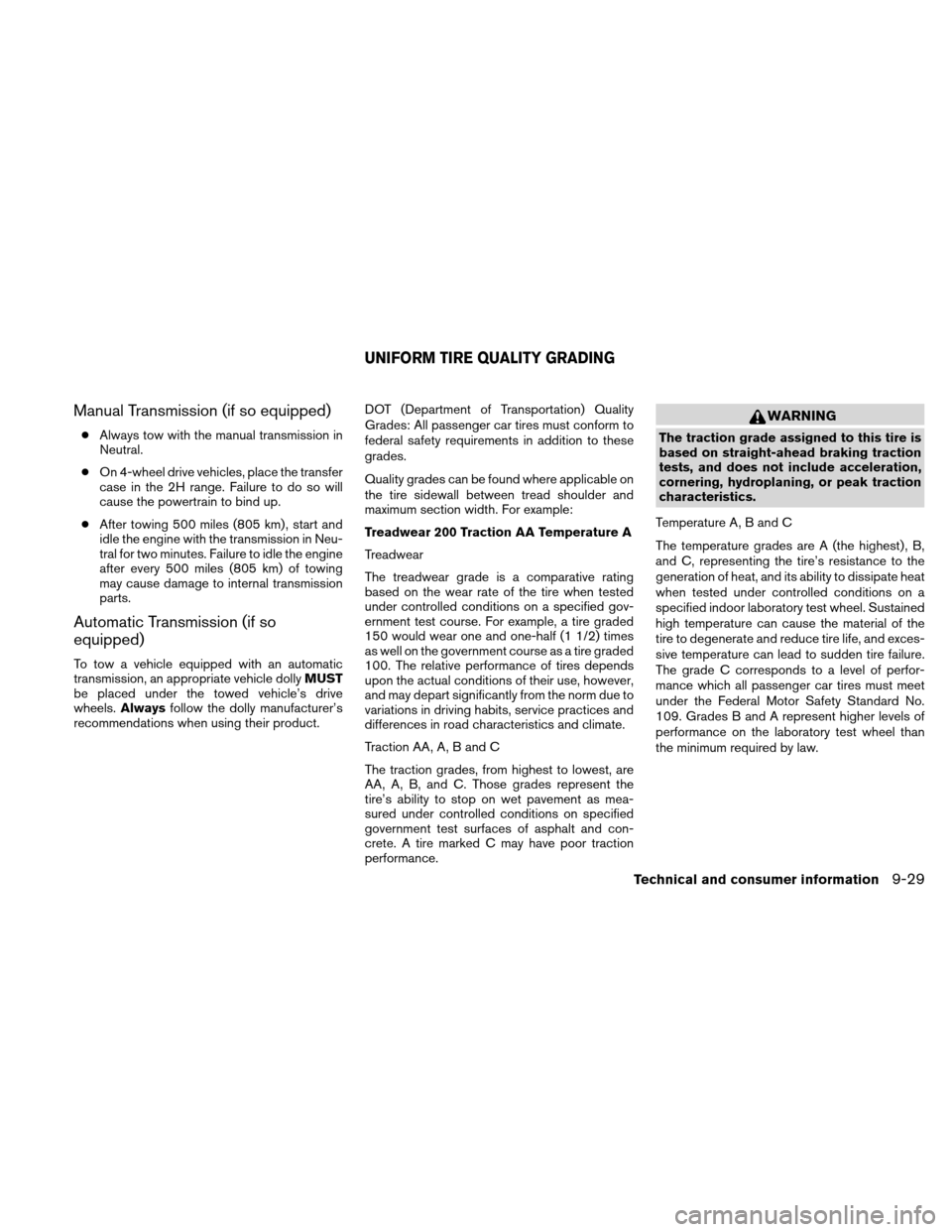

Manual Transmission (if so equipped)
●Always tow with the manual transmission in
Neutral.
● On 4-wheel drive vehicles, place the transfer
case in the 2H range. Failure to do so will
cause the powertrain to bind up.
● After towing 500 miles (805 km) , start and
idle the engine with the transmission in Neu-
tral for two minutes. Failure to idle the engine
after every 500 miles (805 km) of towing
may cause damage to internal transmission
parts.
Automatic Transmission (if so
equipped)
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly MUST
be placed under the towed vehicle’s drive
wheels. Always follow the dolly manufacturer’s
recommendations when using their product. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information9-29

10 Index
4WD warning light...............2-16
A
Active brake limited slip (ABLS) system . . .5-34
Air bag (See supplemental restraint
system) .....................1-43
Air bag system Front (See supplemental front impact
air bag system) ...............1-50
Air bag warning labels .............1-57
Air bag warning light ...........1-58, 2-18
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation .......4-5, 4-12
Air conditioner service ...........4-17
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner
controls ................4-2, 4-10
Servicing air conditioner ..........4-17
Air flow charts ...............4-6, 4-13
Alarm system
(See vehicle security system) .........2-23
Anchor point locations .............1-29
Antenna .....................4-37
Anti-lock brake warning light ..........2-14
Anti-lock Braking System (ABS) ........5-33
Audible reminders ...............2-22
Audio system ..................4-17
Compact Disc (CD) changer . . . .4-29, 4-33 Compact disc (CD) player
.........4-27
FM-AM radio with compact disc
(CD) changer ................4-29
FM/AM radio with compact disc
(CD) player .................4-25
Radio ....................4-17
Steering wheel audio control switch . . .4-36
Automatic Automatic power window switch .....2-48
Automatic transmission position indicator
light .....................2-19
Driving with automatic transmission . . . .5-13
Automatic anti-glare inside mirror .......3-14
Automatic door locks ..............3-4
AUX jack ....................4-34
B
Battery ......................8-14
Charge warning light ............2-15
Before starting

the engine...........5-12
Belt (See drive belt) ..............8-16
Block heater Engine ....................5-39
Bluetooth hands-free phone system .....4-38
Booster seats ..................1-39
Brake Anti-lock Braking System (ABS) ......5-33
Brake fluid ..................8-12
Brake light (See stop light) .........8-29
Brake system ................5-32
Brake warning light .............2-15 Brake wear indicators
........2-22, 8-22
Parking brake operation ..........5-19
Self-adjusting brakes ............8-22
Brakes ......................8-22
Break-in schedule ...............5-22
Brightness control Instrument panel ..............2-29
Bulb check/instrument panel ..........2-14
Bulb replacement ................8-29
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo light ...................2-50
Cargo net ....................2-43
Cargo (See vehicle loading information) . . .9-13
Car phone or CB radio .............4-37
CD care and cleaning .............4-35
CD changer (See audio system) . . . .4-29, 4-33
CD player (See audio system) .........4-27
Check tire press .................2-5
Child restraints .......1-23, 1-24, 1-25, 1-27
Precautions on child
restraints ........1-25, 1-31, 1-36, 1-39
Top tether strap anchor point locations . .1-29
Child restraint with top tether strap ......1-29
Child safety rear door lock ............3-5
Chimes, audible reminders ...........2-22
Cleaning exterior

and interior ..........7-2
Clock ......................4-26

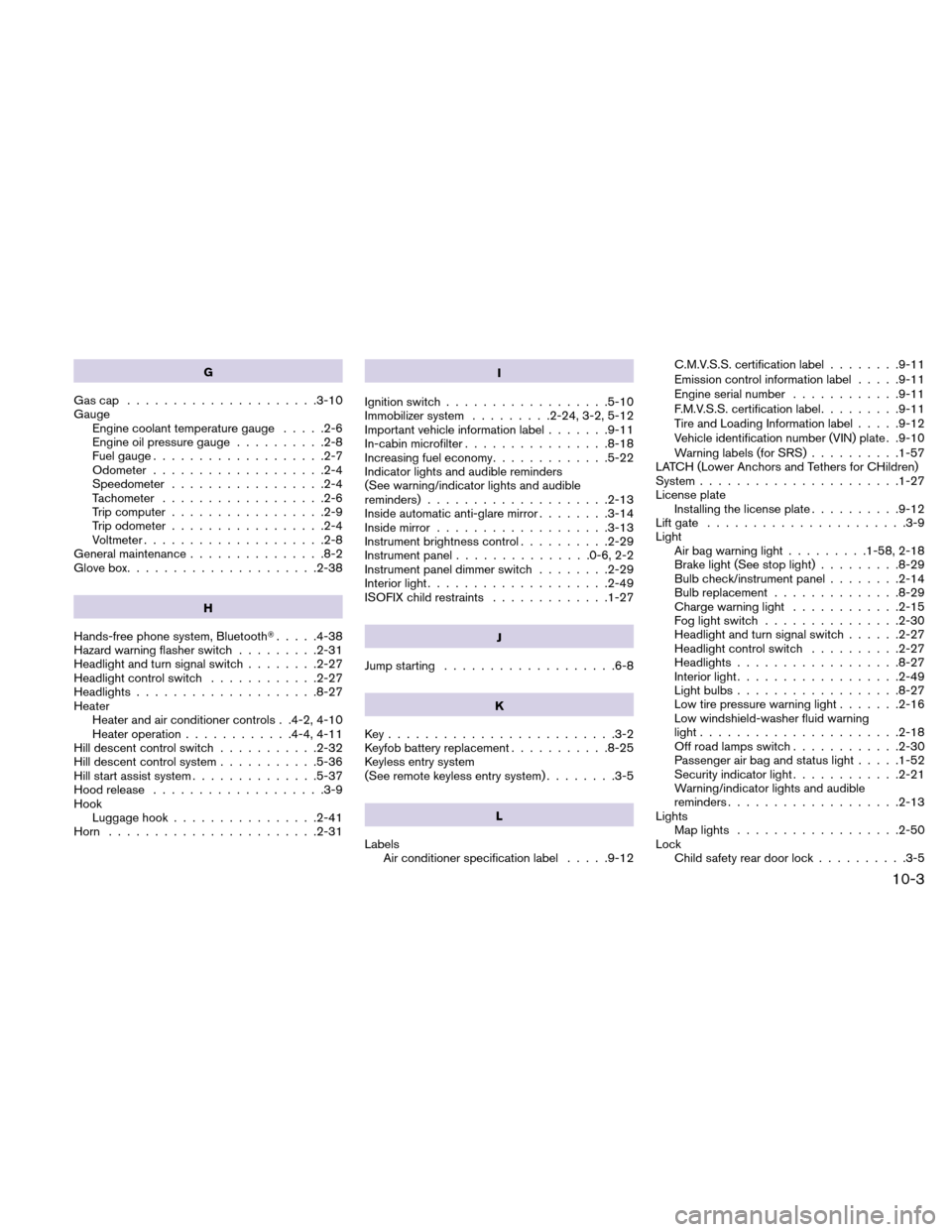

G
Gascap .....................3-10
Gauge Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-8
Fuel gauge ...................2-7
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-6
Trip computer .................2-9
Trip odometer .................2-4
Voltmeter ....................2-8
General maintenance ...............8-2
Glove box .....................2-38
H
Hands-free phone system, Bluetooth .....4-38
Hazard warning flasher switch .........2-31
Headlight and turn signal switch ........2-27
Headlight control switch ............2-27
Headlights ....................8-27
Heater Heater and air conditioner controls . .4-2, 4-10
Heater operation ............4-4, 4-11
Hill descent control switch ...........2-32
Hill descent control system ...........5-36
Hill start assist system ..............5-37
Hood release ...................3-9
Hook Luggage hook ................2-41
Horn .......................2-31 I
Ignition switch ..................5-10
Immobilizer system .........2-24, 3-2, 5-12
Important vehicle information label .......9-11
In-cabin microfilter ................8-18
Increasing fuel economy .............5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-13
Inside automatic anti-glare mirror ........3-14
Inside mirror ...................3-13
Instrument brightness

control ..........2-29
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-29
Interior light ....................2-49
ISOFIX child restraints .............1-27
J
Jump starting ...................6-8
K
Key.........................3-2
Keyfob battery replacement ...........8-25
Keyless entry system
(See remote keyless entry system) ........3-5
L
Labels Air conditioner specification label .....9-12C.M.V.S.S. certification label
........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-57
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-27
License plate Installing the license plate ..........9-12
Lift gate ......................3-9
Light Air bag warning light .........1-58, 2-18
Brake light (See stop light) .........8-29
Bulb check/instrument panel ........2-14
Bulb replacement ..............8-29
Charge warning light ............2-15
Fog light switch ...............2-30
Headlight and turn signal switch ......2-27
Headlight control switch ..........2-27
Headlights ..................8-27
Interior light ..................2-49
Light bulbs ..................8-27
Low tire pressure warning light .......2-16
Low windshield-washer fluid warning
light ......................2-18
Off road

lamps switch ............2-30
Passenger air bag and status light .....1-52
Security indicator light ............2-21
Warning/indicator lights and audible
reminders ...................2-13
Lights Map lights ..................2-50
Lock Child safety rear door lock ..........3-5
10-3

Rear window and outside mirror defroster
switch.......................2-27
Rear window wiper and washer switches . . .2-26
Recorders Event data ..................9-32
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system ...........3-5
Reporting safety defects (US only) .......9-30
Roof rack .....................2-44
S
Safety Child safety rear door lock ..........3-5
Child seat belts .....1-25, 1-31, 1-36, 1-39
Reporting safety defects (US only) .....9-30
Seat adjustment Front manual seat adjustment ........1-2
Seatback pockets ................2-39
Seat belt Child safety ..................1-23
Infants and small children ..........1-24
Injured Person ................1-15
Larger children ................1-24
Precautions on seat belt usage .......1-12
Pregnant women ...............1-15
Pre-tensioner seat belt system .......1-56
Rear center seat belt ............1-18
Seat belt extenders .............1-22
Seat belt maintenance ............1-22
Seat belts ...................1-12
Shoulder belt height adjustment ......1-21
Three-point type with retractor .......1-15
Seat belt warning light ..............2-18 Seats
Adjustment ...................1-2
Front seats ...................1-2
Manual front seat adjustment .........1-2
Security indicator light ..............2-21
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-24, 3-2, 5-12
Self-adjusting brakes ..............8-22
Service manual order form ...........9-32
Servicing air

conditioner .............4-17
Shifting Automatic transmission ...........5-14
Manual transmission .............5-18
Shift lock release .................5-16
Shoulder belt height adjustment ........1-21
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-55
Spark plug replacement .............8-17
Speedometer ...................2-4
SRS warning label ................1-57
Starting Before starting the engine ..........5-12
Jump starting .................6-8
Precautions when starting and driving . . . .5-2
Push starting .................6-10
Starting the engine .............5-12
Steering Power steering fluid .............8-12
Power steering system ...........5-32
Tilting steering wheel ............3-12
Steering wheel audio control switch ......4-36
Stop light .....................8-29
Storage ......................2-36
Storage bin ....................2-41
Storage tray ...................2-36
Sunglasses case .................2-38 Sun visors
....................3-12
Supplemental air bag warning labels ......1-57
Supplemental air bag warning light . . .1-58, 2-18
Supplemental front impact air bag system . . .1-50
Supplemental restraint system Information and warning labels .......1-57
Precautions on supplemental restraint
system ....................1-43
Supplemental restraint system
(Supplemental air bag system) .........1-43
Switch Automatic power window switch ......2-48
Clutch interlock (clutch start) switch . . . .2-34
Electronic locking rear differential (E-Lock)
system switch ................2-33
Fog light switch ...............2-30
Hazard warning flasher switch .......2-31
Headlight and

turn signal switch ......2-27
Headlight control switch ..........2-27
Hill descent control switch .........2-32
Ignition switch ................5-10
Overdrive switch ...............5-17
Power door lock switch ............3-4
Rear window and outside mirror defroster
switch .....................2-27
Rear window wiper and washer
switches ...................2-26
Turn signal switch ..............2-29
Vehicle dynamic control (VDC) off
switch .....................2-32
Windshield wiper and washer switch . . .2-25
T
Tachometer ....................2-6
10-5
