P2138 APP SENSOR
DescriptionINFOID:0000000006140989
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerato
r pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
DTC LogicINFOID:0000000005930102
DTC DETECTION LOGIC
NOTE:
If DTC P2138 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-362, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-416, "Diagnosis Procedure".
NO >> INSPECTION END
PBIB1741E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2138 Accelerator pedal position
sensor circuit range/per-
formance Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2. • Harness or connector
(APP sensor 1 or 2 circuit is open or
shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system sensor circuit is
shorted.)
• Accelerator pedal position sensor
(APP sensor 1 or 2)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
• EVAP control system pressure sensor
Revision: May 2010 2011 Versa

EC-422
< COMPONENT DIAGNOSIS >[HR16DE]
P2A00 A/F SENSOR 1
Diagnosis Procedure
INFOID:0000000005930110
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK HARNESS CONNECTOR
1. Disconnect A/F sensor 1 harness connector.
2. Check harness connector for water.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness connector.
3.RETIGHTEN A/F SENSOR 1
1. Loosen and retighten the A/F sensor 1. Refer to EM-30, "
Exploded View".
>> GO TO 4.
4.CHECK FOR INTAKE AIR LEAK
1. Reconnect A/F sensor 1 harness connector.
2. Start engine and run it at idle.
3. Listen for an intake air leak after the mass air flow sensor.
Is intake air leak detected?
YES >> GO TO 5.
NO >> Repair or replace.
5.CLEAR THE MIXTURE RATIO SELF-LEARNING VALUE
1. Clear the mixture ratio self-learning value. Refer to EC-27, "
MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement".
2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detec ted? Is it difficult to start engine?
YES >> Perform trouble diagnosis for DTC P0171or P0172. Refer to EC-232, "DTC Logic" or EC-238,
"DTC Logic".
NO >> GO TO 6.
6.CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F sensor 1 harness connector.
2. Turn ignition switch ON.

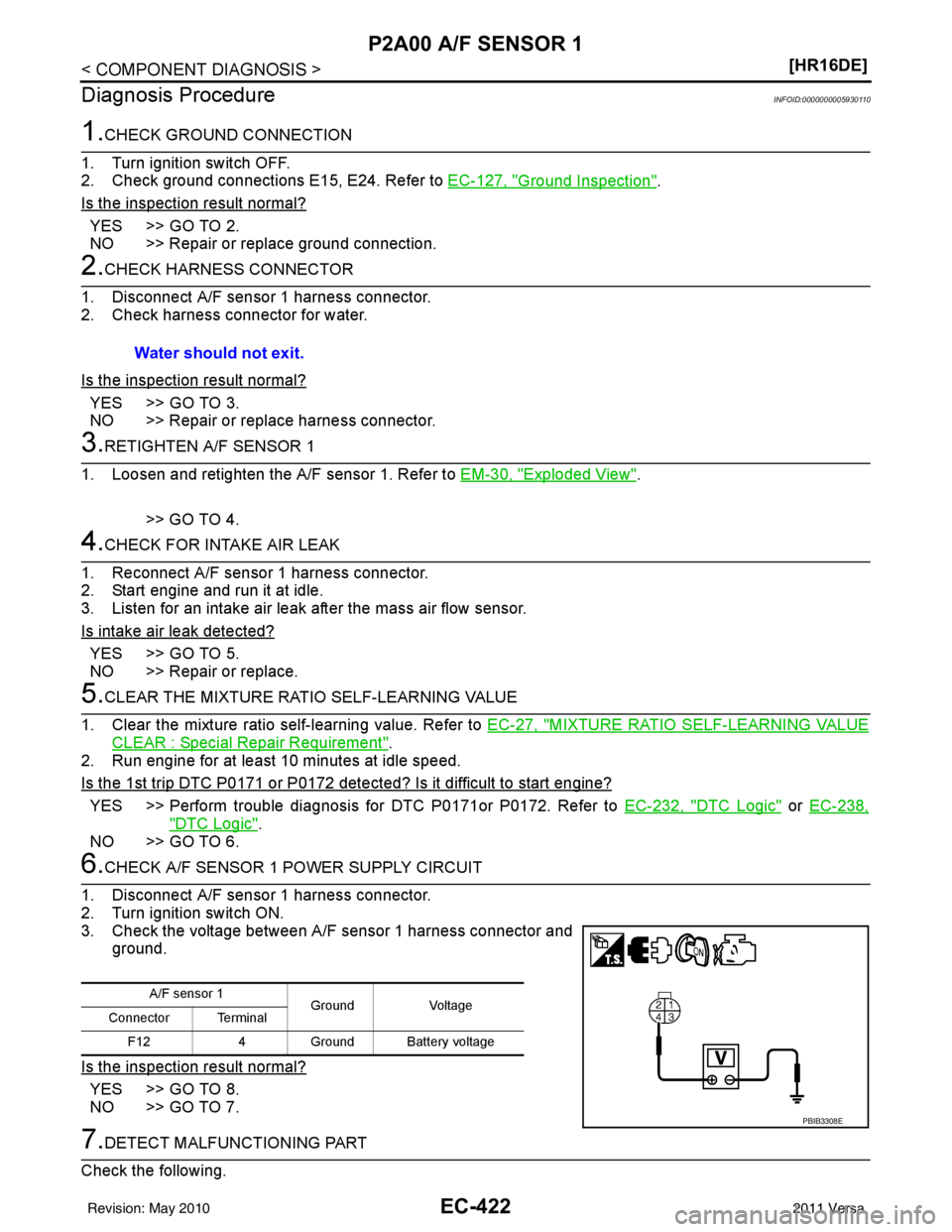

3. Check the voltage between A/F sensor 1 harness connector and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following. Water should not exit.
A/F sensor 1
GroundVoltage
Connector Terminal
F12 4 Ground Battery voltage
PBIB3308E
Revision: May 2010 2011 Versa

COOLING FANEC-425
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
COOLING FAN
DescriptionINFOID:0000000005930111
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant
temperature, refrigerant
pressure, and air conditioner ON signal. The contro l system has 3-step control [HIGH/LOW/OFF].
COOLING FAN MOTOR
Models without A/C
The cooling fan operates at each speed when the current flows in the cooling fan motor as per the following.
Models with A/C
The cooling fan operates at high (HI) speed when the current flows, and operates at low (LOW) speed when
cooling fan motor and the resistor are circuited in series.
Component Function CheckINFOID:0000000005930112
1.CHECK COOLING FAN FUNCTION
With CONSULT-III
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III.
3. Touch “LOW” and “Hi” on the CONSULT-III screen.
4. Check that cooling fan operates at each speed.
Without CONSULT-III
1. Perform IPDM E/R auto active test and c heck cooling fan motor operation. Refer to PG-20, "
Auto Active
Te s t".
2. Check that cooling fan operates at each speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Refer to EC-427, "
Diagnosis Procedure".
Cooling fan Speed Cooling fan motor terminals
(+) (–)
Low (LOW) 1
3 and 4
2 3 and 4
1 and 2 3
1 and 2 4
High (HI) 1 and 23 and 4
Revision: May 2010 2011 Versa

FUEL INJECTOREC-433
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
FUEL INJECTOR
DescriptionINFOID:0000000005930119

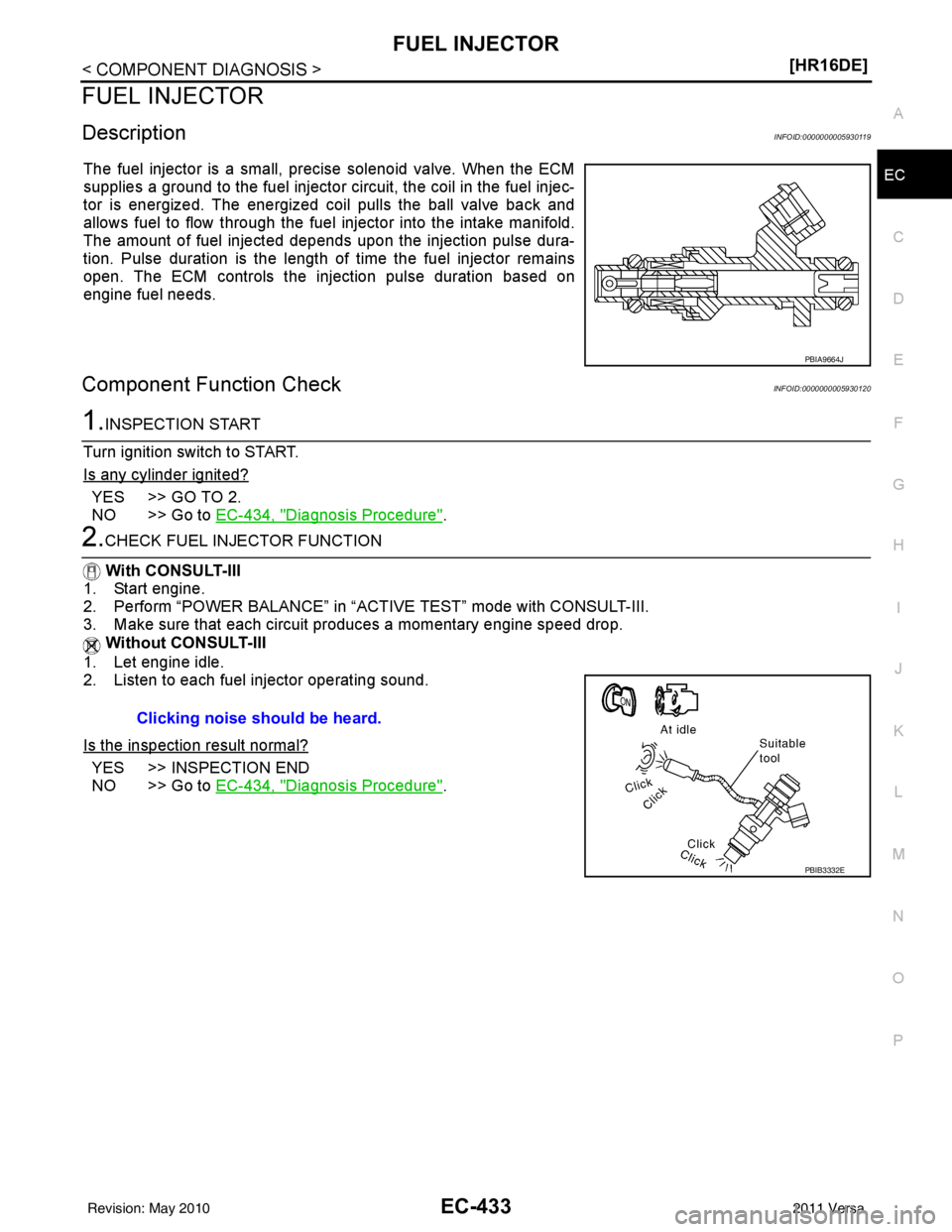

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
Component Function CheckINFOID:0000000005930120
1.INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
YES >> GO TO 2.
NO >> Go to EC-434, "
Diagnosis Procedure".
2.CHECK FUEL INJECTOR FUNCTION
With CONSULT-III
1. Start engine.
2. Perform “POWER BALANCE” in “A CTIVE TEST” mode with CONSULT-III.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT-III
1. Let engine idle.
2. Listen to each fuel injector operating sound.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-434, "
Diagnosis Procedure".
PBIA9664J
Clicking noise should be heard.
PBIB3332E
Revision: May 2010 2011 Versa

FUEL PUMPEC-437
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
FUEL PUMP
DescriptionINFOID:0000000005930124
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
start ability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to
operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The EC M stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly dr ive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.
Component Function CheckINFOID:0000000005930125
1.CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.

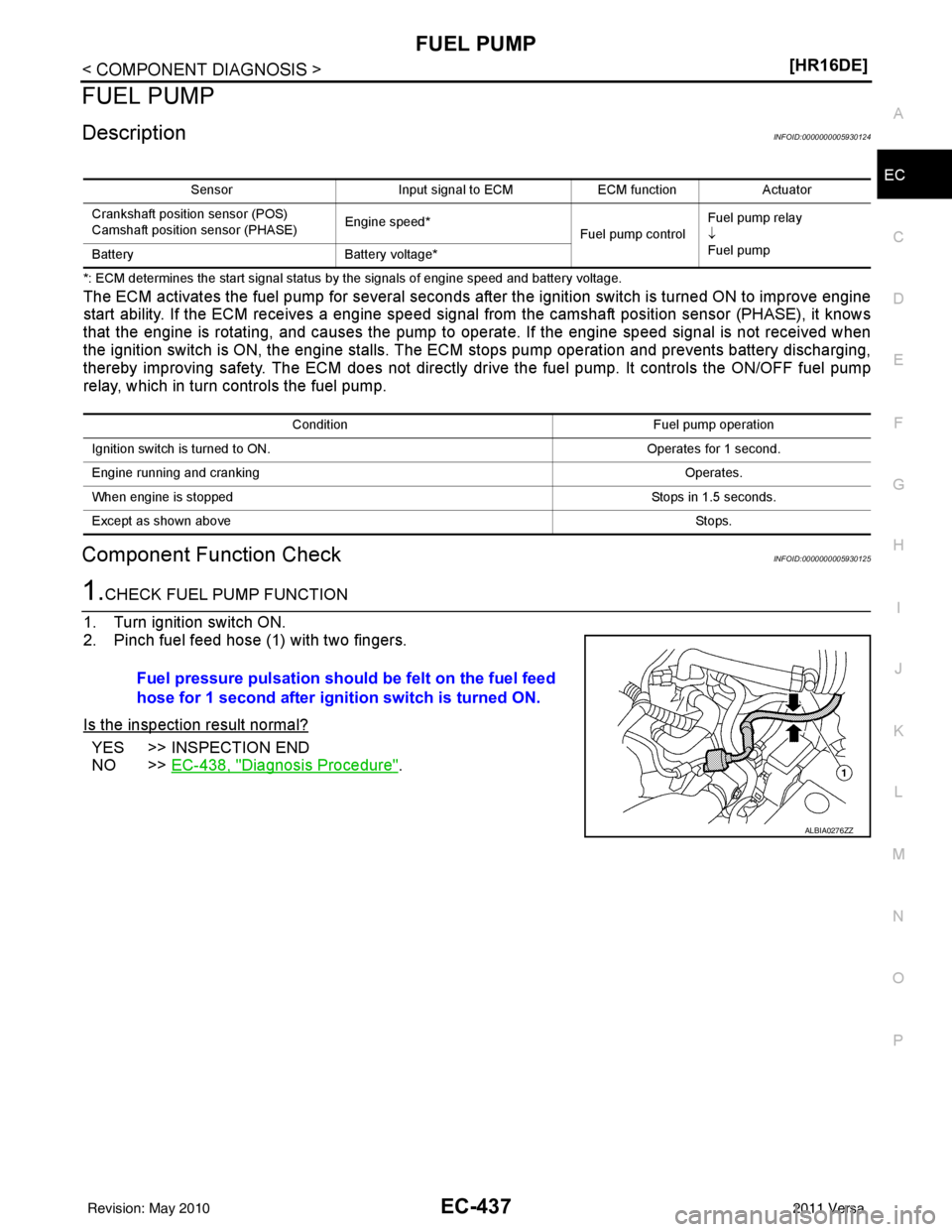

2. Pinch fuel feed hose (1) with two fingers.
Is the inspection result normal?
YES >> INSPECTION END
NO >> EC-438, "
Diagnosis Procedure".
Sensor Input signal to ECMECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
Fuel pump controlFuel pump relay
↓
Fuel pump
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and cranking Operates.
When engine is stopped Stops in 1.5 seconds.
Except as shown above Sto ps .
Fuel pressure pulsation should be felt on the fuel feed
hose for 1 second after ignition switch is turned ON.
ALBIA0276ZZ
Revision: May 2010 2011 Versa

EC-442
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
IGNITION SIGNAL
DescriptionINFOID:0000000005930129
The ignition signal from the ECM is sent to and amplified by the power transistor. The power transistor turns
ON and OFF the ignition coil primary circuit. This ON/O
FF operation induces the proper high voltage in the coil
secondary circuit.
Component Function CheckINFOID:0000000005930130
1.INSPECTION START
Turn ignition switch OFF, and restart engine.
Does the engine start?
YES-1 >> With CONSULT-III: GO TO 2.
YES-2 >> Without CONSULT-III: GO TO 3.
NO >> Go to EC-444, "
Diagnosis Procedure".
2.IGNITION SIGNAL FUNCTION
With CONSULT-III
1. Perform “POWER BALANCE” in “A CTIVE TEST” mode with CONSULT-III.
2. Make sure that each circuit produces a momentary engine speed drop.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-444, "
Diagnosis Procedure".
3.IGNITION SIGNAL FUNCTION
Without CONSULT-III
1. Let engine idle.

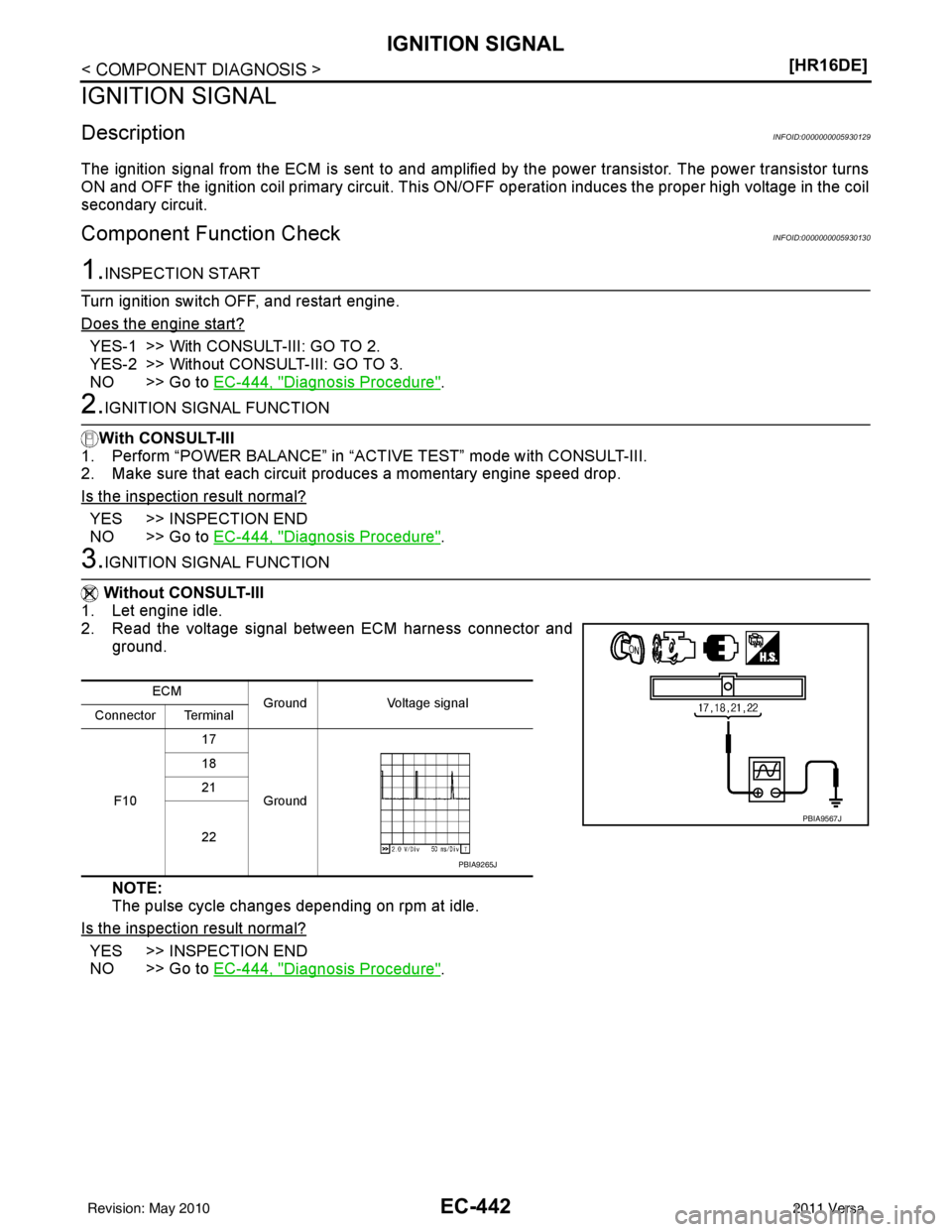

2. Read the voltage signal between ECM harness connector and
ground.
NOTE:
The pulse cycle changes depending on rpm at idle.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-444, "
Diagnosis Procedure".
ECM Ground Voltage signal
Connector Terminal
F10 17
Ground
18
21
22
PBIA9567J
PBIA9265J
Revision: May 2010
2011 Versa

IGNITION SIGNALEC-447
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-447, "
Component Inspection (Ignition Coil with Power Transistor)".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace malfunctioning ignition coil with power transistor. Refer to EM-46, "
Exploded View".
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component Inspection (Ignition Coil with Power Transistor)INFOID:0000000005930133
1.CHECK IGNITION COIL WITH POWER TRANSISTOR-I
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.

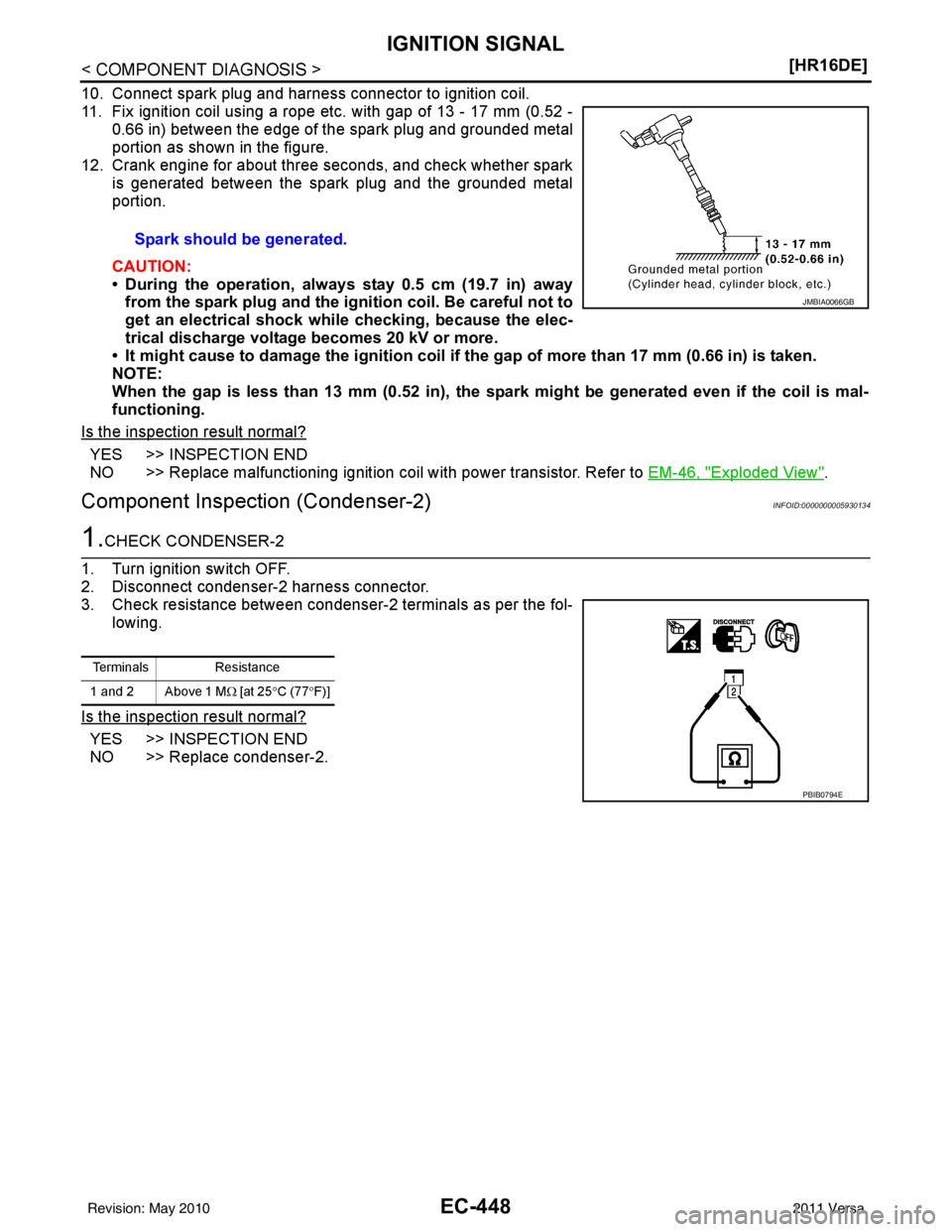

3. Check resistance between ignition coil terminals as per the fol- lowing.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning ignition coil with power transis- tor. Refer to EM-46, "
Exploded View".
2.CHECK IGNITION COIL WITH POWER TRANSISTOR-II
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Remove fuel pump fuse in IPDM E/R to release fuel pressure. NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.
7. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
8. Remove ignition coil and spark plug of the cylinder to be checked.
9. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
Ignition coil ECM
Continuity
Cylinder Connector Terminal Connector Terminal
1F34 1
F1417
Existed
2F35 1
18
3F36 1 22
4F37 1 21
Terminals Resistance [Ω at 25° C (77°F)]
1 and 2 Except 0 or ∞
1 and 3 Except 0
2 and 3
PBIB0847E
Revision: May 2010 2011 Versa

EC-448
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
12. Crank engine for about three seconds, and check whether spark is generated between the spark plug and the grounded metal
portion.
CAUTION:
• During the operation, alw ays stay 0.5 cm (19.7 in) away
from the spark plug and the ignition coil. Be careful not to
get an electrical shock wh ile checking, because the elec-
trical discharge voltage becomes 20 kV or more.
• It might cause to damage the igni tion coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the sp ark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning ignition coil with power transistor. Refer to EM-46, "
Exploded View".
Component Inspection (Condenser-2)INFOID:0000000005930134
1.CHECK CONDENSER-2
1. Turn ignition switch OFF.
2. Disconnect condenser-2 harness connector.
3. Check resistance between condenser-2 terminals as per the fol- lowing.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace condenser-2. Spark should be generated.
JMBIA0066GB
Terminals
Resistance
1 and 2 Above 1 M Ω [at 25 °C (77 °F)]
PBIB0794E
Revision: May 2010 2011 Versa
