2011 NISSAN LATIO check engine

EM-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION EM
A
EM
N
O P
CONTENTS
ENGINE MECHANICAL
HR16DE
PRECAUTION ....... ........................................
4
PRECAUTIONS .............................................. .....4
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
4
Precaution for Procedure without Cowl Top Cover ......4
Precaution for Drain Coolant .....................................4
Precaution for Disconnecting Fuel Piping ........... ......4
Precaution for Removal and Disassembly ................5
Precaution for Inspection, Repair and Replace-
ment .................................................................... ......
5
Precaution for Assembly and Installation ..................5
Parts Requiring Angular Tightening ..........................5
Precaution for Liquid Gasket ............................... ......5
PREPARATION ............................................7
PREPARATION .............................................. .....7
Special Service Tools .......................................... ......7
Commercial Service Tools ........................................8
SYMPTOM DIAGNOSIS ..............................11
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ........................ ....
11
NVH Troubleshooting - Engine Noise ................. ....11
Use the Chart Below to Help You Find the Cause
of the Symptom .......................................................
12
ON-VEHICLE MAINTENANCE ....................13

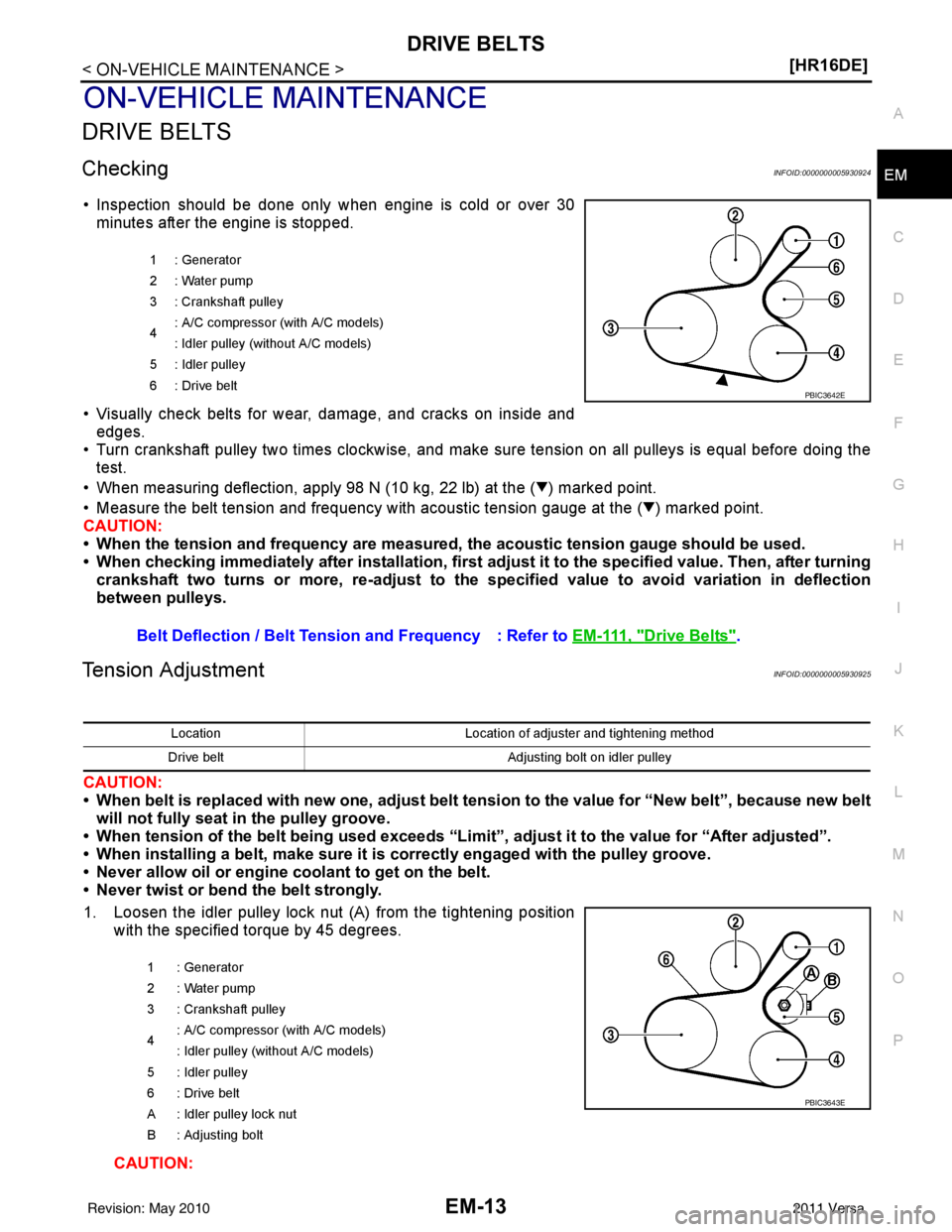

DRIVE BELTS ................................................ ....13
Checking ............................................................. ....13
Tension Adjustment ................................................13
Removal and Installation .........................................14
AIR CLEANER FILTER .................................. ....16
Removal and Installation .........................................16
SPARK PLUG ...................................................17
Exploded View ..................................................... ....17
Removal and Installation .........................................17
CAMSHAFT VALVE CLEARANCE ..................19
Inspection and Adjustment ......................................19

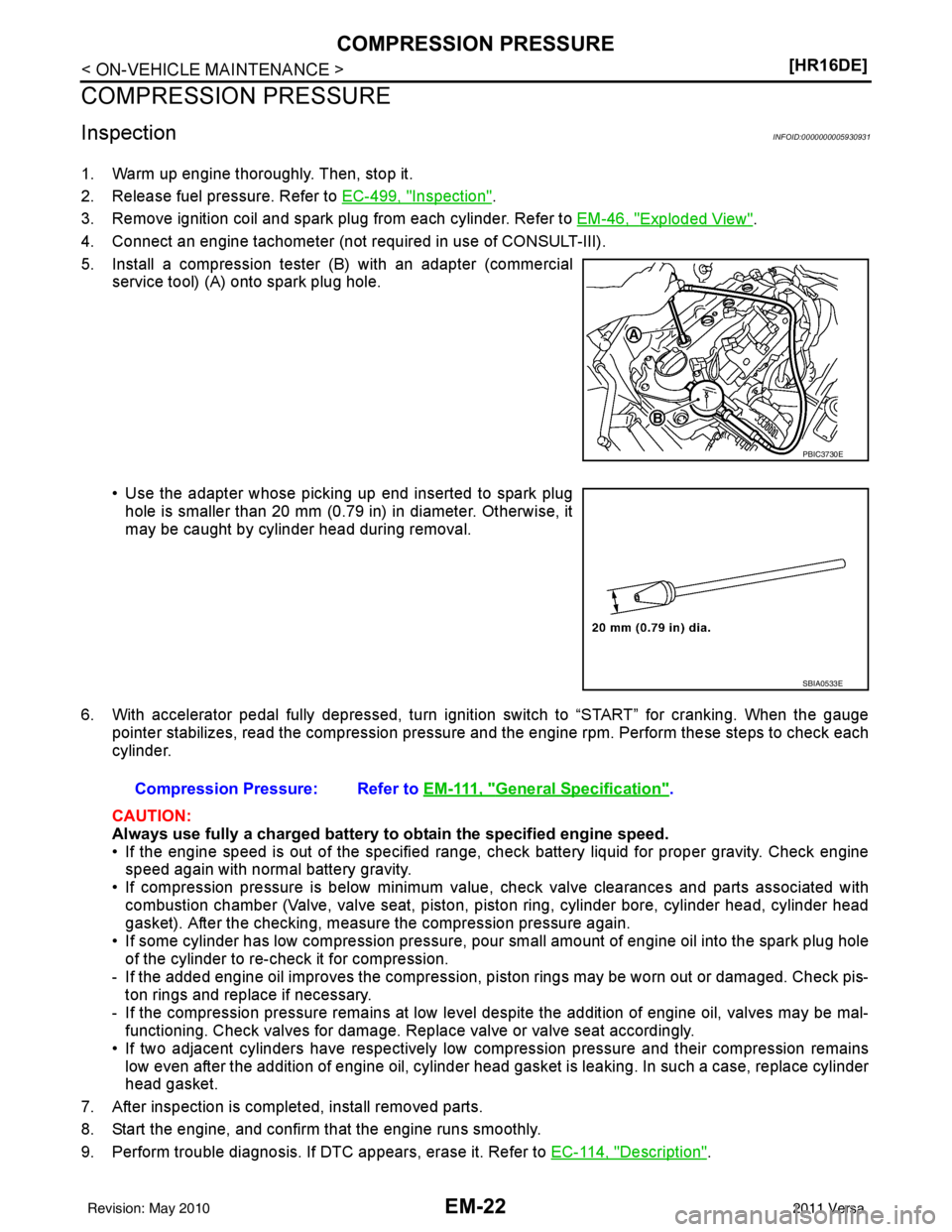

COMPRESSION PRESSURE ...........................22
Inspection ................................................................22
ON-VEHICLE REPAIR .................................23
DRIVE BELT IDLER PULLEY ..........................23
Exploded View ..................................................... ....23
Removal and Installation .........................................23
AIR CLEANER AND AIR DUCT .......................25
Exploded View .........................................................25
Removal and Installation .........................................25
Inspection ................................................................26
INTAKE MANIFOLD .........................................27
Exploded View .........................................................27
Removal and Installation .........................................27
EXHAUST MANIFOLD ......................................30
Exploded View .........................................................30
Removal and Installation .........................................30
FUEL INJECTOR AND FUEL TUBE ................33
Exploded View .........................................................33
Removal and Installation .........................................33
Inspection ................................................................37
OIL PAN (LOWER) ...........................................39
Exploded View .........................................................39
Removal and Installation .........................................39
Inspection ................................................................41
OIL PAN (UPPER) AND OIL STRAINER .........42
Component ..............................................................42
Removal and Installation .........................................42
Inspection ................................................................45
Revision: May 2010 2011 Versa

EM-2
IGNITION COIL, SPARK PLUG AND ROCK-
ER COVER .........................................................
46
Exploded View ........................................................46
Removal and Installation ........................................46
TIMING CHAIN ............................................... ...49
Exploded View ..................................................... ...49
Removal and Installation ........................................49
Inspection ...............................................................57
CAMSHAFT .......................................................59
Exploded View ..................................................... ...59
Removal and Installation ........................................59
Inspection ...............................................................65
OIL SEAL ...........................................................70
VALVE OIL SEAL .................................................. ...70
VALVE OIL SEAL : Removal and Installation .........70
FRONT OIL SEAL .................................................. ...70
FRONT OIL SEAL : Removal and Installation ........71
REAR OIL SEAL .................................................... ...71
REAR OIL SEAL : Removal and Installation ..........71
CYLINDER HEAD ........................................... ...73
Removal and Installation ..................................... ...73
Disassembly and Assembly ....................................76
REMOVAL AND INSTALLATION ...............82
ENGINE ASSEMBLY ...................................... ...82
Exploded View ..................................................... ...82
Removal and Installation ........................................82
Inspection ...............................................................85
DISASSEMBLY AND ASSEMBLY .............87
ENGINE STAND SETTING ............................. ...87
Setting ................................................................. ...87
ENGINE UNIT ....................................................88
Disassembly ........................................................ ...88
Assembly ................................................................88
CYLINDER BLOCK ...........................................89
Exploded View ..................................................... ...89
Disassembly and Assembly ....................................90
Inspection ...............................................................97
HOW TO SELECT PISTON AND BEARING ...106
Description ........................................................... ..106
Connecting Rod Bearing .......................................106
Main Bearing .........................................................108
SERVICE DATA AND SPECIFICATIONS
(SDS) ........................................................ ..
111
SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................... .
111
General Specification .......................................... ..111
Drive Belts ............................................................ .111
Spark Plug ............................................................112
Exhaust Manifold ..................................................112
Camshaft ...............................................................112
Cylinder Head .......................................................114
Cylinder Block .......................................................116
Connecting Rod Bearing .......................................119
Main Bearing .........................................................120
MR18DE
SERVICE INFORMATION .. .......................
122
PRECAUTIONS .............................................. ..122
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. .
122
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ................................
122
Precaution for Procedure without Cowl Top Cover .123
Precaution for Drain Coolant .................................123
Precaution for Disconnecting Fuel Piping ............ .123
Precaution for Removal and Disassembly ............123
Precaution for Inspection, Repair and Replace-
ment ......................................................................
123
Precaution for Assembly and Installation ............. .123
Parts Requiring Angular Tightening ......................124
Precaution for Liquid Gasket .................................124
PREPARATION ................................................126
Special Service Tool ............................................ .126
Commercial Service Tool ......................................128
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ...........................
130
NVH Troubleshooting - Engine Noise .................. .130
Use the Chart Below to Help You Find the Cause
of the Symptom .................................................... .
131
DRIVE BELTS ..................................................132
Component .......................................................... .132
Checking Drive Belts .............................................132
Tension Adjustment ..............................................132
Removal and Installation .......................................132
Component .......................................................... .133
Removal and Installation of Drive Belt Auto Ten-
sioner ....................................................................
133
AIR CLEANER AND AIR DUCT .......................135
Component .......................................................... .135
Removal and Installation .......................................135
Changing Air Cleaner Filter ...................................136
INTAKE MANIFOLD ....................................... ..137
Component .......................................................... .137
Removal and Installation .......................................137
Inspection ............................................................. .139
EXHAUST MANIFOLD .....................................141
Component .......................................................... .141
Removal and Installation .......................................141
Revision: May 2010 2011 Versa

PRECAUTIONSEM-5
< PRECAUTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Precaution for Removal and DisassemblyINFOID:0000000005930915
• When instructed to use special service tools, use the spec
ified tools. Always be careful to work safely, avoid
forceful or uninstructed operations.
• Exercise maximum care to avoid damage to mating or sliding surfaces.
• Cover openings of engine system with tape or the equiva lent, if necessary, to seal out foreign materials.
• Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally opposite, and so on. If the order of loosening is specif ied, do exactly as specified. Power tools may be used
where noted in the step.
Precaution for Inspection, Repair and ReplacementINFOID:0000000005930916
• Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precaution for Assembly and InstallationINFOID:0000000005930917
• Use torque wrench to tighten bolts or nuts to specification.
• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,
do exactly as specified.
• Replace with new gasket, packing, oil seal or O-ring.
• Thoroughly wash, clean, and air-blow each part. Carefully check oil or coolant passages for any restriction
and blockage.
• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust. Before assembly, oil sliding surfaces well.
• Release air within route after draining coolant.
• Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped).
Then make sure that there are no leaks at fuel line connections.
• After repairing, start engine and increase engine speed to check coolant, fuel, oil, and exhaust systems for
leakage.
Parts Requiring Angular TighteningINFOID:0000000005930918
• Use an angle wrench for the final tightening of the following engine parts:
- Cylinder head bolts
- Camshaft sprocket (INT)
- Main bearing cap bolts
- Connecting rod cap nuts
- Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angulartightening)
• Do not use a torque value for final tightening.
• The torque value for these parts are for a preliminary step.
• Ensure thread and seat surfaces are clean and coated with engine oil.
Precaution for Liquid GasketINFOID:0000000005930919
REMOVAL OF LIQUID GASKET SEALING
Tool number : KV10112100 (BT-8653-A)
Revision: May 2010 2011 Versa

EM-10
< PREPARATION >[HR16DE]
PREPARATION
Acoustic tension gauge
Checking drive belt tension
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907) Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads
Manual lift table caddy Removing and installing engine
Tool name
Description
PBIC3881E
AEM489
ZZA1210D
Revision: May 2010 2011 Versa

EM-12
< SYMPTOM DIAGNOSIS >[HR16DE]
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING
Use the Chart Below to Help You Find the Cause of the Symptom
INFOID:0000000005930923
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noise Typ e of
noise Operating condition of engine
Source of noise Check item Refer-
ence page
Before
warm- up After
warm- up When
start- ing When
idling When
racing While
driving
Top of en-
gine
Rocker
cover
Cylinder
head Ticking or
clicking
CA—AB— Tappet
noiseValve clearance
EM-19
Rattle C A — A B C Camshaft
bearing
noiseCamshaft journal oil
clearance
Camshaft runout
EM-112EM-112
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock
—A—BB—
Piston pin
noisePiston to piston pin oil
clearance
Connecting rod small
end clearance
EM-116
EM-119
Slap or
rap
A——BBA
Piston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion EM-116EM-116
EM-116
EM-119
Knock A B C B B B
Connect-
ing rod
bearing
noiseConnecting rod small
end clearance
Connecting rod bearing
oil clearance
EM-116EM-119
Knock A B — A B C
Main bear-
ing noiseMain bearing oil clear-
ance
Crankshaft runout EM-120EM-116
Front of
engine
Front cov-
erTapping or
ticking
AA—BBB Timing
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operation
EM-57
Front of
engineSqueak-
ing or fizz-
ing
AB—B—C Drive belt
(Sticking
or slip-
ping)Drive belt deflection
E M - 111
Creaking A B A B A B Drive belt
(Slipping)Idler pulley bearing op-
eration
Squall
Creak AB—BAB Water
pump
noise
Water pump operation
CO-21
Revision: May 2010 2011 Versa

DRIVE BELTSEM-13
< ON-VEHICLE MAINTENANCE > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
ON-VEHICLE MAINTENANCE
DRIVE BELTS
CheckingINFOID:0000000005930924
• Inspection should be done only when engine is cold or over 30
minutes after the engine is stopped.
• Visually check belts for wear, damage, and cracks on inside and edges.
• Turn crankshaft pulley two times clockwise, and make sure tension on all pulleys is equal before doing the test.
• When measuring deflection, apply 98 N (10 kg, 22 lb) at the ( ) marked point.
• Measure the belt tension and frequency with acous tic tension gauge at the ( ) marked point.
CAUTION:
• When the tension and frequency are measured, the acoustic tension gauge should be used.
• When checking immediately after installation, first ad just it to the specified value. Then, after turning
crankshaft two turns or more, re-adjust to the sp ecified value to avoid variation in deflection
between pulleys.
Tension AdjustmentINFOID:0000000005930925
CAUTION:
• When belt is replaced with new one, adjust belt te nsion to the value for “New belt”, because new belt
will not fully seat in the pulley groove.
• When tension of the belt being used exceeds “Limit”, adjust it to the value for “After adjusted”.
• When installing a belt, make sure it is correctly engaged with the pulley groove.
• Never allow oil or engine coolant to get on the belt.
• Never twist or bend the belt strongly.
1. Loosen the idler pulley lock nut (A) from the tightening position with the specified torque by 45 degrees.
CAUTION:
1 : Generator
2 : Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6: Drive belt
Belt Deflection / Belt Tension and Frequency : Refer to EM-111, "Drive Belts".
PBIC3642E
LocationLocation of adjuster and tightening method
Drive belt Adjusting bolt on idler pulley
1 : Generator
2: Water pump
3 : Crankshaft pulley
4 : A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6: Drive belt
A : Idler pulley lock nut
B : Adjusting bolt
PBIC3643E
Revision: May 2010 2011 Versa

CAMSHAFT VALVE CLEARANCEEM-21
< ON-VEHICLE MAINTENANCE > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Thickness of new valve lifter (B) can be identified by stamp
mark (A) on the reverse side (inside the cylinder).
• Stamp mark “300” indicates 3.00 mm (0.118 in) in thickness.
NOTE:
Available thickness of valve lifter: 26 sizes range 3.00 to 3.50 mm (0.1181 to 0.1378 in) in steps of 0.02
mm (0.0008 in) (when manufactured at factory). Refer to EM-112, "
Camshaft".
5. Install the selected valve lifter.
6. Install camshaft. Refer to EM-59, "
Exploded View".
7. Manually rotate crankshaft pulley a few rotations.
8. Make sure that valve clearances for cold engine are wit hin specifications by referring to the specified val-
ues.
9. Install all removed parts in the reverse order of removal.
10. Warm up the engine, and check for unusual noise and vibration.
PBIC3196J
Revision: May 2010 2011 Versa

EM-22
< ON-VEHICLE MAINTENANCE >[HR16DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
InspectionINFOID:0000000005930931
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-499, "
Inspection".
3. Remove ignition coil and spark plug from each cylinder. Refer to EM-46, "
Exploded View".
4. Connect an engine tachometer (not required in use of CONSULT-III).
5. Install a compression tester (B) with an adapter (commercial service tool) (A) onto spark plug hole.
• Use the adapter whose picking up end inserted to spark plughole is smaller than 20 mm (0.79 in) in diameter. Otherwise, it
may be caught by cylinder head during removal.
6. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge pointer stabilizes, read the compression pressure and the engine rpm. Perform these steps to check each
cylinder.
CAUTION:
Always use fully a charged battery to obtain the specified engine speed.
• If the engine speed is out of the specified range, c heck battery liquid for proper gravity. Check engine
speed again with normal battery gravity.
• If compression pressure is below minimum val ue, check valve clearances and parts associated with
combustion chamber (Valve, valve seat, piston, pi ston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure the compression pressure again.
• If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole of the cylinder to re-check it for compression.
- If the added engine oil improves the compression, pi ston rings may be worn out or damaged. Check pis-
ton rings and replace if necessary.
- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal- functioning. Check valves for damage. Repl ace valve or valve seat accordingly.
• If two adjacent cylinders have respectively low co mpression pressure and their compression remains
low even after the addition of engine oil, cylinder head gasket is leaking. In such a case, replace cylinder
head gasket.
7. After inspection is completed, install removed parts.
8. Start the engine, and confirm that the engine runs smoothly.
9. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-114, "
Description".
PBIC3730E
SBIA0533E
Compression Pressure: Refer to EM-111, "General Specification".
Revision: May 2010 2011 Versa
