P0715 INPUT SPEED SENSOR A
P0715 INPUT SPEED SENSOR A
DescriptionINFOID:0000000005928795
The primary speed sensor detects the primary pul
ley revolution speed and sends a signal to the TCM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005928796
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000005928797
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0715” with CONSULT-III is detected when TCM does not receive the proper sig-
nal from the sensor.
Possible CauseINFOID:0000000005928798
• Harness or connectors (Sensor circuit is open or shorted.)
• Primary speed sensor
DTC Confirmation ProcedureINFOID:0000000005928799
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
ENG SPEED: 450 rpm or more
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. If DTC is detected, go to CVT-74, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
ENG SPEED SIG Engine running Closely matches the tach ometer reading.
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed.
Revision: May 2010 2011 Versa

P0715 INPUT SPEED SENSOR ACVT-73
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

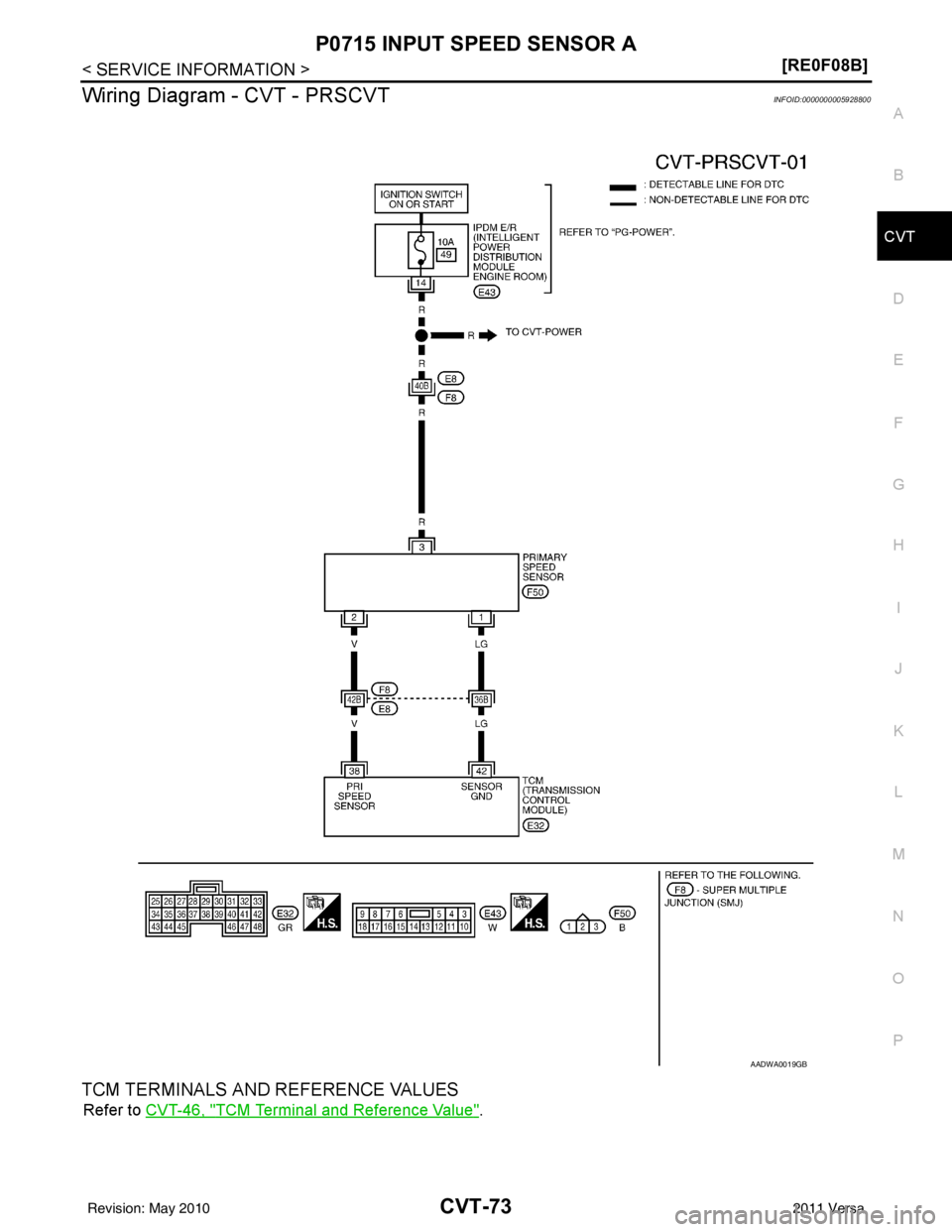

Wiring Diagram - CVT - PRSCVTINFOID:0000000005928800
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value".
AADWA0019GB
Revision: May 2010 2011 Versa

CVT-74
< SERVICE INFORMATION >[RE0F08B]
P0715 INPUT SPEED SENSOR A
Diagnosis Procedure
INFOID:0000000005928801
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “PRI SPEED SEN”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2.CHECK PRIMARY SPEED SENSOR
1. Start engine.
2. Check voltage between TCM connector terminals.
3. Check the pulse with CONSULT-III or oscilloscope, when vehi- cle cruises.
OK or NG
OK >> GO TO 6.
NG - 1 >> Battery voltage is not supplied: GO TO 3.
NG - 2 >> Battery voltage is supplied, but there is a malfunction in the frequency: GO TO 4.
3. CHECK HARNESS BETWEEN TCM AND CVT UNI T HARNESS CONNECTOR (SENSOR POWER AND
SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and primary speed sensor harness connector.
Item nameConditionDisplay value
PRI SPEED SEN During driving (lock-up
ON)Approximately matches
the engine speed.
Item Connector
TerminalData (Approx.)
TCM E32 10, 19 - 42Battery voltage
Name Condition
Primary speed sen-
sor When running at 20 km/h (12 MPH) in “L” position with the
closed throttle position signal OFF, use the CONSULT-III
pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData (Ap-
prox.)
TCM E32 38 Primary speed sensor 1250 Hz
AWDIA0644GB
Revision: May 2010 2011 Versa

P0715 INPUT SPEED SENSOR ACVT-75
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

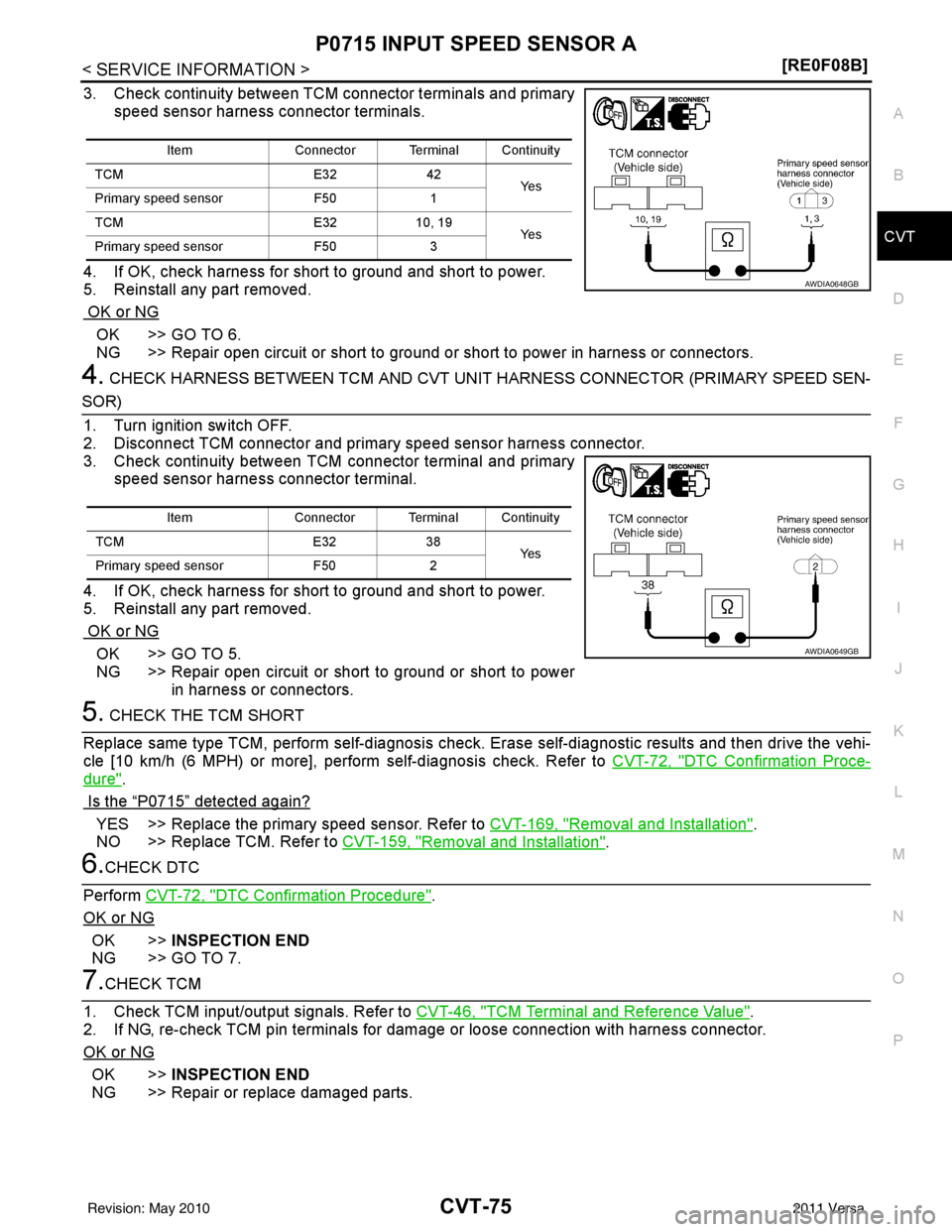

3. Check continuity between TCM connector terminals and primary speed sensor harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HARNESS BETWEEN TC M AND CVT UNIT HARNESS CONNE CTOR (PRIMARY SPEED SEN-
SOR)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and primary speed sensor harness connector.
3. Check continuity between TCM connector terminal and primary speed sensor harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and then drive the vehi-
cle [10 km/h (6 MPH) or more], perform self-diagnosis check. Refer to CVT-72, "
DTC Confirmation Proce-
dure".
Is the
“P0715” detected again?
YES >> Replace the primary speed sensor. Refer to CVT-169, "Removal and Installation".
NO >> Replace TCM. Refer to CVT-159, "
Removal and Installation".
6.CHECK DTC
Perform CVT-72, "
DTC Confirmation Procedure".
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-46, "
TCM Terminal and Reference Value".
2. If NG, re-check TCM pin terminals for dam age or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
TCM E3242
Ye s
Primary speed sensor F501
TCM E3210, 19
Ye s
Primary speed sensor F503
AWDIA0648GB
Item Connector Terminal Continuity
TCM E3238
Ye s
Primary speed sensor F502
AWDIA0649GB
Revision: May 2010 2011 Versa

CVT-76
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
P0720 OUTPUT SPEED SENSOR
DescriptionINFOID:0000000005928802
The secondary speed sensor detects the revolution of
the CVT output shaft and emits a pulse signal. The
pulse signal is sent to the TCM, which converts it into vehicle speed.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005928803
Remarks: Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000005928804
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0720” with CONSULT-III is det ected TCM does not receive the proper signal from
the sensor.
Possible CauseINFOID:0000000005928805
• Harness or connectors (Sensor circuit is open or shorted.)
• Secondary speed sensor
DTC Confirmation ProcedureINFOID:0000000005928806
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 12 consecutive seconds. ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. If DTC is detected, go to CVT-78, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
VSP SENSOR During driving Approximately matches the spee dometer reading.
Revision: May 2010 2011 Versa

P0720 OUTPUT SPEED SENSORCVT-77
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Wiring Diagram - CVT - SESCVTINFOID:0000000005928807
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value" .
AADWA0020GB
Revision: May 2010 2011 Versa

CVT-78
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
Diagnosis Procedure
INFOID:0000000005928808
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “VSP SENSOR”.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK SECONDARY SPEED SENSOR
With CONSULT-III
1. Start engine.

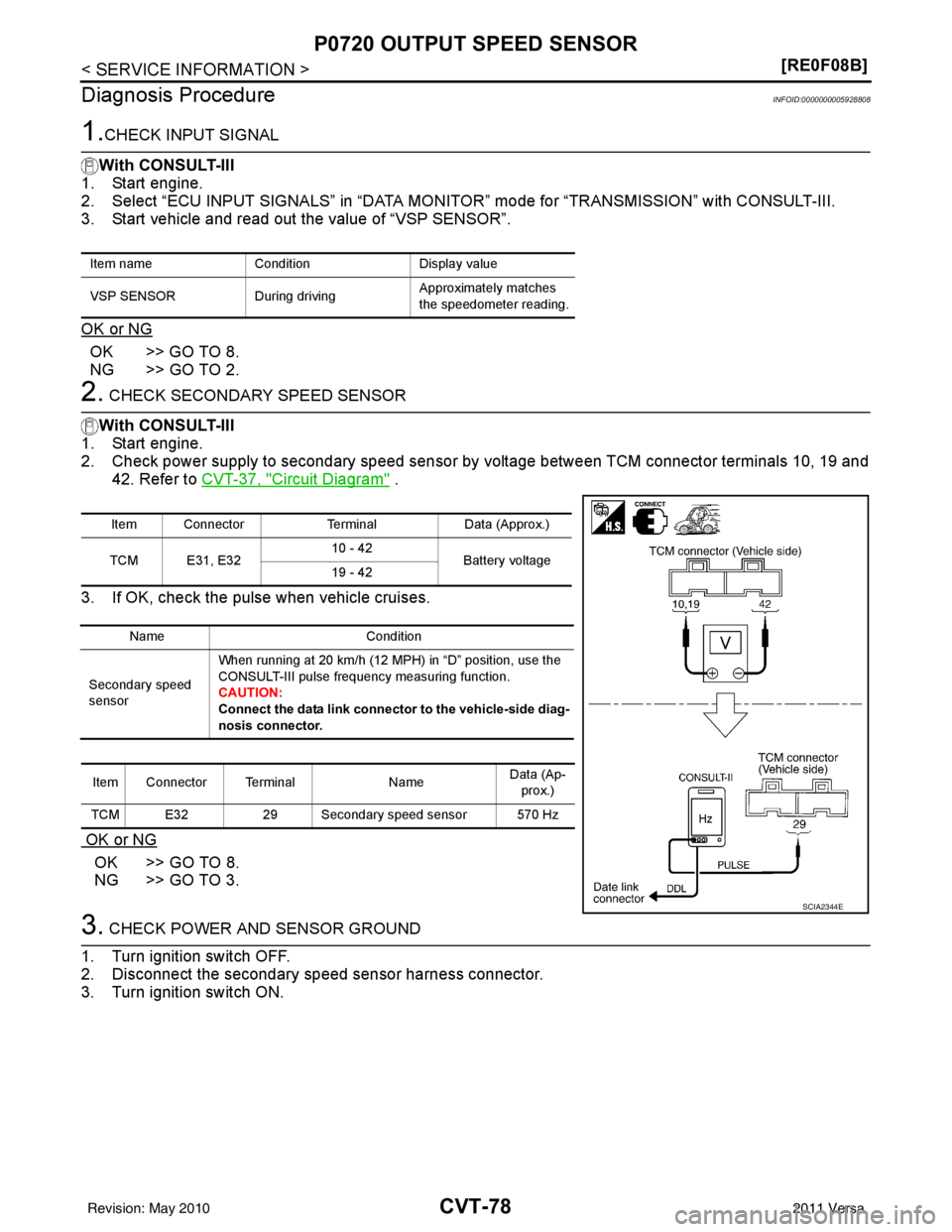

2. Check power supply to secondary speed sensor by voltage between TCM connector terminals 10, 19 and 42. Refer to CVT-37, "
Circuit Diagram" .
3. If OK, check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the secondary speed sensor harness connector.
3. Turn ignition switch ON.
Item name ConditionDisplay value
VSP SENSOR During drivingApproximately matches
the speedometer reading.
Item Connector
Terminal Data (Approx.)
TCM E31, E32 10 - 42
Battery voltage
19 - 42
Name Condition
Secondary speed
sensor When running at 20 km/h (12 MPH) in “D” position, use the
CONSULT-III pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData (Ap-
prox.)
TCM E32 29 Secondary speed sensor 570 Hz
SCIA2344E
Revision: May 2010 2011 Versa

P0720 OUTPUT SPEED SENSORCVT-79
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

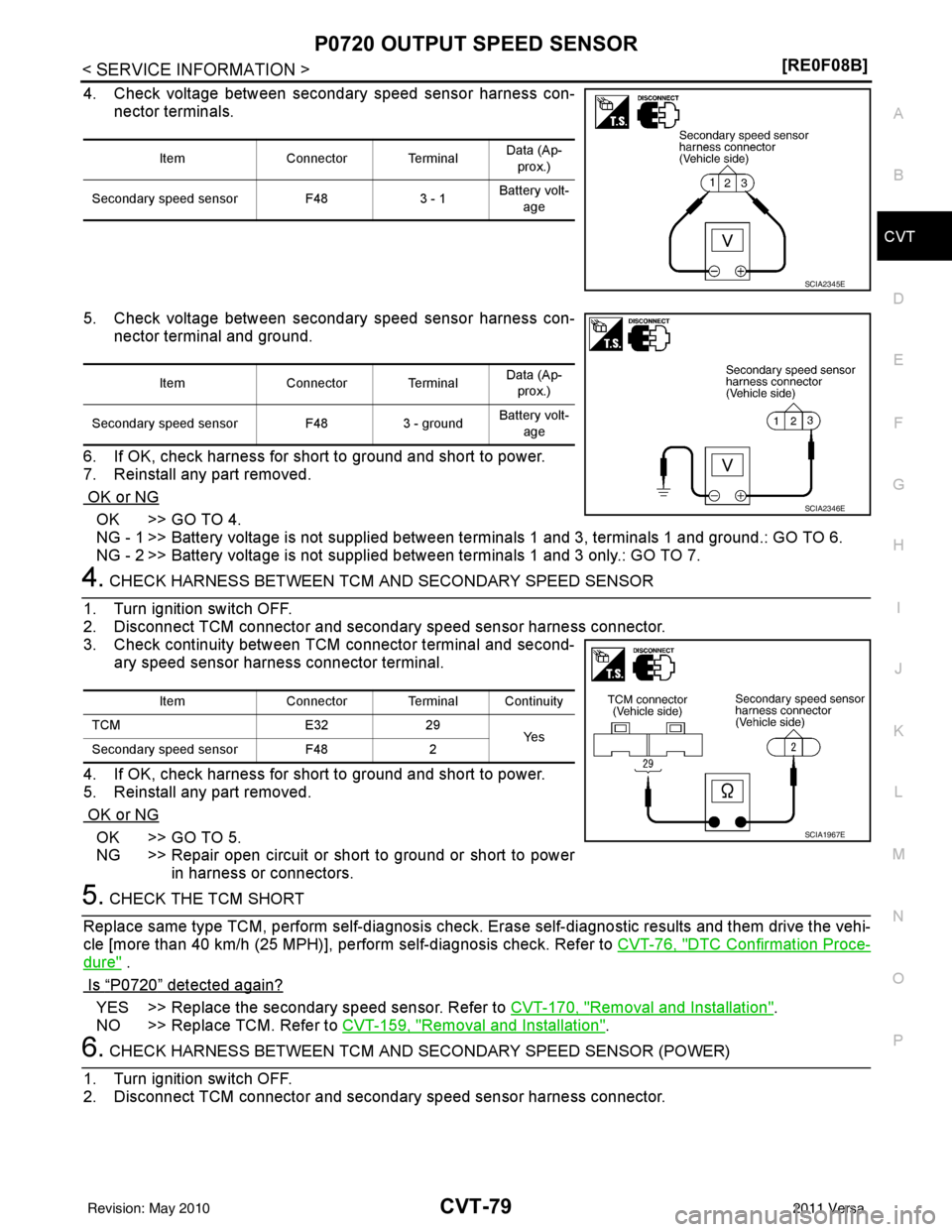

4. Check voltage between secondary speed sensor harness con- nector terminals.
5. Check voltage between secondary speed sensor harness con- nector terminal and ground.
6. If OK, check harness for short to ground and short to power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.: GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND SECONDARY SPEED SENSOR
1. Turn ignition switch OFF.
2. Disconnect TCM connector and secondar y speed sensor harness connector.
3. Check continuity between TCM connector terminal and second- ary speed sensor harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and them drive the vehi-
cle [more than 40 km/h (25 MPH)], perform self-diagnosis check. Refer to CVT-76, "
DTC Confirmation Proce-
dure" .
Is
“P0720” detected again?
YES >> Replace the secondary speed sensor. Refer to CVT-170, "Removal and Installation".
NO >> Replace TCM. Refer to CVT-159, "
Removal and Installation".
6. CHECK HARNESS BETWEEN TCM AND SECONDARY SPEED SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and secondar y speed sensor harness connector.
ItemConnector Terminal Data (Ap-
prox.)
Secondary speed sensor F483 - 1 Battery volt-
age
SCIA2345E
Item Connector Terminal Data (Ap-
prox.)
Secondary speed sensor F483 - groundBattery volt-
age
SCIA2346E
Item Connector Terminal Continuity
TCM E3229
Ye s
Secondary speed sensor F482
SCIA1967E
