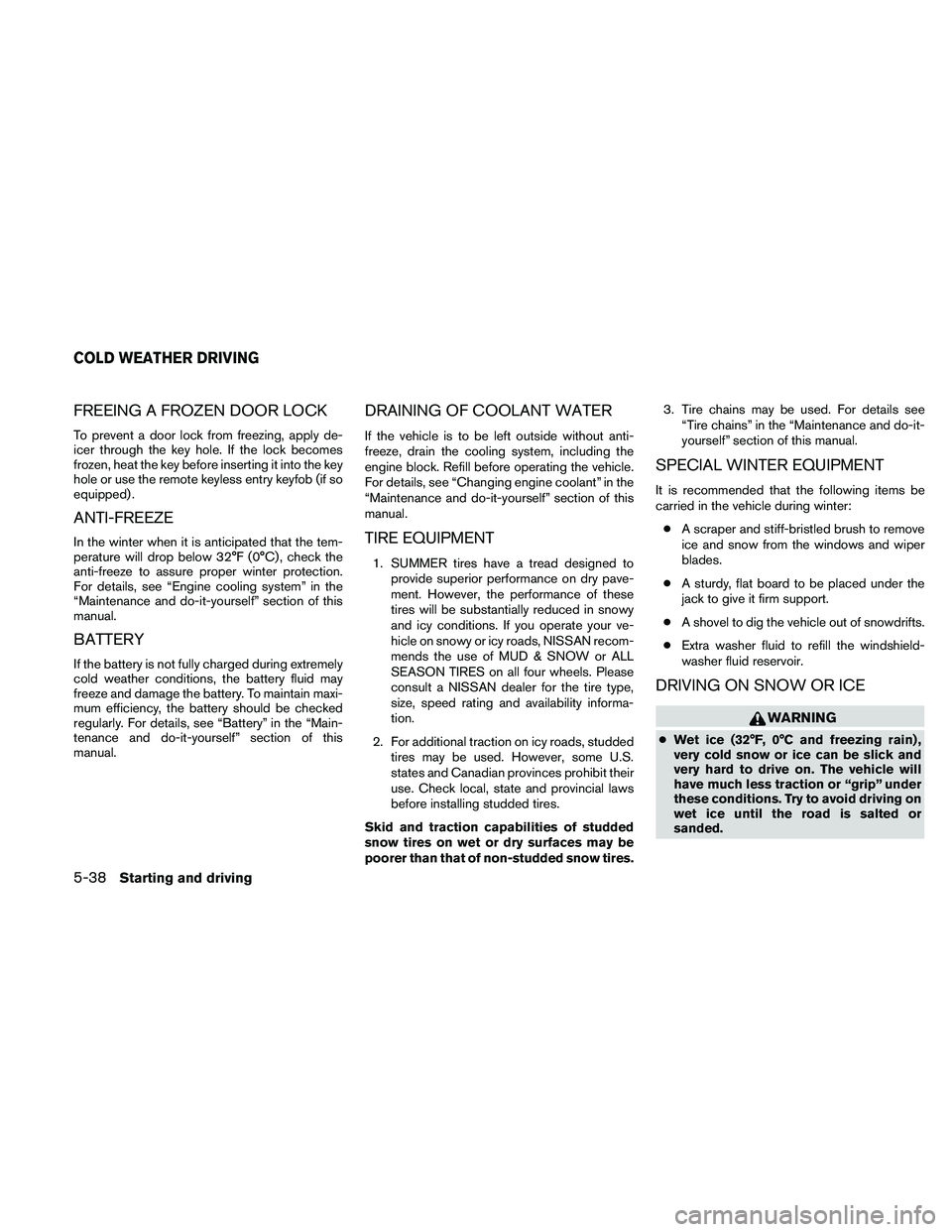

FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply de-
icer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the key
hole or use the remote keyless entry keyfob (if so
equipped) .
ANTI-FREEZE
In the winter when it is anticipated that the tem-
perature will drop below 32°F (0°C) , check the
anti-freeze to assure proper winter protection.
For details, see “Engine cooling system” in the
“Maintenance and do-it-yourself” section of this
manual.
BATTERY
If the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain maxi-
mum efficiency, the battery should be checked
regularly. For details, see “Battery” in the “Main-
tenance and do-it-yourself” section of this
manual.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
For details, see “Changing engine coolant” in the
“Maintenance and do-it-yourself” section of this
manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your ve-
hicle on snowy or icy roads, NISSAN recom-
mends the use of MUD & SNOW or ALL
SEASON TIRES on all four wheels. Please
consult a NISSAN dealer for the tire type,
size, speed rating and availability informa-
tion.
2. For additional traction on icy roads, studded tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires.
Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires. 3. Tire chains may be used. For details see
“Tire chains” in the “Maintenance and do-it-
yourself” section of this manual.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
● A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
● A sturdy, flat board to be placed under the
jack to give it firm support.
● A shovel to dig the vehicle out of snowdrifts.
● Extra washer fluid to refill the windshield-
washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
● Wet ice (32°F, 0°C and freezing rain) ,
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or
sanded.
COLD WEATHER DRIVING
5-38Starting and driving

G
Garage door opener, HomeLink Universal
Transceiver ....................2-53
Gascap .....................3-11
Gauge Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-8
Fuel gauge ...................2-7
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-6
Trip computer .................2-9
Trip odometer .................2-4
Voltmeter ....................2-8
General maintenance ...............8-2
Glove box .....................2-41
H
Hands-free phone system, Bluetooth .....4-37
Hazard warning flasher switch .........2-32
Headlight and turn signal switch ........2-28
Headlight control switch ............2-28
Headlights ....................8-28
Heated seats ...................2-33
Heater Heater and air conditioner controls . .4-2, 4-10
Heater operation ............4-4, 4-11
Hill descent control switch ...........2-34
Hill descent control system ...........5-36
Hill start assist system ..............5-37
HomeLink Universal Transceiver ........2-53
Hood release ...................3-10 Horn
.......................2-32
I
Ignition switch ..................5-10
Immobilizer system .........2-25, 3-2, 5-11
Important vehicle information label .......9-11
In-cabin microfilter ................8-20
Increasing fuel economy .............5-22
Indicator

lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-14
Inside automatic anti-glare mirror ........3-15
Inside mirror ...................3-14
Instrument brightness control ..........2-31
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-31
Interior light ....................2-52
ISOFIX child restraints .............1-25
J
Jump seat .....................1-5
Jump starting ...................6-9
K
Key.........................3-2
Keyfob battery replacement ...........8-26
Keyless entry system
(See remote keyless entry system) ........3-6 L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-12
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-75
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-25
License plate Installing the license plate ..........9-13
Light Air bag warning light .........1-76, 2-19
Brake light (See stop light) .........8-30
Bulb check/instrument panel ........2-15
Bulb replacement ..............8-30
Charge warning light ............2-16
Fog light switch ...............2-31
Headlight and turn signal switch ......2-28
Headlight control switch ..........2-28
Headlights ..................8-28
Interior light ..................2-52
Light

bulbs ..................8-28
Low tire pressure warning light .......2-17
Low windshield-washer fluid warning
light ......................2-19
Passenger air bag and status light .....1-70
Security indicator light ............2-22
Warning/indicator lights and audible
reminders ...................2-14
Lights Map lights ..................2-53
10-3

LockChild safety rear door lock ..........3-6
Door locks ...................3-3
Power door locks ...............3-4
Loose fuel cap warning ..........2-5, 3-11
Low fuel warning light ..............2-17
Low tire pressure warning light .........2-17
Low windshield-washer fluid warning light . . .2-19
Luggage rack (see roof rack) ..........2-45
Luggage (See vehicle loading information) . .9-13
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-21
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-21
Manual front seat adjustment ...........1-2
Manual windows .................2-49
Map lights ....................2-53
Map pocket ....................2-42
Meters and gauges ................2-3
Instrument brightness control ........2-31
Mirror Automatic anti-glare inside mirror ......3-15
Inside mirror .................3-14
Outside mirrors ...............3-15
Vanity mirror .................3-14
Moonroof .....................2-49
Multi-remote control system
(See remote keyless entry system) ........3-6 N
NISSAN vehicle immobilizer
system ................2-25, 3-2, 5-11
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil ............ .8-11
Changing

engine oil filter ..........8-12
Checking engine oil level ..........8-10
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Outside mirrors .................3-15
Overdrive switch .................5-16
Overheat If your vehicle overheats ...........6-11
Owner’s manual order form ...........9-39
Owner’s manual/service manual order
information ....................9-39
P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-31
Phone, Bluetooth hands-free system.....4-37
Power Front seat adjustment .............1-4 Power door locks
...............3-4
Power outlet .................2-37
Power steering fluid .............8-14
Power steering system ...........5-32
Power windows ...............2-47
Rear power windows ............2-48
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-6
Precautions on child
restraints .........1-23, 1-34, 1-46, 1-56
Precautions on seat belt usage .......1-13
Precautions on supplemental restraint
system ....................1-61
Precautions when starting and driving . . . .5-2
Pre-tensioner seat belt system .........1-74
Push starting ...................6-11
R
Radio Car phone or CB radio ...........4-36
Compact Disc (CD) changer . . . .4-29, 4-33
FM-AM radio with compact disc (CD)
changer ....................4-29
FM/AM radio with compact disc (CD)
player .................... .4-25
Steering

wheel audio control switch . . . .4-35
Readiness for inspection maintenance
(I/M) test .....................9-38
Rear power windows ..............2-48
Rear sliding window ...............2-49
Rear window defroster switch .........2-27
Recorders
10-4

Event data..................9-38
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system ...........3-6
Reporting safety defects (US only) .......9-37
Roof rack .....................2-45
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-23, 1-34, 1-46, 1-56
Reporting safety defects (US only) .....9-37
Seat Jump seat ...................1-5
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment .........1-4
Seat belt Child safety ..................1-21
Infants and small children ..........1-22
Injured Person ................1-16
Larger children ................1-22
Precautions on seat belt usage .......1-13
Pregnant women ...............1-16
Pre-tensioner seat belt system .......1-74
Seat belt extenders .............1-20
Seat belt maintenance ............1-21
Seat belts ...................1-13
Shoulder belt height adjustment ......1-20
Three-point type with retractor .......1-16
Seat belt warning light ..............2-19
Seatback pockets ................2-43
Seats Adjustment ...................1-2 Front seats
...................1-2
Heated seats .................2-33
Manual front seat adjustment .........1-2
Security indicator light ..............2-22
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-25, 3-2, 5-11
Self-adjusting brakes ..............8-23
Service

manual order form ...........9-39
Servicing air conditioner .............4-17
Shift lock release .................5-15
Shifting Automatic transmission ...........5-14
Manual transmission .............5-17
Shoulder belt height adjustment ........1-20
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-73
Spark plug replacement .............8-19
Speedometer ...................2-4
SRS warning label ................1-75
Starting Before starting the engine ..........5-12
Jump starting .................6-9
Precautions when starting and driving . . . .5-2
Push starting .................6-11
Starting the engine .............5-12
Steering Power steering fluid .............8-14
Power steering system ...........5-32
Tilting steering wheel ............3-13
Steering wheel audio control switch ......4-35
Stop light .....................8-30
Storage ......................2-38
Storage tray ................2-38, 2-39
Sun visors ....................3-13
Sunglasses case .................2-41
Sunroof (see Moonroof) .............2-49 Supplemental air bag warning labels
......1-75
Supplemental air bag warning light . . .1-76, 2-19
Supplemental front impact air bag system . . .1-68
Supplemental restraint system Information and warning labels .......1-75
Precautions on supplemental restraint
system ....................1-61
Supplemental restraint system
(Supplemental air bag system) .........1-61
Switch Autolight switch ...............2-29
Automatic power window switch ......2-48
Clutch interlock (clutch start) switch . . . .2-36
Electronic locking rear differential (E-Lock)
system switch ................2-35
Fog light switch ...............2-31
Hazard

warning flasher switch .......2-32
Headlight and turn signal switch ......2-28
Headlight control switch ..........2-28
Hill descent control switch .........2-34
Ignition switch ................5-10
Overdrive switch ...............5-16
Power door lock switch ............3-4
Rear window defroster switch .......2-27
Turn signal switch ..............2-31
Vehicle dynamic control (VDC) off
switch .....................2-34
Windshield wiper and washer switch . . .2-26
T
Tachometer ....................2-6
Tailgate latch ............3-16, 3-18, 3-19
Temperature gauge Engine coolant temperature gauge .....2-6
10-5
