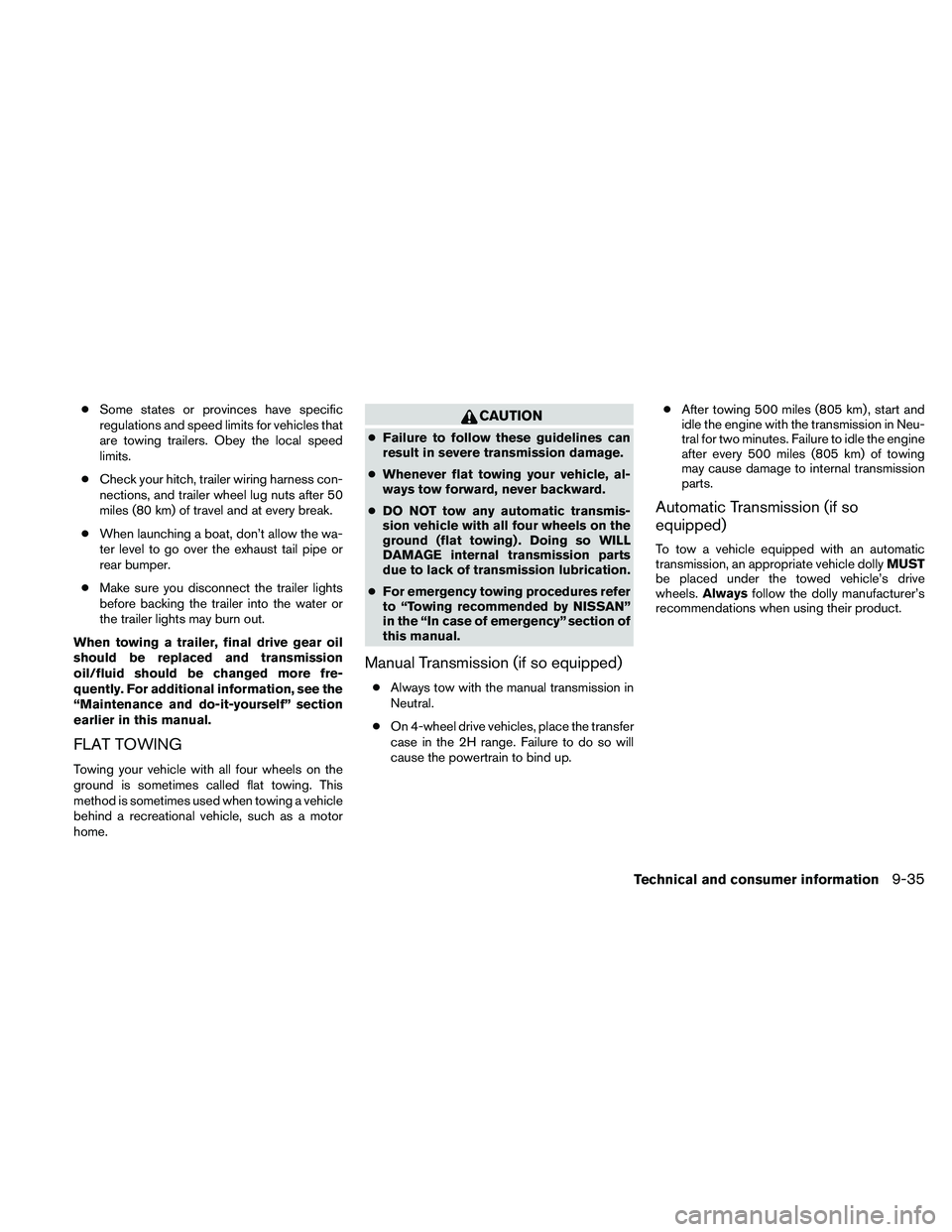

●Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits.
● Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after 50
miles (80 km) of travel and at every break.
● When launching a boat, don’t allow the wa-
ter level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, final drive gear oil
should be replaced and transmission
oil/fluid should be changed more fre-
quently. For additional information, see the
“Maintenance and do-it-yourself” section
earlier in this manual.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
● Failure to follow these guidelines can
result in severe transmission damage.
● Whenever flat towing your vehicle, al-
ways tow forward, never backward.
● DO NOT tow any automatic transmis-
sion vehicle with all four wheels on the
ground (flat towing) . Doing so WILL
DAMAGE internal transmission parts
due to lack of transmission lubrication.
● For emergency towing procedures refer
to “Towing recommended by NISSAN”
in the “In case of emergency” section of
this manual.
Manual Transmission (if so equipped)
● Always tow with the manual transmission in
Neutral.
● On 4-wheel drive vehicles, place the transfer
case in the 2H range. Failure to do so will
cause the powertrain to bind up. ●
After towing 500 miles (805 km) , start and
idle the engine with the transmission in Neu-
tral for two minutes. Failure to idle the engine
after every 500 miles (805 km) of towing
may cause damage to internal transmission
parts.
Automatic Transmission (if so
equipped)
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly MUST
be placed under the towed vehicle’s drive
wheels. Always follow the dolly manufacturer’s
recommendations when using their product.
Technical and consumer information9-35

10 Index
4WD warning light...............2-17
A
Active brake limited slip (ABLS) system
(if so equipped) .................5-34
Air bag (See supplemental restraint
system) .....................1-61
Air bag system Front (See supplemental front impact
air bag system) ...............1-68
Air bag warning labels .............1-75
Air bag warning light ...........1-76, 2-19
Air cleaner housing filter ............8-20
Air conditioner Air conditioner operation .......4-5, 4-12
Air conditioner service ...........4-17
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner
controls ................4-2, 4-10
Servicing air conditioner ..........4-17
Air flow charts ...............4-7, 4-14
Alarm system
(See vehicle security system) .........2-24
Anchor point locations .............1-27
Antenna .....................4-36
Anti-lock brake warning light ..........2-15
Anti-lock Braking System (ABS) ........5-33
Audible reminders ...............2-23
Audio system ..................4-17 Compact Disc (CD) changer . . . .4-29, 4-33
Compact disc (CD) player
.........4-27
FM-AM radio with compact disc
(CD) changer ................4-29
FM/AM radio with compact disc
(CD) player .................4-25
Radio ....................4-17
Steering wheel audio control switch . . .4-35
Autolight switch .................2-29
Automatic Automatic power window switch .....2-48
Automatic transmission position indicator
light .....................2-20
Driving with automatic transmission . . . .5-13
Automatic anti-glare inside mirror .......3-15
Automatic door locks ..............3-5
AUX jack ....................4-34
B
Battery ......................8-16
Charge

warning light ............2-16
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-18
Block heater Engine ....................5-39
Bluetooth hands-free phone system .....4-37
Booster seats ..................1-56
Brake Anti-lock Braking System (ABS) ......5-33
Brake fluid ..................8-14
Brake light (See stop light) .........8-30 Brake system
................5-32
Brake warning light .............2-16
Brake wear indicators ........2-23, 8-23
Parking brake operation ..........5-19
Self-adjusting brakes ............8-23
Brakes ......................8-23
Break-in schedule ...............5-22
Brightness control Instrument panel ..............2-31
Bulb check/instrument panel ..........2-15
Bulb replacement ................8-30
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-36
Cargo light switch ...............2-33
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning .............4-35
CD changer (See audio system) . . . .4-29, 4-33
CD player (See audio system) .........4-27
Check tire press .................2-5
Child restraint with top tether strap ......1-27
Child restraints .......1-21, 1-22, 1-23, 1-25
Precautions on child
restraints ........1-23, 1-34, 1-46, 1-56
Top tether strap anchor point locations . .1-27
Child safety rear door lock ............3-6
Chimes,
audible reminders ...........2-23
Cleaning exterior and interior ..........7-2
Clock ......................4-26

ClutchClutch fluid ..................8-15
Clutch interlock (clutch start) switch ......2-36
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-38
Compact disc (CD) player ...........4-27
Compass display ................2-10
Console box ...................2-41
Controls Audio controls (steering wheel) .......4-35
Heater and air conditioner controls . .4-2, 4-10
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Checking engine coolant level ........8-9
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-5
Cruise control ..................5-20
Cup holders ...................2-43
Curtain side-impact and rollover air bag . . . .1-73
D
Daytime running light system (Canada only) . .2-30
Defroster switch Rear window defroster switch .......2-27
Dimensions and weights .............9-9
Dimmer switch for instrument panel ......2-31
Door locks .....................3-3
Door open warning light .............2-16
Drive belt .....................8-18
Driving Cold weather driving ............5-38
Driving with automatic transmission . . . .5-13 Driving with manual transmission
......5-17
Precautions when starting and driving . . . .5-2
E
Economy - fuel ..................5-22
Electronic locking rear differential (E-Lock)
system ......................5-29
Electronic locking rear differential (E-Lock)
system switch ..................2-35
Emission control information label .......9-12
Emission control system warranty .......9-36
Engine Before starting the engine ..........5-12
Block
heater .................5-39
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Changing engine oil .............8-11
Changing engine oil filter ..........8-12
Checking engine coolant level ........8-9
Checking engine oil level ..........8-10
Engine compartment check locations . . . .8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-8
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light ......2-17
Engine oil viscosity ..............9-6
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-12
Engine oil pressure gauge ............2-8
Event data recorders ..............9-38
Exhaust gas (Carbon monoxide) .........5-2 F
First aid kit .....................6-2
Flashers
(See hazard warning flasher switch) ......2-32
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-14
Capacities and recommended
fuel/lubricants .................9-2
Clutch fluid ..................8-15
Engine coolant .................8-8
Engine oil ...................8-10
Power steering fluid .............8-14
Windshield-washer fluid ...........8-15
F.M.V.S.S. certification label ...........9-11
Fog light switch .................2-31
Front air bag system
(See supplemental restraint system) ......1-68
Front
seats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-22
Fuel gauge ...................2-7
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Fuel-filler door and cap ...........3-11
Loose fuel cap warning ........2-5, 3-11
Fuses .......................8-24
Fusible links ...................8-25
10-2

Event data..................9-38
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system ...........3-6
Reporting safety defects (US only) .......9-37
Roof rack .....................2-45
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-23, 1-34, 1-46, 1-56
Reporting safety defects (US only) .....9-37
Seat Jump seat ...................1-5
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment .........1-4
Seat belt Child safety ..................1-21
Infants and small children ..........1-22
Injured Person ................1-16
Larger children ................1-22
Precautions on seat belt usage .......1-13
Pregnant women ...............1-16
Pre-tensioner seat belt system .......1-74
Seat belt extenders .............1-20
Seat belt maintenance ............1-21
Seat belts ...................1-13
Shoulder belt height adjustment ......1-20
Three-point type with retractor .......1-16
Seat belt warning light ..............2-19
Seatback pockets ................2-43
Seats Adjustment ...................1-2 Front seats
...................1-2
Heated seats .................2-33
Manual front seat adjustment .........1-2
Security indicator light ..............2-22
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-25, 3-2, 5-11
Self-adjusting brakes ..............8-23
Service

manual order form ...........9-39
Servicing air conditioner .............4-17
Shift lock release .................5-15
Shifting Automatic transmission ...........5-14
Manual transmission .............5-17
Shoulder belt height adjustment ........1-20
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-73
Spark plug replacement .............8-19
Speedometer ...................2-4
SRS warning label ................1-75
Starting Before starting the engine ..........5-12
Jump starting .................6-9
Precautions when starting and driving . . . .5-2
Push starting .................6-11
Starting the engine .............5-12
Steering Power steering fluid .............8-14
Power steering system ...........5-32
Tilting steering wheel ............3-13
Steering wheel audio control switch ......4-35
Stop light .....................8-30
Storage ......................2-38
Storage tray ................2-38, 2-39
Sun visors ....................3-13
Sunglasses case .................2-41
Sunroof (see Moonroof) .............2-49 Supplemental air bag warning labels
......1-75
Supplemental air bag warning light . . .1-76, 2-19
Supplemental front impact air bag system . . .1-68
Supplemental restraint system Information and warning labels .......1-75
Precautions on supplemental restraint
system ....................1-61
Supplemental restraint system
(Supplemental air bag system) .........1-61
Switch Autolight switch ...............2-29
Automatic power window switch ......2-48
Clutch interlock (clutch start) switch . . . .2-36
Electronic locking rear differential (E-Lock)
system switch ................2-35
Fog light switch ...............2-31
Hazard

warning flasher switch .......2-32
Headlight and turn signal switch ......2-28
Headlight control switch ..........2-28
Hill descent control switch .........2-34
Ignition switch ................5-10
Overdrive switch ...............5-16
Power door lock switch ............3-4
Rear window defroster switch .......2-27
Turn signal switch ..............2-31
Vehicle dynamic control (VDC) off
switch .....................2-34
Windshield wiper and washer switch . . .2-26
T
Tachometer ....................2-6
Tailgate latch ............3-16, 3-18, 3-19
Temperature gauge Engine coolant temperature gauge .....2-6
10-5

Theft (NISSAN vehicle immobilizer system) ,
engine start.............2-25, 3-2, 5-11
Three-way catalyst ................5-3
Tie down hooks .................3-19
Tilting steering wheel ..............3-13
Tire Flat tire .....................6-3
Spare tire ................6-4, 8-42
Tire and Loading Information label .....9-12
Tire chains ..................8-39
Tire placard ..................9-12
Tire pressure .................8-32
Tire rotation ..................8-39
Tires of 4-wheel drive ............8-41
Types of tires .................8-38
Uniform tire quality grading .........9-36
Wheels and tires ...............8-32
Wheel/tire size .................9-9
Tire pressure Low tire pressure warning light .......2-17
Tire Pressure Monitoring System (TPMS) . . . .5-3
Top tether strap child restraint .........1-27
Towing 2-wheel drive models ............6-13
4-wheel drive models ............6-14
Flat towing ..................9-35
Tow truck towing ...............6-12
Towing load/specification ..........9-28
Trailer towing .................9-24
Transceiver HomeLink Universal Transceiver ......2-53
Transmission Driving with automatic transmission . . . .5-13
Driving with manual transmission ......5-17
Travel (See registering your vehicle in another
country) ......................9-10 Trip computer
...................2-9
Trip odometer ...................2-4
Truck - camper loading .............9-23
T

urn signal switch ................2-31
U
Uniform tire quality grading ...........9-36
V
Vanity mirror ...................3-14
Variable voltage control system .........8-18
Vehicle dimensions and weights .........9-9
Vehicle dynamic control (VDC) off switch . . .2-34
Vehicle dynamic control (VDC) system .....5-35
Vehicle identification ...............9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate . . . .9-10
Vehicle loading information ...........9-13
Vehicle recovery .................6-14
Vehicle security system .............2-24
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-25, 3-2, 5-11
Ventilators .....................4-2
Visors .......................3-13
Voltmeter ......................2-8
W
Warning 4WD warning light ..............2-17 Air bag warning light
.........1-76, 2-19
Anti-lock brake warning light ........2-15
Battery charge warning light ........2-16
Brake warning light .............2-16
Door open warning light ...........2-16
Engine oil pressure warning light ......2-17
Hazard warning flasher switch .......2-32
Low fuel warning light ............2-17
Low tire pressure warning light .......2-17
Low windshield-washer fluid warning
light ......................2-19
Passenger air bag and status light .....1-70
Seat belt warning light ............2-19
Vehicle security system ...........2-24
Warning labels (for SRS) ..........1-75
Warning/indicator lights and audible
reminders ...................2-14
Warning lights ..................2-14
W

asher switch Windshield wiper and washer switch . . .2-26
Weights (See dimensions and weights) .....9-9
Wheels and tires .................8-32
Wheel/tire size ...................9-9
When traveling or registering your vehicle
in another country ................9-10
Windows Locking passengers’ windows .......2-48
Manual windows ...............2-49
Power windows ...............2-47
Rear power windows ............2-48
Rear sliding window .............2-49
Windshield wiper and washer switch .....2-26
Windshield-washer fluid .............8-15
Wiper Windshield wiper and washer switch . . .2-26
Wiper blades .................8-22
10-6
