1. Hood (P.3-21)
2. Headlights and turn signal lights— Switch operation (P.2-24)
— Bulb replacement (P.8-27) 3. Windshield wiper and washer
— Switch operation (P.2-21)
— Blade replacement (P.8-17)
— Window washer fluid (P.8-12)
4. Outside mirrors (P.3-27)
5. Power windows (P.2-38) 6. Fog lights*
— Switch operation (P.2-28)
— Bulb replacement (P.8-28)
7. License plate installation (P.9-11)
8. Recovery hook (P.6-16)
9. Tires — Wheels and tires (P.8-30, P.9-7)
— Flat tire (P.6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-3)
10. Side turn signal lights — Switch operation (P.2-27)
— Bulb replacement (P.8-28)
11. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Remote keyless entry system* (P.3-6)
— Intelligent Key system* (P.3-10)
— Security system (P.2-18)
12. Child safety rear door lock (P.3-6)
*: if so equippedEXTERIOR FRONT
Illustrated table of contents
0-3

Black plate (8,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SSI0634
1. Rear pillar pocket (P.2-36)
2. Soft bottle holders (P.2-35)
3. Ceiling light (P.2-42)
4. Utility hooks* (P.2-37)
5. Jack and tools (P.6-4)6. Door armrest
— Power window switch (P.2-38)
— Power door lock switch (P.3-5)
7. Microphone* — Bluetooth
®Hands-Free Phone System*
(P.4-55)
8. Sun visors (P.3-26) 9. Map lights* (P.2-41)
10. Inside rearview mirror (P.3-27)
11. Cargo area
— Luggage hooks (P.2-37)
— Cargo light* (P.2-42)
12. Rear cup holders* (P.2-34)
13. Front cup holders (P.2-34)
*: if so equipped
PASSENGER COMPARTMENT0-6
Illustrated table of contents

Black plate (10,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SSI0840
1. Side ventilator (P.4-13)
2. Meters and gauges (P.2-4)
3. Center ventilator (P.4-13)
4. Hazard warning flasher switch (P.2-28)
5. Audio system* (P.4-20)— Clock* (P.2-31) 6. Front passenger air bag status light (P.1-49)
7. Front passenger supplemental air bag (P.1-41)
8. Fuel-filler door release handle (P.3-24)
9. Hood release handle (P.3-21)
10. Ignition switch (models without Intelligent Key
system) (P.5-7)
11. Push-button ignition switch (models with Intelli- gent Key system) (P.5-9)
12. Heater and air conditioner* control (P.4-13) — Rear window and outside mirror* defroster
switch (P.2-24)
13. Utility hooks* (P.2-37)
14. Heated seat switch* (P.2-29)
15. iPod
®connector* (P.4-23)/USB connector*
(P.4-24)
16. Power outlet (P.2-33)
17. Glove box (P.2-36)
*: if so equipped
INSTRUMENT PANEL0-8
Illustrated table of contents

Black plate (13,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-11Brake warning light
2-12Charge warning light2-12Door open warning light 2-12Electric power steering warning
light 2-13Engine oil pressure warning
light2-13Intelligent Key system warning
light*2-13Low fuel warning light
2-13Low tire pressure warning light 2-14Low washer fluid warning light* 2-15 Warning
light Name
Page
P position selecting warning
light* 2-15Seat belt warning light 2-15Supplemental air bag warning
light
2-15
Indicator light Name
PageFront passenger air bag status
light 2-16Cruise indicator light*
2-16Engine start operation indicator
light* 2-16High beam indicator light 2-16Malfunction Indicator Light
(MIL)2-16Overdrive off indicator light* 2-17Security indicator light* 2-17Vehicle Dynamic Control (VDC)
warning light2-17Indicator
light Name
Page
Low beam indicator light 2-17Turn signal/hazard indicator
lights 2-17Vehicle Dynamic Control (VDC)
off indicator light
2-17
*: if so equipped
WARNING AND INDICATOR LIGHTS
Illustrated table of contents
0-11

Black plate (16,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system

Black plate (17,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SSS0792
FRONT SEATS
Front manual seat adjustmentForward and backward:
Pull the lever
*1
up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
To recline the seatback, pull the lever
*2
up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is in
the P (Park) position or N (Neutral) position with
the parking brake fully applied.
SSS0793
Seat lifter (for driver’s seat):
Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system
1-3

Black plate (18,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SSS0961

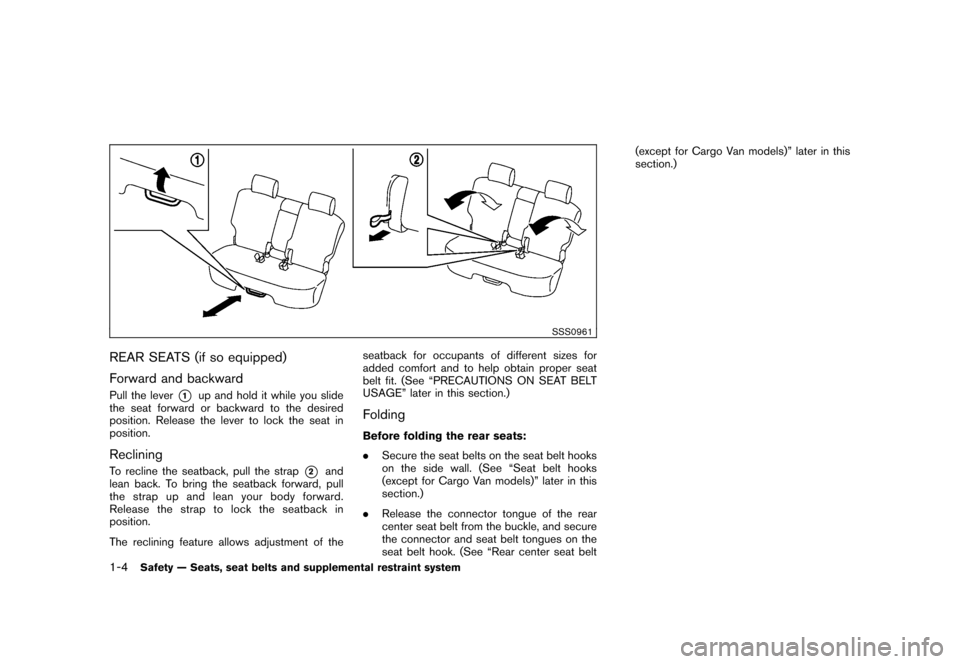

REAR SEATS (if so equipped)
Forward and backwardPull the lever
*1
up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
RecliningTo recline the seatback, pull the strap
*2
and
lean back. To bring the seatback forward, pull
the strap up and lean your body forward.
Release the strap to lock the seatback in
position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.)
FoldingBefore folding the rear seats:
.
Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks
(except for Cargo Van models)” later in this
section.)
. Release the connector tongue of the rear
center seat belt from the buckle, and secure
the connector and seat belt tongues on the
seat belt hook. (See “Rear center seat belt (except for Cargo Van models)” later in this
section.)
1-4
Safety — Seats, seat belts and supplemental restraint system

Black plate (21,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SSS0992

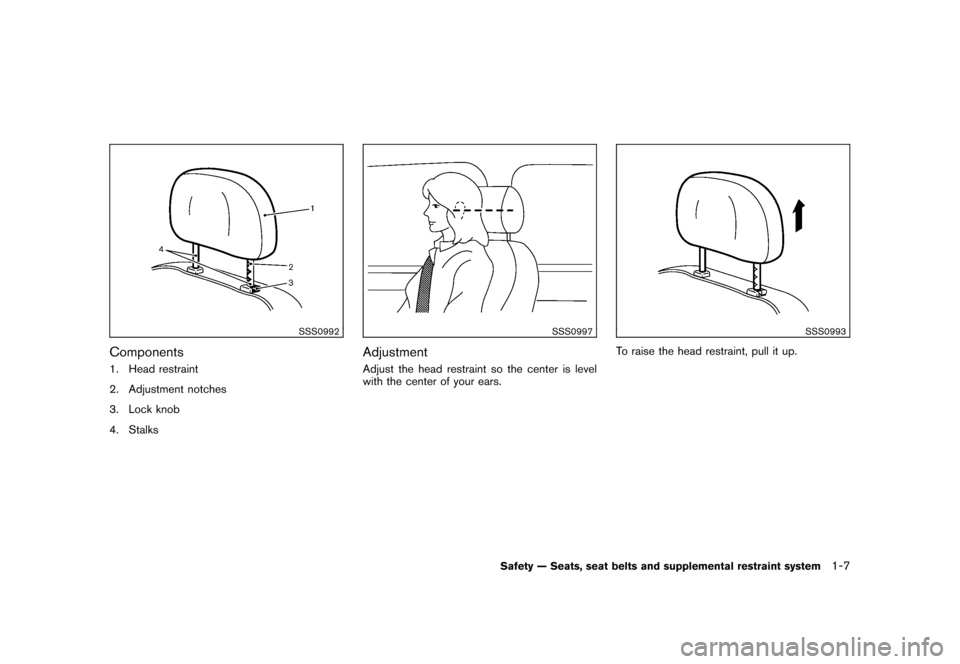

Components1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
SSS0997
AdjustmentAdjust the head restraint so the center is level
with the center of your ears.
SSS0993
To raise the head restraint, pull it up.
Safety — Seats, seat belts and supplemental restraint system
1-7
