2011 NISSAN ARMADA seats

1. 3rd row bench seat belts (P. 1-25)
2. 2nd row seat belts (P. 1-25)
3. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-57)
4. Front seat belts (P. 1-25)
5. Head Restraints (P.1-8 )
6. Supplemental front-impact air bags
(P.1-57)
7. Seats (P. 1-2)
8. Occupant classification sensor
(pressure sensor) (P.1-64)
9. Seat belt with pretensioners (P. 1-70)
10. Front seat-mounted side-impact
supplemental air bag (P. 1-57)
11. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-38)
12. 2nd row seat top tether strap anchor
(P. 1-52)
13. 3rd row bench seat top tether strap
anchor (P. 1-53)
See the page number indicated in paren-
theses for operating details.

1. Rear ventilators (P. 4-35)
2. Storage (P. 2-40)
3. DVD entertainment system(if so equipped) (P. 4-77)
4. Moonroof (if so equipped) (P. 2-55)
5. Map lights (P. 2-58)
6. Sun visors (P. 3-31)
7. HomeLink (P. 2-59)
8. Glove box (P. 2-42)
9. Seats (P. 1-2)
10. Cup holders (P. 2-44)
11. Luggage storage (P. 2-48)
See the page number indicated in paren-
theses for operating details.

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual seat adjustment
(if so equipped for passenger’s seat) .............1-2
Front power seat adjustment
(for driver’s seat and if so equipped for
passenger’s seat) ..............................1-4
2nd row captain’s chair adjustment
(if so equipped) ................................1-5
2nd row bench seat adjustment
(if so equipped) ................................1-6
Armrests ......................................1-8
Head restraints (1st row only) ....................1-8
Head restraints (2nd row – outboard
positions only) ................................ 1-12
Adjustable headrest ........................... 1-14
Flexible seating ................................ 1-17
3rd row power folding seats (if so equipped) .....1-23
Seat belts ....................................... 1-25
Precautions on seat belt usage ..................1-25
Pregnant women .............................. 1-28
Injured persons ................................ 1-28
Three-point type seat belt with retractor ..........1-28
Seat belt extenders ............................ 1-34Seat belt maintenance
......................... 1-34
Child safety ...................................... 1-35
Infants ........................................ 1-35
Small children ................................. 1-35
Larger children ................................ 1-36
Child restraints ................................... 1-36
Precautions on child restraints ..................1-36
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-38
Rear-facing child restraint installation using
LATCH....................................... 1-42
Rear-facing child restraint installation using
the seat belts . . ............................... 1-44
Forward-facing child restraint installation
using LATCH. . . ............................... 1-47
Forward-facing child restraint installation
using the seat belts ............................ 1-49
Installing top tether strap (2nd row captain’s
chairs or 2nd row bench seat
[if so equipped] ) .............................. 1-52
Installing top tether strap
(3rd row bench seat) ........................... 1-53
Booster seats ................................. 1-54

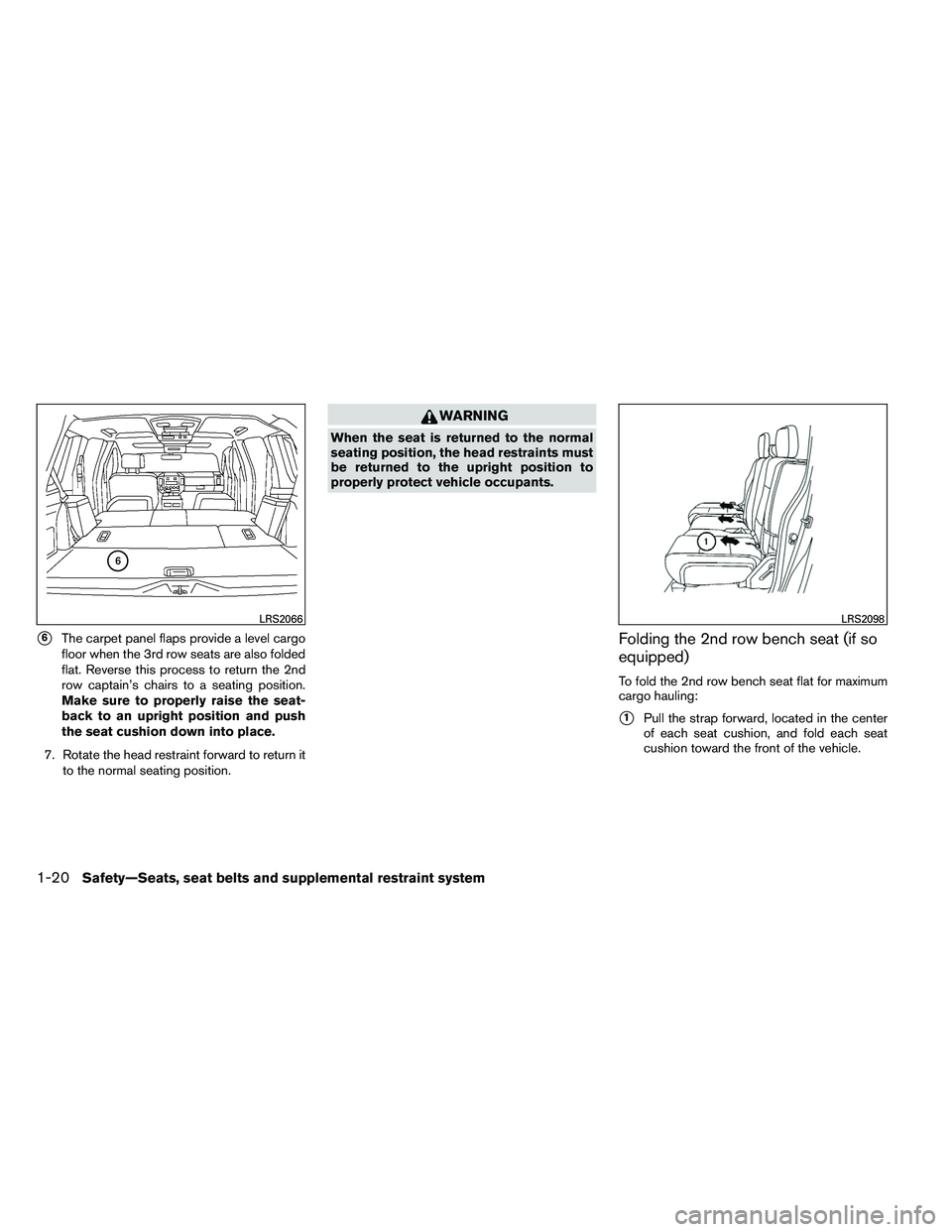

6The carpet panel flaps provide a level cargo
floor when the 3rd row seats are also folded
flat. Reverse this process to return the 2nd
row captain’s chairs to a seating position.
Make sure to properly raise the seat-
back to an upright position and push
the seat cushion down into place.
7. Rotate the head restraint forward to return it to the normal seating position.

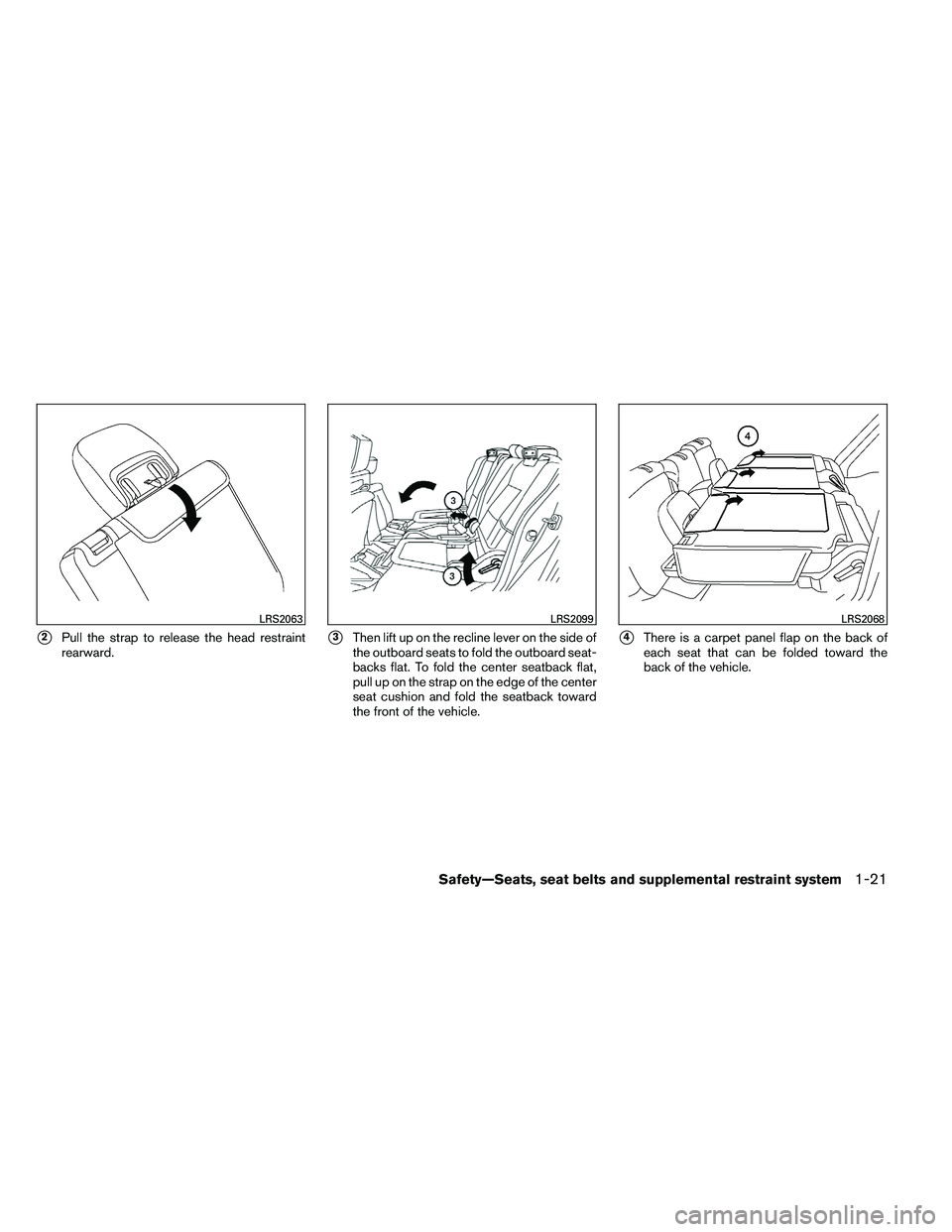

2Pull the strap to release the head restraint
rearward.3Then lift up on the recline lever on the side of
the outboard seats to fold the outboard seat-
backs flat. To fold the center seatback flat,
pull up on the strap on the edge of the center
seat cushion and fold the seatback toward
the front of the vehicle.4There is a carpet panel flap on the back of
each seat that can be folded toward the
back of the vehicle.

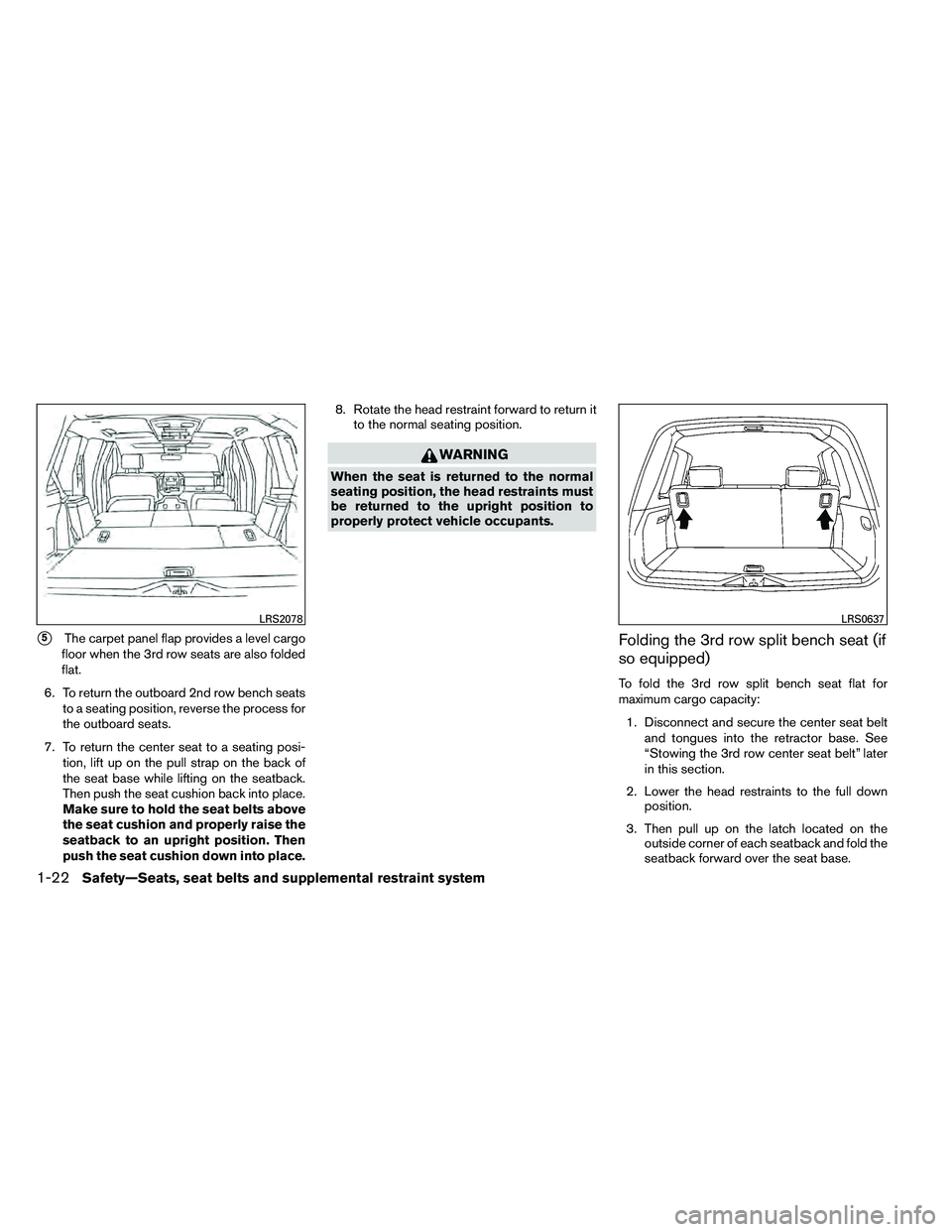

5The carpet panel flap provides a level cargo
floor when the 3rd row seats are also folded
flat.
6. To return the outboard 2nd row bench seats to a seating position, reverse the process for
the outboard seats.
7. To return the center seat to a seating posi- tion, lift up on the pull strap on the back of
the seat base while lifting on the seatback.
Then push the seat cushion back into place.
Make sure to hold the seat belts above
the seat cushion and properly raise the
seatback to an upright position. Then
push the seat cushion down into place. 8. Rotate the head restraint forward to return it
to the normal seating position.

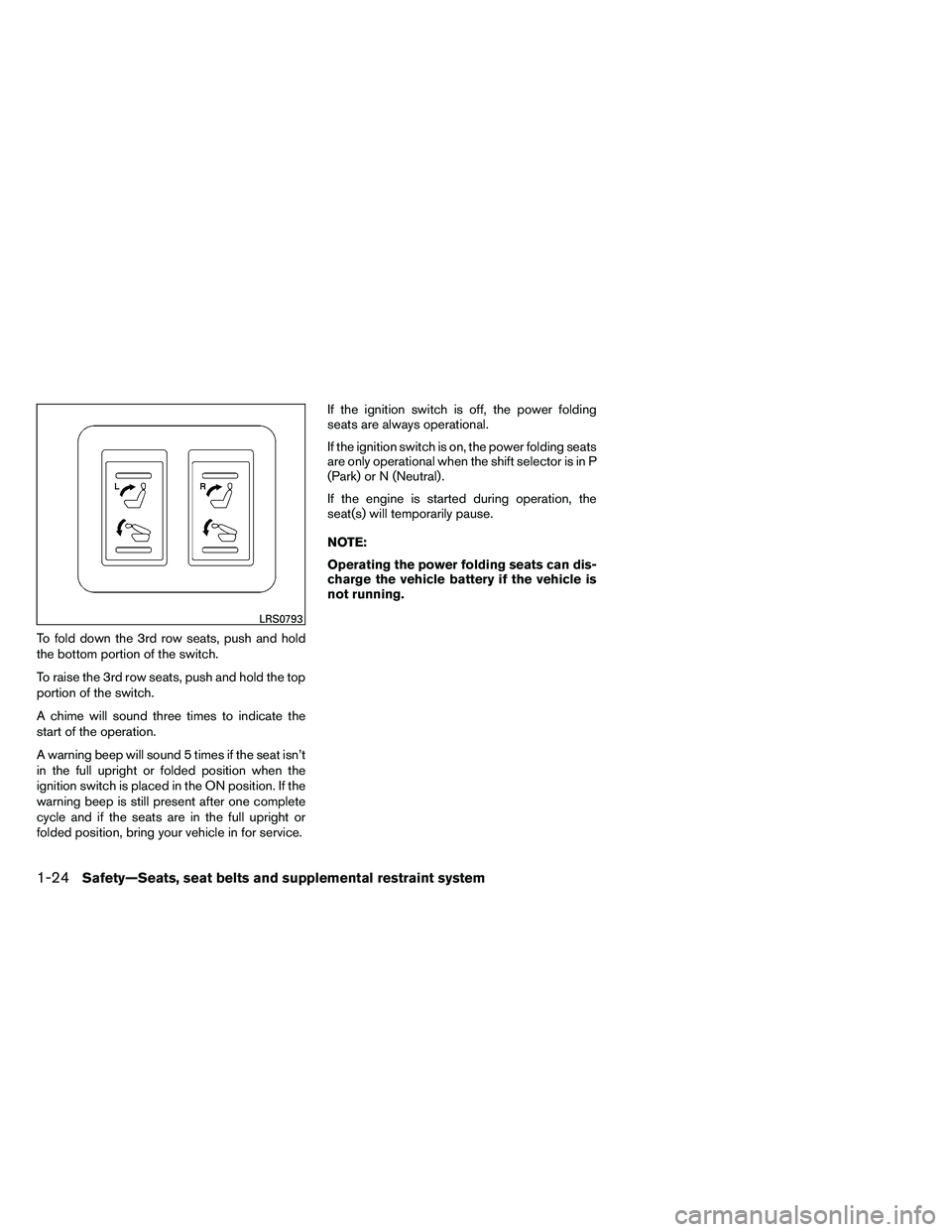

To fold down the 3rd row seats, push and hold
the bottom portion of the switch.
To raise the 3rd row seats, push and hold the top
portion of the switch.
A chime will sound three times to indicate the
start of the operation.
A warning beep will sound 5 times if the seat isn’t
in the full upright or folded position when the
ignition switch is placed in the ON position. If the
warning beep is still present after one complete
cycle and if the seats are in the full upright or
folded position, bring your vehicle in for service.If the ignition switch is off, the power folding
seats are always operational.
If the ignition switch is on, the power folding seats
are only operational when the shift selector is in P
(Park) or N (Neutral) .
If the engine is started during operation, the
seat(s) will temporarily pause.
NOTE:
Operating the power folding seats can dis-
charge the vehicle battery if the vehicle is
not running.

Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.
There are three basic types of child restraint
systems:● Rear-facing child restraint
● Forward-facing child restraint
● Booster seat
The proper restraint depends on the child’s size.
Generally, infants up to about 1 year and less
than 20 lbs (9 kg) should be placed in rear-facing
child restraints. Forward-facing child restraints
are available for children who outgrow rear-
facing child restraints and are at least 1 year old.
Booster seats are used to help position a vehicle
lap/shoulder belt on a child who can no longer
use a forward-facing child restraint.
