2011 NISSAN ARMADA reset

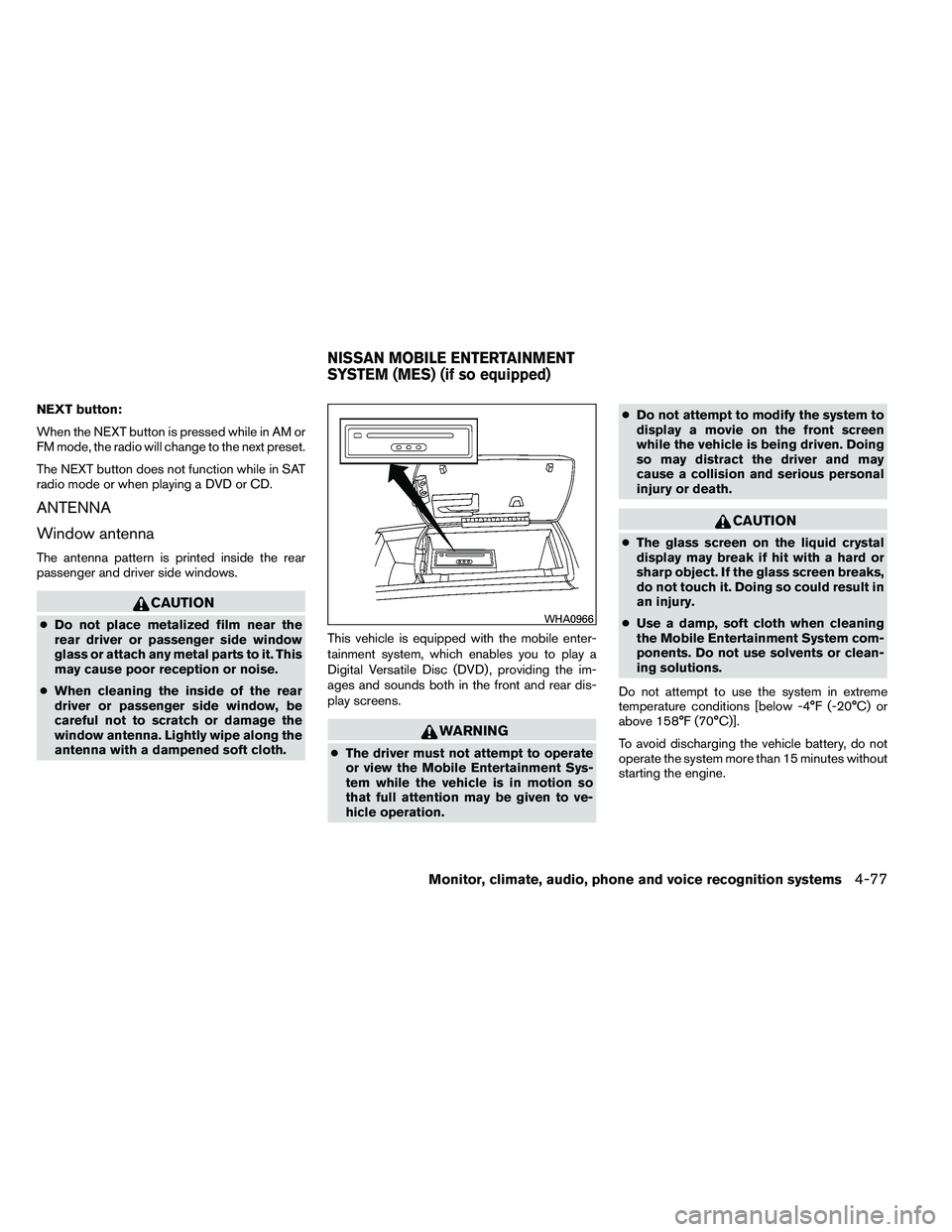

NEXT button:
When the NEXT button is pressed while in AM or
FM mode, the radio will change to the next preset.
The NEXT button does not function while in SAT
radio mode or when playing a DVD or CD.
ANTENNA
Window antenna
The antenna pattern is printed inside the rear
passenger and driver side windows.

●DVDs with a region code other than
“1”. The region code
Ais displayed in
a small symbol printed on the top of
the DVD
B.
● DVDs that are not round.
● DVDs with a paper label.
● DVDs that are warped, scratched, or
have unequal edges.
● Recordable digital video discs
(DVD+R) .
● Rewritable digital video discs
(DVD+RW) .
If a DVD with a paper label is used and
becomes jammed, you may be able to reset
the unit and eject the jammed disc with the
following procedure: 1. Record the radio presets.
2. Disconnect the negative terminal from
the battery for five minutes.
3. Reconnect the negative battery termi-
nal. 4.
Check to see if the jammed DVD has
been ejected. If it has not, try to eject
the DVD by pushing the eject button.
5. If the disc cannot be ejected see your
NISSAN dealer for further assistance.
6. Re-program the radio presets.
Remote control and headphones
battery replacement
Replace the battery as follows:
1. Open the lid.
2. Replace batteries with new ones.● Size AA (remote control)
● Size AAA (headphones)
Make sure that the

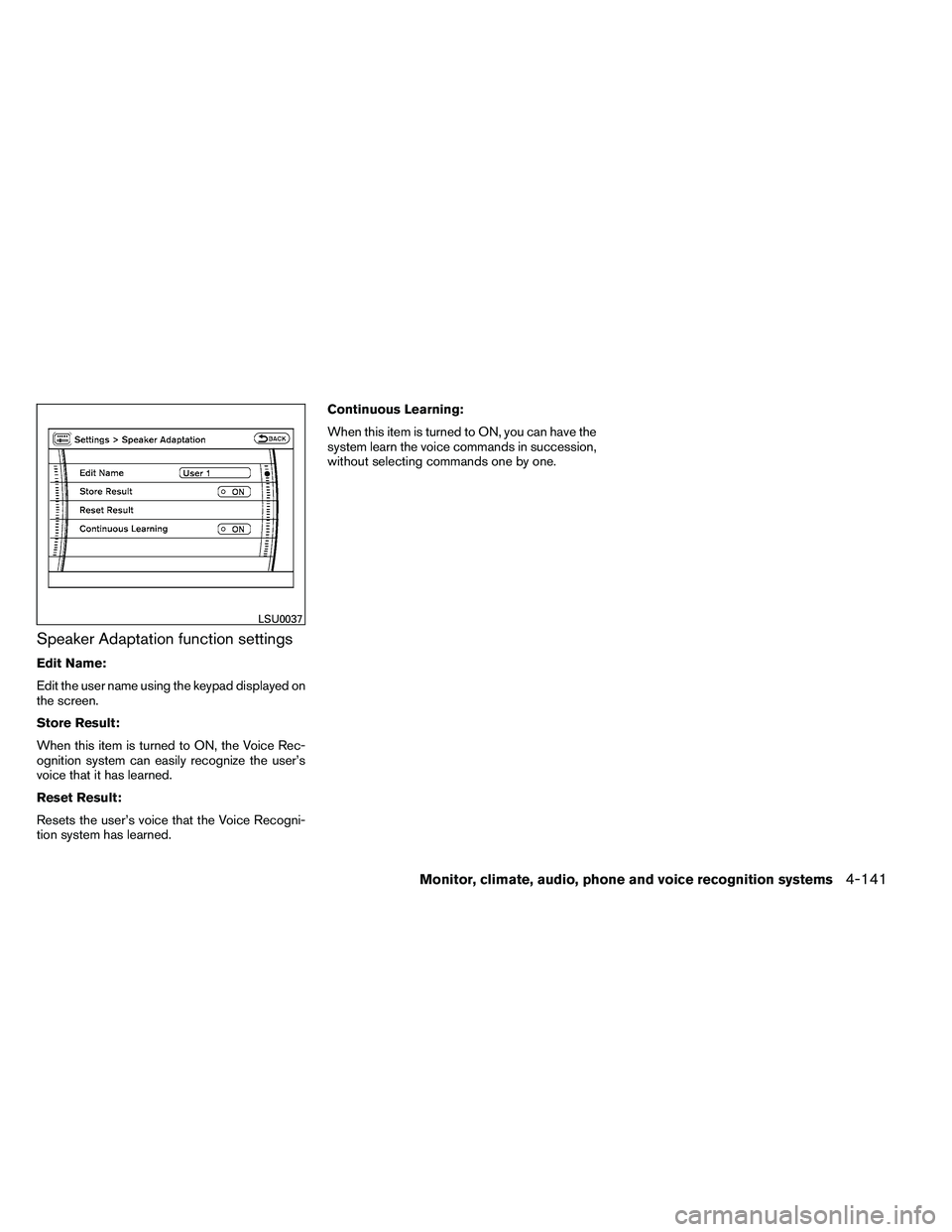

Speaker Adaptation function settings
Edit Name:
Edit the user name using the keypad displayed on
the screen.
Store Result:
When this item is turned to ON, the Voice Rec-
ognition system can easily recognize the user’s
voice that it has learned.
Reset Result:
Resets the user’s voice that the Voice Recogni-
tion system has learned.Continuous Learning:
When this item is turned to ON, you can have the
system learn the voice commands in succession,
without selecting commands one by one.

WARNING
●If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an acci-
dent and could result in serious per-
sonal injury. Check the tire pressure for
all four tires. Adjust the tire pressure to
the recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a spare tire as soon as
possible. (See “Flat tire” in the “In case
of emergency” section for changing a
flat tire.) ●
When a spare tire is mounted or a wheel
is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
● Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.

●Push the ON·OFF switch off. Both the
CRUISE indicator light and SET indicator
light in the vehicle information display go out.
The cruise control is automatically canceled and
the SET light in the vehicle information display
goes out if: ● you depress the brake pedal while pushing
the ACCEL/RES or SET/COAST switch.
The preset speed is deleted from memory.
● the vehicle slows down more than 8 MPH
(13 km/h) below the set speed.
● you move the shift selector to N (Neutral) .
To reset at a faster cruising speed, use one
of the following three methods.
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
● Push and hold the ACCEL/RES switch.
When the vehicle attains the speed you de-
sire, release the switch.
● Push and release the ACCEL/RES switch.
Each time you do this, the set speed in-
creases by about 1 MPH (1.6 km/h) . To reset at a slower cruising speed,
use one
of the following three methods.
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
COAST/SET switch and release it.
● Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows to
the desired speed.
● Push and release the COAST/SET switch.
Each time you do this, the set speed de-
creases by about 1 MPH (1.6 km/h) .
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle re-
turns to the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h) .

Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers) .
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or the
battery is disconnected, the vehicle may be reset to
a “not ready” condition. Before taking the I/M test,
check the vehicle’s inspection/maintenance test
readiness condition. Place the ignition switch in the
ON position without starting the engine. If the
Malfunction Indicator Light (MIL) comes on steady
for 20 seconds and then blinks for 10 seconds , the
I/M test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”. Contact a NISSAN dealer to set the “ready
condition” or to prepare the vehicle for testing.
This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
9-34Technical and consumer information

J
Jump starting ...................6-8
K
Key.........................3-2
Keyfob battery replacement ...........8-27
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-17
Keyless entry system
(See remote keyless entry system) ........3-7
L
Labels Air conditioner specification label .....9-13
C.M.V.S.S. certification label ........9-12
Emission control information label .....9-12
Engine serial number ............9-12
F.M.V.S.S. certification label .........9-12
Tire and Loading Information label .....9-13
Vehicle identification number (VIN) plate . .9-11
Warning labels (for SRS) ..........1-71
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-38
License plate Installing the license plate ..........9-13
Lift gate ......................3-23
Lift gate release .................3-27
Light Air bag warning light .........1-72, 2-18
Brake light (See stop light) .........8-32Bulb check/instrument panel
........2-13
Bulb replacement ..............8-32
Charge warning light ............2-15
Fog light switch ...............2-34
Headlight and turn signal switch ......2-30
Headlight control switch ..........2-30
Headlights ..................8-30
Interior light ..................2-56
Light bulbs ..................8-30
Low tire pressure warning light .......2-16
Low windshield-washer fluid warning
light ......................2-24
Passenger air bag and status light .....1-66
Personal lights ................2-58
Security indicator light ............2-20
W

arning/indicator lights and audible
reminders ...................2-13
Lights Map lights ..................2-58
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Glove box lock ................2-42
Lift gate release ...............3-27
Power door locks ...............3-6
Loose fuel cap warning ..........2-25, 3-28
Low fuel warning light .......2-16, 2-18, 2-24
Low tire pressure warning light .........2-16
Low windshield-washer fluid warning light . . .2-24
Luggage hook ..................2-48
Luggage rack (see roof rack) ..........2-50
Luggage (See vehicle loading information) . .9-14
Luggage storage (see vehicle loading
information) ....................2-48 M
Maintenance Changing the maintenance interval . .4-7, 4-23
Displaying the maintenance notice
reminder .................4-8, 4-24
General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Resetting the maintenance interval . .4-8, 4-24
Seat belt maintenance ............1-34
Setting .................4-7, 4-23
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-19
Manual front seat adjustment ...........1-2
Manual vent windows ..............2-54
Map lights ....................2-58
Map pocket ....................2-43
Meters and gauges ................2-4
Instrument brightness control ........2-33
Mirror Automatic anti-glare inside mirror ......3-32
Inside mirror .................3-32
Outside mirror control ............3-34
Outside mirrors .............. .3-34
V

anity mirror .................3-32
Moonroof .....................2-55
Music Box hard-disk drive audio system . . .4-63
10-4

N
NISSAN Intelligent Key™ ..........3-2, 3-12
NISSAN mobile entertainment system
(MES) .......................4-77
NISSAN vehicle immobilizer system . . .2-27, 3-4, 5-13
NISSAN voice recognition system ......4-118
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-7
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-7
Outside mirror control ..............3-34
Outside mirrors .................3-34
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-35
Owner’s manual/service manual order
information ....................9-35 P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-30
Pedal position adjustment ............3-30
Personal lights ..................2-58
Phone, Bluetooth hands-free
system ..................4-92, 4-107
Power Power door locks ...............3-6
Power outlet .................2-39
Power rear windows .............2-53
Power steering fluid .............8-12
Power steering system ...........5-31
Power vent windows .............2-54
Power windows ...............2-51
Rear power windows ............2-53
Precautions Maintenance

precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-3
Precautions on child restraints . . .1-36, 1-44,
1-49, 1-54
Precautions on seat belt usage .......1-25
Precautions on supplemental restraint
system ....................1-57
Precautions when starting and driving . . . .5-2
Pre-tensioner seat belt system .........1-70
Programmable features ..........4-9, 4-25
Push starting ...................6-10 R
Radio Car phone or CB radio ...........4-91
Compact Disc (CD) changer ........4-51
FM/AM/SAT radio with compact disc (CD)
changer ....................4-48
FM/AM/SAT radio with compact disc (CD)
player .....................4-56
Rear audio controls .............4-76
Steering wheel audio control switch . . . .4-74
Readiness for inspection maintenance (I/M)
test ........................9-34
Rear audio controls ...............4-76
Rear center seat belt ..............1-31
Rear power windows ..............2-53
Rear seat air conditioner ............4-38
Rear sonar system ................5-35
Rear sonar system off switch ..........2-37
RearView Monitor ................4-33
Rear window and outside mirror defroster
switch .......................2-30
Rear window wiper and washer switches . . .2-29
Recorders Event data ..................9-34
Refrigerant recommendation ...........9-8
Registering your vehicle in another country . .9-11
Remote controller (See NISSAN mobile
entertainment system) ..............4-79
Remote keyless entry system ...........3-7
Reporting safety defects (US only) .......9-33
Resetting the fuel economy ........4-5, 4-21
Roof rack .....................2-50
10-5
