2011 NISSAN ARMADA tire size

If excessive tire wear is found, it is recommended
that all four tires be replaced with tires of the
same size, brand, construction and tread pattern.
The tire pressure and wheel alignment should
also be checked and corrected as necessary.
Contact a NISSAN dealer.
Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can get
out of balance. Therefore, they should be bal-
anced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.● For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
Care of wheels
● Wash the wheels when washing the vehicle
to maintain their appearance.
● Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed. ●
Do not use abrasive cleaners when washing
the wheels.
● Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
● NISSAN recommends waxing the road
wheels to protect against road salt in areas
where it is used during winter.
8-46Maintenance and do-it-yourself

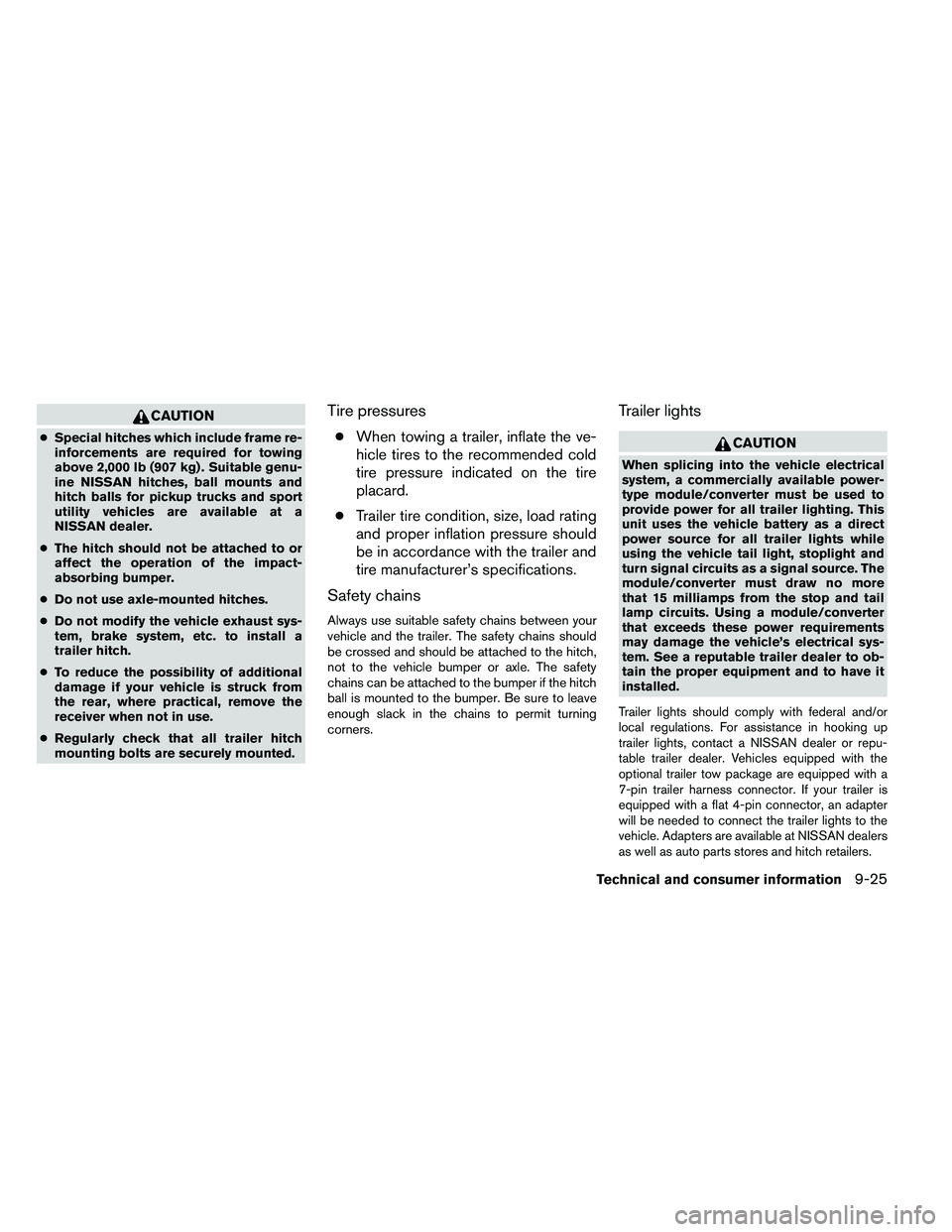

CAUTION
●Special hitches which include frame re-
inforcements are required for towing
above 2,000 lb (907 kg) . Suitable genu-
ine NISSAN hitches, ball mounts and
hitch balls for pickup trucks and sport
utility vehicles are available at a
NISSAN dealer.
● The hitch should not be attached to or
affect the operation of the impact-
absorbing bumper.
● Do not use axle-mounted hitches.
● Do not modify the vehicle exhaust sys-
tem, brake system, etc. to install a
trailer hitch.
● To reduce the possibility of additional
damage if your vehicle is struck from
the rear, where practical, remove the
receiver when not in use.
● Regularly check that all trailer hitch
mounting bolts are securely mounted.
Tire pressures
● When towing a trailer, inflate the ve-
hicle tires to the recommended cold
tire pressure indicated on the tire
placard.
● Trailer tire condition, size, load rating
and proper inflation pressure should
be in accordance with the trailer and
tire manufacturer’s specifications.
Safety chains
Always use suitable safety chains between your
vehicle and the trailer. The safety chains should
be crossed and should be attached to the hitch,
not to the vehicle bumper or axle. The safety
chains can be attached to the bumper if the hitch
ball is mounted to the bumper. Be sure to leave
enough slack in the chains to permit turning
corners.
Trailer lights

T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-27, 3-4, 5-13
Third row power folding seats .........1-23
Three-way catalyst ................5-2
Tilting steering wheel ..............3-30
Tire Flat tire .....................6-2
Spare tire ...................6-3
Tire and Loading Information label .....9-13
Tire chains ..................8-43
Tire placard ..................9-13
Tire pressure .................8-36
Tire rotation ..................8-43
Tires of 4-wheel drive ............8-45
Types of tires .................8-42
Uniform tire quality grading .........9-32
Wheels and tires ...............8-36
Wheel/tire size ................9-10
Tire pressure Low tire pressure warning light .......2-16
Tire pressure display ............4-6, 4-22
Tire Pressure Monitoring System (TPMS) . . . .5-3
Tire rotation maintenance reminder . . . .4-6, 4-22
Top tether strap child restraint .........1-41
Towing 2-wheel drive models ............6-12
4-wheel drive models ............6-13
Flat towing ..................9-31 Towing load/specification
..........9-22
Tow truck towing ...............6-11
Trailer towing .................9-19
Tow mode switch ................2-38
Transceiver HomeLink Universal Transceiver ......2-59
T

ransmission Driving with automatic transmission . . . .5-15
Travel (See registering your vehicle in another
country) ......................9-11
Trip odometer ...................2-5
Turn signal switch ................2-33
U
Uniform tire quality grading ...........9-32
V
Vanity mirror ...................3-32
Variable voltage control system .........8-16
Vehicle dimensions and weights ........9-10
Vehicle dynamic control (VDC) off switch . . .2-37
Vehicle dynamic control (VDC) system .....5-33
Vehicle electronic system ........4-13, 4-28
Vehicle identification ...............9-11
Vehicle identification number (VIN)
(Chassis number) ................9-11
Vehicle identification number (VIN) plate . . . .9-11
Vehicle loading information ...........9-14
Vehicle recovery ..............6-13, 6-14
Vehicle security system .............2-26
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-27, 3-4, 5-13 Ventilators
....................4-35
Visors .......................3-31
Voice recognition system ...........4-118
Voltmeter ......................2-8
W
Warning 4WD warning light ..............2-16
Air bag warning light .........1-72, 2-18
Anti-lock brake warning light ........2-14
Battery charge warning light ........2-15
Brake warning light .............2-14
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Hazard warning flasher switch .......2-34
Low fuel warning light .....2-16, 2-18, 2-24
Low tire pressure warning light .......2-16
Low windshield-washer fluid warning
light ......................2-24
Passenger air bag and status light .....1-66
Seat belt warning light ............2-18
V

ehicle security system ...........2-26
Warning/indicator lights and audible
reminders ...................2-13
Warning labels (for SRS) ..........1-71
Warning lights ..................2-13
Washer switch Rear window wiper and washer
switches ...................2-29
Windshield wiper and washer switch . . .2-28
Weights (See dimensions and weights) . . . .9-10
Wheels and tires .................8-36
Wheel/tire size ..................9-10
10-7
