2011 NISSAN ALTIMA HYBRID fuse box

1. Brake fluid reservoir (P. 1-22)
2. Engine oil filler cap (P. 8-11)
3. Air cleaner (P. 8-17)
4. Fuse/fusible link box/jump-start location(P. 8-20)
5. Fuse box (P. 8-20)
6. Inverter coolant reservoir (P. 8-10)
7. Engine oil dipstick (P. 8-11)
8. Radiator cap (P. 8-8)
9. Drive belt location (P. 8-16)
10. Engine coolant reservoir (P. 8-8)
11. Windshield-washer fluid reservoir
(P. 8-15)
See the page number indicated in paren-
theses for operating details.
LDI0577

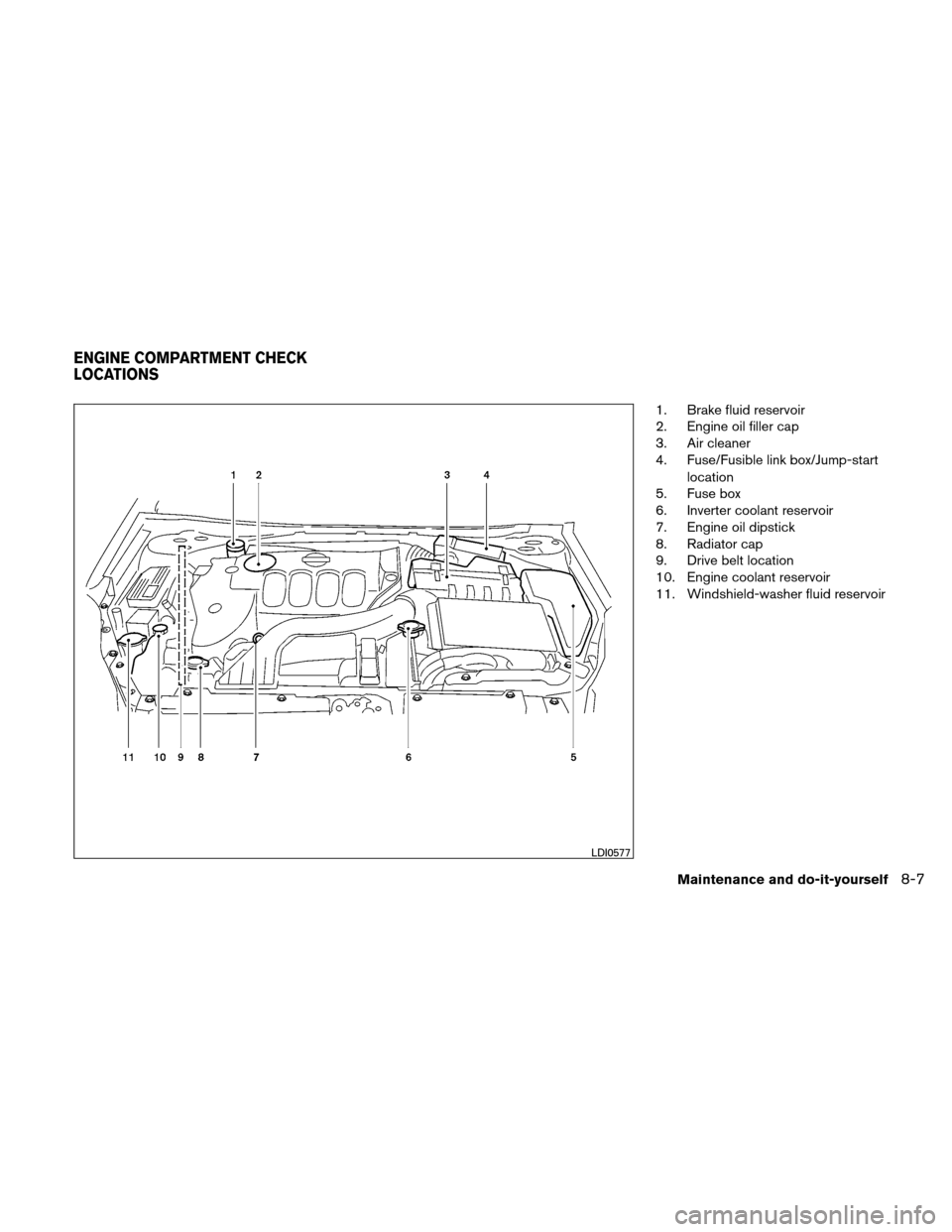

ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7

1. Brake fluid reservoir
2. Engine oil filler cap
3. Air cleaner
4. Fuse/Fusible link box/Jump-startlocation
5. Fuse box
6. Inverter coolant reservoir
7. Engine oil dipstick
8. Radiator cap
9. Drive belt location
10. Engine coolant reservoir
11. Windshield-washer fluid reservoir
LDI0577
ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself8-7

Proper brake inspection intervals should
be followed.For more information regarding
brake inspections, see the appropriate mainte-
nance schedule information in the “NISSAN Ser-
vice and Maintenance Guide”.

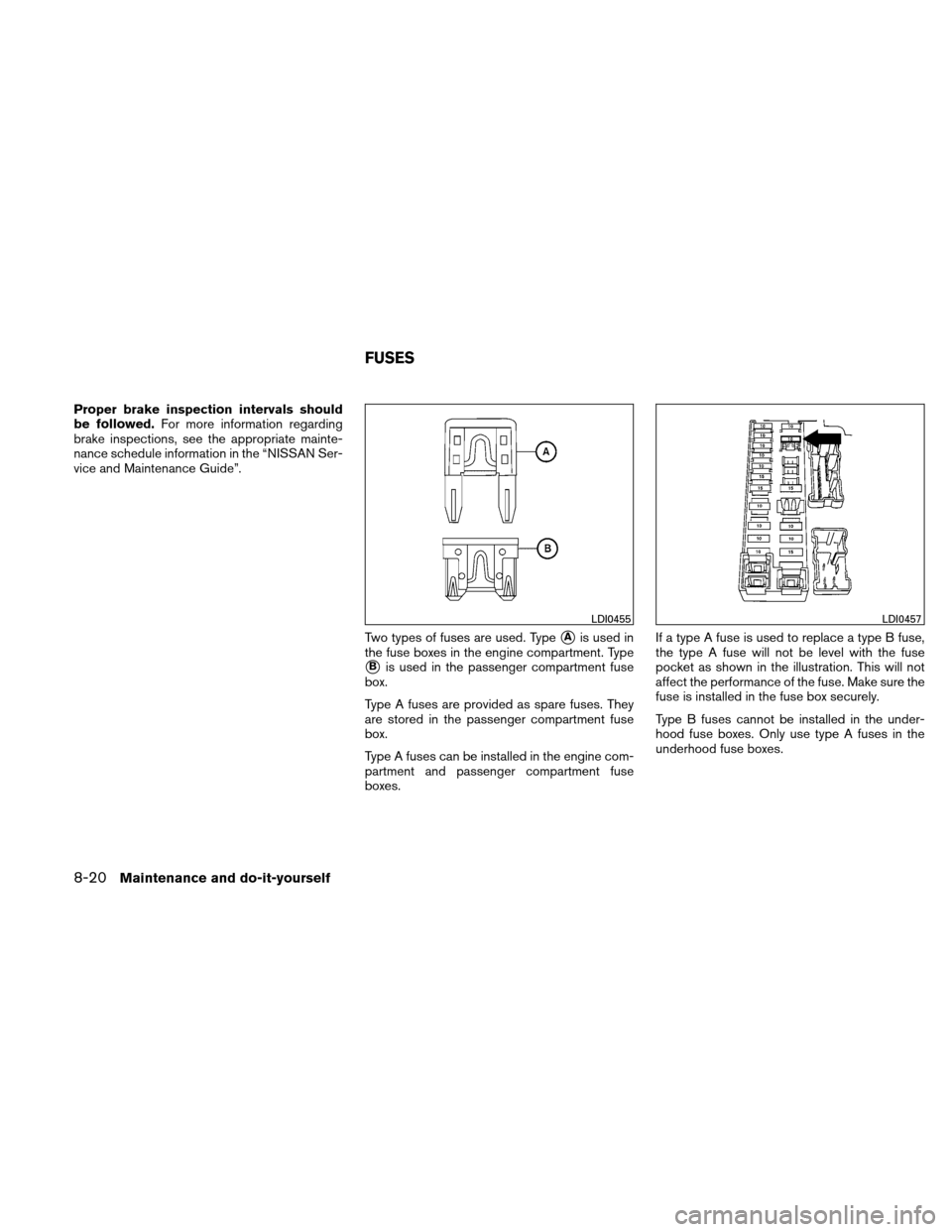

Two types of fuses are used. Type
Ais used in
the fuse boxes in the engine compartment. Type
Bis used in the passenger compartment fuse
box.
Type A fuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type A fuses can be installed in the engine com-
partment and passenger compartment fuse
boxes. If a type A fuse is used to replace a type B fuse,
the type A fuse will not be level with the fuse
pocket as shown in the illustration. This will not
affect the performance of the fuse. Make sure the
fuse is installed in the fuse box securely.
Type B fuses cannot be installed in the under-
hood fuse boxes. Only use type A fuses in the
underhood fuse boxes.
LDI0455LDI0457
FUSES
8-20Maintenance and do-it-yourself

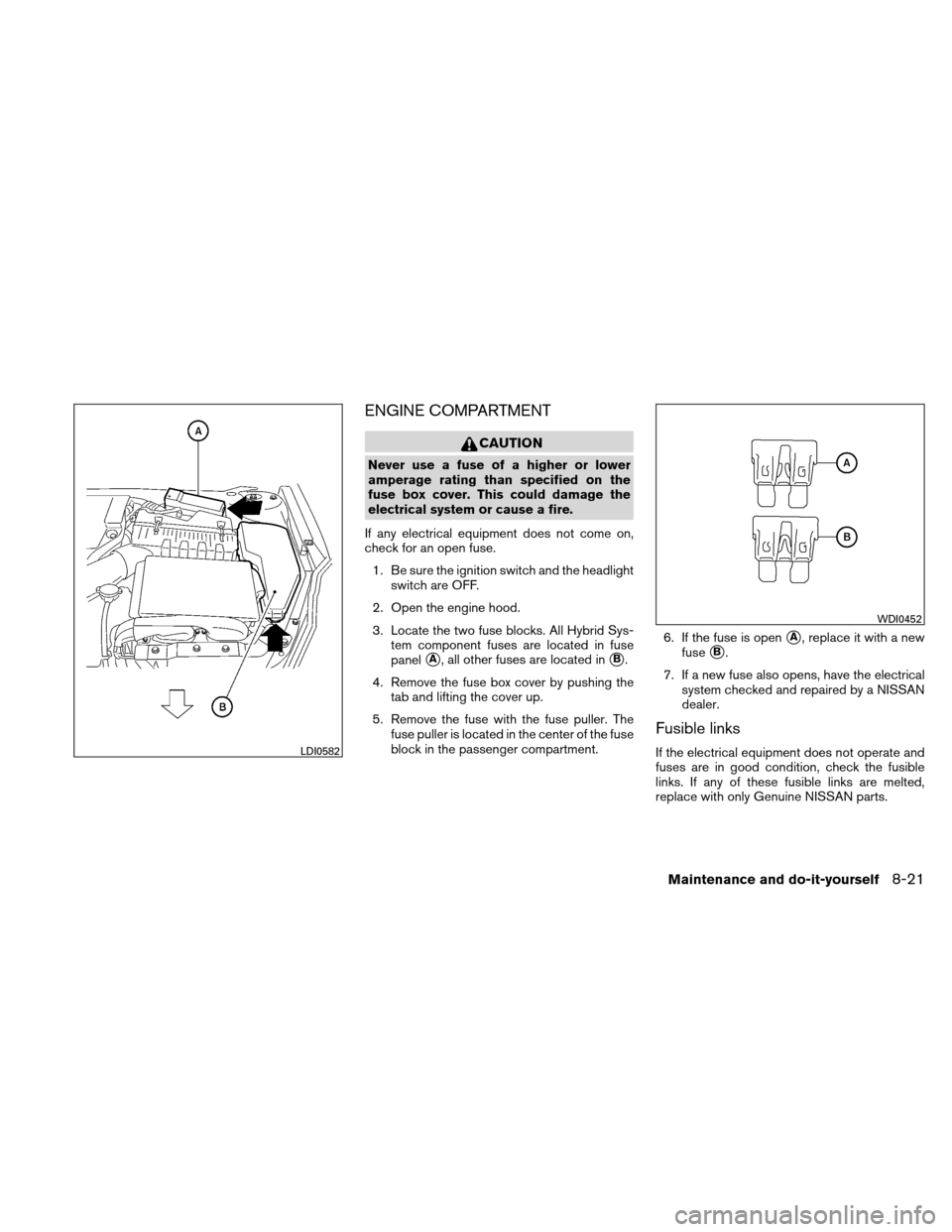

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood.
3. Locate the two fuse blocks. All Hybrid Sys- tem component fuses are located in fuse
panel
A, all other fuses are located inB.
4. Remove the fuse box cover by pushing the tab and lifting the cover up.
5. Remove the fuse with the fuse puller. The fuse puller is located in the center of the fuse
block in the passenger compartment. 6. If the fuse is open
A, replace it with a new
fuse
B.
7. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible links
If the electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace with only Genuine NISSAN parts.LDI0582
WDI0452
Maintenance and do-it-yourself8-21

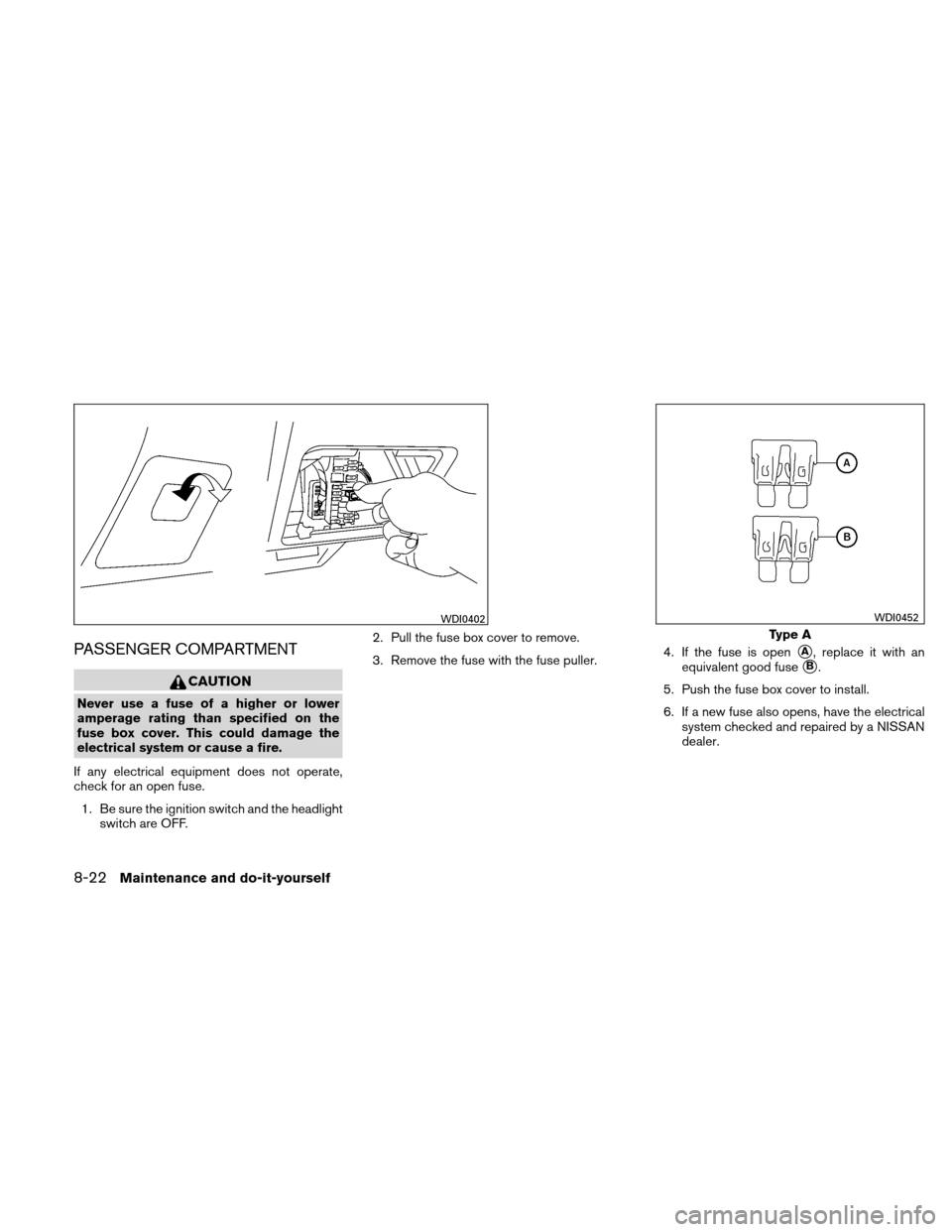

PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF. 2. Pull the fuse box cover to remove.
3. Remove the fuse with the fuse puller.
4. If the fuse is open
A, replace it with an
equivalent good fuse
B.
5. Push the fuse box cover to install.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
WDI0402
Type A
WDI0452
8-22Maintenance and do-it-yourself

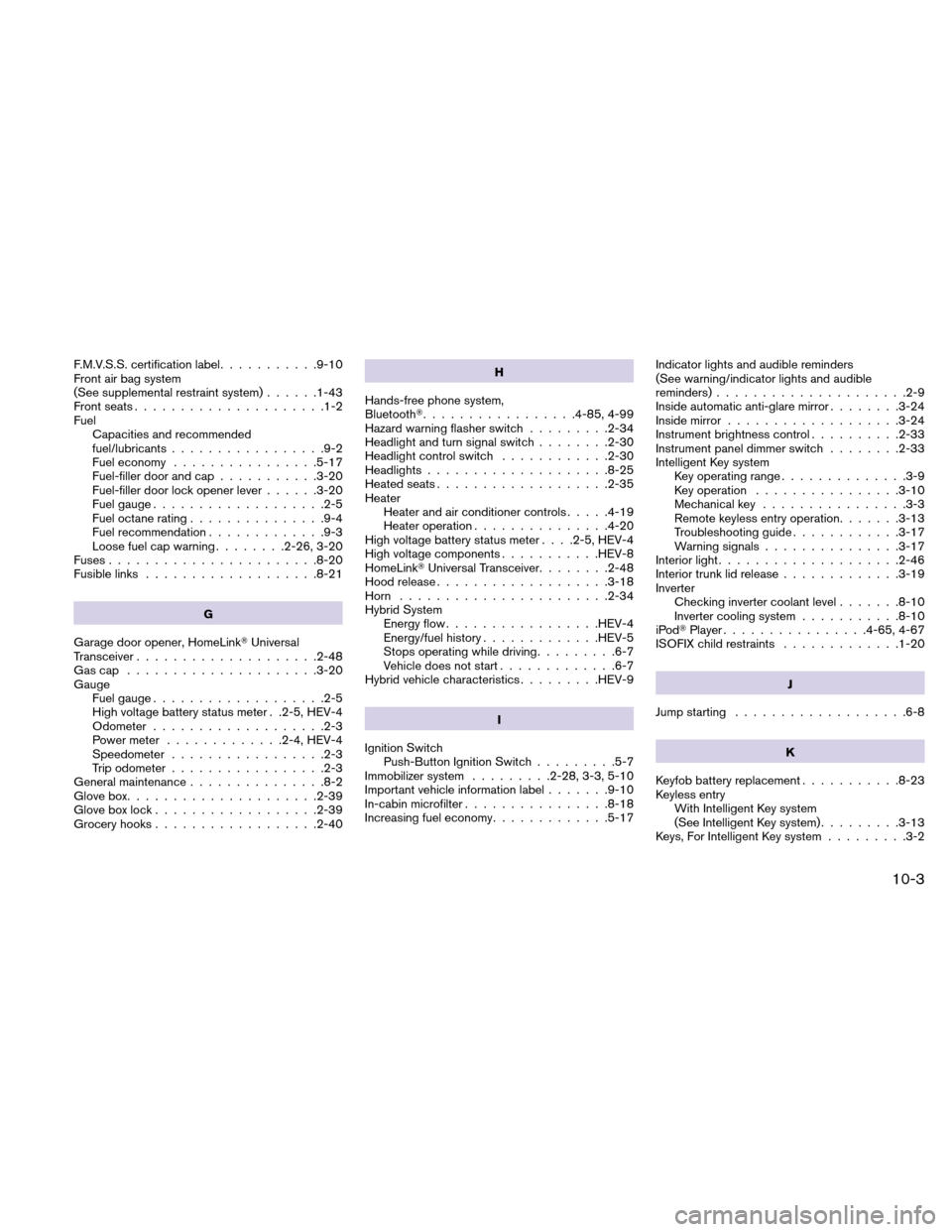

F.M.V.S.S. certification label...........9-10
