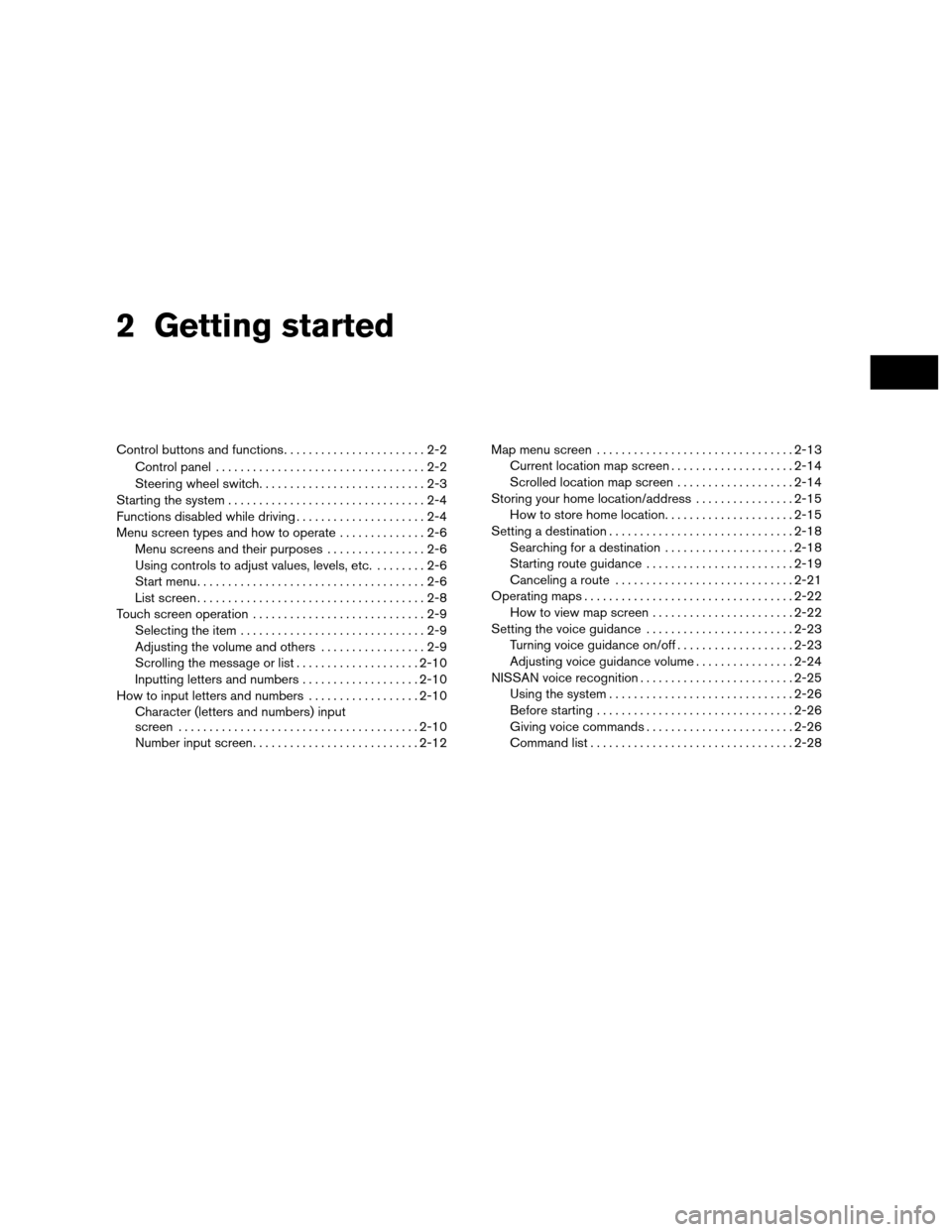

2 Getting started
Control buttons and functions.......................2-2
Control panel ..................................2-2
Steering wheel switch. . . ........................2-3
Starting the system ................................2-4
Functions disabled while driving .....................2-4
Menu screen types and how to operate ..............2-6
Menu screens and their purposes ................2-6
Using controls to adjust values, levels, etc. ........2-6
Start menu. . . ..................................2-6
List screen . . . ..................................2-8
Touch screen operation ............................2-9
Selecting the item ..............................2-9
Adjusting the volume and others .................2-9
Scrolling the message or list ....................2-10
Inputting letters and numbers ...................2-10
How to input letters and numbers ..................2-10
Character (letters and numbers) input
screen ....................................... 2-10
Number input screen ........................... 2-12Map menu screen
................................ 2-13
Current location map screen ....................2-14
Scrolled location map screen ...................2-14
Storing your home location/address ................2-15
How to store home location .....................2-15
Setting a destination .............................. 2-18
Searching for a destination .....................2-18
Starting route guidance ........................ 2-19
Canceling a route ............................. 2-21
Operating maps .................................. 2-22
How to view map screen .......................2-22
Setting the voice guidance ........................2-23
Turning voice guidance on/off ...................2-23
Adjusting voice guidance volume ................2-24
NISSAN voice recognition ......................... 2-25
Using the system .............................. 2-26
Before starting ................................ 2-26
Giving voice commands ........................ 2-26
Command list ................................. 2-28

CONTROL PANEL
1MAP:
Press to display the map. While following
programmed route, press multiple times to
change the type of route information.
2DEST: Press to enter a destination. Various meth-
ods for entering a destination are available.
“4. Setting a destination”.
3ROUTE:Press and hold to hear the current route
guidance (guidance cancellation, route
priority, way point setting on the route, etc.) .
4INFO:Press to display the vehicle, traffic, weather
or voice recognition information.
5SETTING:Press to access the system settings.
6DAY/NIGHT:
Press to switch between the day screen
(bright) and the night screen (dark) . Press
and hold to turn off the display. Press again
to turn on the display.
INFO:
If the “Back” key needs to be touched to apply
the setting on a settings screen, this manual will
explicitly include a step for this procedure.
Otherwise, touching the “Back” key returns the
display to the previous screen.
The layout of the control panel switches may vary
depending on the vehicle model and equipment.
WNV0563
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

STEERING WHEEL SWITCH
1SOURCE:Use to switch the audio mode (source) . For
additional information, see the Owner’s
Manual.
2ENTER:Move up or down to highlight an item on the
screen or adjust a setting. Press to select
the highlighted item. If this button is pressed while a map is
displayed, the map menu screen is
displayed.
“MAP MENU SCREEN”
(page 2-13)
Press and hold to display the start menu.
“START MENU” (page 2-6)
If this button is moved up while the audio
function is activated and the map or status
screen is displayed, the audio system can
be operated.
3:
Press this button during a setting operation to
return to the previous screen. In certain screens,
this button can also be used to apply the setting.
This button will only work when the “Back” key is
shown on the screen.
4–or+:
Use to adjust the volume. These buttons have
the same function as that of the volume knob. For
additional information, see the Owner’s Manual.
5:
Press to start the voice recognition mode. If the
voice recognition mode is already activated,
pressing this button interrupts the voice guid-
ance and you can speak a voice command
immediately.
6:
Use to enable Bluetooth Hands-Free Phone
system. For additional information, see the Own-
er’s Manual.
LNV0423
Getting started2-3

2. A list of commands appears on the screen,and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command. 4. Continue to follow the voice menu prompts
and speak after the tone sounds until opera-
tion is completed.
Operating tips
●Say a command after the tone.
● Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
● If the command is not recognized, the system
announces, “Please say again”. Repeat the
command in a clear voice.
● Touch BACK once to return to the previous
screen. ●
To cancel the command, press and hold
the
button. The message, “Voice rec-
ognition is cancelled” will be announced.
● Press the
button to stop the voice
prompt and give the command at once. Re-
member to wait for the tone before speaking.
● To adjust the volume of the system feedback,
push the volume control buttons “+” or “-” on
the steering wheel switch or use the audio
system volume knob while the system is mak-
ing an announcement.
NGT0068
Getting started2-27

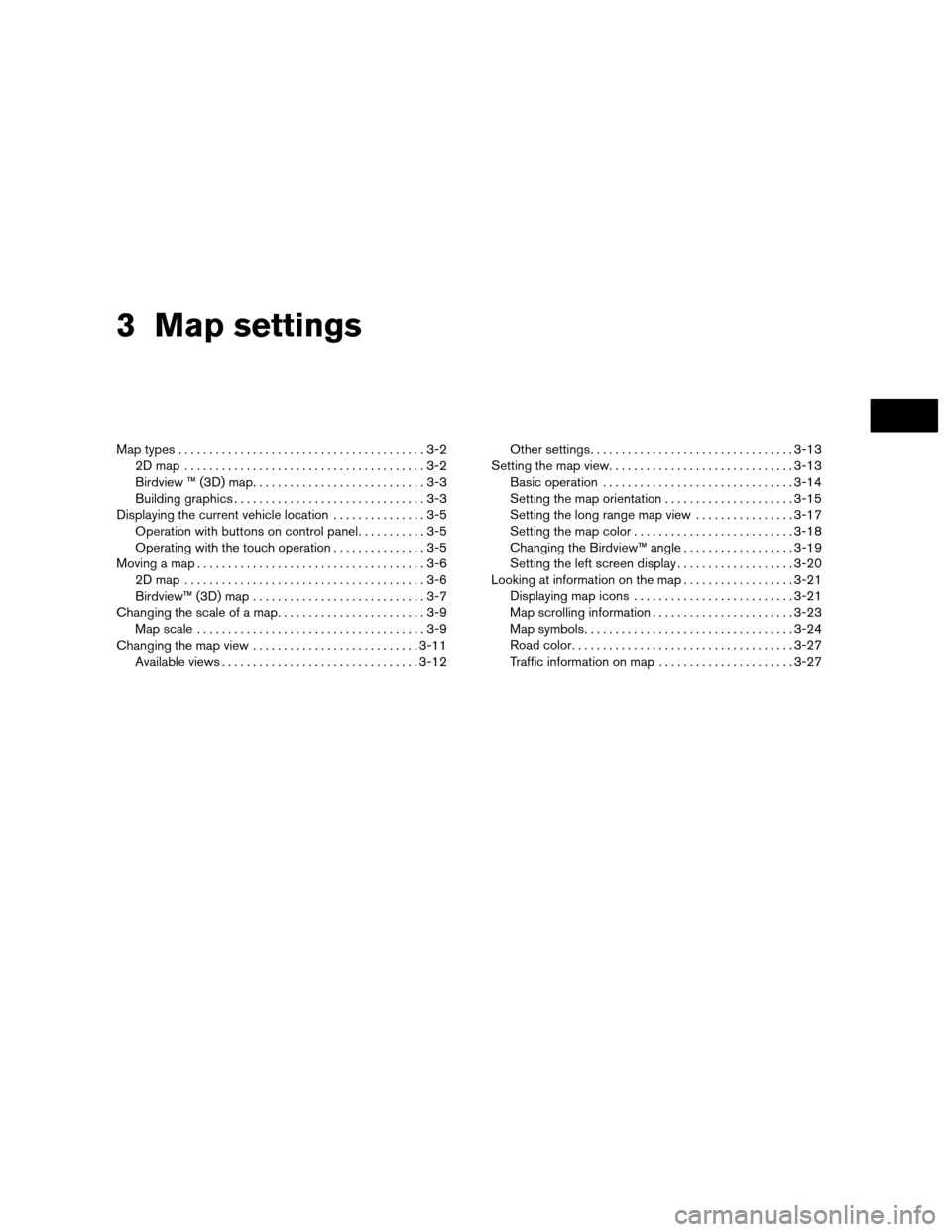

3 Map settings
Map types........................................3-2
2Dmap .......................................3-2
Birdview ™ (3D) map ............................3-3
Building graphics ...............................3-3
Displaying the current vehicle location ...............3-5
Operation with buttons on control panel ...........3-5
Operating with the touch operation ...............3-5
Moving a map . . . ..................................3-6
2Dmap .......................................3-6
Birdview™ (3D) map ............................3-7
Changing the scale of a map ........................3-9
Map scale . . . ..................................3-9
Changing the map view ........................... 3-11
Available views ................................ 3-12Other settings
................................. 3-13
Setting the map view .............................. 3-13
Basic operation ............................... 3-14
Setting the map orientation .....................3-15
Setting the long range map view ................3-17
Setting the map color .......................... 3-18
Changing the Birdview™ angle ..................3-19
Setting the left screen display ...................3-20
Looking at information on the map ..................3-21
Displaying map icons .......................... 3-21
Map scrolling information . . . ....................3-23
Map symbols .................................. 3-24
Road color .................................... 3-27
Traffic information on map ......................3-27

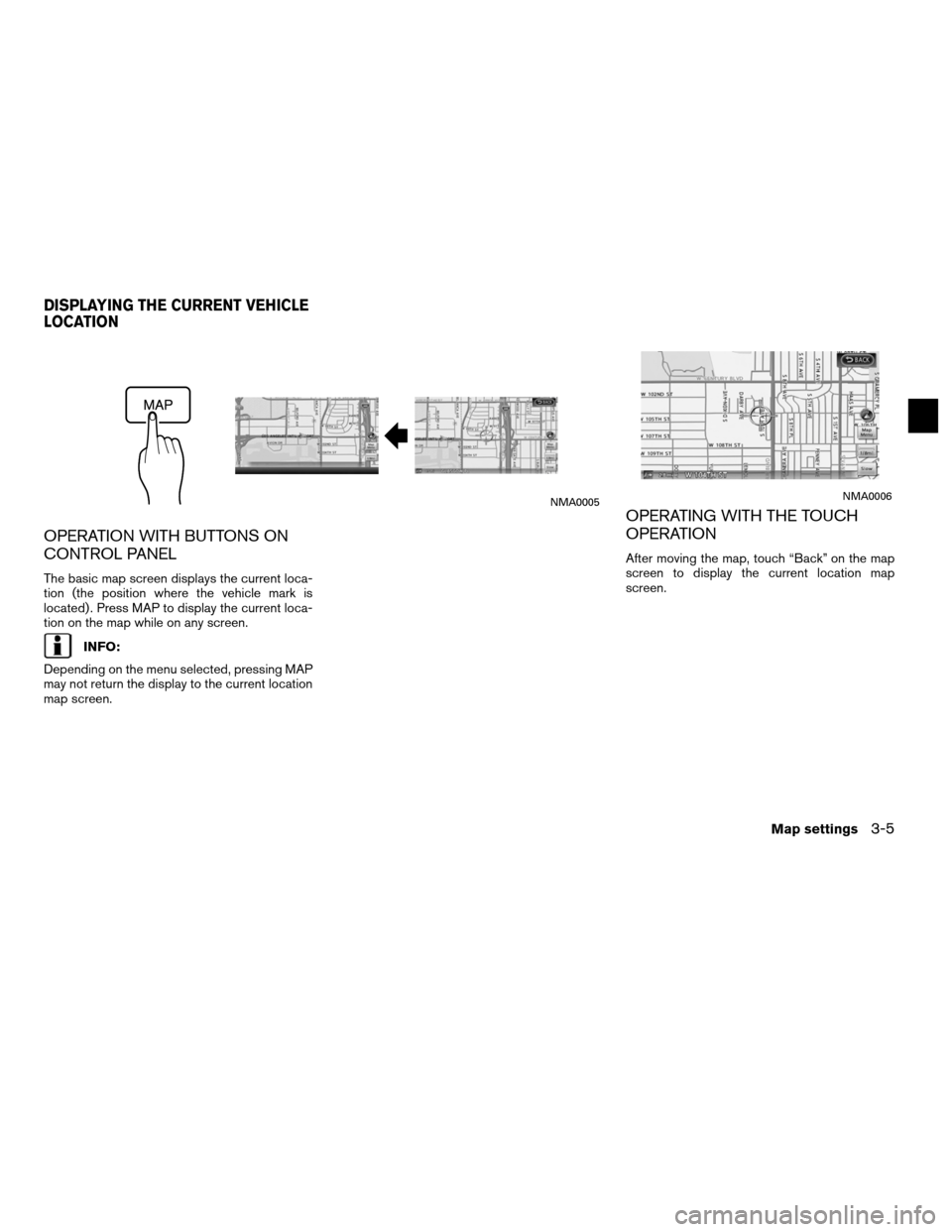

OPERATION WITH BUTTONS ON
CONTROL PANEL
The basic map screen displays the current loca-
tion (the position where the vehicle mark is
located) . Press MAP to display the current loca-
tion on the map while on any screen.
INFO:
Depending on the menu selected, pressing MAP
may not return the display to the current location
map screen.
OPERATING WITH THE TOUCH
OPERATION
After moving the map, touch “Back” on the map
screen to display the current location map
screen.
NMA0005NMA0006
DISPLAYING THE CURRENT VEHICLE
LOCATION
Map settings3-5

BEFORE STARTING
To get the best recognition performance from
Voice Recognition, observe the following items.
●The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and vi-
bration sounds, etc.) , which may prevent the
system from correctly recognizing the voice
commands.
● Wait until the tone sounds before speaking a
command.
● Speak in a natural conversational voice with-
out pausing between words.
GIVING VOICE COMMANDS
1. Presslocated on the steering wheel
switch. 2. A list of commands appears on the screen,
and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes fromto,
speak a command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until the
preferred operation is completed.
Operating tips
●Speak a command after the tone.
● Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Follow the prompts given by the system. ●
If the command is not accepted, the system
announces, “Please say again”. Repeat the
command in a clear voice.
● Press “Back” once to return to the previous
screen.
● To cancel the command, press and
hold
. The message, “Voice cancelled”
will be announced.
● Press
to stop the voice prompt and
give the command at once. Remember to wait
for the tone before speaking.
● To adjust the volume of the system feedback,
push the volume control buttons “+” or “”on
the steering wheel switch or use the audio
system volume knob while the system is mak-
ing an announcement.
How to speak numbers
NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule:
Only single digits 0 (zero) to 9 can be used. For
example, if speaking 500, “five zero zero” can be
used, but “five hundred” cannot.
NVR0006
Voice recognition9-5

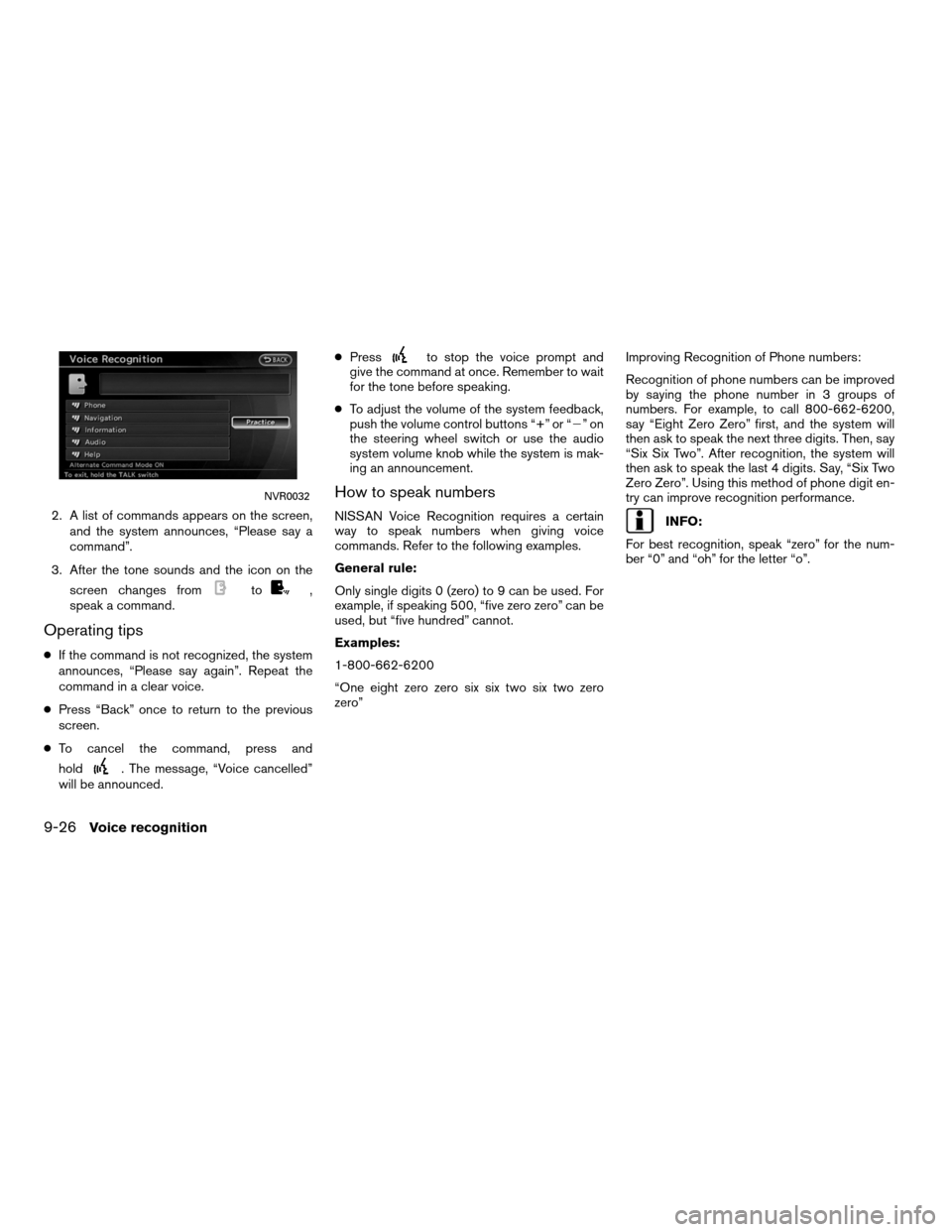

2. A list of commands appears on the screen,and the system announces, “Please say a
command”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Operating tips
● If the command is not recognized, the system
announces, “Please say again”. Repeat the
command in a clear voice.
● Press “Back” once to return to the previous
screen.
● To cancel the command, press and
hold
. The message, “Voice cancelled”
will be announced. ●
Press
to stop the voice prompt and
give the command at once. Remember to wait
for the tone before speaking.
● To adjust the volume of the system feedback,
push the volume control buttons “+” or “”on
the steering wheel switch or use the audio
system volume knob while the system is mak-
ing an announcement.
How to speak numbers
NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule:
Only single digits 0 (zero) to 9 can be used. For
example, if speaking 500, “five zero zero” can be
used, but “five hundred” cannot.
Examples:
1-800-662-6200
“One eight zero zero six six two six two zero
zero” Improving Recognition of Phone numbers:
Recognition of phone numbers can be improved
by saying the phone number in 3 groups of
numbers. For example, to call 800-662-6200,
say “Eight Zero Zero” first, and the system will
then ask to speak the next three digits. Then, say
“Six Six Two”. After recognition, the system will
then ask to speak the last 4 digits. Say, “Six Two
Zero Zero”. Using this method of phone digit en-
try can improve recognition performance.INFO:
For best recognition, speak “zero” for the num-
ber “0” and “oh” for the letter “o”.
NVR0032
9-26Voice recognition
