2011 NISSAN ALTIMA HYBRID display

●“Map View”:
Set the display method and the direction of
the map.
“CHANGING THE MAP VIEW”
(page 3-11)
● “Map Icons”:
Set the map icons to display on the map.
“DISPLAYING MAP ICONS”
(page 3-21)
● “Guidance settings”:
Set the various functions for the route
guidance.
“GUIDANCE SETTINGS”
(page 5-28)
● “Route Settings”:
Change the routing preferences.
“Detailed route settings”
(page 5-34)
● “Traffic Info Setting”:
Set the various functions of the XM Nav-
Traffic information system.
“Traffic information settings”
(page 7-10) ●
“Weather Info Setting”:
Set the functions of the XM NavWeather™
information system.
● “Speed Limit Info”:
Display speed limit information.
● “Others”:
Display other setting items.
“OTHER NAVIGATION SET-
TINGS” (page 8-9)
● “Deletes stored information”:
Delete stored locations and the home set-
ting in the Address Book.
“DELETE STORED ITEMS”
(page 8-15)
● “Delete All Previous Destinations”:
Delete all previous destinations.
“DELETE STORED ITEMS”
(page 8-15)
● “Delete Previous Starting Point”:
Delete all previous starting points.
“DELETE STORED ITEMS”
(page 8-15) ●
“Reset all Navigation Settings to Default”:
Reset all of the settings to default.
“RESET ALL NAVIGATION SET-
TINGS TO DEFAULT”
(page 8-16)
SPEED LIMIT INDICATION ON MAP
Turn the “Speed Limit Information” display on or
off. The indicator light illuminates when the
speed limit display function is set to on.
8-8Other settings

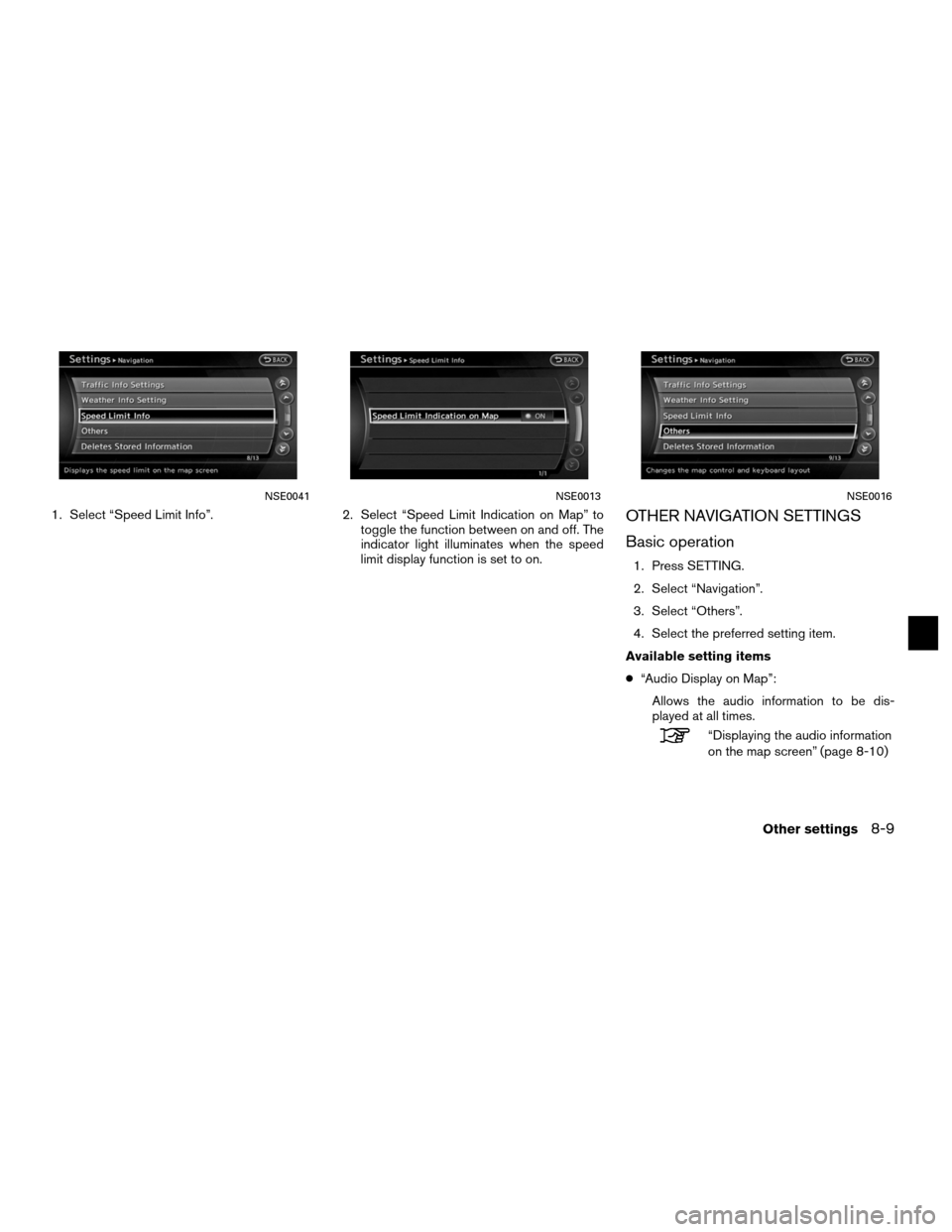

1. Select “Speed Limit Info”.2. Select “Speed Limit Indication on Map” to
toggle the function between on and off. The
indicator light illuminates when the speed
limit display function is set to on.OTHER NAVIGATION SETTINGS
Basic operation
1. Press SETTING.
2. Select “Navigation”.
3. Select “Others”.
4. Select the preferred setting item.
Available setting items
● “Audio Display on Map”:
Allows the audio information to be dis-
played at all times.
“Displaying the audio information
on the map screen” (page 8-10)
NSE0041NSE0013NSE0016
Other settings8-9

●“Map Scrolling Information”:
Sets the system so that when the map
scrolls the information about the location
aligned at the center of the cross pointer is
displayed.
“MAP SCROLLING INFORMA-
TION” (page 3-23)
● “Customize Nearby Places”:
Set the category of frequently visited
landmarks.
“Customizing nearby places”
(page 8-11)
● “Keyboard Type”:
Switches the keyboard layout for the char-
acter input screen.
“Settings the keyboard layout of
the character input screen”
(page 8-12)
● “North Up when Zoom Out”:
When this setting is ON, the orientation of
the map is automatically changed to North
Up when the widest map scale is selected.
The orientation is changed to North Up
even when Heading Up is set. ●
“Adjust Current Location”:
Corrects the position of the current
location.
“Adjusting the current vehicle
location” (page 8-13)

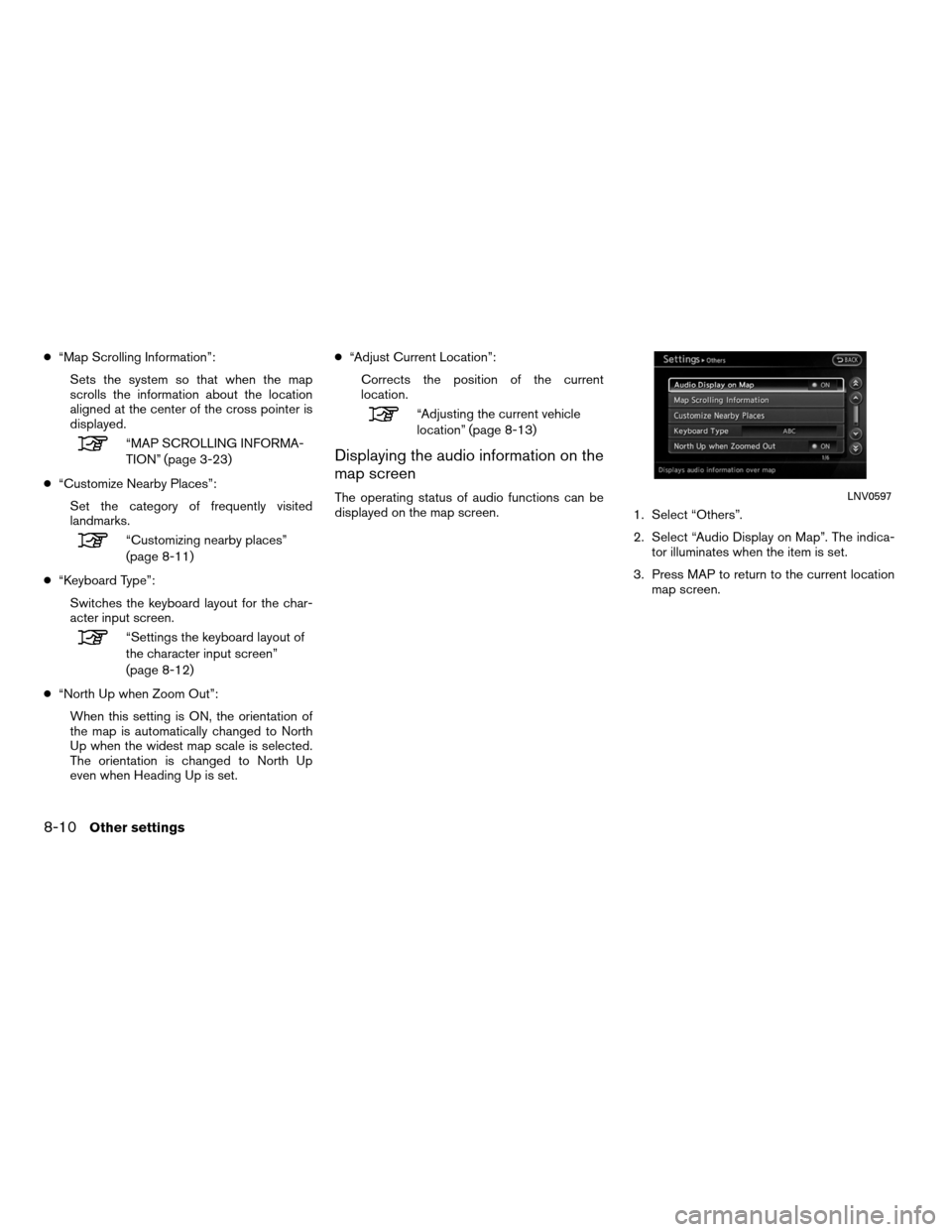

Displaying the audio information on the
map screen
The operating status of audio functions can be
displayed on the map screen. 1. Select “Others”.
2. Select “Audio Display on Map”. The indica-
tor illuminates when the item is set.
3. Press MAP to return to the current location map screen.LNV0597
8-10Other settings

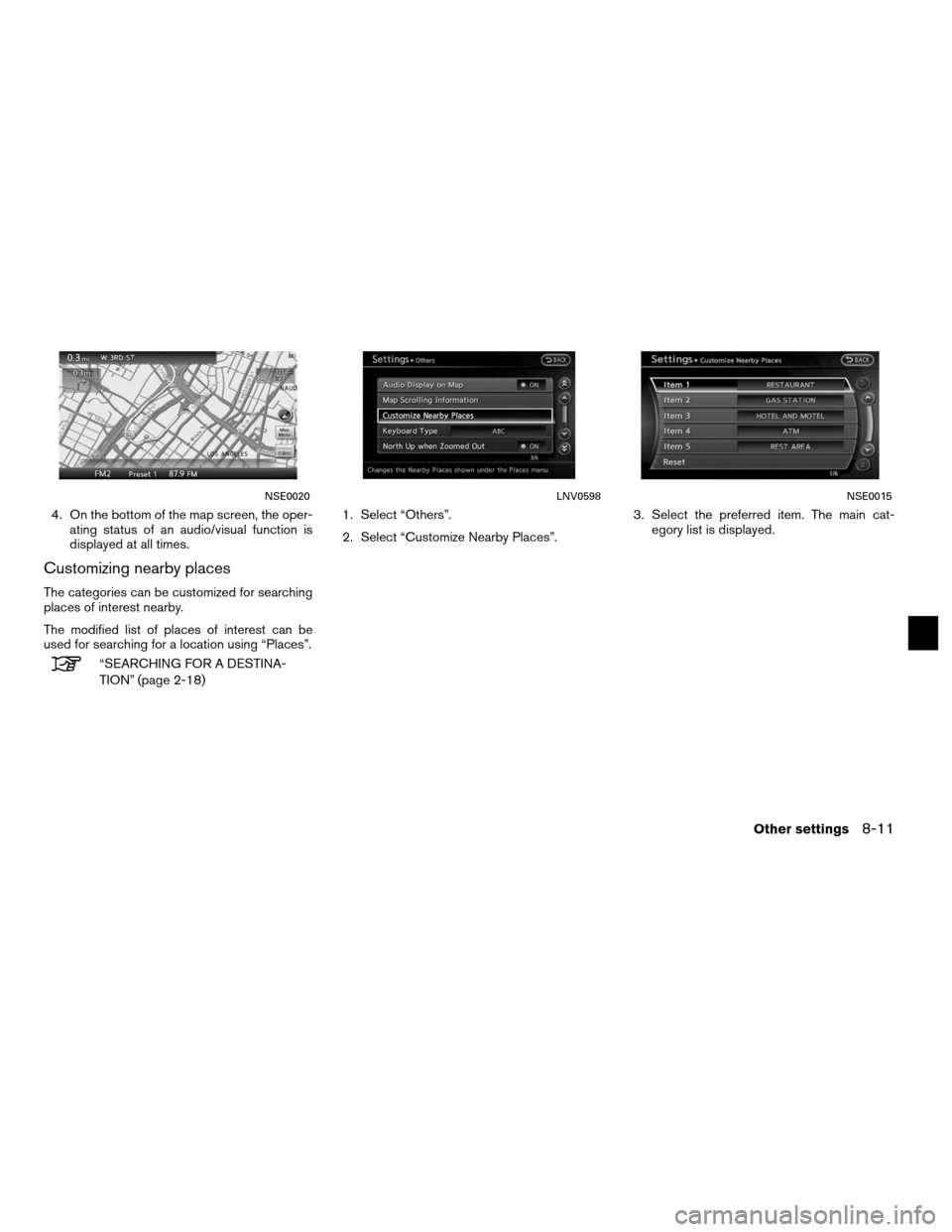

4. On the bottom of the map screen, the oper-ating status of an audio/visual function is
displayed at all times.
Customizing nearby places
The categories can be customized for searching
places of interest nearby.
The modified list of places of interest can be
used for searching for a location using “Places”.
“SEARCHING FOR A DESTINA-
TION” (page 2-18) 1. Select “Others”.
2. Select “Customize Nearby Places”.
3. Select the preferred item. The main cat-
egory list is displayed.
NSE0020LNV0598NSE0015
Other settings8-11

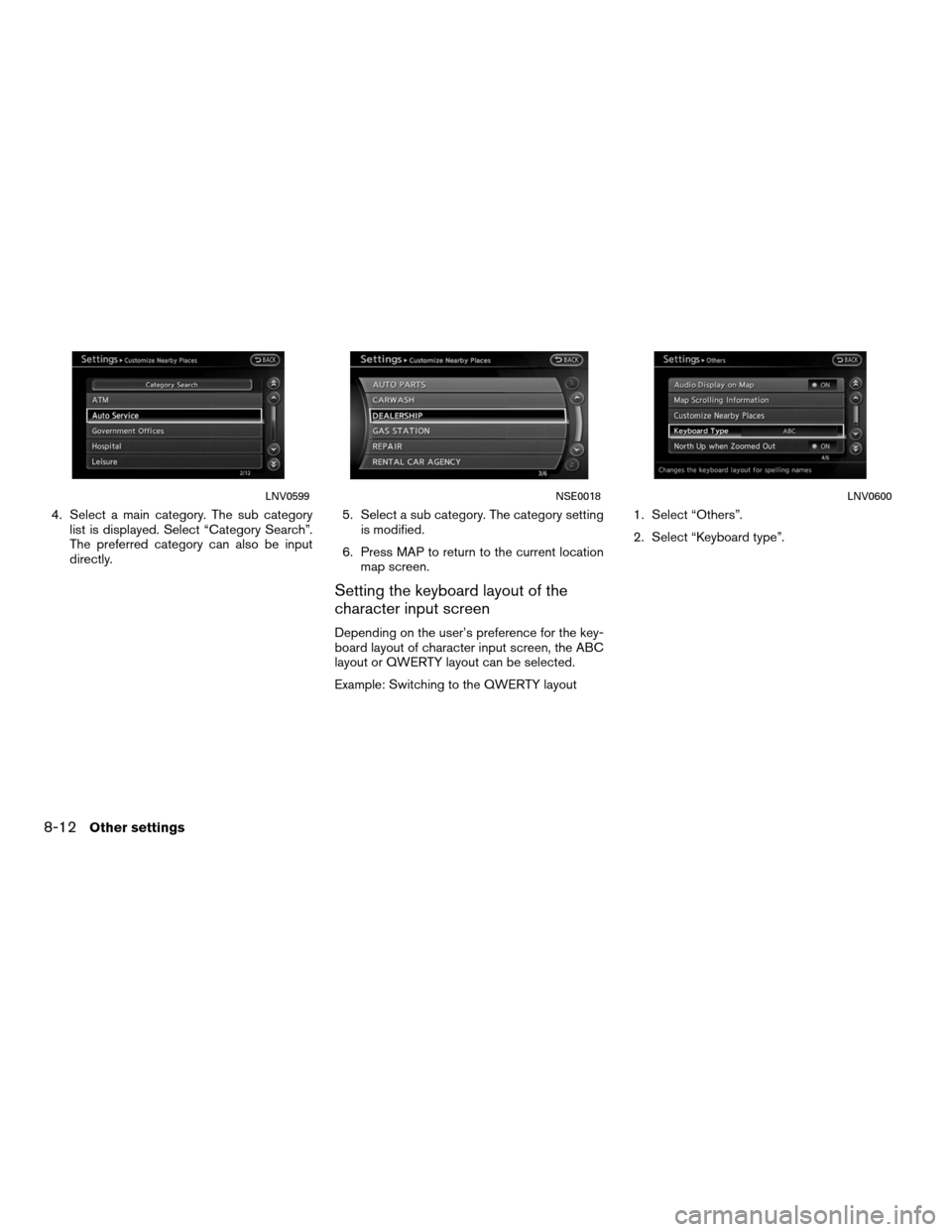

4. Select a main category. The sub categorylist is displayed. Select “Category Search”.
The preferred category can also be input
directly. 5. Select a sub category. The category setting
is modified.
6. Press MAP to return to the current location map screen.
Setting the keyboard layout of the
character input screen
Depending on the user’s preference for the key-
board layout of character input screen, the ABC
layout or QWERTY layout can be selected.
Example: Switching to the QWERTY layout 1. Select “Others”.
2. Select “Keyboard type”.
LNV0599NSE0018LNV0600
8-12Other settings

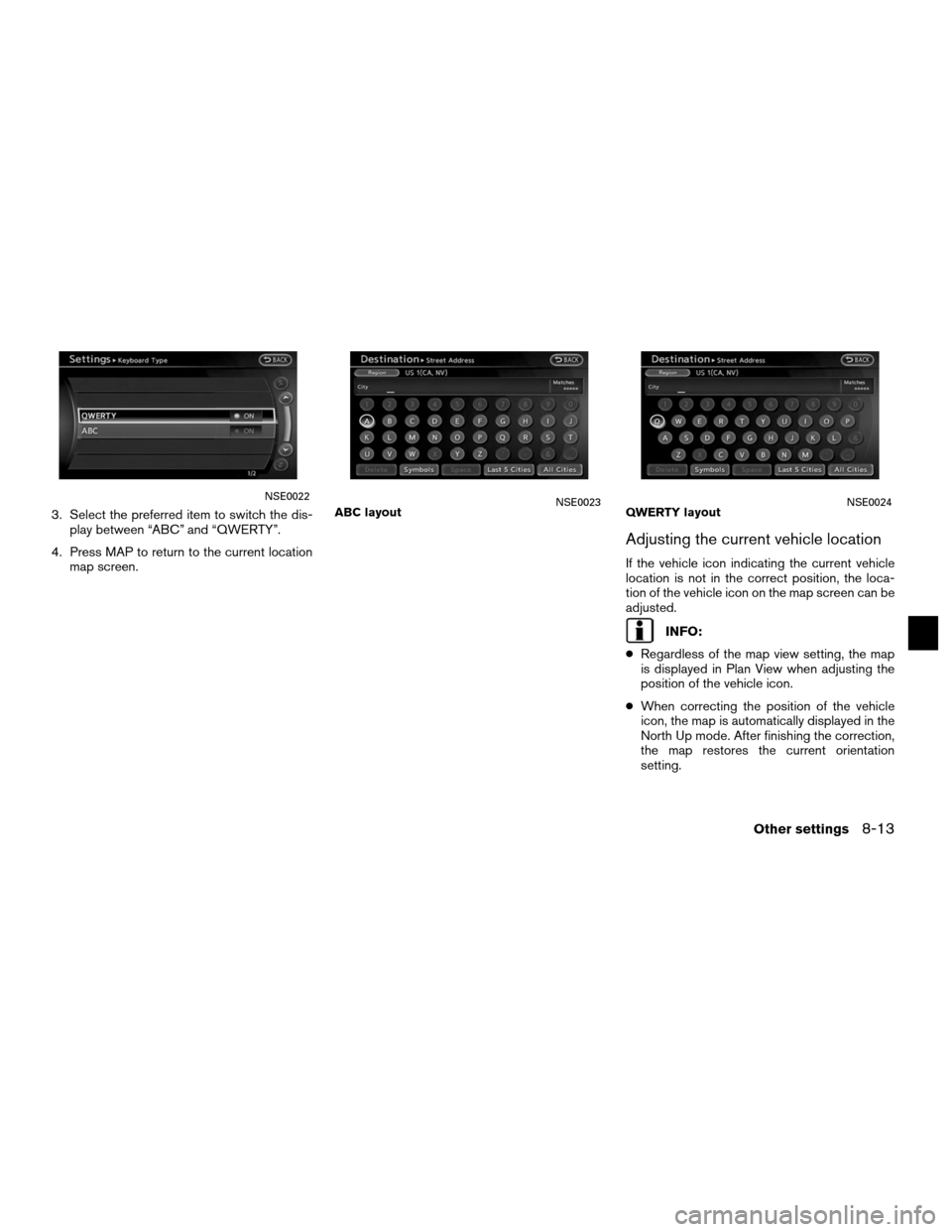

3. Select the preferred item to switch the dis-play between “ABC” and “QWERTY”.
4. Press MAP to return to the current location map screen.
Adjusting the current vehicle location
If the vehicle icon indicating the current vehicle
location is not in the correct position, the loca-
tion of the vehicle icon on the map screen can be
adjusted.
INFO:
● Regardless of the map view setting, the map
is displayed in Plan View when adjusting the
position of the vehicle icon.
● When correcting the position of the vehicle
icon, the map is automatically displayed in the
North Up mode. After finishing the correction,
the map restores the current orientation
setting.
NSE0022
ABC layoutNSE0023QWERTY layoutNSE0024
Other settings8-13

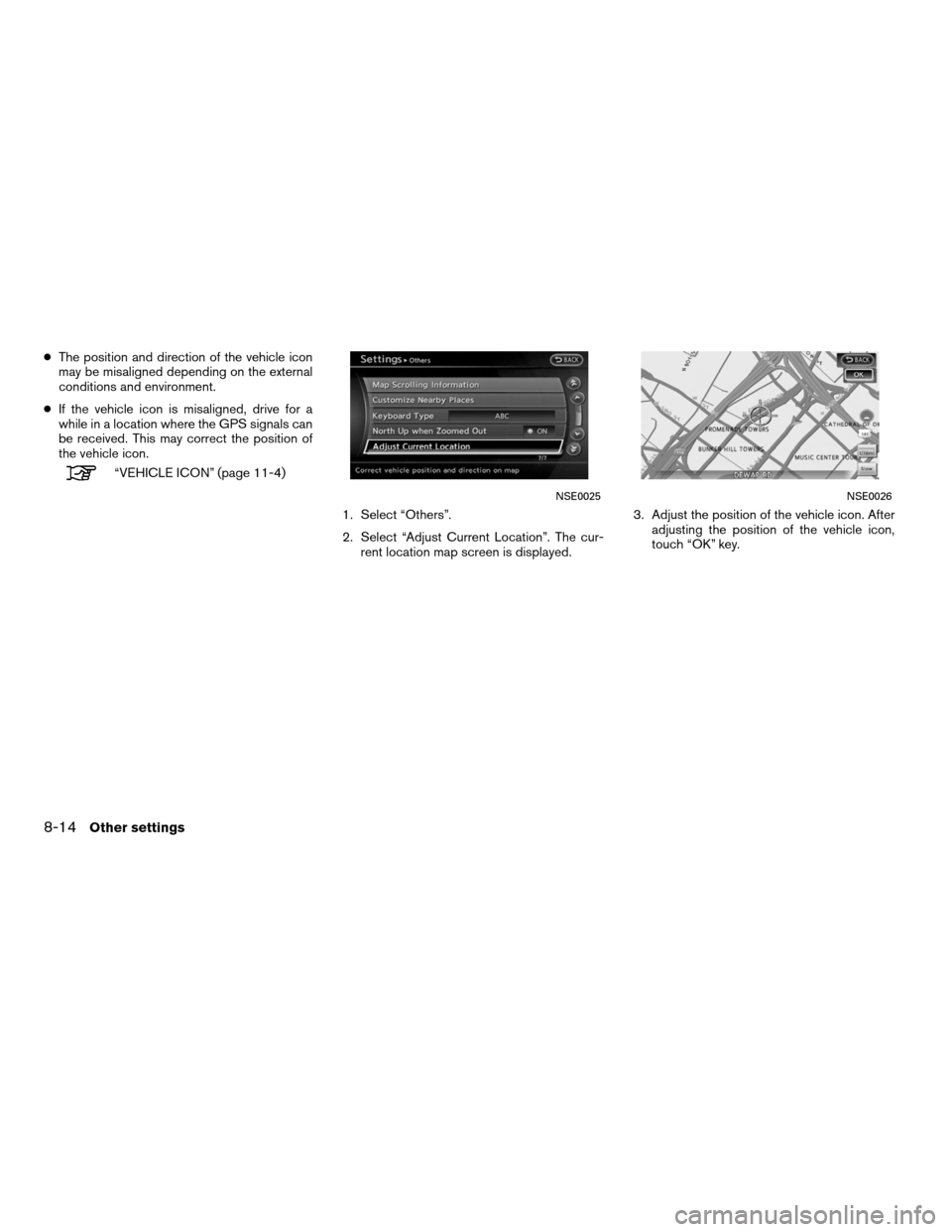

●The position and direction of the vehicle icon
may be misaligned depending on the external
conditions and environment.
● If the vehicle icon is misaligned, drive for a
while in a location where the GPS signals can
be received. This may correct the position of
the vehicle icon.
“VEHICLE ICON” (page 11-4)
1. Select “Others”.
2. Select “Adjust Current Location”. The cur-rent location map screen is displayed. 3. Adjust the position of the vehicle icon. After
adjusting the position of the vehicle icon,
touch “OK” key.
NSE0025NSE0026
8-14Other settings

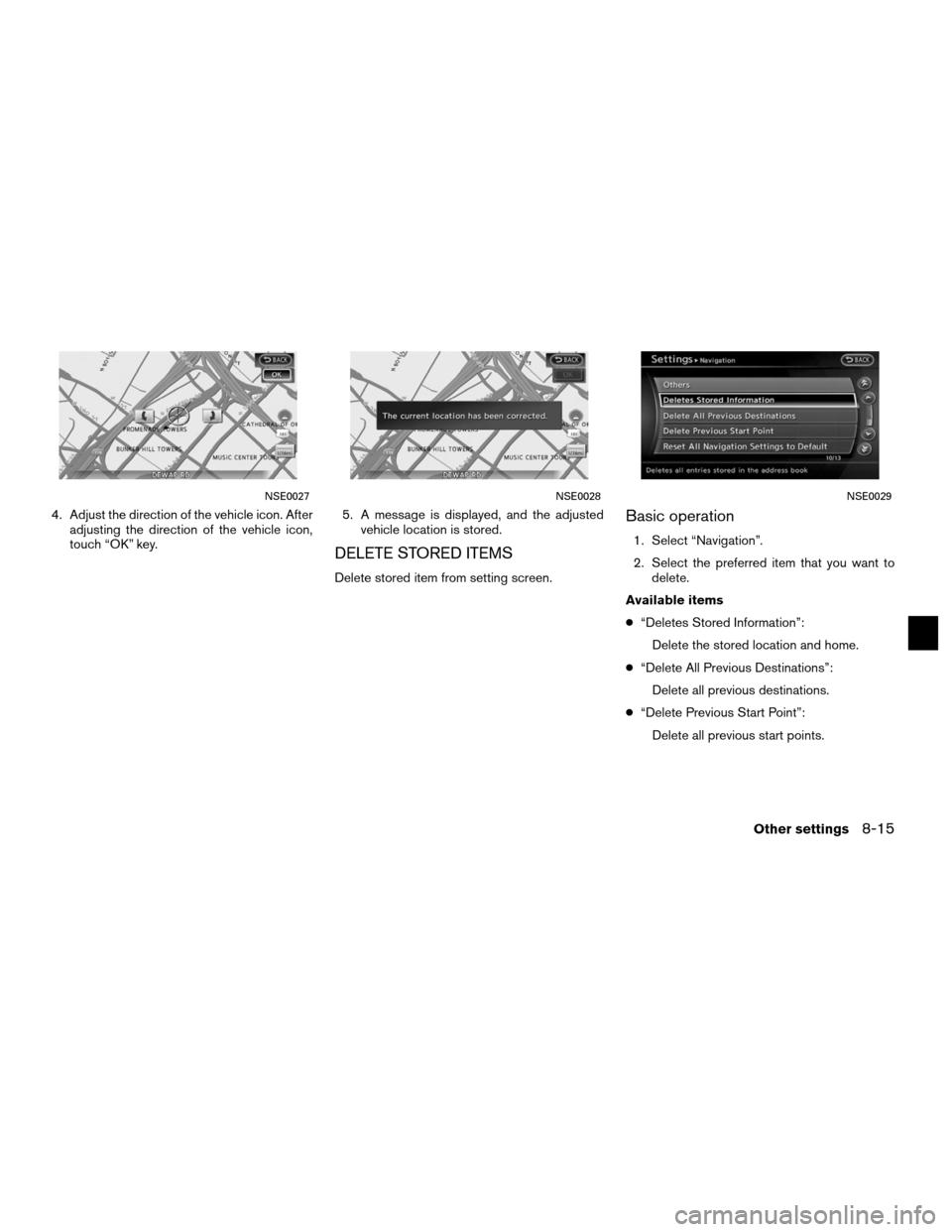

4. Adjust the direction of the vehicle icon. Afteradjusting the direction of the vehicle icon,
touch “OK” key. 5. A message is displayed, and the adjusted
vehicle location is stored.
DELETE STORED ITEMS
Delete stored item from setting screen.
Basic operation
1. Select “Navigation”.
2. Select the preferred item that you want todelete.
Available items
● “Deletes Stored Information”:
Delete the stored location and home.
● “Delete All Previous Destinations”:
Delete all previous destinations.
● “Delete Previous Start Point”:
Delete all previous start points.
NSE0027NSE0028NSE0029
Other settings8-15
