MENU SCREENS AND THEIR PUR-
POSES
Press the DEST, ROUTE, INFO,or SET-
TING button to display the corresponding menu
screen.
How to select a menu item
Example: DEST screen
1. Select the preferred menu item by touching the corresponding key on the screen. The
next screen is displayed.
2. Press BACK to return to the previous screen without applying any changes.
3. Press MAP to return to the current location map screen without applying any changes.
INFO:
● Depending on the menu selected, pressing
MAP may not return the display to the current
location map screen.
● An item can also be selected by moving the
steering wheel switch up and down.
USING CONTROLS TO ADJUST
VALUES, LEVELS, ETC.
There are two main methods to control the navi-
gation system: the touch panel and the steering
wheel switch. Use these controls to adjust the
volume of phone and voice guidance, the display
brightness, etc.
How to adjust
1. Select the preferred setting item and press SELECT. The color of the corresponding
adjustment item changes.
2. Use one of the controls to increase or de- crease the indicated value.
3. Press SELECT or BACK to apply the setting.
INFO:
● The volume of phone and voice guidance, the
display brightness, etc. can be adjusted by
moving the ENTER switch on the steering
wheel up and down.
● These same adjustments can also be per-
formed using the touch panel operation.
“ADJUSTING THE VOLUME AND
OTHERS” (page 2-9)
START MENU
While in the map view, the start menu can be
displayed using the steering wheel switch.
MENU SCREEN TYPES AND HOW TO
OPERATE
2-6Getting started

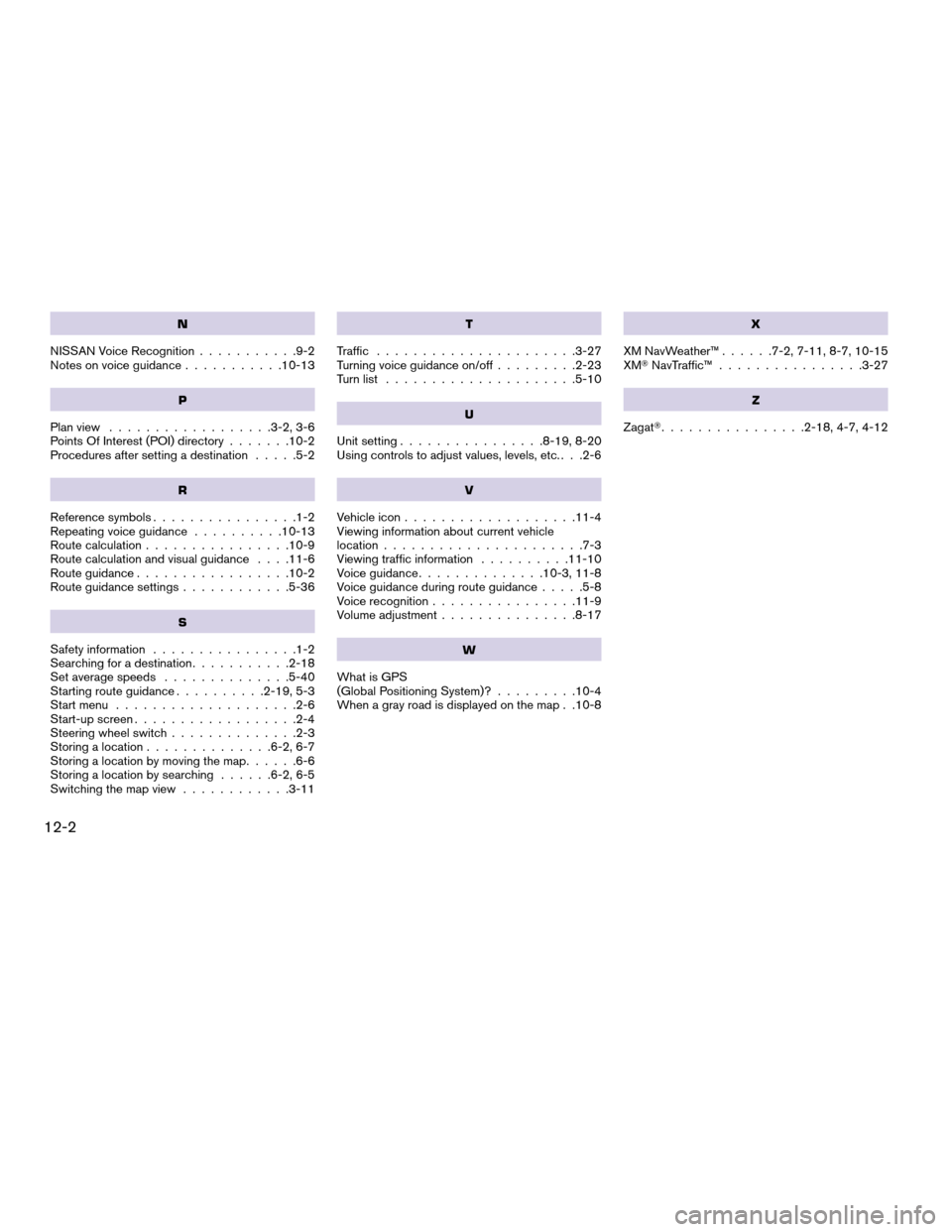

N
NISSAN Voice Recognition...........9-2
Notes on voice guidance ...........10-13
P
Plan view..................3-2, 3-6
Points Of Interest (POI) directory .......10-2
Procedures after setting a destination .....5-2
R
Reference symbols................1-2
Repeating voice guidance ..........10-13
Route calculation ................10-9
Route calculation and visual guidance . . . .11-6
Route guidance .................10-2
Route guidance settings ............5-36
S
Safety information................1-2
Searching for a destination ...........2-18
Set average speeds ..............5-40
Starting route guidance ..........2-19, 5-3
Start menu ....................2-6
Start-up screen ..................2-4
Steering wheel switch ..............2-3
Storing a location ..............6-2, 6-7
Storing a location by moving the map ......6-6
Storing a location by searching ......6-2, 6-5
Switching the map view ............3-11
T
Traffic......................3-27
Turning voice guidance on/off .........2-23
Turn list .....................5-10
U
Unit setting ................8-19, 8-20
Using controls to adjust values, levels, etc. . . .2-6
V
Vehicle icon ...................11-4
Viewing information about current vehicle
location ......................7-3
Viewing traffic information ..........11-10
Voice guidance ..............10-3, 11-8
Voice guidance during route guidance .....5-8
Voice recognition ................11-9
Volume adjustment ...............8-17
W
What is GPS
(Global Positioning System)? .........10-4
When a gray road is displayed on the map . .10-8
X
XM NavWeather™ ......7-2, 7-11, 8-7, 10-15
XM NavTraffic™ ................3-27
Z
Zagat................2-18, 4-7, 4-12
12-2
