2011 NISSAN 370Z ROADSTER change wheel

Black plate (381,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
WARNING
.The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and
consumer information” section of
this manual for wheel off-set dimen-
sions. .
When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not install a deformed wheel or
tire even if it has been repaired.
Such wheels or tires could have
structural damage and could fail
without warning.
. The use of retread tire is not re-
commended.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in the
Warranty Information Booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
NISSAN Warranty Information Booklet.Care of wheelsSee “CLEANING EXTERIOR” in the “7. Ap-
pearance and care” section for details about
care of the wheels.Spare tire (TEMPORARY USE ONLY (T-
type) spare tire) (if so equipped)Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
WARNING
.The T-type spare tire should be used
for emergency use. It should be
replaced with the standard tire at
Maintenance and do-it-yourself
8-37

Black plate (401,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

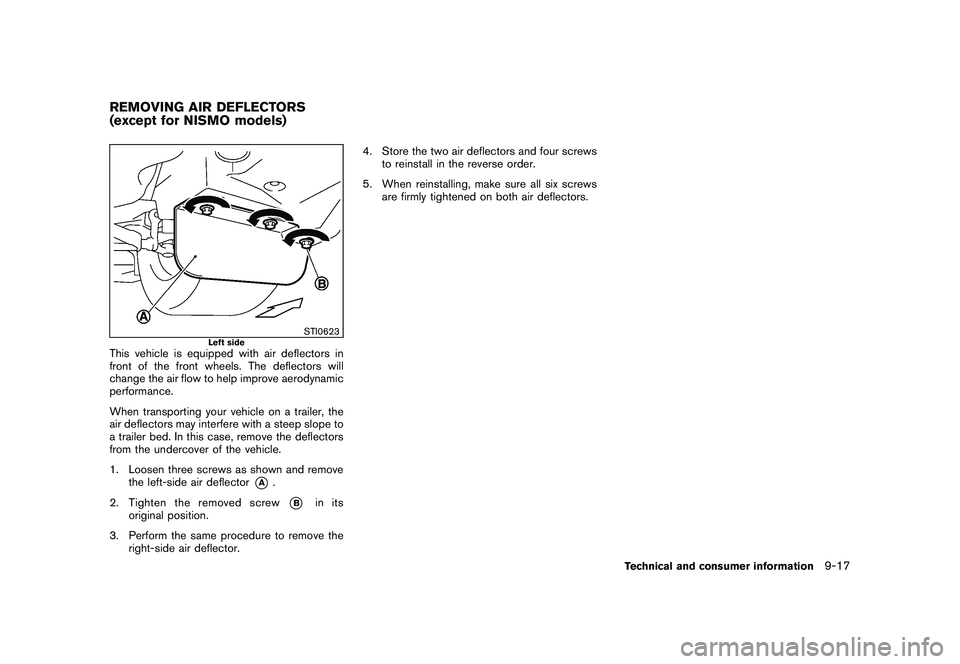

STI0623
Left side
This vehicle is equipped with air deflectors in
front of the front wheels. The deflectors will
change the air flow to help improve aerodynamic
performance.
When transporting your vehicle on a trailer, the
air deflectors may interfere with a steep slope to
a trailer bed. In this case, remove the deflectors
from the undercover of the vehicle.
1. Loosen three screws as shown and removethe left-side air deflector
*A
.
2. Tighten the removed screw
*B
in its
original position.
3. Perform the same procedure to remove the right-side air deflector. 4. Store the two air deflectors and four screws
to reinstall in the reverse order.
5. When reinstalling, make sure all six screws are firmly tightened on both air deflectors.
REMOVING AIR DEFLECTORS
(except for NISMO models)
Technical and consumer information
9-17

Black plate (404,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
LOADING TIPS.
The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
.
Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
.
Properly secure all cargo to help
prevent it from sliding or shift-
ing. Do not place cargo higher
than the seatbacks. In a sudden
stop or collision, unsecured car-
go could cause personal injury.
.
Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear
GAWRs. If you do, parts of your
vehicle can break, tire damage
could occur, or it can change the
way your vehicle handles. This
could result in loss of control
and cause personal injury.
.
Overloading could not only
shorten the life of your vehicle
and the tires, but also could leadto hazardous vehicle handling
and long braking distance. This
may cause a premature tire
malfunction, which could result
in a serious accident and perso-
nal injury. Failures caused by
overloading are not covered by
the vehicle’s warranty.
MEASUREMENT OF WEIGHTSSecure loose items to prevent weight shifts
that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels separately to determine axle loads.
Individual axle loads should not exceed
either of the gross axle weight ratings
(GAWR) . The total of the axle loads should
not exceed the gross vehicle weight rating
(GVWR) . These ratings are given on the
vehicle certification label. If weight ratings
are exceeded, move or remove items to
bring all weights below the ratings.
Do not tow a trailer with your vehicle.TOWING A TRAILER
9-20
Technical and consumer information

Black plate (1,1)
10 Index
A
ABS (Anti-lock Braking System) .................. 5-26
Advanced air bag system ......................... 1-32
Air bag system Advanced air bag system ..................... 1-32
Front passenger air bag and status light .... 1-33
Front-seat mounted side-impact
supplemental air bag system .................. 1-36
Roof-mounted curtain side-impact
supplemental air bag system .................. 1-36
Air bag warning labels ............................. 1-38
Air bag warning light ....................... 1-38, 2-12
Air cleaner housing filter .......................... 8-18
Air conditioner Air conditioner operation ...................... 4-24
Air conditioner service ......................... 4-30
Air conditioner specification label ............ 9-13
Air conditioning system refrigerant and
lubricant recommendations .............. 4-30, 9-7
In-cabin microfilter ............................. 4-29
Air deflectors ....................................... 9-17
Alarm, How to stop alarm
(see vehicle security system) ..................... 2-26
Alcohol, drugs and driving .......................... 5-7
Antenna ............................................. 4-79
Anti-lock Braking System (ABS) .................. 5-26
Anti-lock braking system (ABS) warning light ..... 2-9
Appearance care Exterior appearance care ........................ 7-2
Interior appearance care ........................ 7-5
Audible reminders ................................. 2-15
Audio operation precautions ...................... 4-30 Audio system
....................................... 4-30
Steering wheel audio controls ................ 4-77
Autochanger Compact Disc (CD) ........................... 4-48
Autolight system ................................... 2-30
Automatic Air conditioner (Type A) ....................... 4-25
Air conditioner (Type B) ....................... 4-27
Automatic adjusting function
(front windows) ................................ 2-43
Automatic transmission fluid (ATF) ........... 8-12
Door locks ........................................ 3-5
Driving with automatic transmission .......... 5-12
AUX (Auxiliary) button ...................... 4-45, 4-50
Auxiliary input jacks ................................ 4-75
Avoiding collision and rollover ...................... 5-5
B
Battery .............................................. 8-14
Battery saver system .......................... 2-31
Intelligent Key .................................. 8-23
Variable voltage control system ............... 8-16
Before starting the engine ........................ 5-10
Belts (See drive belts) ............................. 8-17
Bluetooth
®hands-free phone system
(models with navigation system) .................. 4-80
Bluetooth®hands-free phone system
(models without navigation system) .............. 4-91
Bluetooth®streaming audio ....................... 4-62
Booster seats ...................................... 1-23
Brake Anti-lock Braking System (ABS) .............. 5-26Brake and clutch fluid
......................... 8-13
Brake fluid ...................................... 8-13
Brake system ................................... 5-25
Parking brake operation ....................... 5-20
Warning light ..................................... 2-9
Break-in schedule .................................. 5-23
Brightness control Display ON/OFF button ......................... 4-6
Instrument panel ............................... 2-32
Bulb check/instrument panel ........................ 2-8
Bulb replacement .................................. 8-25
C
Cabin air filter ...................................... 4-29
Capacities and recommended fuel/lubricants ..... 9-2
Car phone or CB radio ............................ 4-80
Cargo cover ........................................ 2-41
Catalytic converter, Three way catalyst ............ 5-2
CD/CF/USB memory care and cleaning ......... 4-76
Center multi-function control panel
(models with navigation system) .................... 4-2
Child restraints ..................................... 1-17
Booster seats .................................. 1-23
Precautions on child restraints ................ 1-17
Top tether strap ................................ 1-18
Child safety ......................................... 1-15
Chimes Audible reminders ............................. 2-15
Seat belt warning light and chime ............ 2-11
Circuit breaker, Fusible link ....................... 8-21
Cleaning exterior and interior ................. 7-2, 7-5
Clock .......................................... 2-7, 2-23
Model "Z34-D" EDITED: 2010/ 7/ 28

Black plate (5,1)
Maintenance...................................... 8-5
Seat belt usage .................................. 1-8
Supplemental restraint system ................ 1-26
When starting and driving ....................... 5-2
Push starting ....................................... 6-15
Push warning
(Automatic Transmission models) ................. 2-17
Push-button ignition switch ................... 5-7, 5-8
R
Radio ............................................... 4-30
Car phone or CB radio ........................ 4-80
FM-AM radio with Compact Disc (CD)
player ........................................... 4-42
FM-AM-SAT radio with compact disc
(CD) changer (models without navigation
system) ......................................... 4-47
FM-AM-SAT radio with compact disc
(CD) player (models with navigation
system) ......................................... 4-51
Rapid air pressure loss .............................. 5-6
Readiness for inspection/maintenance (I/M)
test .................................................. 9-24
Rear hatch .......................................... 3-17
Rear hatch opener ................................. 3-17
Rear hatch opener switch ......................... 3-17
Rear parcel box .................................... 2-40
Rear window defroster switch .................... 2-29
RearView monitor
(models with navigation system) .................. 4-17
Recorders, Event data ............................. 9-24
Registering your vehicle in another country ...... 9-11
Remote keyless entry system ..................... 3-13
Repairing flat tire
(with emergency tire puncture repair kit) ........... 6-7Reporting safety defects
.......................... 9-23
Rollover ............................................... 5-5
Roof, Soft top ...................................... 3-21
S
Safety, Child seat belts ............................ 1-15
Satellite radio operation .................... 4-47, 4-52
Seat adjustment Front manual seat adjustment. .................. 1-4
Front power seat adjustment ................... 1-3
Front seats ....................................... 1-3
Seat belt(s) Child safety ..................................... 1-15
Infants ........................................... 1-15
Injured persons ................................. 1-11
Larger children ................................. 1-15
Precautions on seat belt usage ................. 1-8
Pregnant women ............................... 1-11
Seat belt cleaning ............................... 7-7
Seat belt extenders ............................ 1-14
Seat belt maintenance ......................... 1-14
Seat belt warning light and chime ............ 2-11
Seat belts ........................................ 1-8
Seat belts with pretensioners ................. 1-37
Three-point type ............................... 1-11
Seat(s) Climate controlled seats. ...................... 2-36
Heated seats ................................... 2-34
Seats .............................................. 1-2
Secondary rear hatch release ..................... 3-18
Secondary trunk lid release ....................... 3-21
Security system, Vehicle security system ........ 2-25
Security system (NISSAN Vehicle Immobilizer
System) , Engine start .............................. 2-26 Selector lever, Shift lock release
................. 5-15
Servicing air conditioner ........................... 4-30
SETTING button ................................... 4-10
Shift “P” warning
(Automatic Transmission models) ................. 2-17
Shift lock release, Transmission .................. 5-15
Shifting Automatic transmission ........................ 5-12
Manual transmission ........................... 5-16
Soft top Care and cleaning ............................... 7-3
If the top does not open or close ............ 3-28
Opening using the Intelligent Key ............ 3-26
Soft top indicator light .................. 2-14, 3-24
Soft top operation ............................. 3-21
Spare tire ............................................. 9-9
Spark plugs ........................................ 8-17
Speedometer ......................................... 2-5
Starting Before starting the engine .................... 5-10
Jump starting ................................... 6-13
Precautions when starting and driving ......... 5-2
Push starting ................................... 6-15
Starting the engine ............................ 5-11
STATUS button ...................................... 4-6
Status light, Front passenger air bag ............ 1-33
Steering Power steering fluid ........................... 8-12
Power steering system ........................ 5-25
Steering lock ..................................... 5-9
Steering lock release malfunction
indicator ........................................ 2-16
Steering-wheel-mounted controls for
audio ............................................ 4-77
Storage ............................................. 2-38
10-5
Model "Z34-D" EDITED: 2010/ 7/ 28
