2011 MITSUBISHI TRITON child restraint

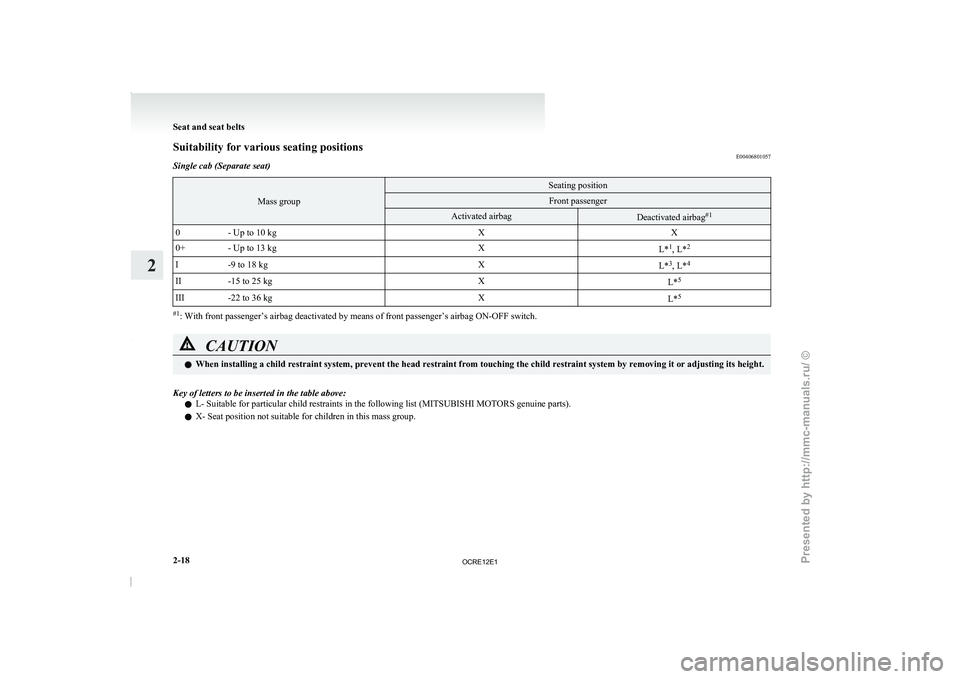

Suitability for various seating positions
E00406801057
Single cab (Separate seat) Mass group Seating position
Front passenger
Activated airbag
Deactivated airbag
#1
0 - Up to 10 kg XX
0+ - Up to 13 kg X
L*1
, L* 2
I -9 to 18 kg X
L*3
, L* 4
II -15 to 25 kg X
L*5
III -22 to 36 kg X
L*5 #1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l L- Suitable for particular child restraints in the following list (
MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group. Seat and seat belts
2-18
2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l L- Suitable for particular child restraints in the following list (
MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.

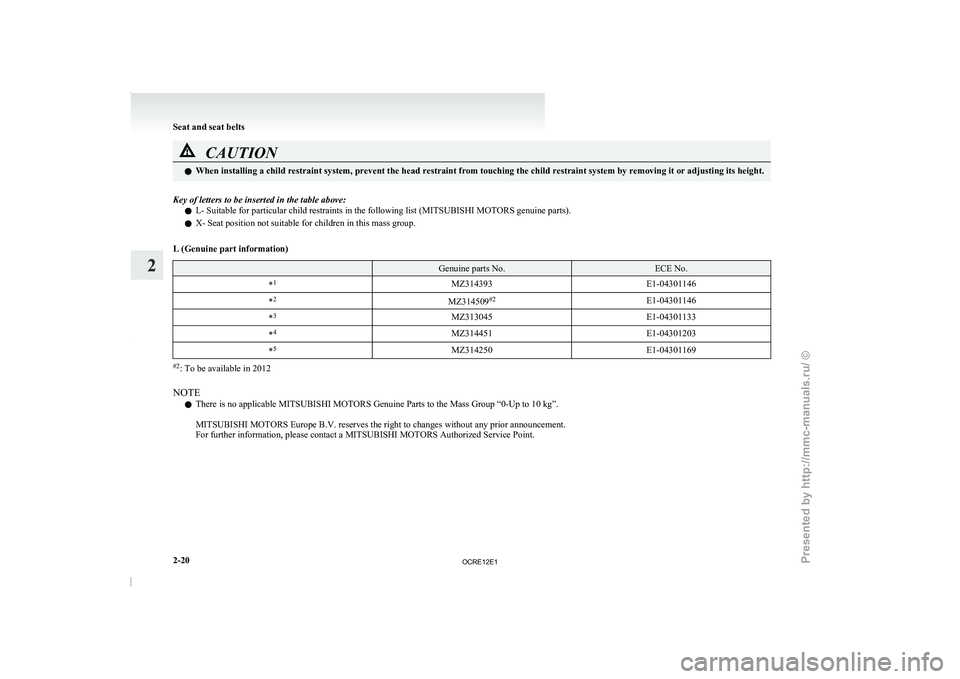

L (Genuine part information) Genuine parts No. ECE No.
* 1
MZ314393 E1-04301146
* 2
MZ314509#2
E1-04301146
* 3
MZ313045 E1-04301133
* 4
MZ314451 E1-04301203
* 5
MZ314250 E1-04301169#2
: To be available in 2012
NOTE l There is no applicable
MITSUBISHI MOTORS
Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS
Authorized Service Point.Seat and seat belts
2-20
2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

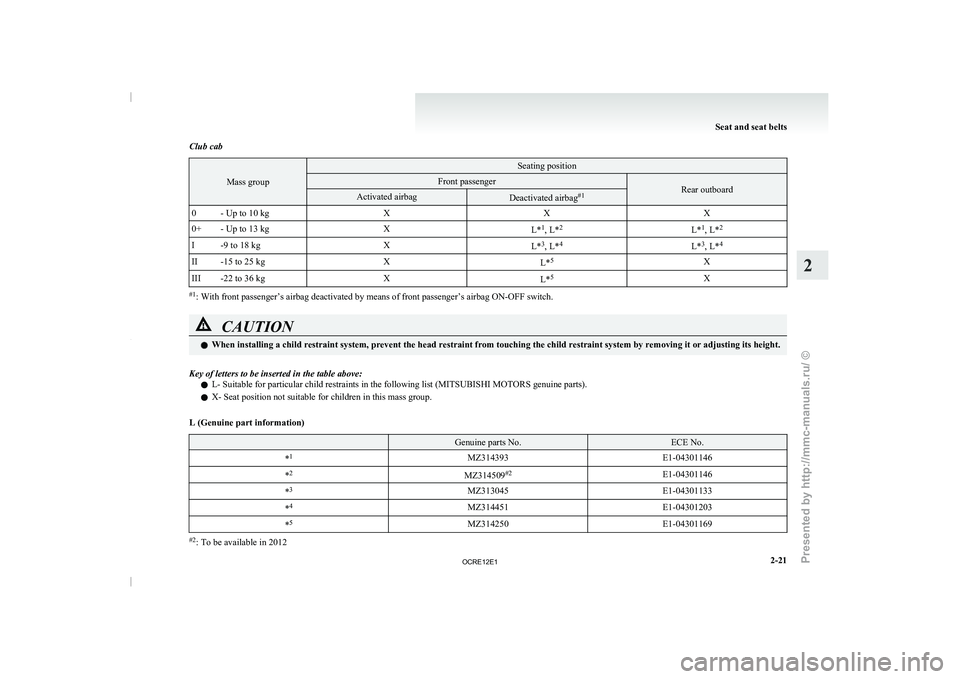

Club cab
Mass group Seating position
Front passenger
Rear outboard
Activated airbag
Deactivated airbag
#1
0 - Up to 10 kg XXX
0+ - Up to 13 kg X
L*1
, L* 2
L*1
, L* 2
I -9 to 18 kg X
L*3
, L* 4
L*3
, L* 4
II -15 to 25 kg X
L*5
X
III -22 to 36 kg X
L*5
X#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l L- Suitable for particular child restraints in the following list (
MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No. ECE No.
* 1
MZ314393 E1-04301146
* 2
MZ314509#2
E1-04301146
* 3
MZ313045 E1-04301133
* 4
MZ314451 E1-04301203
* 5
MZ314250 E1-04301169#2
: To be available in 2012 Seat and seat belts
2-21 2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

NOTE
l There is no applicable
MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS
Authorized Service Point.

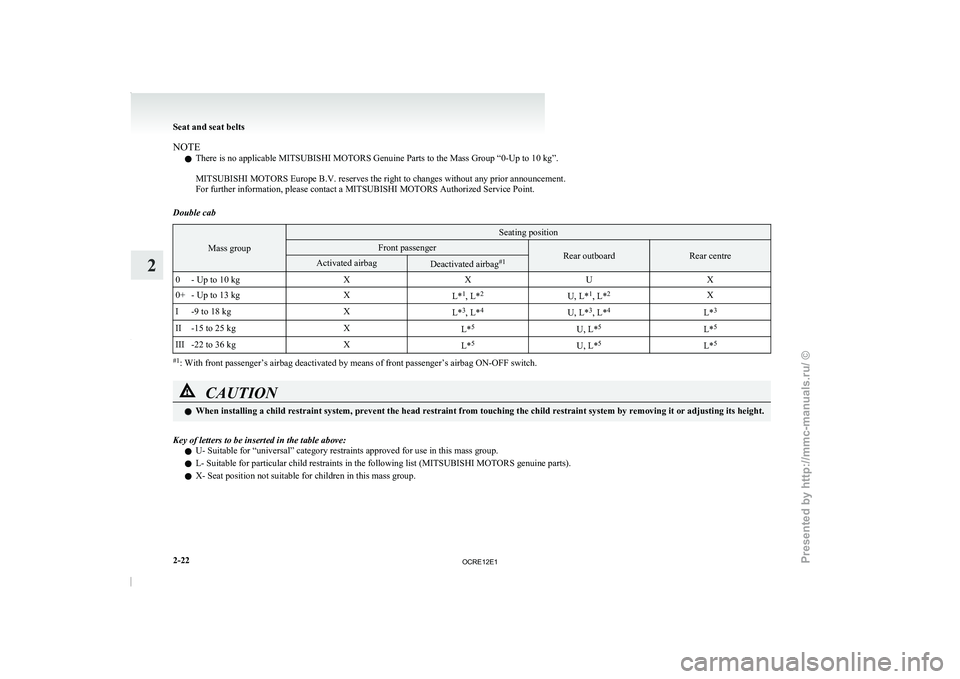

Double cab Mass group Seating position
Front passenger
Rear outboard Rear centre
Activated airbag
Deactivated airbag
#1
0 - Up to 10 kg XXUX
0+ - Up to 13 kg X
L*1
, L* 2
U, L*1
, L* 2
X
I -9 to 18 kg X
L*3
, L* 4
U, L*3
, L* 4
L*3
II -15 to 25 kg X
L*5
U, L*5
L*5
III -22 to 36 kg X
L*5
U, L*5
L*5 #1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints in the following list (
MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group. Seat and seat belts
2-22
2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

Child restraint anchorage points (Dou-
ble cab)*
E00406900354
Anchorage locations
There are 2 child restraint
anchorage points on the
floor, located behind the rear seat. These are for se-
curing a child restraint system tether strap to each
of the 2 rear seating positions in your vehicle. *: Rear of the vehicle
CAUTION
l
The anchorages are only
applicable
for
child restraints fitted in the rear seat. Tether anchorage strap installation WARNING
l Child restraint anchorages are
designed
to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehicle.
1. Remove the head restraint from the location
in which you wish to install a child restraint.
2. Drop
the child

restraint’s tether strap (A)
down the back of the rear seatback. 3. Tip the armrest forward. Open the fastener
(B) that is located
in the space where the arm-
rest was stowed. 4. Put your hand in the opening of the fastener,
attach the tether strap’s hook (C) to the tether
anchorage (D), and securely

tighten the teth-
er strap. Seat and seat belts
2-24
2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

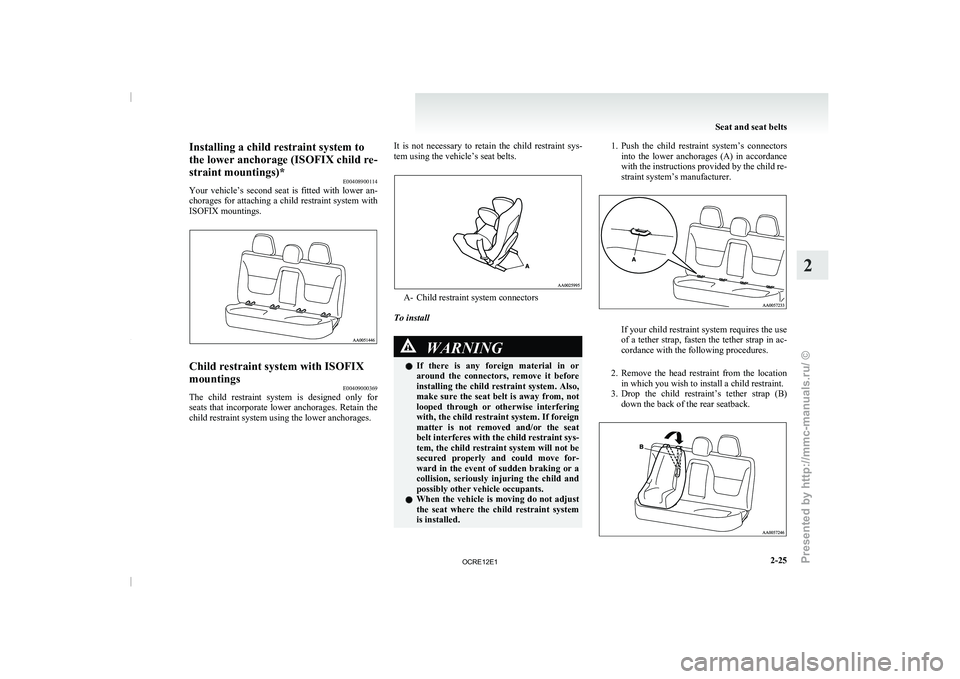

Installing a child restraint system to
the lower anchorage (ISOFIX child re-
straint mountings)*
E00408900114
Your vehicle’s second seat is
fitted with lower an-
chorages for attaching a child restraint system with
ISOFIX mountings. Child restraint system with ISOFIX
mountings
E00409000369
The child restraint system is designed only for
seats that incorporate lower anchorages.

Retain the
child restraint system using the lower anchorages. It is not necessary to retain the child restraint sys-
tem using the vehicle’s seat belts. A- Child restraint system connectors
To install WARNING
l If there is any
foreign
material in or
around the connectors, remove it before
installing the child restraint system. Also,
make sure the seat belt is away from, not
looped through or otherwise interfering
with, the child restraint system. If foreign
matter is not removed and/or the seat
belt interferes with the child restraint sys-
tem, the child restraint system will not be
secured properly and could move for-
ward in the event of sudden braking or a
collision, seriously injuring the child and
possibly other vehicle occupants.
l When the vehicle is moving do not adjust
the seat where the child restraint system
is installed. 1. Push the child restraint system’s connectors
into the lower anchorages

(A) in accordance
with the instructions provided by the child re-
straint system’s manufacturer. If your child restraint system requires the use
of a tether strap,
fasten

the tether strap in ac-
cordance with the following procedures.
2. Remove the head restraint from the location in which you wish to install a child restraint.
3. Drop the child restraint’s tether strap (B) down the back of the rear seatback. Seat and seat belts
2-25 2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

4. Tip the armrest forward. Open the fastener
(C) that’s located in the space where the arm-
rest was stowed. 5. Put your hand in the opening of the fastener,
attach the tether strap’s
hook (D) to the teth-
er anchorage (E), and securely tighten the teth-
er strap. 6. Push and pull the child restraint system in all
directions to be sure it is firmly secured. To remove
Remove the child restraint in

accordance with the
instructions provided by the child restraint sys-
tem’s manufacturer.
Installing a child restraint system to a
3-point type seat belt (with emergency
locking mechanism) E00408700516
Single cab and Club cab
Double cab
Front passenger seat
Front passenger seat Installation:
1. Fasten the seat belt to
secure the child re-
straint system.
Make sure you hear a “click” when you in-
sert the latch plate in the buckle.
2. Remove all slack by using the locking clip.
3. Push and pull the child restraint in all direc- tions to be sure it is secure. WARNING
l For some types of child
restraint, the lock-
ing clip (A) should be used to help avoid
personal injury during a collision or sud-
den manoeuvre.
It must be fitted and used in accordance
with the child restraint manufacturer’s in-
structions.
The locking clip must be removed when
the child restraint is removed. Seat and seat belts
2-26
2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

WARNING
bags may not protect you properly, and
could cause serious or fatal
injuries when
it inflates. • Before driving, adjust the driver’sseat as far back as possible while still
maintaining complete control of the ve-
hicle.
• Before driving, adjust the front passen- ger seat as far back as possible.
• Make sure all vehicle occupants are al- ways properly restrained using the
available seat belts.
• With seat belts properly fastened, the driver and passengers should sit well
back and upright without leaning
against the window or door.
l Do not sit on the edge of the seat, or lean
head or chest close to the steering wheel
or instrument panel.
Do not put feet or legs on or against the
instrument panel. WARNING
l Infants and small children should never
be unrestrained, stand up against the in-
strument panel or be held in your arms
or on your lap. They could be seriously in-
jured or killed in a collision, including
when the airbag inflates. They should be
properly seated in an appropriate child re-
straint system. See the “Child restraint”
section of this owner’s manual. WARNING
l A REARWARD FACING CHILD
RE-
STRAINT
must NOT be used in the front
passenger seat if the front passenger’s air-
bag has not been deactivated. The force
of an inflating airbag could kill or cause
serious injuries to the child.
Front passenger’s airbag ON NOTE
l If
you have a rearward

facing child restraint
system that cannot be fitted to any seat other
than the front passenger seat, be sure to turn
OFF the front passenger’s airbag ON-OFF
switch before using it. (Refer to “To turn an
airbag off” on page 2-30.)
Front passenger’s airbag OFF Seat and seat belts
2-28
2

OCRE12E1
Presented by http://mmc-manuals.ru/ \251
