2011 MITSUBISHI OUTLANDER SPORT ESP

Introduction
N09200100817
Thank you for buying a MITSUBISHI OUTLANDER
SPORT/RVR.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
OUTLANDER SPORT/RVR. The Owner’s Manual contains
descriptions and illustrations that will assist in the operation
and maintenance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all OUTLANDER
SPORT/RVR models and explains all features including
options. Some features explained in this manual may not be
installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WARNING and
CAUTION appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
As with other vehicles of this type, failure to operate this vehicle
correctly may result in loss of control or an accident. Be sure to
read “on-pavement” and “off-road” driving guidelines in the
“Driving safety” and “Features and controls” sections.
WA R N I N G
!

Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects and reproduc-
tive harm. In addition, certain fluids contained in vehicles
and certain products of component wear contain or emit
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2010 Mitsubishi Motors Corporation Printed in Japan
11ZC(NAFTA)_Cover2.fm 1 ページ ２０１０年５月２１日　金曜日　午後１時７分

1-2 General information
1Fuel selection
N00301000811
Your vehicle is designed to use unleaded gasoline only. It is
equipped with a fuel tank filler pipe especially designed to
accept only a small diameter unleaded gasoline dispensing noz-
zle.Gasoline detergent additivesIn the United States, fuel suppliers are required by law to add
detergents to their gasoline to minimize fuel-injector fouling
and minimize intake-valve deposits. Detergent gasoline helps
keep your engine in tune and your emission-control system
working properly.
Octane requirementYour vehicle is designed to operate on unleaded gasoline hav-
ing a minimum octane number of 87 [(MON+RON)/2] or 91
RON.Oxygenated gasolineGasoline sold at some service stations contains oxygenates
such as ethanol and MTBE, although the oxygenates may not
be identified by those names. Oxygenates are required in some
areas of the country. Such fuel can be used in your vehicle.Ethanol (Gasohol)A mixture of up to 10 % ethanol (grain alcohol) and 90 %
unleaded gasoline may be used in your vehicle, provided the
octane number is at least as high as that recommended for
unleaded gasoline.MethanolDo not operate your vehicle on gasoline containing methanol
(wood alcohol). Using this type of alcohol could adversely
affect the vehicle’s performance and damage critical parts of
the vehicle’s fuel system.
WA R N I N G
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. Whenever you refuel your vehicle, stop
the engine and keep flames, sparks, and smoking
materials away from the vehicle. Always handle fuel
in well-ventilated outdoor areas.
CAUTION
!
Using leaded gasoline in your vehicle will damage
the engine, catalytic converter, and the oxygen sen-
sors. Also, using leaded gasoline is illegal, and will
void your warranty coverage of the engine, catalytic
converter, and oxygen sensors.
BK0120400US.book 2 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-19
2
Seat belt instructions
N00406200431
All seats are equipped with a seat belt which uses one com-
bined lap-and-shoulder belt with an emergency locking retrac-
tor.
This system is designed to provide both comfort and safety. It
permits full extension and automatic retraction of the belts dur-
ing normal vehicle operation. A sensing device inside the belt
retractor is designed to lock the retractor in the event of a sud-
den change in the vehicle’s motion.NOTE
For instructions on installing a child restraint system using
a seat belt, refer to “Installing a child restraint system
using the seat belt” on page 2-38.

To reduce the risk to a front seat passenger of seri-
ous injury or death from a deploying airbag, make
sure the passenger always wears the seat belt prop-
erly, remains seated all the way back and upright in
their seat, and moves the seat as far back as possible.
Refer to “Supplemental Restraint System (SRS) -
airbag” on page 2-43 for additional information.
Never hold an infant or child in your arms or on
your lap when riding in this vehicle even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
Children 12 years old and under should always ride
in the rear seat and be properly restrained. This
reduces their risk of serious injury or death in an
accident, especially due to a deploying front passen-
ger airbag. Refer to “Child restraint systems” on
page 2-31 for additional information.
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system.
Infants MUST be placed in a rear-facing child safety
seat and positioned in the rear seat.
In the event of an accident, all seat belt assemblies,
including retractors and attachment hardware,
should be inspected by an authorized Mitsubishi
Motors dealer to determine whether replacement is
necessary.
WA R N I N G
!
BK0120400US.book 19 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-30 Seat and restraint systems
2
The seat belt pre-tensioner system includes the following com-
ponents:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch or the opera-
tion mode is under the following conditions. These include all
of the items listed above and all related wiring.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is in the “ON” or “START” position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.The seat belt pre-tensioners will operate under the same condi-
tions as the airbag control unit.
When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
The pre-tensioners activate whenever a moderate-to-serve
impact is applied to the front or side of the vehicle, even if the
seat belt is not being worn. The seat belt pre-tensioners may
not activate in certain collisions, even though the vehicle may
appear to be severely damaged. Such non-activation does not
mean that something is wrong with the seat belt pre-tensioner
system, but rather that the collision forces were not severe
enough to activate the system.1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioner
4- Airbag control unit
5- Side impact sensors
WA R N I N G
!
The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0120400US.book 30 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-42 Seat and restraint systems
2
Children who have outgrown child restraint sys-
tems
N00407600520
Children who have outgrown a child restraint system should be
seated in the rear seat and wear the seat belt. If the shoulder
belt crosses their face or neck, and/or the lap belt crosses their
stomach, a commercially available booster seat (including a
booster cushion) must be used, to raise the child so that the
shoulder belt crosses their shoulder and the lap belt remains
positioned low across their hips. The booster seat (including a
booster cushion) should fit the vehicle seat and have a label
certifying compliance with Federal Motor Vehicle Safety Stan-
dards or Motor Vehicle Restraint Systems and Booster Cush-
ions Safety Regulations.
Maintenance and inspection of seat belts
N00407000221
The seat belt webbing may be cleaned with mild soap or deter-
gent solution. Do not use an organic solvent. Allow the belts to
dry in the shade. Do not allow them to retract until completely
dry. Do not attempt to bleach or re-dye the belts. The color may
rub off and the webbing strength may be affected.
Regularly check your seat belt buckles and their release mech-
anisms for positive engagement and release of the latch plate.
Check the retractors for automatic locking when in the Auto-
matic Locking Retractor function.
The entire seat belt assembly should be replaced if the webbing
shows any obvious cuts, tears, increase in thickness in any sec-
tion of the webbing from broken fibers, or severe fading from
sunlight. All of these conditions indicate a weakening of the
belt, which may adversely affect seat belt performance in an
accident.
WA R N I N G
!
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system, to reduce their risk of serious
injury or death in an accident.
A child should never be left unattended in, or unsu-
pervised around, your vehicle. When you leave the
vehicle, always take the child out as well.
Children can die from heat stroke if left or trapped
inside the vehicle, especially on hot days.
Keep your vehicle locked when not in use. Keep
your vehicle keys away from children.
WA R N I N G
!
Do not attempt to repair or replace any part of the
seat belt assemblies. This work should be done by an
authorized Mitsubishi Motors dealer. Failure to
have an authorized Mitsubishi Motors dealer per-
form the work could reduce the effectiveness of the
belts and could result in a serious injury or death in
an accident.
BK0120400US.book 42 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

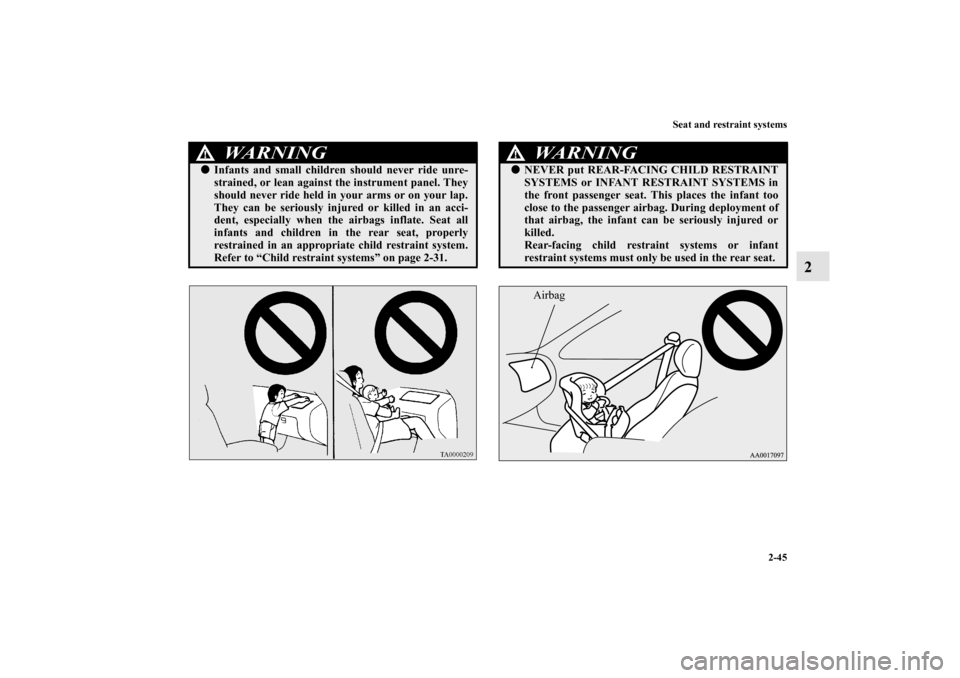

Seat and restraint systems
2-45
2
WA R N I N G
!
Infants and small children should never ride unre-
strained, or lean against the instrument panel. They
should never ride held in your arms or on your lap.
They can be seriously injured or killed in an acci-
dent, especially when the airbags inflate. Seat all
infants and children in the rear seat, properly
restrained in an appropriate child restraint system.
Refer to “Child restraint systems” on page 2-31.
WA R N I N G
!
NEVER put REAR-FACING CHILD RESTRAINT
SYSTEMS or INFANT RESTRAINT SYSTEMS in
the front passenger seat. This places the infant too
close to the passenger airbag. During deployment of
that airbag, the infant can be seriously injured or
killed.
Rear-facing child restraint systems or infant
restraint systems must only be used in the rear seat.
Airbag
BK0120400US.book 45 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-48 Seat and restraint systems
2
When the impact sensors detect a sufficient front or side impact
to deploy the airbag(s), the appropriate airbag(s) will be
deployed.
When the airbag control unit detects rollover of the vehicle,
curtain airbags will be deployed.
When airbags deploy, some smoke is released accompanied by
a loud noise. The smoke is not harmful, but do not intentionally
inhale the smoke as it may cause temporary irritation to people
with respiratory problems.
An inflated airbag will deflate quickly, so you may not even
notice that the airbag was inflated.
Airbag inflation does not prevent the driver from seeing or
being able to steer the vehicle, and does not prevent people
from leaving the vehicle.
Event Data Recording
N00418600197
Your vehicle is equipped with an “EDR” - Event Data
Recorder which is capable of collecting and storing data in the
event of an airbag deployment.
The EDR may record the following information:

Condition of specific vehicle systems;

Diagnostic code(s)
CAUTION
!
Airbags inflate very quickly and with great force. In
certain situations, contact with an inflating airbag
may cause small cuts, abrasions, and bruises.
BK0120400US.book 48 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-18 Features and controls
3
Operating range for starting the engine and changing
the operation mode
N00503300067
The operating range is the interior of the vehicle.NOTE
Even if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine and change the
operation mode if the key is in a storage space such as the
glove compartment, on top of the instrument panel, or in
the door pocket or luggage compartment.

Even if the F.A.S.T.-key is inside the vehicle, it may not
be possible to start the engine and change the operation
mode if the key is too close to a door or door window.
To operate using the F.A.S.T.-key
N00503400156
To l o c kWhile carrying the F.A.S.T.-key, press the driver’s or front pas-
senger’s door lock/unlock switch (A), or the liftgate LOCK
switch (B) within the operating range to lock all the doors and
the liftgate.
The turn signal lights will blink once and the buzzer will sound
once.
Also refer to “Doors locks”, “Power door locks” and “Liftgate”
on pages 3-37, 3-41 and 3-44 respectively.
*: Front of the vehicle
:Operating range
Driver’s and front passenger’s door
lock/unlock switches
BK0120400US.book 18 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
