2011 MITSUBISHI OUTLANDER SPORT display

Starting the MMCS 2-1
Basic Operation
Basic Operation
Starting the MMCS
WARNING
Do not operate the Mitsubishi Multi Communication
System (MMCS) while driving.
Always concentrate on your driving rst. Keep your eyes and mind on the road. If distracted while
driving, you could cause an accident.

When operating the MMCS, do not park with the
engine running in a closed or poorly ventilated
area. Carbon monoxide gas, which is odorless and
extremely poisonous, can build up and cause serious
injury or death.
1 Turn “ON” the ignition switch
eng_244
eng_a002The opening screen is displayed.

If any function other than AUDIO was used last time,
go to Step 2.
NOTE(page 10-1) have
been set, when the date matches the settings, the
set icon is displayed on screen.

(page 10-9) has been set,
when the maintenance distance has been exceeded
or the maintenance timing has been exceeded, a
telop will be displayed in the opening screen.
2 Touch the desired language
eng_a600
NOTE sides can be changed by performing operations on
either the MMCS side or the meter side.
of the meter side and the MMCS side can be set
separately.
3 Touch [OK] After a moment, the display is changed to the
navigation screen.
NOTEnavigation screen is displayed rather than the screen
last used.
\b \b
\f \


 \b
\b \f

Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING

operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.
NOTEit with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.
Scrolls forward through a list one page
at a time.
Scrolls back through a list one line at a
time.
Scrolls back through a list one page at
a time.
\b \b
\f \

  \b
\b \f

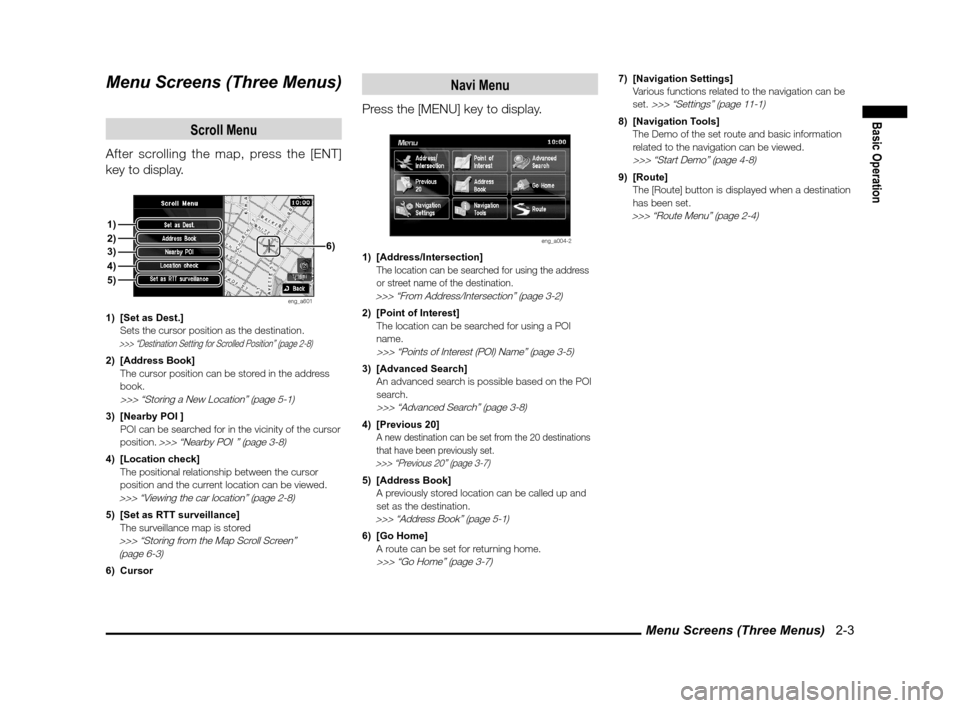

Menu Screens (Three Menus) 2-3
Basic Operation
Menu Screens (Three Menus)
Scroll Menu
After scrolling the map, press the [ENT]
key to display.
eng_a601
1) [Set as Dest.]
Sets the cursor position as the destination.
>>> “Destination Setting for Scrolled Position” (page 2-8)
2) [Address Book]
The cursor position can be stored in the address
book.

>>> “Storing a New Location” (page 5-1)
3) [Nearby POI ]
POI can be searched for in the vicinity of the cursor position.
>>> “Nearby POI ” (page 3-8)
4) [Location check]
The positional relationship between the cursor position and the current location can be viewed.
>>> “Viewing the car location” (page 2-8)
5) [Set as RTT surveillance]
The surveillance map is stored
>>> “Storing from the Map Scroll Screen” (page 6-3)
6) Cursor
Navi Menu
Press the [MENU] key to display.
eng_a004-2
1) [Address/Intersection] The location can be searched for using the address or street name of the destination.
>>> “From Address/Intersection” (page 3-2)
2) [Point of Interest]
The location can be searched for using a POI name.

>>> “Points of Interest (POI) Name” (page 3-5)
3) [Advanced Search]
An advanced search is possible based on the POI search.

>>> “Advanced Search” (page 3-8)
4) [Previous 20] A new destination can be set from the 20 destinations that have been previously set.
>>> “Previous 20” (page 3-7)
5) [Address Book] A previously stored location can be called up and set as the destination.

>>> “Address Book” (page 5-1)
6) [Go Home]
A route can be set for returning home.

>>> “Go Home” (page 3-7)
7) [Navigation Settings]
Various functions related to the navigation can be set.
>>> “Settings” (page 11-1)
8) [Navigation Tools]
The Demo of the set route and basic information related to the navigation can be viewed.

>>> “Start Demo” (page 4-8)
9) [Route]
The [Route] button is displayed when a destination has been set.

>>> “Route Menu” (page 2-4)1)2)3)
4)
6)
5)
\b \b
\f \

  \b
\b \f

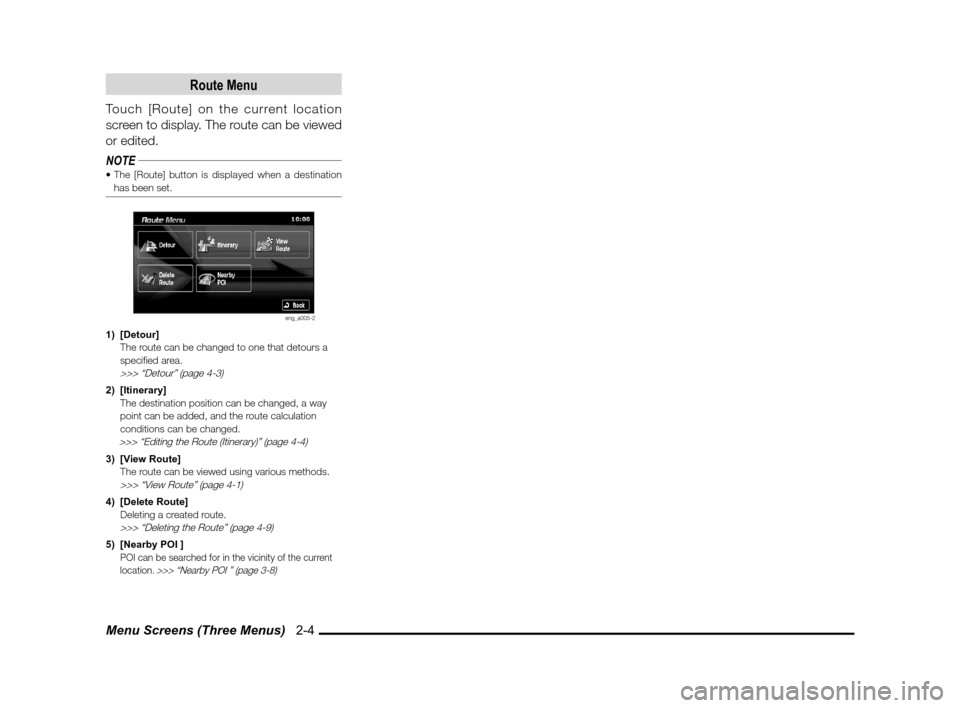

Menu Screens (Three Menus) 2-4
Route Menu
Touch [Route] on the current location
screen to display. The route can be viewed
or edited.
NOTE
has been set.
eng_a005-2
1) [Detour]
The route can be changed to one that detours a speci ed area.
>>> “Detour” (page 4-3)
2) [Itinerary]
The destination position can be changed, a way point can be added, and the route calculation
conditions can be changed.

>>> “Editing the Route (Itinerary)” (page 4-4)
3) [View Route]
The route can be viewed using various methods.
>>> “View Route” (page 4-1)
4) [Delete Route]
Deleting a created route.

>>> “Deleting the Route” (page 4-9)
5) [Nearby POI ] POI can be searched for in the vicinity of the current location. >>> “Nearby POI ” (page 3-8)
\b \b
\f \

 \b \b
\b \f

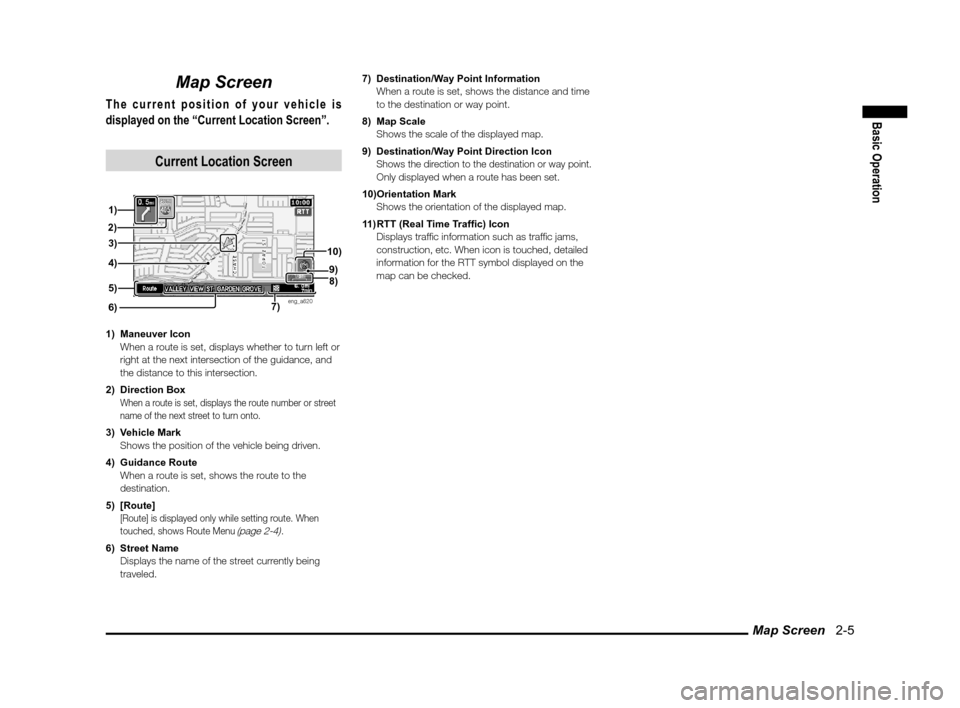

Map Screen 2-5
Basic Operation
Map Screen
The current position of your vehicle is
displayed on the “Current Location Screen”.
Current Location Screen
eng_a620
1) Maneuver Icon
When a route is set, displays whether to turn left or right at the next intersection of the guidance, and
the distance to this intersection.
2) Direction Box

When a route is set, displays the route number or street
name of the next street to turn onto.
3) Vehicle Mark
Shows the position of the vehicle being driven.
4) Guidance Route
When a route is set, shows the route to the destination.
5) [Route]

[Route] is displayed only while setting route. When
touched, shows Route Menu (page 2-4).
6) Street Name
Displays the name of the street currently being traveled. 7) Destination/Way Point Information
When a route is set, shows the distance and time
to the destination or way point.
8) Map Scale
Shows the scale of the displayed map.
9) Destination/Way Point Direction Icon

Shows the direction to the destination or way point. Only displayed when a route has been set.
10) Orientation Mark
Shows the orientation of the displayed map.
11) RTT (Real Time Traffi c) Icon
Displays traf c information such as traf c jams,
construction, etc. When icon is touched, detailed
information for the RTT symbol displayed on the
map can be checked.
1)
10)
2)
9)
8)
7)
6) 3)
4)
5)
\b \b
\f \

   \b
\b \f

Changing the Map Display 2-6
Changing the Map Display
Changing the display method of the map
screen.
Displaying the Current Location Screen
Displays the current location.

1 Press the [NAVI] key
eng_a623The current location screen is displayed.
Changing the Scale
The scale of the map display can be
changed within a range of 1/32 miles (50m)
to 60 miles (100km).
NOTE

“km”. >>> “Unit” (page 11-5)
One Map Mode

1 To display a wider area, press the
[
SCALE] key
eng_a624A wider area can be viewed each time the [ SCALE]
key is pressed.
2 For a detailed display, press the
[SCALE
] key
eng_a627A more detailed area can be viewed each time the
[SCALE ] key is pressed.
NOTE
Press and hold the [ SCALE] key or the [SCALE ] key to change the scale using smooth zoom.
Two Maps ModeWhen two maps are displayed, the left and right
screens can be changed to different scales.
The scale of the right map is changed with the same
operations as when there is only one map. This section
explains how to change the scale of the left map.
NOTE
be performed in “Screen Options”. >>> “One/Two
Maps” (page 11-9)
1 Touch the map section of the left
map
eng_a630
eng_a631 A scale bar is displayed.
\b \b
\f \

  \b
\b \f

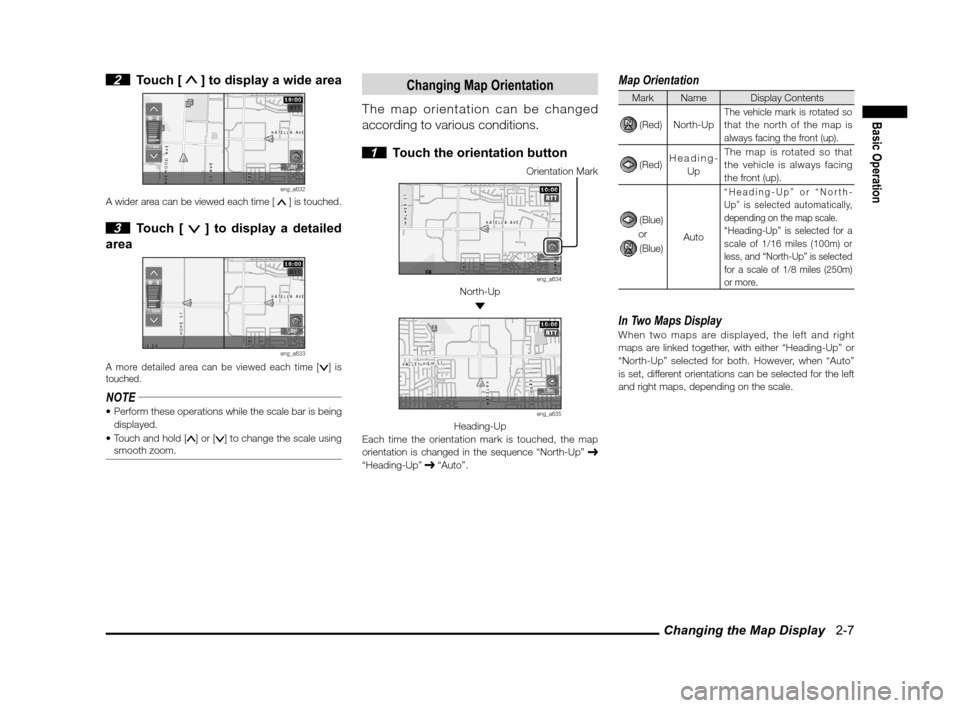

Changing the Map Display 2-7
Basic Operation
2 Touch [ ] to display a wide area
eng_a632A wider area can be viewed each time [ ] is touched.
3 Touch [ ] to display a detailed
area
eng_a633
A more detailed area can be viewed each time [ ] is
touched.
NOTE
displayed.
] or [ ] to change the scale using smooth zoom.
Changing Map Orientation
The map orientation can be changed
according to various conditions.

1 Touch the orientation button
Orientation Mark
eng_a634North-Up

eng_a635Heading-Up
Each time the orientation mark is touched, the map
orientation is changed in the sequence “North-Up”
“Heading-Up” “Auto”.
Map Orientation
Mark Name Display Contents
(Red) North-UpThe vehicle mark is rotated so
that the north of the map is
always facing the front (up).
(Red) Heading-
Up The map is rotated so that

the vehicle is always facing
the front (up).
(Blue)or
(Blue)Auto
“Heading-Up” or “North-
Up” is selected automatically,
depending on the map scale.
“Heading-Up” is selected for a
scale of 1/16 miles (100m) or
less, and “North-Up” is selected
for a scale of 1/8 miles (250m)
or more.
In Two Maps DisplayWhen two maps are displayed, the left and right
maps are linked together, with either “Heading-Up” or
“North-Up” selected for both. However, when “Auto”
is set, different orientations can be selected for the left
and right maps, depending on the scale.
\b \b
\f \

  \b
\b \f

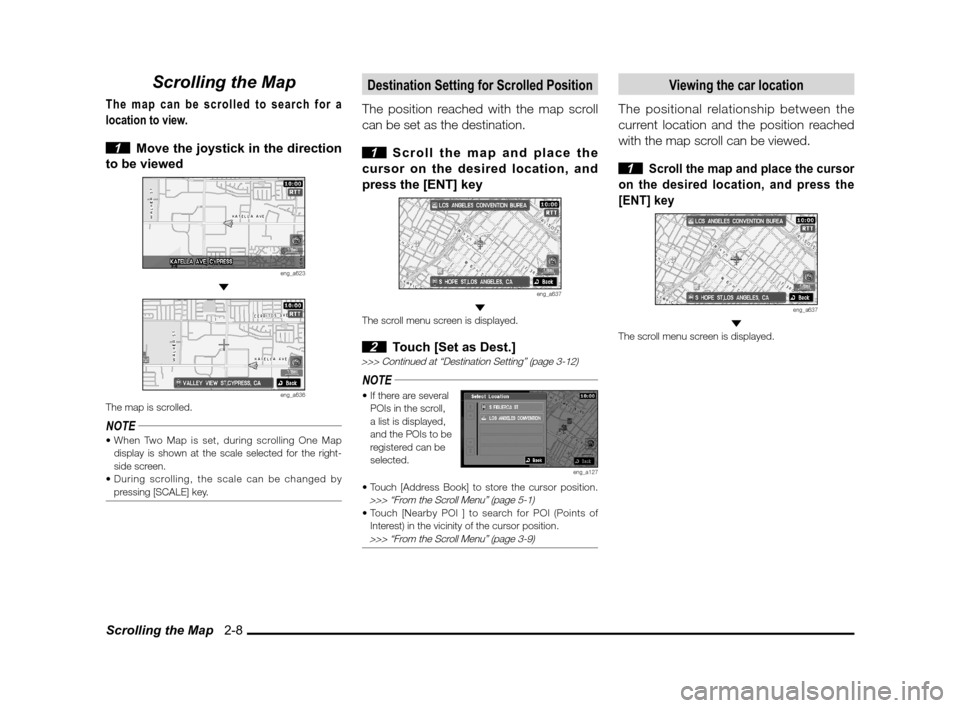

Scrolling the Map 2-8
Scrolling the Map
The map can be scrolled to search for a
location to view.

1 Move the joystick in the direction
to be viewed
eng_a623
eng_a636The map is scrolled.
NOTE
display is shown at the scale selected for the right-
side screen.
pressing [SCALE] key.
Destination Setting for Scrolled Position
The position reached with the map scroll
can be set as the destination.

1 Scroll the map and place the
cursor on the desired location, and
press the [ENT] key
eng_a637
The scroll menu screen is displayed.
2 Touch [Set as Dest.]>>> Continued at “Destination Setting” (page 3-12)
NOTE

POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127
>>> “From the Scroll Menu” (page 5-1) [Nearby POI ] to search for POI (Points of
Interest) in the vicinity of the cursor position.

>>> “From the Scroll Menu” (page 3-9)
Viewing the car location
The positional relationship between the
current location and the position reached
with the map scroll can be viewed.

1 Scroll the map and place the cursor
on the desired location, and press the
[ENT] key
eng_a637
The scroll menu screen is displayed.
