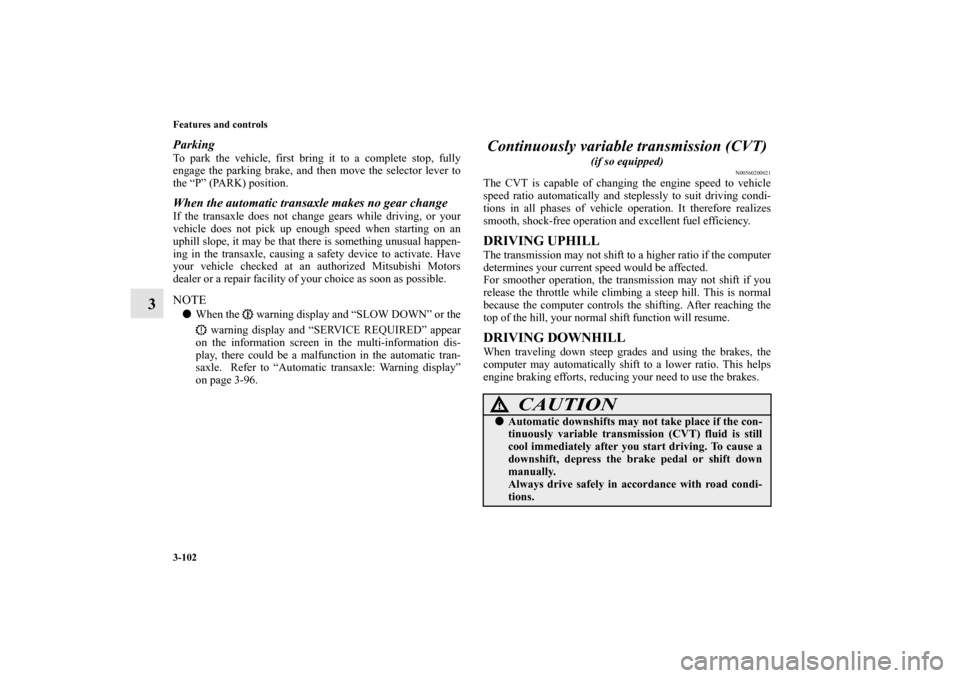

3-102 Features and controls
3
ParkingTo park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the automatic transaxle makes no gear changeIf the transaxle does not change gears while driving, or your
vehicle does not pick up enough speed when starting on an
uphill slope, it may be that there is something unusual happen-
ing in the transaxle, causing a safety device to activate. Have
your vehicle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.NOTEWhen the warning display and “SLOW DOWN” or the
warning display and “SERVICE REQUIRED” appear
on the information screen in the multi-information dis-
play, there could be a malfunction in the automatic tran-
saxle. Refer to “Automatic transaxle: Warning display”
on page 3-96.
Continuously variable transmission (CVT)
(if so equipped)
N00560200021
The CVT is capable of changing the engine speed to vehicle
speed ratio automatically and steplessly to suit driving condi-
tions in all phases of vehicle operation. It therefore realizes
smooth, shock-free operation and excellent fuel efficiency.DRIVING UPHILLThe transmission may not shift to a higher ratio if the computer
determines your current speed would be affected.
For smoother operation, the transmission may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically shift to a lower ratio. This helps
engine braking efforts, reducing your need to use the brakes.
CAUTION
!Automatic downshifts may not take place if the con-
tinuously variable transmission (CVT) fluid is still
cool immediately after you start driving. To cause a
downshift, depress the brake pedal or shift down
manually.
Always drive safely in accordance with road condi-
tions.
BK0122500US.book 102 ページ ２０１０年５月１２日 水曜日 午前１１時１１分

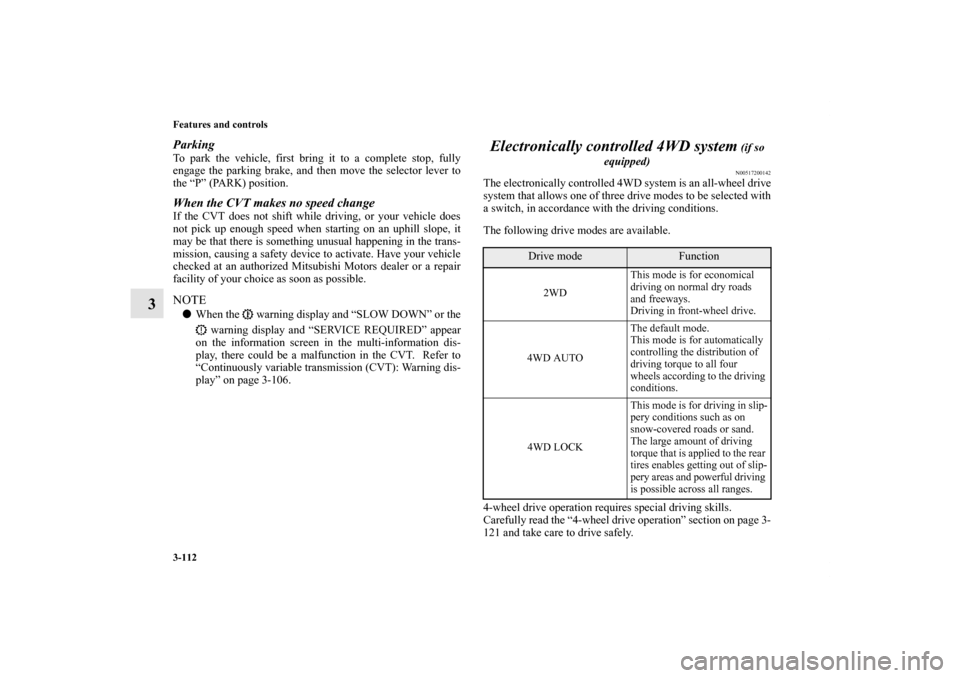

3-112 Features and controls
3
ParkingTo park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the CVT makes no speed changeIf the CVT does not shift while driving, or your vehicle does
not pick up enough speed when starting on an uphill slope, it
may be that there is something unusual happening in the trans-
mission, causing a safety device to activate. Have your vehicle
checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.NOTEWhen the warning display and “SLOW DOWN” or the
warning display and “SERVICE REQUIRED” appear
on the information screen in the multi-information dis-
play, there could be a malfunction in the CVT. Refer to
“Continuously variable transmission (CVT): Warning dis-
play” on page 3-106.
Electronically controlled 4WD system
(if so
equipped)N00517200142
The electronically controlled 4WD system is an all-wheel drive
system that allows one of three drive modes to be selected with
a switch, in accordance with the driving conditions.
The following drive modes are available.
4-wheel drive operation requires special driving skills.
Carefully read the “4-wheel drive operation” section on page 3-
121 and take care to drive safely.
Drive mode
Function
2WDThis mode is for economical
driving on normal dry roads
and freeways.
Driving in front-wheel drive.
4WD AUTOThe default mode.
This mode is for automatically
controlling the distribution of
driving torque to all four
wheels according to the driving
conditions.
4WD LOCKThis mode is for driving in slip-
pery conditions such as on
snow-covered roads or sand.
The large amount of driving
torque that is applied to the rear
tires enables getting out of slip-
pery areas and powerful driving
is possible across all ranges.
BK0122500US.book 112 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
