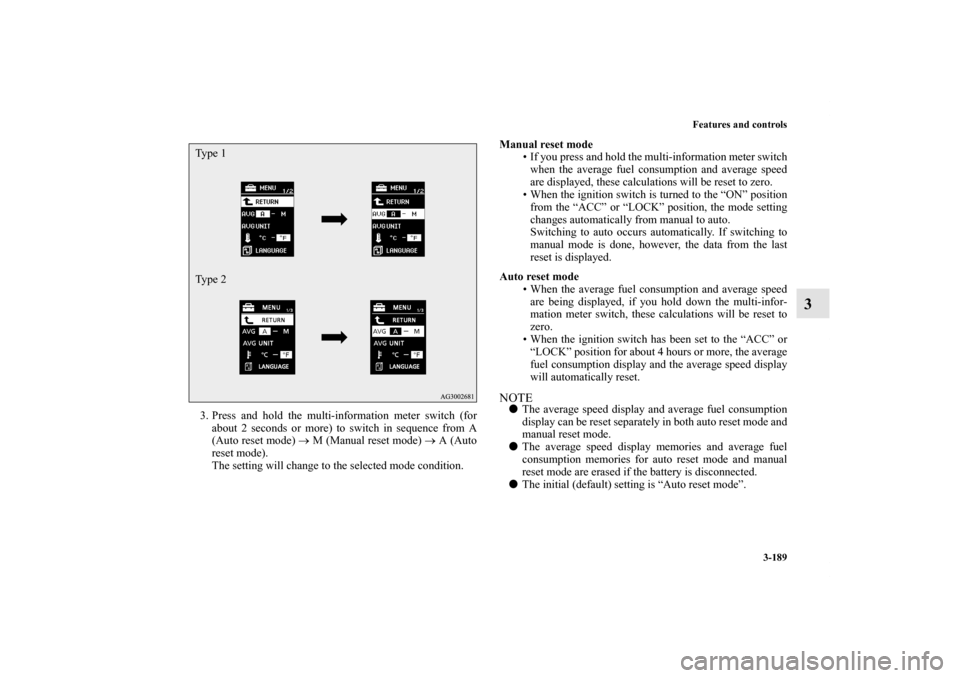

Page 284 of 700
Features and controls
3-189
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset mode) → M (Manual reset mode) → A (Auto
reset mode).
The setting will change to the selected mode condition.Manual reset mode
• If you press and hold the multi-information meter switch
when the average fuel consumption and average speed
are displayed, these calculations will be reset to zero.
• When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode
• When the average fuel consumption and average speed
are being displayed, if you hold down the multi-infor-
mation meter switch, these calculations will be reset to
zero.
• When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.
NOTEThe average speed display and average fuel consumption
display can be reset separately in both auto reset mode and
manual reset mode.
The average speed display memories and average fuel
consumption memories for auto reset mode and manual
reset mode are erased if the battery is disconnected.
The initial (default) setting is “Auto reset mode”.
Ty p e 1
Ty p e 2
BK0119300US.book 189 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 285 of 700
3-190 Features and controls
3
Changing the fuel consumption display unit
N00557100130
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
Ty p e 1
Ty p e 2
BK0119300US.book 190 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 286 of 700
Features and controls
3-191
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTEThe display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Type 1Ty p e 2
Fuel economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0119300US.book 191 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 287 of 700
3-192 Features and controls
3
Changing the temperature unit
N00557200102
The temperature display unit can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.
NOTEIf the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).Changing the display language
N00557300103
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
Ty p e 1
Ty p e 2BK0119300US.book 192 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 288 of 700
Features and controls
3-193
3
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).4. Lightly press the multi-information meter switch to
change in sequence from JAPANESE → ENGLISH →
GERMAN→ FRENCH → SPANISH → ITALIAN → ---
(do not display warning message) → RETURN → JAPA-
NESE.Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0119300US.book 193 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 289 of 700
3-194 Features and controls
3
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.NOTEIf the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.
If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800158
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for a long time, the setting will change as follows: A (lan-
guage cooperation: enabled) → M (language cooperation:
disabled) → A (language cooperation: enabled). The set-
ting is changed to the selected condition.
Ty p e 1
Ty p e 2
BK0119300US.book 194 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 290 of 700
Features and controls
3-195
3
NOTEIf the battery is disconnected, the memory of the language
cooperative control is erased and is automatically set to
“A” (language cooperation: enabled).
The language display modified with the language setting
can be switched in the following manner.
• When “A” (language cooperation: enabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Bluetooth
® 2.0 interface (if so
equipped) is automatically changed to the language
selected for the multi-information display.
• When “M” (language cooperation: disabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Bluetooth® 2.0 interface (if so
equipped) is not automatically changed to the language
selected for the multi-information display.
Operation sound setting
N00557400104
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
BK0119300US.book 195 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 291 of 700
3-196 Features and controls
3
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting). 3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.
NOTEIf the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).
The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Ty p e 1
Ty p e 2BK0119300US.book 196 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
