7-64 Vehicle care and maintenance
7
Daytime running lights (for vehicles with high
intensity discharge headlights)
N00900300060
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0119300US.book 64 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

7-66 Vehicle care and maintenance
7
4. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
5. To install a bulb, perform the removal steps in reverse.
Headlights (low/high beam, for vehicles with high
intensity discharge lights)
N00943100625
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
BK0119300US.book 66 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-67
7
Parking and side-marker lights (except for vehi-
cles with high intensity discharge headlights)
N00917300512
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).*- Front of the vehicle
*- Front of the vehicle
BK0119300US.book 67 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-69
7

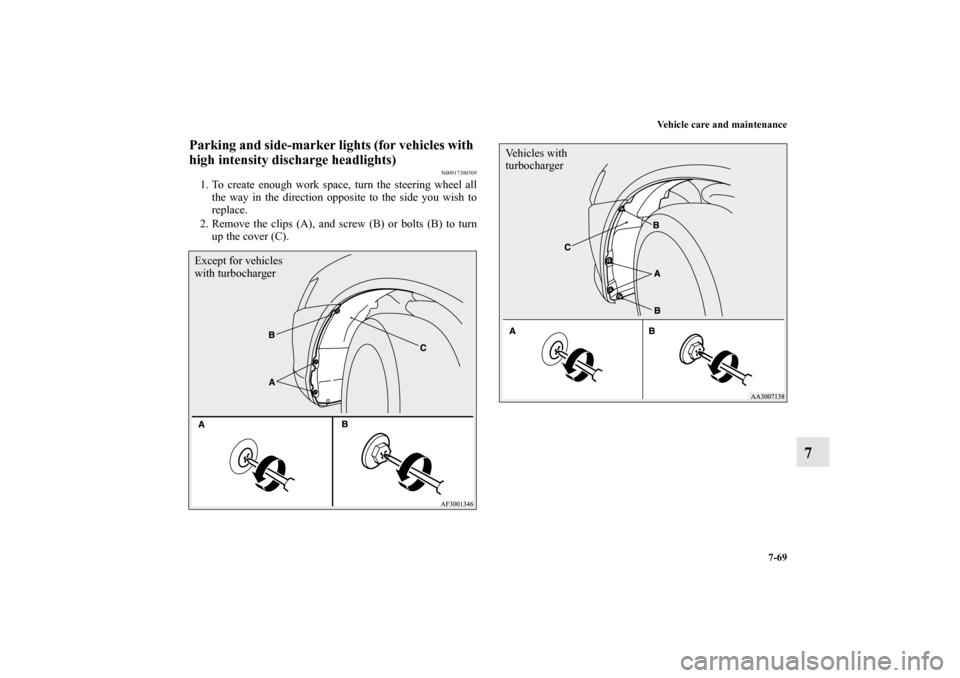

Parking and side-marker lights (for vehicles with
high intensity discharge headlights)
N00917300509
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips (A), and screw (B) or bolts (B) to turn
up the cover (C).Except for vehicles
with turbocharger
Vehicles with
turbocharger
BK0119300US.book 69 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Alphabetical index
2Parking brake 3-78
Parking brake lever stroke 7-39
Pedal 3-136
Pedal free play 7-38
Power brakes 3-137
Service brake 3-136
Break-in recommendations 3-3
Bulb capacity 7-56
C
California Perchlorate Materials Requirements 1-10
Capacities 9-11
Card holder 3-276
Cargo loads 4-12
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-217
Chassis number 9-3
Child restraint 2-24
Child safety locks for rear door 3-59
Cleaning
Inside of your vehicle 7-90
Outside of your vehicle 7-92
Clutch
Fluid 7-21
,9-11
Pedal free play 7-38
Coat hooks 3-291
Combination headlights and dimmer switch 3-221
Coming home light 3-228Consumer information 8-2
Continuously variable transmission (CVT) 3-97
Fluid 7-18
,9-11
Selector lever operation 3-98
Sports mode 3-105
Coolant (engine) 7-12
,9-11
Cruise control 3-150
Indicator 3-152
Cup holder 3-289
D
Daytime running lights
Bulb capacity 7-56
Replacement 7-64
Defogger (rear window) 3-241
Defrosting or defogging (windshield, door windows)
5-20
,5-29
,5-39
,5-49
Dimensions 9-6
Dimmer (high/low beam change) 3-226
Disc brake pads 7-43
Dome light
Bulb capacity 7-59
Replacement 7-87
Switch 3-282
Dome light/Reading lights
Bulb capacity 7-59
Replacement 7-86
Switch 3-280
Doors
BK0119300US.book 2 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Alphabetical index
4General vehicle data 9-6
Genuine parts 1-9
Glove compartment 3-286
H
Handling of compact discs 5-145
Hazard warning flasher switch 3-231
Hazard warning lights 3-215
Head restraints 2-10
Headlight leveling switch 3-229
Headlights
Bulb capacity 7-56
Dimmer 3-226
Headlight flasher 3-227
Leveling switch 3-229
Replacement 7-59
Switch 3-221
Heater without air conditioning function 5-6
High beam indicator 3-215
Hill start assist (vehicles with Twin Clutch SST) 3-139
Hood lock release mechanism and safety catch 7-45
Horn switch 3-242
I
If the vehicle breaks down 6-2
Ignition switch 3-25
,3-85
Important facts to know in case of an accident 8-5
Indicators 3-215
Information screen display 3-218Inside day/night rearview mirror 3-81
Inside emergency trunk lid release 3-63
Interior lights 3-280
J
Jack 6-8
Storage 6-7
Jump-starting the engine 6-2
K
Key reminder buzzer 3-55
Keyless entry system 3-10
Keys 3-3
L
Labeling 9-2
License plate light
Bulb capacity 7-56
Replacement 7-84
Limited-slip differential 3-136
Link System 3-243
Loading information 4-8
Lubricants 9-11
M
Malfunction indicator 3-216
Manual air conditioning 5-22
Manual transaxle 3-94
Oil 7-18
,9-11
