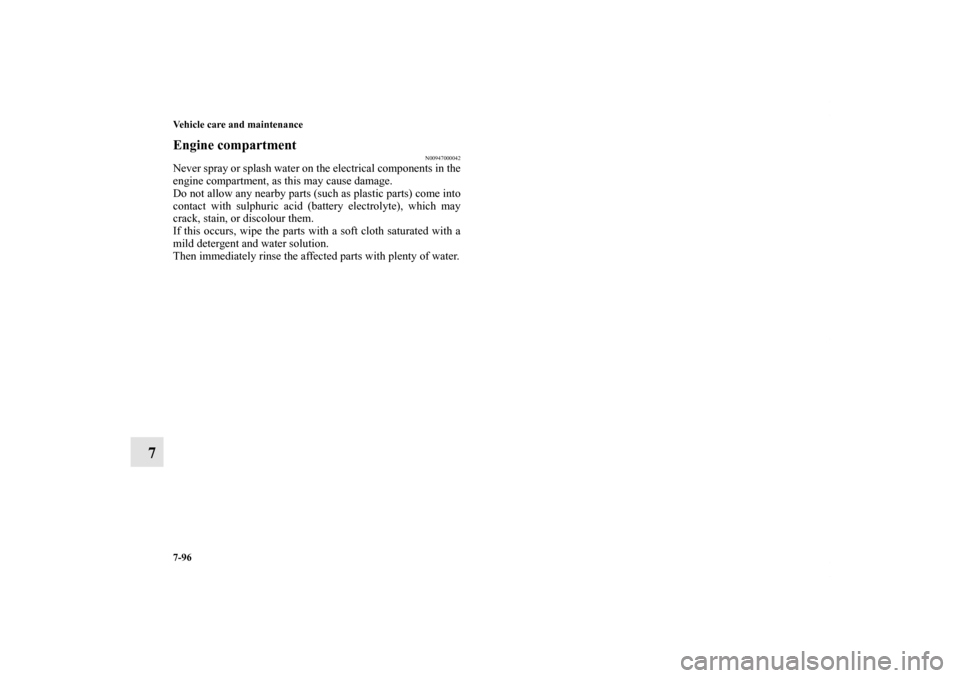

Engine compartment
N00947000042
Never spray or splash water on the electrical components in the
engine compartment, as this may cause damage.
Do not allow any nearby parts (such as plastic parts) come into
contact with sulphuric acid (battery electrolyte), which may
crack, stain, or discolour them.
If this occurs, wipe the parts with a soft cloth saturated with a
mild detergent and water solution.
Then immediately rinse the affected parts with plenty of water.BK0119300US.book 96 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9
Specifications
Vehicle labeling . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 2
Vehicle dimensions . . . . . . . . . . . . . . . . . . . . . . . .9- 6
Vehicle weights . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 7
Engine specifications . . . . . . . . . . . . . . . . . . . . . . .9- 8
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 9
Tires and wheels. . . . . . . . . . . . . . . . . . . . . . . . . . .9- 10
Refill capacities . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 11
BK0119300US.book 1 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-2 Specifications
9Vehicle labeling
N01147400667
Keep a record of the chassis number and vehicle identification
number. Such information will assist the police if your vehicle
is stolen.
1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the
inside panel of the engine hood.2 - Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the dashboard. It is visible from
outside of the vehicle through the windshield.3 - Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine compartment.
Except for vehicles with turbocharger
Vehicles with turbocharger
BK0119300US.book 2 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-4 Specifications
9
Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.
Tire and loading information placard
N01148100528
The tire and loading information placard is located on the
driver’s door sill.
*- Front of the vehicleBK0119300US.book 4 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-8 Specifications
9Engine specifications
N01147700439
Item
2.0 liter
2.4 liter
Except for vehicles with tur-
bocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrange-
ment4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 180 °F (82 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap.040 to .043 in
(1.0 to 1.1 mm).020 to .023 in
(0.5 to 0.6 mm).040 to .043 in
(1.0 to 1.1 mm)Firing order 1-3-4-2BK0119300US.book 8 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Specifications
9-11
9 Refill capacities
N01148000905
Item
Capacity
Lubricants
Fuel (approxi-
mate)
Except for RALLIART 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.RALLIART 14.5 gal (55.0 L)
Engine oil
2.0 liter
Except for vehi-
cles with turbo-
charger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)
Vehicles with
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classifica-
tion GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Twin Clutch SST8.0 qt (7.6 L)
{includes .53 qt
(0.5 L) in oil
cooler}DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid.95 qt (0.9 L)
{Includes
hydraulic piping}DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oil
BK0119300US.book 11 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-12 Specifications
9
LSD: Limited slip differentialBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.65 L) in reserve tank}
Manual tran-
saxle7.4 qt (7.0 L)
Dia Queen Super Long Life Coolant Premium or an
equivalent*CVT 7.4 qt (7.0 L)Tw i n C l u t c h
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to the “Air
conditioning
label” on page
9-2.HFC-134a
* : similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic
acid technology
Item
Capacity
Lubricants
BK0119300US.book 12 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
