Page 162 of 700
Features and controls
3-67
3
NOTEThe alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.
The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.
While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Ty p e 1
Ty p e 2Alarm deactivationThe alarm can be deactivated in the following ways.
By using the remote control transmitter or the F.A.S.T.-
key to lock or unlock the door.
Turn the ignition switch to the “ON” position.
To deactivate the vehicle inclination detection function
and the interior intrusion detection function (vehicles
equipped with the interior alarm sensor)The vehicle inclination detection function and the interior
intrusion detection function can be deactivated when parking in
automated car parks or leaving pets in the vehicle.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
To activate the function again, raise and hold the wiper and
washer switch to the “MIST” position for about 3 seconds.
The buzzer will sound twice and the function will be activated.
BK0119300US.book 67 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 322 of 700
Features and controls
3-227
3
NOTEWhile the welcome light function is operating, perform
one of the following operations to cancel the function.
• Push the LOCK button (B) on the remote control trans-
mitter.
• Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
• Turn the ignition switch to the “ON” position.
It is possible to modify functions as follows:
• The headlights can be set to come on in the low beam
setting.
• The welcome light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
Coming home light
N00547300054
This function turns on the headlights in the low beam setting
for about 30 seconds after the ignition switch is turned to the
“LOCK” position.
1. Turn the combination headlights and dimmer switch to the
“OFF” or “AUTO” position (for vehicles equipped with
the automatic light control).
2. Turn the ignition switch to the “LOCK” position. Also, if
a key was used to start the engine, remove the key from
the ignition switch.
3. Within 60 seconds of turning the ignition switch to the
“LOCK” position, pull the turn signal lever toward you.
BK0119300US.book 227 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
Page 375 of 700
3-280 Features and controls
3
1- (DOOR)
The dome light comes on when any door is opened. When
all the doors are closed, the dome light illuminates for about
30 seconds then goes off. However, the light goes off imme-
diately if:
The door is closed while the ignition switch is in the
“ON” position.
The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.
The door is closed and the power door lock switch is
used to lock the doors.
In vehicles equipped with the keyless entry system, the
keyless entry system remote control transmitter is used
to lock the doors.
In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTEWhen the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for about 30 seconds before going off.
When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate
for about 30 seconds before going off.
The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0119300US.book 280 ページ ２０１０年５月２１日 金曜日 午前１０時１３分

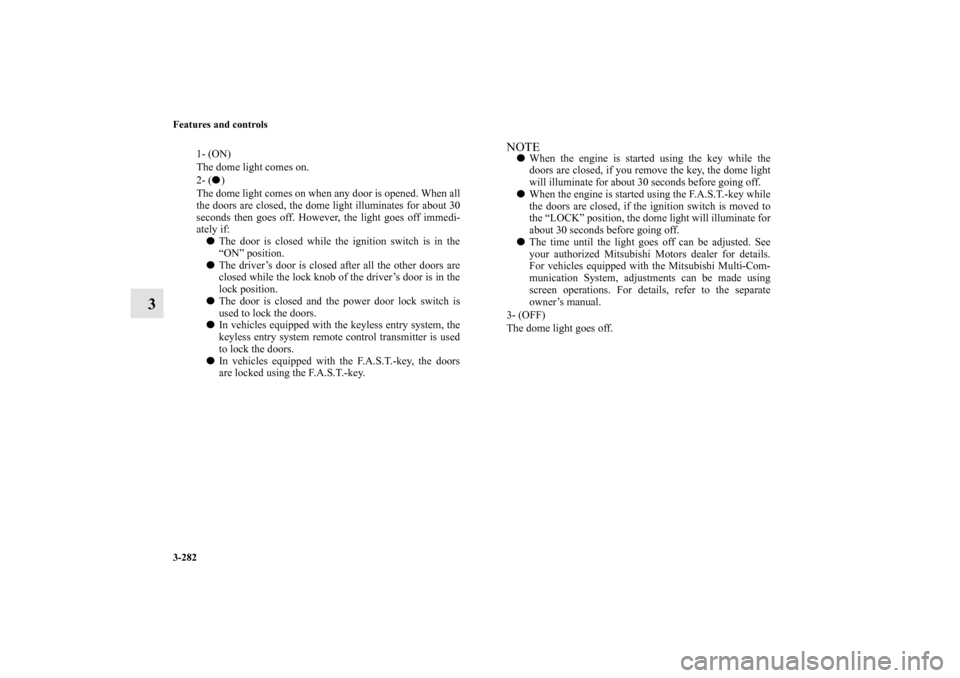

Page 377 of 700
3-282 Features and controls
3
1- (ON)
The dome light comes on.
2- ()
The dome light comes on when any door is opened. When all
the doors are closed, the dome light illuminates for about 30
seconds then goes off. However, the light goes off immedi-
ately if:
The door is closed while the ignition switch is in the
“ON” position.
The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.
The door is closed and the power door lock switch is
used to lock the doors.
In vehicles equipped with the keyless entry system, the
keyless entry system remote control transmitter is used
to lock the doors.
In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTEWhen the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for about 30 seconds before going off.
When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate for
about 30 seconds before going off.
The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (OFF)
The dome light goes off.
BK0119300US.book 282 ページ ２０１０年５月２１日 金曜日 午前１０時１３分
