2011 MITSUBISHI LANCER EVOLUTION jacking

3-118 Features and controls
3
Jacking up all-wheel drive vehicles
S-AWC (Super-All Wheel Control)
N00541300036
S-AWC is an integrated vehicle dynamics control system that
helps enhance driving performance, cornering performance,
and vehicle stability over a wide range of driving conditions
through integrated management of the ACD, the AYC, the anti-
lock braking system, and the active stability control (ASC).
Please read this section in conjunction with the following sec-
tions.
ACD (Active center differential system) → P. 3 - 1 1 9
AYC (Active yaw control system) → P. 3 - 1 1 9
Anti-lock braking system → P. 3 - 1 2 4
Active stability control (ASC) → P.3-128
WA R N I N G
!
Do not start or run the engine while the vehicle is on
the jack.
The jack could slip out of position and result in an
accident.
CAUTION
!
Do not over-rely on the S-AWC. Even the S-AWC
cannot prevent the natural laws of physics from act-
ing on the vehicle. This system, like any other sys-
tem, has limits and cannot help you to maintain
traction and control of the vehicle in all circum-
stances. Reckless driving can lead to accidents. It is
the driver’s responsibility to drive carefully. This
means taking into account the traffic, road and envi-
ronmental conditions.
Be sure to use tires that are the same specified size,
type, and brand, and have no difference in the
amount of wear for all four wheels. Otherwise, the
S-AWC may not work properly.
BK0123500US.book 118 ページ ２０１０年６月４日　金曜日　午後５時１分

For emergencies
6-9
6 How to change a tire
N00836900763
Before changing a tire, first stop your vehicle in a safe, flat
location.
1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles with manual transaxle, turn the ignition
switch to the “LOCK” position, and move the gearshift
lever to the “R” (Reverse) position.
On vehicles with Twin Clutch SST, move the gearshift
lever to the “P” (PARK) position, and turn the ignition
switch to the “LOCK” position.
4. Turn on the hazard flashers and set up a warning triangle,
flashing signal light, etc., at an adequate distance from the
vehicle, and have all your passengers leave the vehicle.5. To prevent the vehicle from rolling when it is raised on the
jack, place chocks or blocks (A) at the tire that is diago-
nally opposite from the tire (B) you are changing.
WA R N I N G
!
The jack should not be used for any purpose other
than to change a tire.
Never get under the vehicle or put any portion of
your body under the vehicle while it is supported by
the jack.
WA R N I N G
!
Be sure to apply chocks or blocks to the correct tire
when jacking up the vehicle. If the vehicle moves
while jacked up, the jack could slip out of position,
leading to an accident.
BK0123500US.book 9 ページ ２０１０年６月４日　金曜日　午後５時１分

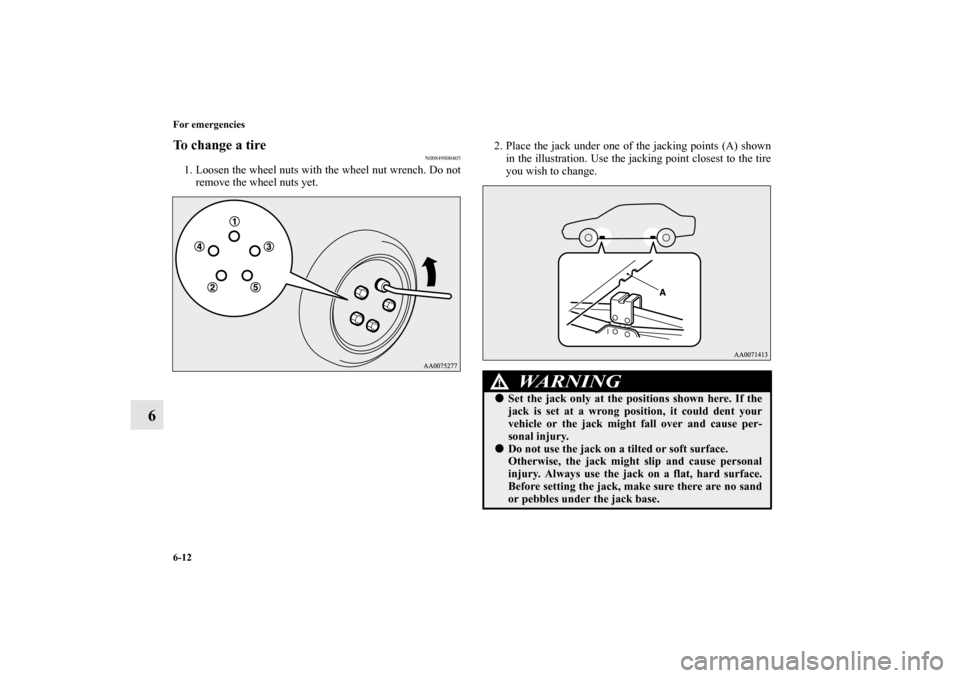

6-12 For emergencies
6
To change a tire
N00849800405
1. Loosen the wheel nuts with the wheel nut wrench. Do not
remove the wheel nuts yet.2. Place the jack under one of the jacking points (A) shown
in the illustration. Use the jacking point closest to the tire
you wish to change.
WA R N I N G
!
Set the jack only at the positions shown here. If the
jack is set at a wrong position, it could dent your
vehicle or the jack might fall over and cause per-
sonal injury.
Do not use the jack on a tilted or soft surface.
Otherwise, the jack might slip and cause personal
injury. Always use the jack on a flat, hard surface.
Before setting the jack, make sure there are no sand
or pebbles under the jack base.
BK0123500US.book 12 ページ ２０１０年６月４日　金曜日　午後５時１分

For emergencies
6-13
6
3. Rotate the jack by hand until the flange portion (B) fits in
the groove (C) at the top of the jack. 4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of the bar into the shaft’s jack end, as shown in the
illustration.
Slowly rotate the wheel nut wrench until the tire is raised
slightly off the ground surface.
WA R N I N G
!
Stop jacking up the vehicle as soon as the tire is
raised off the ground. It is dangerous to raise the
vehicle any higher.
Never get under the vehicle or put any portion of
your body under the vehicle while it is supported by
the jack.
Do not bump the raised vehicle or leave it sitting on
the jack for a long time. Both are very dangerous.
Do not use a jack except the one that came with your
vehicle.
