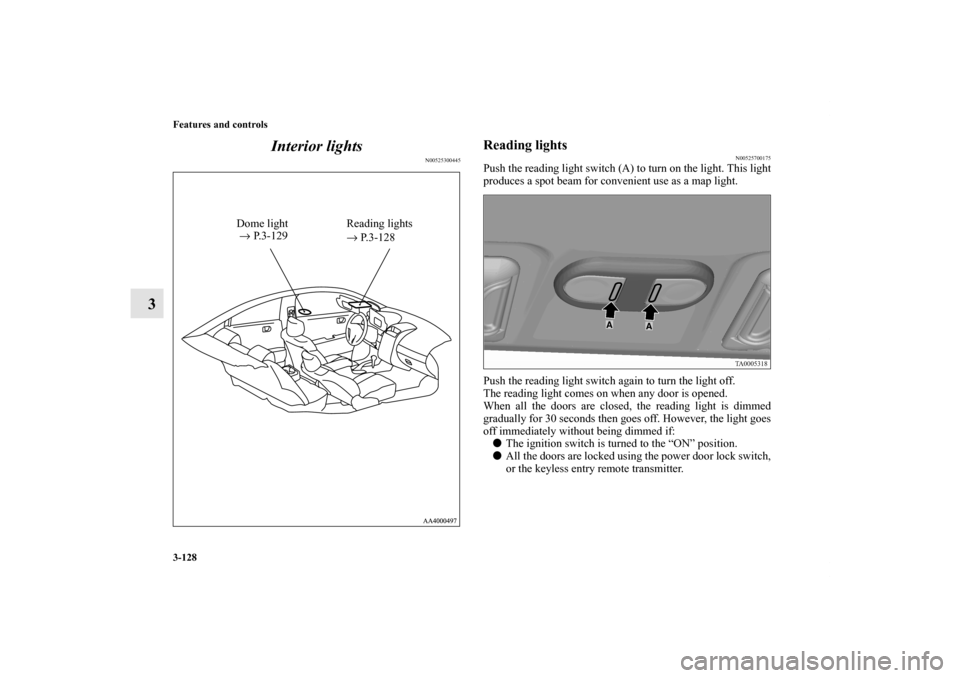

2011 MITSUBISHI GALANT light

3-128 Features and controls
3Interior lights
N00525300445
Reading lights
N00525700175
Push the reading light switch (A) to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.
The reading light comes on when any door is opened.
When all the doors are closed, the reading light is dimmed
gradually for 30 seconds then goes off. However, the light goes
off immediately without being dimmed if:

The ignition switch is turned to the “ON” position.

All the doors are locked using the power door lock switch,
or the keyless entry remote transmitter.
Reading lights
→ P.3-128 Dome light
→ P. 3 - 1 2 9
BK0121200US.book 128 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

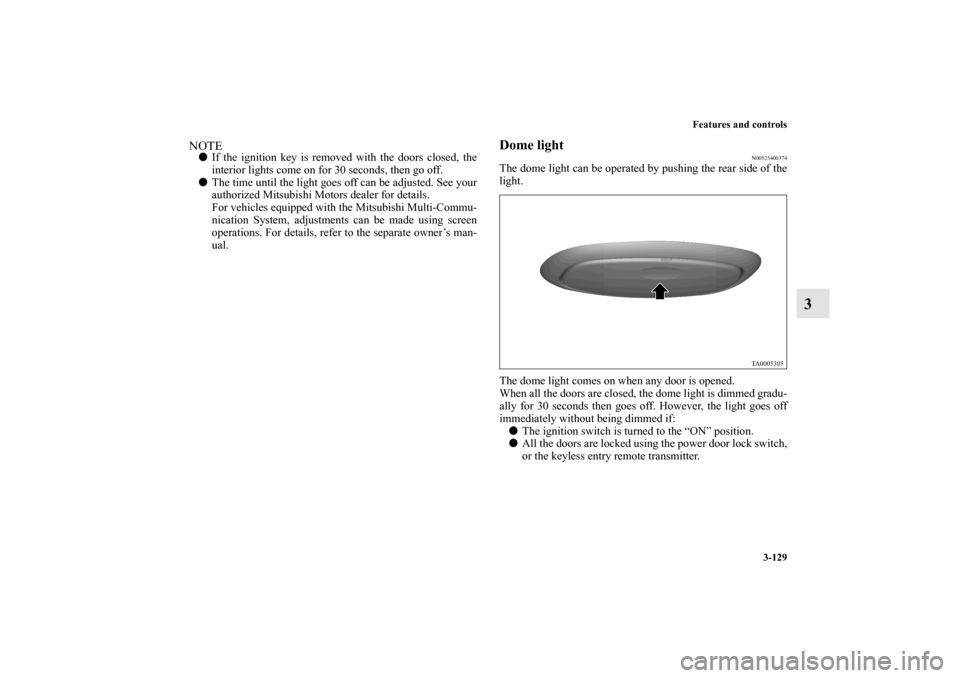

Features and controls
3-129
3
NOTE
If the ignition key is removed with the doors closed, the
interior lights come on for 30 seconds, then go off.

The time until the light goes off can be adjusted. See your
authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Dome light
N00525400374
The dome light can be operated by pushing the rear side of the
light.
The dome light comes on when any door is opened.
When all the doors are closed, the dome light is dimmed gradu-
ally for 30 seconds then goes off. However, the light goes off
immediately without being dimmed if:

The ignition switch is turned to the “ON” position.

All the doors are locked using the power door lock switch,
or the keyless entry remote transmitter.
BK0121200US.book 129 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-130 Features and controls
3
NOTE
If the ignition key is removed with the doors closed, the
interior lights come on for 30 seconds, then go off.

The time until the light goes off can be adjusted. See your
authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Interior light auto-cutout function (dome light
and reading light)
N00526300413
If any of the interior lights are left on with the ignition switch
in the “LOCK” position, the lights go off automatically after
about 30 minutes.
The lights come on again if the ignition switch is turned to the
“ON” or “ACC” position, any door is opened and closed or the
keyless entry system is operated.NOTE
The interior light auto-cutout function can be deactivated.
The time until the lights automatically go off can be
adjusted. See your authorized Mitsubishi Motors dealer
for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
BK0121200US.book 130 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

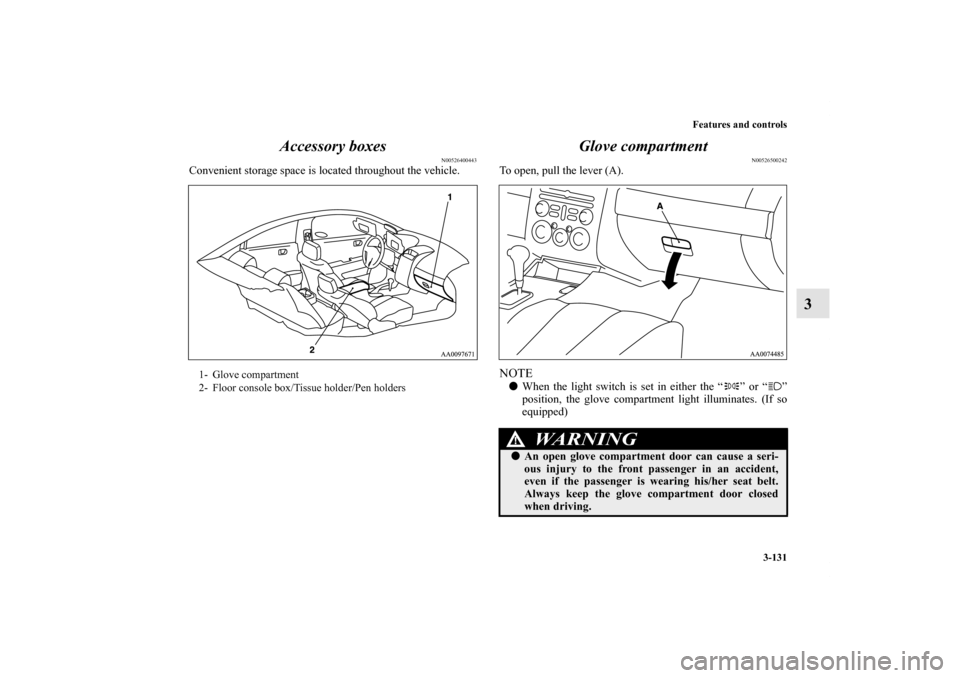

Features and controls
3-131
3 Accessory boxes
N00526400443
Convenient storage space is located throughout the vehicle.
Glove compartment
N00526500242
To open, pull the lever (A).NOTE
When the light switch is set in either the “ ” or “ ”
position, the glove compartment light illuminates. (If so
equipped)
1- Glove compartment
2- Floor console box/Tissue holder/Pen holders
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury to the front passenger in an accident,
even if the passenger is wearing his/her seat belt.
Always keep the glove compartment door closed
when driving.
BK0121200US.book 131 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

4-4 Driving safety
4
Defrosters Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
(Refer to “Defrosting or defogging the windshield and door
windows” on page 5-12, 5-19.)
Tires Check all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.Lights Have someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaks Check the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
BK0121200US.book 4 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Driving safety
4-5
4 Safe driving techniques
N00629200052
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400272

Check the battery, including terminals and cables. During
extremely cold weather, the battery will not be as strong.
Also, the battery power level may drop because more
power is used for cold starting and driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.

Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.
Stay at low speeds at first so that the transaxle fluid has
time to spread to all the lubrication points.
WA R N I N G
!
The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0121200US.book 5 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

4-6 Driving safety
4

Check the engine antifreeze.
If there is not enough coolant because of a leak or from
engine overheating, add high-quality ethylene glycol anti-
freeze and water. The recommended blend is about 50 %
water and 50 % anti-freeze. Use a higher concentration
(not over 60 %) when the outside temperature is -31 °F
(-35 °C) or lower. When the engine is working very hard
(for example, during mountain driving and/or when the
outside temperature is high), use a 50 % concentration.
This blend will provide adequate protection from corro-
sion and boiling.
Braking
N00629500260
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs and prevent
normal braking after driving in heavy rain or through large
puddles, or after the vehicle is washed. If this occurs, dry the
brakes out by driving slowly while lightly depressing the brake
pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by shift-
ing to a lower gear while driving on steep downhill roads in
order to prevent the brakes from overheating.
WA R N I N G
!
Never open the radiator cap when the radiator is
hot. You could be seriously burned.
BK0121200US.book 6 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-5
5
Defroster position Air flows mainly to the windshield and the door windows.NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will also be selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)
Manual air conditioning
(if so equipped)
N00730300139
The air conditioning can only be used while the engine is run-
ning.Control panel
N00730500232
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-90
6- Mode selection dial
BK0121200US.book 5 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
