2011 MITSUBISHI ECLIPSE rear view mirror

Overview
Interior
N00100301056
Power window switch P.3-26Dome light (Front)/Reading lights
P.3-171, 3-172, 7-50, 7-68
Inside rearview mirror P.3-56, 3-103
Sun visors P.3-167
Vanity mirror (if so
equipped) P.3-168
Supplemental restraint system - side air bag
(for front seats) P.2-51 Adjustable seat belt shoulder
anchor (for front seats) P.2-19
Seat belts P.2-13
Front seats P.2-4
Head restraints P.2-12Sunroof switch
P.3-28 Except for vehicles with sunroof Vehicles with sunroof
Inside rearview mirror P.3-56, 3-103 Window lock switch P.3-28
Power door lock
switch P.3-15 ECLIPSE
Dome light (Front)/Reading lights (if so
equipped) P.3-172, 3-173, 7-50
BK0115900US.book 4 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Overview
Outside (Front)
N00100601134
Sunroof (if so equipped)
P. 3 - 2 8 ECLIPSE
Outside rearview mirrors
P. 3 - 5 8
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7 Front fog lights
P.3-132, 7-48, 7-57Engine compartment P.7-6
Engine hood P.7-4 Windshield wiper and washer P.3-133
Headlight
P.3-126, 7-48, 7-51
Front turn-signal, parking and side-marker lights
P.3-126,3-130, 7-48, 7-56Headlight
P.3-126, 7-48, 7-52Vehicles with high intensity discharge (HID)
type headlights Except for vehicles with high intensity
discharge (HID) type headlights
Parking and side-marker
light P.3-126, 7-48, 7-53
Front turn signal light
P.3-130, 7-48, 7-55
BK0115900US.book 7 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Overview
Interior

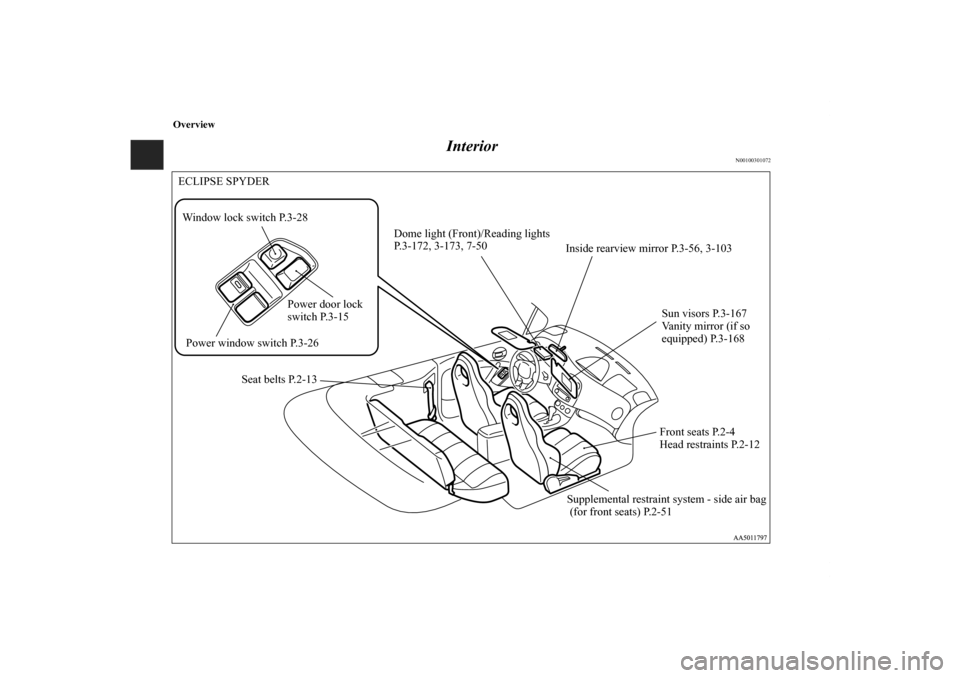

N00100301072
Power window switch P.3-26Sun visors P.3-167
Vanity mirror (if so
equipped) P.3-168
Supplemental restraint system - side air bag
(for front seats) P.2-51 Seat belts P.2-13
Front seats P.2-4
Head restraints P.2-12 Inside rearview mirror P.3-56, 3-103 Window lock switch P.3-28
Power door lock
switch P.3-15 ECLIPSE SPYDER
Dome light (Front)/Reading lights
P.3-172, 3-173, 7-50
BK0115900US.book 9 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Overview
Outside (Front)
N00100601150
ECLIPSE SPYDER
Outside rearview mirrors
P. 3 - 5 8
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7
Front fog lights
P.3-132, 7-48, 7-57Engine compartment P.7-6
Engine hood P.7-4Windshield wiper and washer P.3-133
Headlight
P.3-126, 7-48, 7-51
Front turn-signal, parking and side-marker lights
P.3-126,3-130, 7-48, 7-56Headlight
P.3-126, 7-48, 7-52Vehicles with high intensity discharge (HID)
type headlights Except for vehicles with high intensity
discharge (HID) type headlights
Parking and side-marker
light P.3-126, 7-48, 7-53
Front turn signal light
P.3-130, 7-48, 7-55BK0115900US.book 11 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 15
Rear hatch (ECLIPSE)/
Trunk lid (ECLIPSE SPYDER) . . . . . . . . . . . . .3- 16
Inside rear hatch/trunk lid release . . . . . . . . . . . . .3- 18
Inside emergency trunk lid release
(ECLIPSE SPYDER) . . . . . . . . . . . . . . . . . . . . .3- 20
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . .3- 22
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 26
Sunroof (ECLIPSE only, if so equipped). . . . . . . .3- 28
Electric convertible top (ECLIPSE SPYDER) . . .3- 31
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 55
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 56
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 58
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .3- 67
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 82
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 85
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 90Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 90
Tire pressure monitoring system . . . . . . . . . . . . . . 3- 97
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 102
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 105
Indicator and warning light package . . . . . . . . . . . 3- 111
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
Multi center display. . . . . . . . . . . . . . . . . . . . . . . . 3- 115
Combination headlights and dimmer switch . . . . . 3- 126
Headlight levelling switch (if so equipped) . . . . . 3- 129
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 130
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 131
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . 3- 132
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 133
Electric rear window defogger switch. . . . . . . . . . 3- 136
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . 3- 138
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 167
Vanity mirror (if so equipped) . . . . . . . . . . . . . . . . 3- 168
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 170
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 175
Floor console box . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 178
Rear shelf panel (ECLIPSE only) . . . . . . . . . . . . . 3- 178
Coat hooks (ECLIPSE only, if so equipped) . . . . . 3- 180
Luggage hooks (ECLIPSE only) . . . . . . . . . . . . . . 3- 180
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-56 Features and controls
3Inside rearview mirror
N00511600232
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
NOTE
When the gearshift lever (for vehicle with manual
transaxle) or the selector lever (for vehicle with automatic
transaxle) is in “R” position with the ignition key in the
“ON” position, the rear-view camera image will be dis-
played on the left portion of a type 2 mirror.
For details, refer to “Rear-view camera” on page 3-102.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
Ty p e 1
Ty p e 2
BK0115900US.book 56 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-57
3
Adjust the inside mirror to maximize the view through the rear
window.To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
To reduce the glareType 1The day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.1- Daytime position
2- Night position
BK0115900US.book 57 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-58 Features and controls
3
Type 2When the headlights of the vehicles behind you are very bright,
the reflection factor of the rearview mirror is automatically
changed to reduce the glare.
Normally, use the automatic mode. When the switch (1) is
pressed, the indicator (2) illuminates and the reflection factor
of the mirror is automatically changed.NOTE
Do not hang items on, or spray glass cleaner on the sensor
(3), as reduced sensitivity could result.
Outside rearview mirrors
N00512200150
Adjust the outside rearview mirrors only after making any seat
adjustments so you have a clear view to the rear of the vehicle.
Ty p e 2
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your front passenger’s side mirror is convex. The
objects you see in the mirror will look smaller and
farther away than they appear in a regular flat mir-
ror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0115900US.book 58 ページ ２００９年１０月２７日　火曜日　午後１２時１分
