Thank you for buying a MITSUBISHI ECLIPSE/ECLIPSE
SPYDER.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
ECLIPSE/ECLIPSE SPYDER. The Owner’s Manual contains
descriptions and illustrations that will assist in the operation
and maintenance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all ECLIPSE/ECLIPSE
SPYDER models and explains all features including options.
Some features explained in this manual may not be installed on
your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WA R N I N G and CAUTION
appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
WA R N I N G
!

Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects and reproduc-
tive harm. In addition, certain fluids contained in vehicles
and certain products of component wear contain or emit
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2010 Mitsubishi Motors Corporation Printed in U.S.A.This vehicle is manufactured by Mitsubishi Motors North America, Inc. in
U.S.A. under license from Mitsubishi Motors Corporation.
11PS24_28(NAFTA)_Cover2.fm 1 ページ ２００９年７月３１日　金曜日　午前９時４５分

Overview

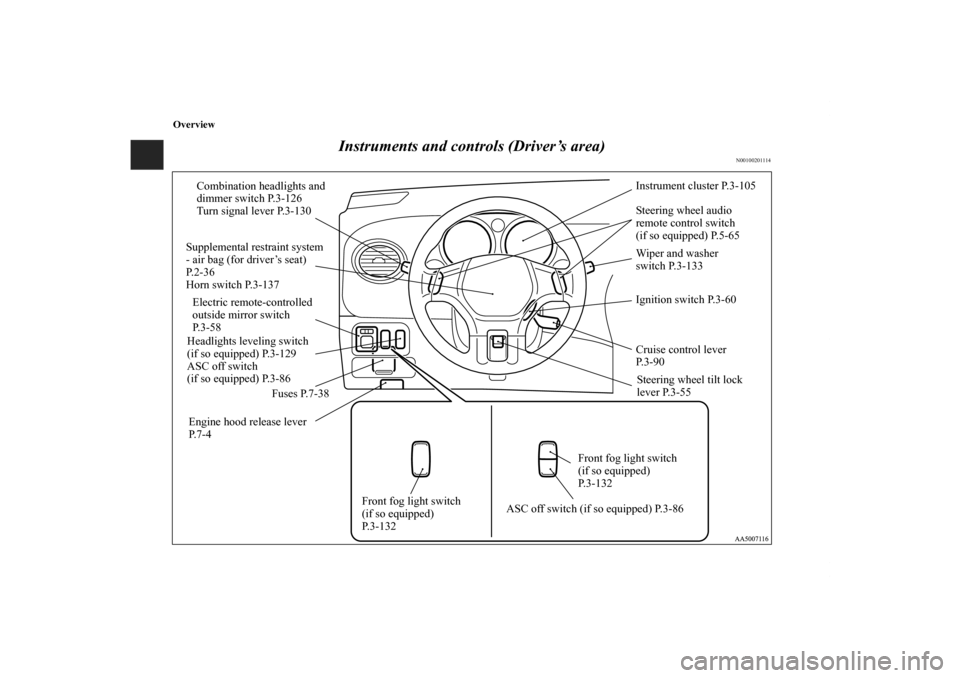

Instruments and controls (Driver’s area)
N00100201114
Combination headlights and
dimmer switch P.3-126
Turn signal lever P.3-130
Supplemental restraint system
- air bag (for driver’s seat)
P. 2 - 3 6
Horn switch P.3-137
Electric remote-controlled
outside mirror switch
P.3-58
Front fog light switch
(if so equipped)
P. 3 - 1 3 2Steering wheel audio
remote control switch
(if so equipped) P.5-65 Instrument cluster P.3-105
Cruise control lever
P. 3 - 9 0 Ignition switch P.3-60 Wiper and washer
switch P.3-133
Fuses P.7-38
ASC off switch (if so equipped) P.3-86 Engine hood release lever
P. 7 - 4Steering wheel tilt lock
lever P.3-55
Front fog light switch
(if so equipped)
P. 3 - 1 3 2 Headlights leveling switch
(if so equipped) P.3-129
ASC off switch
(if so equipped) P.3-86
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Overview
Outside (Front)
N00100601134
Sunroof (if so equipped)
P. 3 - 2 8 ECLIPSE
Outside rearview mirrors
P. 3 - 5 8
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7 Front fog lights
P.3-132, 7-48, 7-57Engine compartment P.7-6
Engine hood P.7-4 Windshield wiper and washer P.3-133
Headlight
P.3-126, 7-48, 7-51
Front turn-signal, parking and side-marker lights
P.3-126,3-130, 7-48, 7-56Headlight
P.3-126, 7-48, 7-52Vehicles with high intensity discharge (HID)
type headlights Except for vehicles with high intensity
discharge (HID) type headlights
Parking and side-marker
light P.3-126, 7-48, 7-53
Front turn signal light
P.3-130, 7-48, 7-55
BK0115900US.book 7 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Overview
Outside (Front)
N00100601150
ECLIPSE SPYDER
Outside rearview mirrors
P. 3 - 5 8
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7
Front fog lights
P.3-132, 7-48, 7-57Engine compartment P.7-6
Engine hood P.7-4Windshield wiper and washer P.3-133
Headlight
P.3-126, 7-48, 7-51
Front turn-signal, parking and side-marker lights
P.3-126,3-130, 7-48, 7-56Headlight
P.3-126, 7-48, 7-52Vehicles with high intensity discharge (HID)
type headlights Except for vehicles with high intensity
discharge (HID) type headlights
Parking and side-marker
light P.3-126, 7-48, 7-53
Front turn signal light
P.3-130, 7-48, 7-55BK0115900US.book 11 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701035
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition key is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.P. 3 - 1 1 4
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the
engine oil level.
If the light comes on while the engine oil level is normal, have the
system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.P. 3 - 1 1 4
or
Brake warning light
If this light comes on while driving, check to see that the parking
brake is fully released.

If this light stays on after releasing the parking brake, stop and check
the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction.
Avoid hard braking and high speeds, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for assis-
tance.P. 3 - 1 1 2
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

2 Quick indexSelector lever position indicator in the instru-
ment cluster flashes rapidly
(twice per second) (if so equipped)
Park your vehicle in a safe place.
Idle the engine until the selector lever position indicator stops flash-
ing. If the indicator does not go off, have the system checked at an
authorized Mitsubishi Motors dealer or a repair facility of your choice
as soon as possible.P.3-75
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check
engine light”)
Although your vehicle will usually be drivable and not need towing,
have the engine system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible. If the
vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for
vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or
local towing company for assistance.P. 3 - 1 1 3
Anti-lock braking system warning light
When this light comes on, the anti-lock braking system is not func-
tioning and only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-83.

If the light does not go out after the test, or if it comes on again, we
recommend that you have the system checked at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as
possible.P.3-83
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend
that you have the air bag and the pre-tensioner seat belt system
checked at an authorized Mitsubishi Motors dealer as soon as possi-
ble.P. 2 - 2 4 ,
2-44
Warning light
Do this
Ref. page
BK0115900US.book 2 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Quick index
3
Selector lever position indicator in the instru-
ment cluster flashes slowly
(once per second) (if so equipped)
Have the automatic transaxle checked at an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as possible.P. 3 - 7 5
and
ASC indicator and
ASC OFF indicator
Park your vehicle in a safe place and turn off the engine.
Restart the engine and check to see if the indicator comes on again.

If the indicator does not go out, or if it comes on again, have your
vehicle inspected at an authorized Mitsubishi Motors dealer or a
repair facility of your choice as soon as possible.

When this indicator comes on, the active stability control is not func-
tioning and normal operation of the vehicle will not be affected.P. 3 - 8 8
Tire pressure monitoring system warning light
If the warning light comes on, you should stop and adjust the tires to
the proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after
a few minutes of driving.

If the warning light blinks for approximately 1 minute and then
remains continuously illuminated, the system is not operating prop-
erly. If the system returns to normal, the warning light will go off. If
the warning light does not go off, have the vehicle inspected at an
authorized Mitsubishi Motors dealer.P. 3 - 9 8
Warning light
Do this
Ref. page
BK0115900US.book 3 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Quick index
7
If this problem occurs...
N00200900678
Problem
Do this
Ref. Page
Cannot turn the key.
From “LOCK” to “ACC”Turn the key while jogging the steering wheel in either direction.From “ACC” to “LOCK”Vehicles with automatic transaxle:
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.
Vehicles with manual transaxle:
Place the key at the “ACC” position. Push the key in and turn it.P.3-61,
3-63
Cannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with automatic
transaxle)Shift the selector lever while pressing the brake pedal.
Check that the ignition key is in the “ON” position.P.3-72
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-12,
5-20
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P.6-2,
7-16
