2011 MINI COOPER CONVERTIBLE jacking

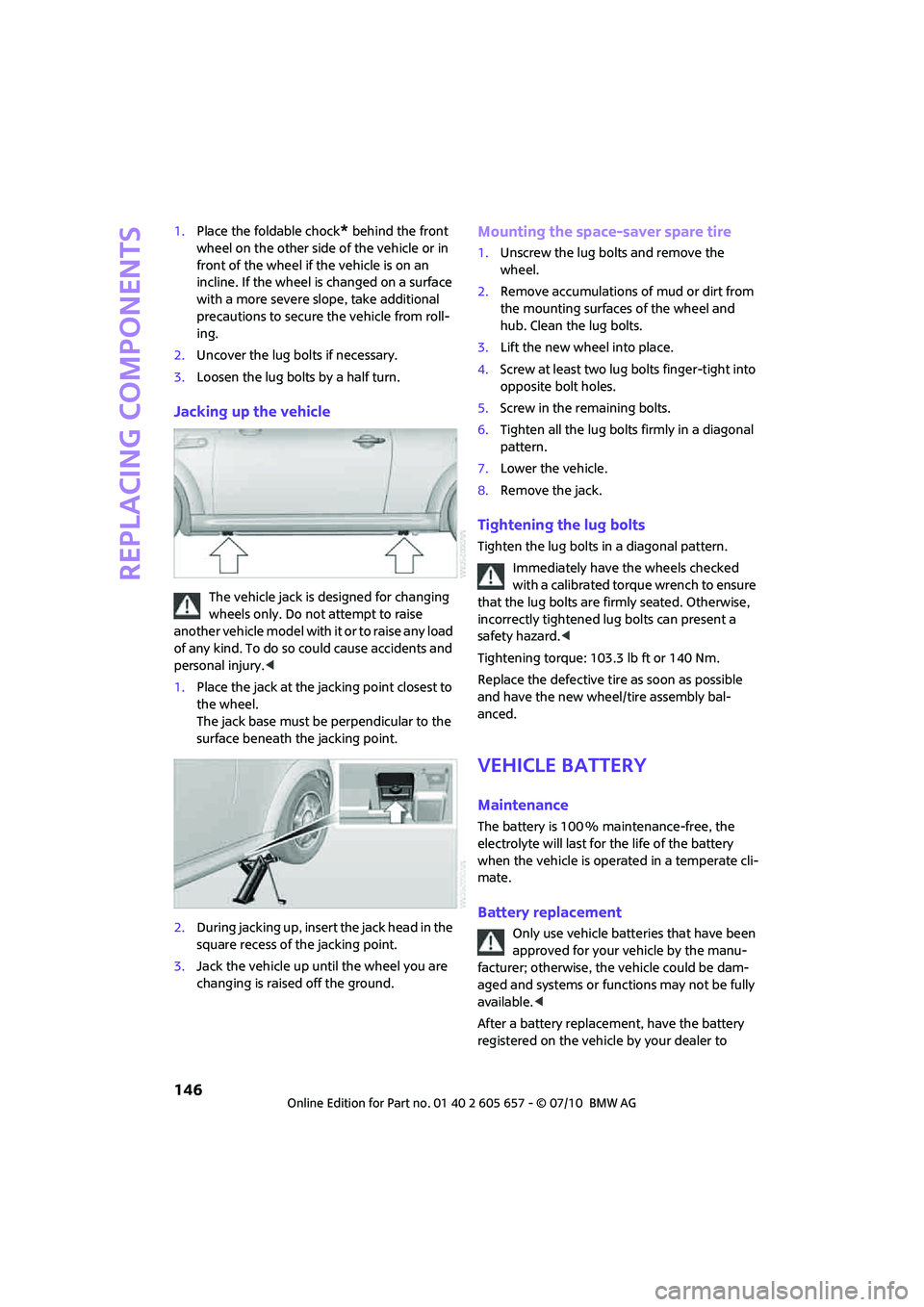

Replacing components
146
1.Place the foldable chock* behind the front
wheel on the other side of the vehicle or in
front of the wheel if the vehicle is on an
incline. If the wheel is changed on a surface
with a more severe slope, take additional
precautions to secure the vehicle from roll-
ing.
2.Uncover the lug bolts if necessary.
3.Loosen the lug bolts by a half turn.
Jacking up the vehicle
The vehicle jack is designed for changing
wheels only. Do not attempt to raise
another vehicle model with it or to raise any load
of any kind. To do so could cause accidents and
personal injury.<
1.Place the jack at the jacking point closest to
the wheel.
The jack base must be perpendicular to the
surface beneath the jacking point.
2.During jacking up, insert the jack head in the
square recess of the jacking point.
3.Jack the vehicle up until the wheel you are
changing is raised off the ground.
Mounting the space-saver spare tire
1.Unscrew the lug bolts and remove the
wheel.
2.Remove accumulations of mud or dirt from
the mounting surfaces of the wheel and
hub. Clean the lug bolts.
3.Lift the new wheel into place.
4.Screw at least two lug bolts finger-tight into
opposite bolt holes.
5.Screw in the remaining bolts.
6.Tighten all the lug bolts firmly in a diagonal
pattern.
7.Lower the vehicle.
8.Remove the jack.
Tightening the lug bolts
Tighten the lug bolts in a diagonal pattern.
Immediately have the wheels checked
with a calibrated torque wrench to ensure
that the lug bolts are firmly seated. Otherwise,
incorrectly tightened lug bolts can present a
safety hazard.<
Tightening torque: 103.3 lb ft or 140 Nm.
Replace the defective tire as soon as possible
and have the new wheel/tire assembly bal-
anced.
Vehicle battery
Maintenance
The battery is 100 % maintenance-free, the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate.
Battery replacement
Only use vehicle batteries that have been
approved for your vehicle by the manu-
facturer; otherwise, the vehicle could be dam-
aged and systems or functions may not be fully
available.<
After a battery replacement, have the battery
registered on the vehicle by your dealer to

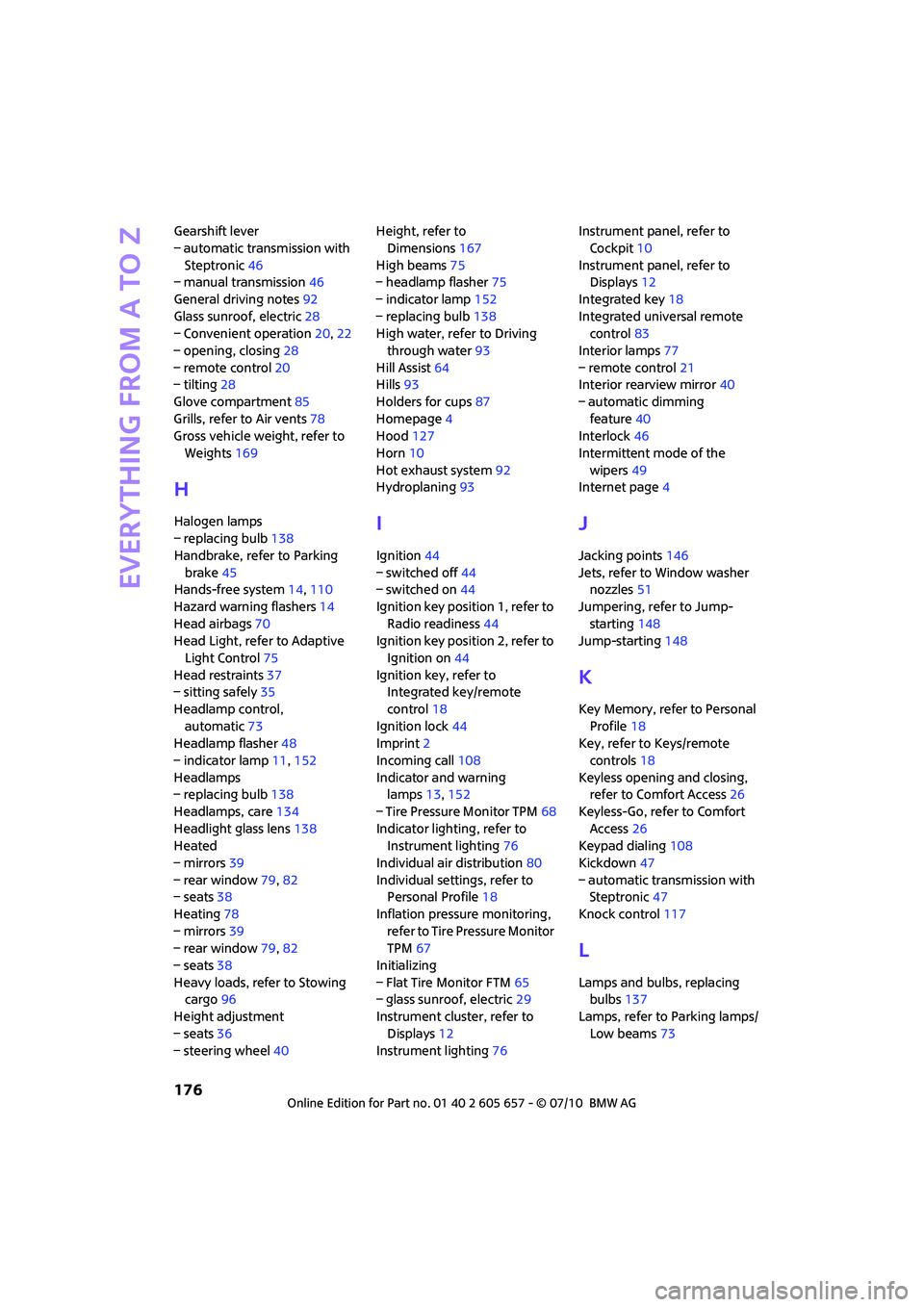

Everything from A to Z
176
Gearshift lever
– automatic transmission with
Steptronic46
– manual transmission46
General driving notes92
Glass sunroof, electric28
– Convenient operation20,22
– opening, closing28
– remote control20
– tilting28
Glove compartment85
Grills, refer to Air vents78
Gross vehicle weight, refer to
Weights169
H
Halogen lamps
– replacing bulb138
Handbrake, refer to Parking
brake45
Hands-free system14,110
Hazard warning flashers14
Head airbags70
Head Light, refer to Adaptive
Light Control75
Head restraints37
– sitting safely35
Headlamp control,
automatic73
Headlamp flasher48
– indicator lamp11,152
Headlamps
– replacing bulb138
Headlamps, care134
Headlight glass lens138
Heated
– mirrors39
– rear window79,82
– seats38
Heating78
– mirrors39
– rear window79,82
– seats38
Heavy loads, refer to Stowing
cargo96
Height adjustment
– seats36
– steering wheel40Height, refer to
Dimensions167
High beams75
– headlamp flasher75
– indicator lamp152
– replacing bulb138
High water, refer to Driving
through water93
Hill Assist64
Hills93
Holders for cups87
Homepage4
Hood127
Horn10
Hot exhaust system92
Hydroplaning93I
Ignition44
– switched off44
– switched on44
Ignition key position 1, refer to
Radio readiness44
Ignition key position 2, refer to
Ignition on44
Ignition key, refer to
Integrated key/remote
control18
Ignition lock44
Imprint2
Incoming call108
Indicator and warning
lamps13,152
– Tire Pressure Monitor TPM68
Indicator lighting, refer to
Instrument lighting76
Individual air distribution80
Individual settings, refer to
Personal Profile18
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM67
Initializing
– Flat Tire Monitor FTM65
– glass sunroof, electric29
Instrument cluster, refer to
Displays12
Instrument lighting76Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Displays12
Integrated key18
Integrated universal remote
control83
Interior lamps77
– remote control21
Interior rearview mirror40
– automatic dimming
feature40
Interlock46
Intermittent mode of the
wipers49
Internet page4
J
Jacking points146
Jets, refer to Window washer
nozzles51
Jumpering, refer to Jump-
starting148
Jump-starting148
K
Key Memory, refer to Personal
Profile18
Key, refer to Keys/remote
controls18
Keyless opening and closing,
refer to Comfort Access26
Keyless-Go, refer to Comfort
Access26
Keypad dialing108
Kickdown47
– automatic transmission with
Steptronic47
Knock control117
L
Lamps and bulbs, replacing
bulbs137
Lamps, refer to Parking lamps/
Low beams73

181
AT A GLANCE REFERENCEMOBILITYCONTROLS DRIVING TIPS COMMUNICATIONS
Tow bar150
Tow fitting150
– screw thread150
Tow fittings for tow-starting
and towing away150
Tow rope151
Towing150
– car with automatic
transmission150
– methods150
Tow-starting150
TPM, refer to Tire Pressure
Monitor67
Track width, refer to
Dimension167
Traction control, refer to
– Dynamic Stability Control
DSC63
Trailer operation
– trailer loads and gross vehicle
weight169
Transmission
– automatic transmission with
Steptronic46
– manual transmission46
– overriding selector lever lock
for automatic transmission
with Steptronic48
Transport securing devices,
refer to Securing cargo97
Transporting children safely41
Tread depth, refer to Minimum
tire tread124
Trip odometer53
Trip-distance counter, refer to
Trip odometer53
Triple turn signal activation48
Trunk, refer to Luggage
compartment in the MINI
Convertible95
Turn signal48
– front, replacing bulb139
– indicator lamp12
– rear, replacing bulb140
– side, replacing bulb140
Turning circle, refer to
Dimensions167
Tying down loads, refer to
Cargo loading97U
Uniform Tire Quality Grading
UTQR123
Units
– average fuel consumption57
– temperature57
Universal garage door opener,
refer to Integrated universal
remote control83
Universal remote control83
Unlatching, refer to
Unlocking27
Unlocking
– from inside23
– from outside19
– liftgate27
– without remote control, refer
to Comfort Access26
Upholstery, care135
USB audio interface86
V
Valve
– dust cap145
Vehicle
– battery146
– breaking in92
– cargo loading94
– dimensions167
– identification number, refer
to Engine compartment128
– parking45
– storage136
– weight169
Vehicle jack144
– jacking points146
Ventilation
– air conditioner82
Vents, refer to Air vents78
Vents, refer to Ventilation82
Voice commands
– telephone111
Voice phone book112
Volume
– mobile phone108
Volume of cargo area169
W
Warning and indicator
lamps13,152
Warning messages, refer to
Check Control60
Warning triangle148
Washer fluid51
– capacity of reservoir51
Washer fluid reservoir51
Waste tray, refer to Ashtray87
Water on roads, refer to
Driving through water93
Waterfall lighting, refer to
Ambient lighting77
Wear indicators in tires, refer to
Minimum tread depth124
Weights169
Welcome lamps73
Wheel stud wrench
– space-saver spare tire144
Wheelbase, refer to
Dimensions167
Wheels and tires118
Wheels, new125
Width, refer to
Dimensions167
Wind deflector33
Window washer, refer to
Washer fluid51
Window washer reservoir,
refer to Washer fluid
– volume, refer to
Capacities170
Window washer system49
– washer fluid51
– washer jets51
Windows29
– closing29
– Convenient operation20
– opening29
– pinch protection system30
Windshield
– cleaning50
– defrosting and removing
condensation80,82
Windshield wiper blades,
changing137
