WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLISis not a replacement for
careful driving and only an assist.
Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
The following table lists possible causes and actions for this message
being displayed:
The surface of the left or right
radar is dirty or obstructed in
some wayClean the fascia area in front of
the radar, either left or right side,
or remove obstruction.
The surface of the left or right
radar is not dirty or obstructedDrive normally in traffic for a few
minutes to allow the radar to
detect that it is no longer blocked.
Note:the vehicle must be in D
(Drive) and a few vehicles must
pass so that the BLIScan clear a
blocked state.
Heavy rainfall or heavy snowfall is
interfering with the radar signalsNo action required by the driver.
The system will automatically go
unblocked once the
rainfall/snowfall rate decreases or
stops. Do not use BLIS-CTA in
heavy rainfall or heavy snowfall.
Due to the nature of radar technology, it is possible to get a blockage
warning and not be blocked. This is rare and known as a false blockage
warning. A false blocked condition will either self clear or clear after a
key cycle.
Day and night brightness
The BLIS-CTA alert will automatically dim when the headlamp switch is
in the parking, on, or autolamp position and night time darkness has
been detected by the sun sensor.
Driving
229
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
36 5A Passive anti-theft sensor (PATS)
transceiver
37 10A Not used (spare)
38 20A Subwoofer amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming mirror, Moon
roof, Compass, Ambient lighting
42 10A Electronic stability control,
Electronic power assist steering
43 10A Not used (spare)
44 10A Fuel diode/Powertrain control
module
45 5A Heated backlight and blower relay
coil, Wiper washer
46 7.5A Occupant classification sensor (OCS)
module, Passenger airbag off lamp
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
243
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
45 15A** Injectors
46 15A** PCM
47 10A** General powertrain components, A/C
clutch relay, Back-up lamps
48 15A** Ignition coils
4915A** Emissions related powertrain
components (2.5L)
20A** Emissions related powertrain
components (3.0L)
50 — Not used
51 — Not used
52 Full ISO relay Blower motor relay
53 Full ISO relay Rear defrost relay
54 Full ISO relay Fuel relay
55 Full ISO relay Starter relay
56 — Not used
57 Full ISO relay PCM relay
58 — Not used
* Cartridge Fuses ** Mini Fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
Roadside Emergencies
246
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

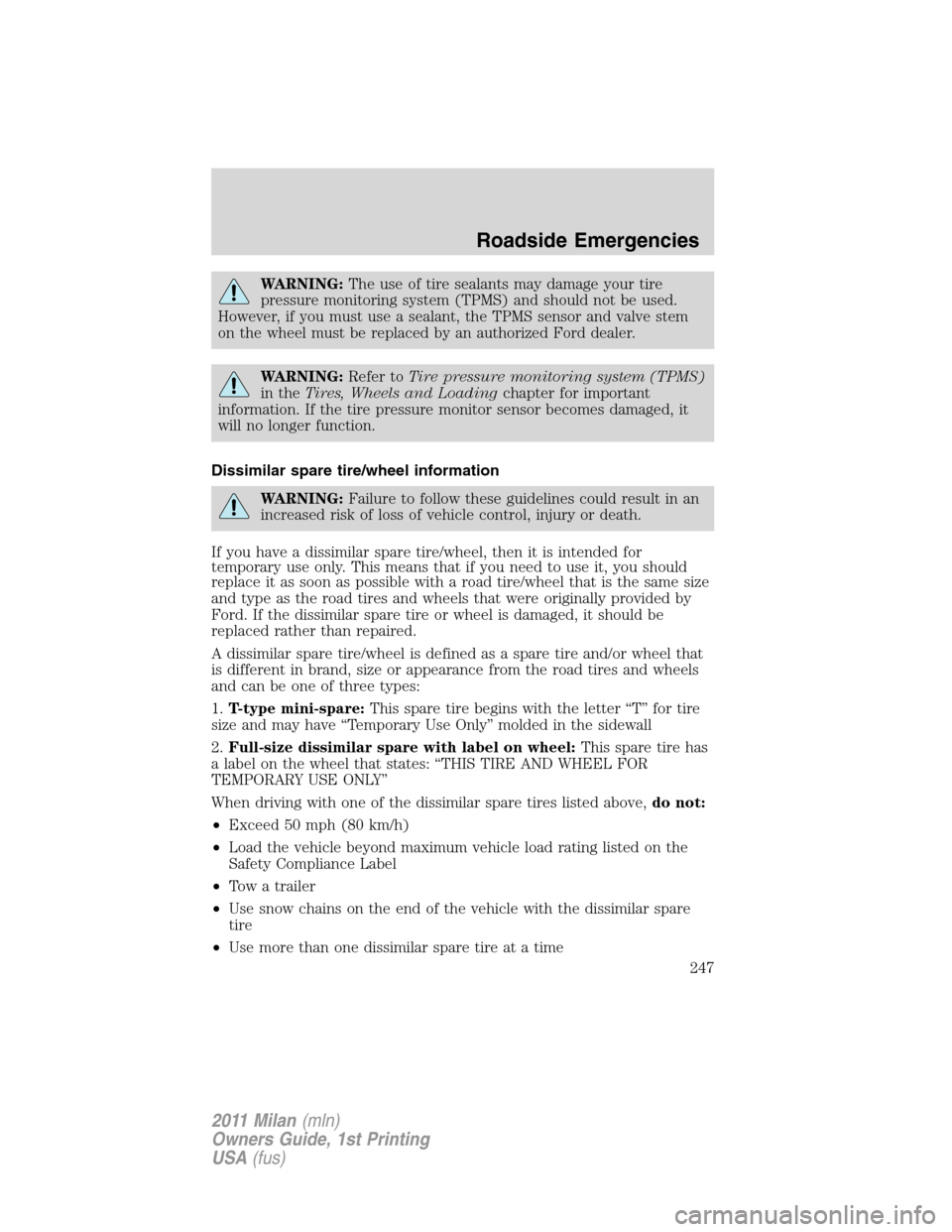

WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
Roadside Emergencies
247
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Cargo net*•Rear bumper protector*
•Navigation*•Cargo organization and
management
Peace of mind
•Remote start•Protective seat covers*
•Vehicle security systems•Windshield wiper shaker*
•Wheel locks•Back up camera*
•Vehicle tracking and recovery*
•Locking fuel plug for capless fuel system
•Bumper mounted parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
Accessories
322
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

side view mirrors (power) .......78
Moon roof ....................................82
Motorcraftparts ..............274, 314
MyKey ..........................................92
N
Navigation system .......................43
O
Octane rating ............................297
Oil (see Engine oil) ..................280
P
Parental MyKey programming ...92
Parking brake ............................206
Parts
(see Motorcraftparts) ...........314
Passenger Occupant
Classification Sensor .................126
Power distribution box
(see Fuses) ...............................243
Power door locks ........................96
Power mirrors .............................78
Power point .................................74
Power steering ..................211–212
fluid, refill capacity ................315
fluid, specifications .................315
Power Windows ...........................75
Power windows
opening using remote entry
system .....................................103R
Radio ............................................28
Rear-view camera system .........221
Recommendations for
attaching safety restraints for
children ......................................158
Relays ........................................239
Remote entry system ...............102
illuminated entry ............105–106
locking/unlocking
doors ................................102–103
opening the trunk ...................104
opening the windows .............103
panic alarm .............................103
replacement/additional
transmitters .............................104
replacing the batteries ...........104
Reverse sensing system ...........219
Roadside assistance ..................237
S
Safety belts (see Safety
restraints) .........................125, 128,
130–131, 133–134
Safety Canopy ...........................149
Safety defects, reporting ..........265
Safety restraints ...............125, 128,
130–131, 133–134
Belt-Minder...........................135
extension assembly ................133
for adults .................130–131, 133
for children .............................156
Occupant Classification
Sensor ......................................126
warning light and chime ........134
Safety restraints - LATCH
anchors ......................................164
