•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
SECURICODE™ KEYLESS ENTRY SYSTEM
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the trunk.
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to three of
your own 5–digit personal entry codes.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. The doors will lock then unlock to confirm that your personal keycode
has been programmed to the module.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1•2 on the keypad and release.
3. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
All personal codes are now erased and only the factory set 5–digit code
will work.
Locks and Security
107
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. SeeGuarding against
exhaust fumesin this chapter for more instructions.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all vehicle occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
If starting a vehicle with an
automatic transmission:
•Make sure the parking brake is
set.
12
Driving
201
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLISis not a replacement for
careful driving and only an assist.
Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
The following table lists possible causes and actions for this message
being displayed:
The surface of the left or right
radar is dirty or obstructed in
some wayClean the fascia area in front of
the radar, either left or right side,
or remove obstruction.
The surface of the left or right
radar is not dirty or obstructedDrive normally in traffic for a few
minutes to allow the radar to
detect that it is no longer blocked.
Note:the vehicle must be in D
(Drive) and a few vehicles must
pass so that the BLIScan clear a
blocked state.
Heavy rainfall or heavy snowfall is
interfering with the radar signalsNo action required by the driver.
The system will automatically go
unblocked once the
rainfall/snowfall rate decreases or
stops. Do not use BLIS-CTA in
heavy rainfall or heavy snowfall.
Due to the nature of radar technology, it is possible to get a blockage
warning and not be blocked. This is rare and known as a false blockage
warning. A false blocked condition will either self clear or clear after a
key cycle.
Day and night brightness
The BLIS-CTA alert will automatically dim when the headlamp switch is
in the parking, on, or autolamp position and night time darkness has
been detected by the sun sensor.
Driving
229
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Brake on/off switch, Center
high-mounted stop lamp
3 15A Not used (spare)
4 30A Not used (spare)
5 10A Keypad illumination, Brake shift
interlock
6 20A Turn signal lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lamps
10 15A Backlighting, Puddle lamps
Roadside Emergencies
241
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
11 10A AWD module
12 7.5A Power outside mirrors
13 5A SYNCmodule
14 10A Electronic finish panel (EFP) radio
and climate control buttons module,
Navigation display, Center
information display, GPS module
15 10A Climate control
16 15A Not used (spare)
17 20A Door locks, Trunk release
18 20A Heated seats
19 25A Amplifier
20 15A On-board diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park lamps,
License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Rear park assist, Blind spot monitor
system, Heated seats, AWD, Rear
video camera
Roadside Emergencies
242
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
16 — Not used
17 10A** Alternator
18 — Not used
19 — Not used
20 — Not used
21 — Not used
22 20A* Console power point
23 10A** PCM – Keep alive power, Canister
vent
24 — Not used
25 10A** A/C clutch (relay 43 power)
26 15A** Left headlamp (relay 42 power)
27 15A** Right headlamp (relay 44 power)
28 60A* Cooling fan motor
29 20A* Front power point
30 30A* Fuel relay (relay 54 power)
31 30A* Passenger power seat
32 30A* Driver power seat
33 20A* Moon roof motor power feed
34 — Not used
35 40A* Front A/C blower motor
(relay 52 power)
36 1A Diode Fuel pump
37 1A Diode One-touch start
38 10A** Heated side mirrors
39 — Not used
40 — Not used
41 G8VA relay Backup lamps
42 G8VA relay Left headlamps
43 G8VA relay A/C clutch
44 G8VA relay Right headlamps
Roadside Emergencies
245
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................253
running out of fuel .........252, 299
Emission control system ..........303
Engine ........................................318
cleaning ...................................268
coolant .....................................286
fail-safe cooling .......................291
idle speed control ...................284
lubrication specifications .......315
refill capacities ........................315
service points ..................277–278
Engine block heater .................203
Engine oil ..................................280
checking and adding ..............280
dipstick ....................................280
filter, specifications ........283, 314
recommendations ...................283
refill capacities ........................315
specifications ..........................315
Event data recording ....................6
Exhaust fumes ..........................203
F
Fail safe cooling ........................291
Fleet MyKey programming ........92
Flexible Fuel Vehicle (FFV) ....293
Floor mats ...................................90
Fluid capacities .........................315
Fog lamps ....................................55
Four-Wheel Drive vehicles
driving off road .......................230
Fuel ............................................293calculating fuel
economy ............................21, 300
cap ...........................................296
capacity ...................................315
choosing the right fuel ...........297
detergent in fuel .....................298
filler funnel .............................299
filling your vehicle with
fuel ...........................293, 296, 300
filter, specifications ........292, 314
fuel pump shut-off ..................239
improving fuel economy ........300
octane rating ...................297, 318
quality ......................................298
running out of fuel .........252, 299
safety information relating to
automotive fuels .....................293
Fuel - flex fuel vehicle
(FFV) .................................293, 297
Fuses ..................................239–240
G
Garage door opener ....................84
Gas cap (see Fuel cap) ............296
Gas mileage
(see Fuel economy) .................300
Gauges .........................................17
H
Hazard flashers .........................238
Headlamps ...................................54
aiming ........................................57
autolamp system .......................54
bulb specifications ....................60
daytime running lights .............56
flash to pass ..............................56
high beam .................................55
replacing bulbs .........................61
Index
350
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

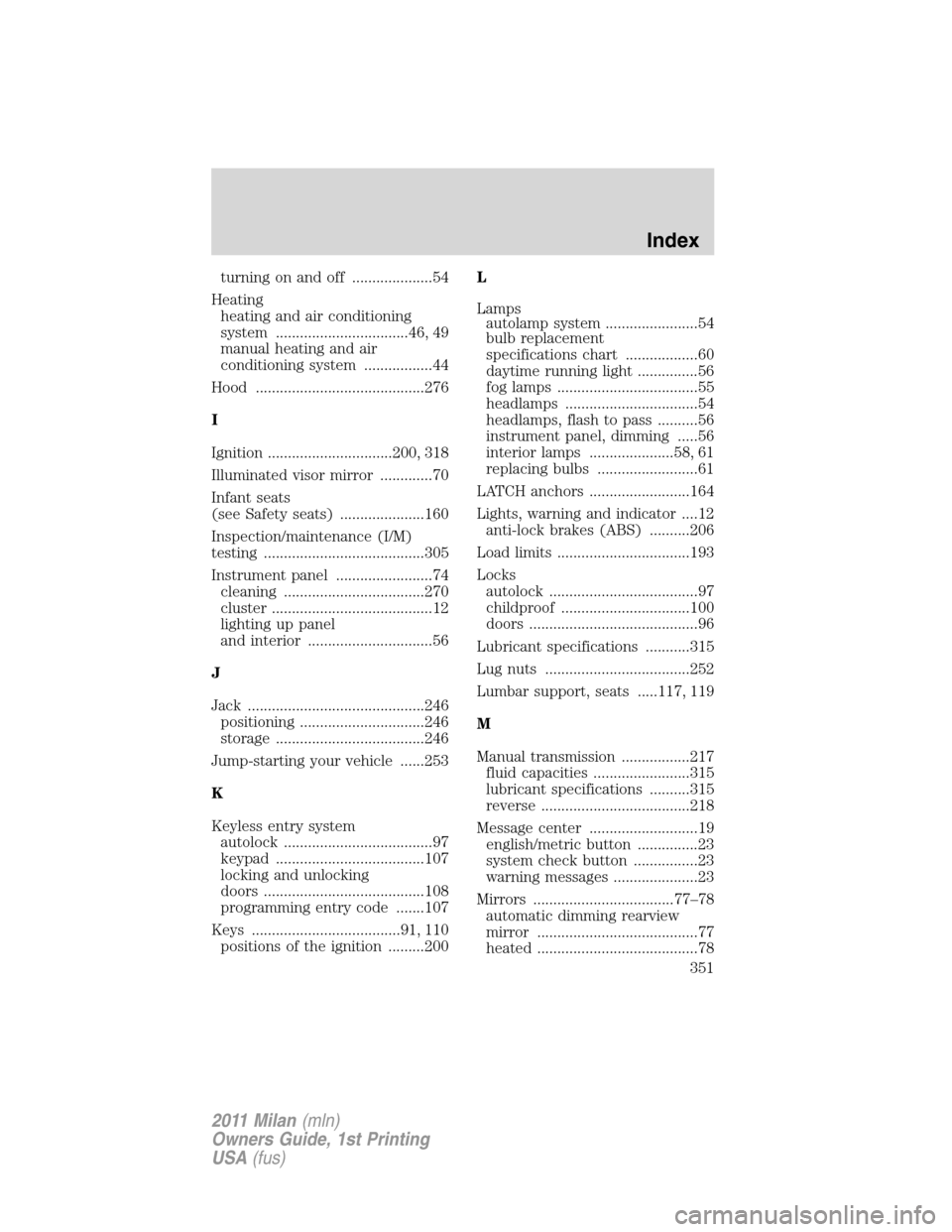

turning on and off ....................54
Heating
heating and air conditioning
system .................................46, 49
manual heating and air
conditioning system .................44
Hood ..........................................276
I
Ignition ...............................200, 318
Illuminated visor mirror .............70
Infant seats
(see Safety seats) .....................160
Inspection/maintenance (I/M)
testing ........................................305
Instrument panel ........................74
cleaning ...................................270
cluster ........................................12
lighting up panel
and interior ...............................56
J
Jack ............................................246
positioning ...............................246
storage .....................................246
Jump-starting your vehicle ......253
K
Keyless entry system
autolock .....................................97
keypad .....................................107
locking and unlocking
doors ........................................108
programming entry code .......107
Keys .....................................91, 110
positions of the ignition .........200L
Lamps
autolamp system .......................54
bulb replacement
specifications chart ..................60
daytime running light ...............56
fog lamps ...................................55
headlamps .................................54
headlamps, flash to pass ..........56
instrument panel, dimming .....56
interior lamps .....................58, 61
replacing bulbs .........................61
LATCH anchors .........................164
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........206
Load limits .................................193
Locks
autolock .....................................97
childproof ................................100
doors ..........................................96
Lubricant specifications ...........315
Lug nuts ....................................252
Lumbar support, seats .....117, 119
M
Manual transmission .................217
fluid capacities ........................315
lubricant specifications ..........315
reverse .....................................218
Message center ...........................19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors ...................................77–78
automatic dimming rearview
mirror ........................................77
heated ........................................78
Index
351
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)
