2011 MERCEDES-BENZ E-CLASS SALOON technical data

X
Dow ntoÒ20 †: mix 1 part MB WinterFit to
1 part water.
X Down to Ò29 †: mix 2 parts MB WinterFit
to 1 part water.
i Add washer fluid concentrate, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round. Vehicle data
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
-tyres
- load
- condition of the suspension
- optional equipment
R Items of optional equipment increase the
unladen weight and reduce the maximum
payload. The unladen weight is specified in
accordance with EC directive and includes:
-driver (68 kg)
- luggage (7 kg)
- all fluids (fuel tank 90 % full)
R vehicle-specific weight information can be
found on the vehicle identification plate
(Y page 382).
R only for certain countries: you can find vehi-
cle-specific vehicle data in the COC docu-
ments (CERTIFICATE OF CONFORMITY).
These documents are delivered with your
vehicle.
Technical data for the E 300 model (only for
certain countries) was not available at the
time of going to print. All models (except AMG vehicles)
Vehicle length, Saloon
(ECE)
4868 mm
Vehicle length, Estate
(ECE)
4895 mm All models (except AMG vehicles)
Vehicle width including
exterior mirrors
2071 mm
Vehicle width excluding
exterior mirrors
1854 mm
Wheelbase
2874 mm
Maximum roof load
100 kg
Maximum boot load,
Saloon
100 kg
Maximum boot load,
Estate
250 kg
E 200 BlueEFFICIENCY
Vehicle height, Saloon
1471 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1615 kg
Unladen weight, Estate
1735 kg
E 250 BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1615 kg
Unladen weight, Estate
1735 kg
E 300 BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1730 kg
Unladen weight, Estate
1840 kg
E 300 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm392
Vehicle dataTechnical data

E 300 4MATIC BlueEFFICIENCY
Unladen weight
,Saloon 1815 kg
Unladen weight, Estate
1920 kg
E 350 BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1735 kg
Unladen weight, Estate
1845 kg
E 350 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm
Unladen weight, Saloon
1825 kg
Unladen weight, Estate
1925 kg
E 500 BlueEFFICIENCY
Vehicle height, Saloon
1454 mm
Vehicle height, Estate
1513 mm
Unladen weight, Saloon
1940 kg
Unladen weight, Estate
2030 kg
E 500 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1458 mm
Vehicle height, Estate
1518 mm
Unladen weight, Saloon
1985 kg
Unladen weight, Estate
2075 kg E 63 AMG
Vehicle length, Saloon
(ECE)
4887 mm
Vehicle length, Estate
(ECE)
4914 mm
Vehicle width including
exterior mirrors
2071 mm
Vehicle width excluding
exterior mirrors
1854 mm
Vehicle height, Saloon
1440 mm
Vehicle height, Estate
1499 mm
Wheelbase
2874 mm
Unladen weight, Saloon
1840 kg
Unladen weight, Estate
1945 kg
Maximum roof load
100 kg
Maximum boot load,
Saloon
100 kg
Maximum boot load,
Estate
250 kg
E 200 CDI BlueEFFICIENCY
Vehicle height, Saloon
1471 mm
Vehicle height, Estate
1515 mm
Unladen weight, manual
transmission
,Saloon 1720 kg
Unladen weight, manual
transmission
,Estate 1825 kg
Unladen weight, auto-
matic transmission,
Saloon
1735 kg
Unladen weight, auto-
matic transmission,
Estate
1845 kgVehicle data
393Technical data Z

E 220 CDI BlueEFFICIENCY
E 250 CDI BlueEFFICIENCY
Vehicle height, Saloon
1471 mm
Vehicle height, Estate
1515 mm
Unladen weight
,Saloon 1735 kg
Unladen weight, Estate
1845 kg
E 250 CDI 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm
Unladen weight, Saloon
1830 kg
Unladen weight, Estate
1940 kg
E 300 CDI BlueEFFICIENCY
Vehicle height, Saloon
1465 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1835 kg
Unladen weight, Estate
1935 kg
E 350 CDI BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1845 kg
Unladen weight, Estate
1955 kg
E 350 CDI 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm
Unladen weight, Saloon
1900 kg
Unladen weight, Estate
2010 kg E 350 BlueTEC
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1845 kg
Unladen weight, Estate
1955 kg
Boot lid and tailgate opening dimen-
sions
Technical data for the E 300 model (only for
certai
ncountries) was not available at the
time of going to print. :
Opening
height ;
Maximum
headroom Saloon
1737 –
1760 mm —
Estate
2050 –
2062 mm 1925 –
1939 mm 394
Boot lid and tailgate opening dimensionsTechnical data

Trailer tow hitch
Mounting dimensions
G
WARNING
Only have a trailer tow hitch retrofitted at a
qualified specialis tworkshop which has the
necessary specialist knowledge and tools to
carry out the work required. Mercedes-Benz
recommends that you use aMercedes-Benz
Service Centre for this purpose. In particular,
work relevant to safety or on safety-related
systems must be carried out at a qualified
specialist workshop.
! If you have a trailer tow hitch retrofitted,
changes to the cooling system may be nec-
essary, depending on the vehicle type.
If you have a trailer tow hitch retrofitted,
observe the anchorage point sonthe chas-
sis frame. Example: anchorage points for the trailer tow hitch
: Anchorage points
; Overhang dimension
= Rear axle centre line
For trailer tow hitches fitted at the factory, the
overhang dimension including the protective covering is 1,253 mm
51
(Saloon) or
1,278 mm 51
(Estate).
51 Missing values for the E300 model were not available at the time of going to print. Trailer tow hitch
395Technical data Z

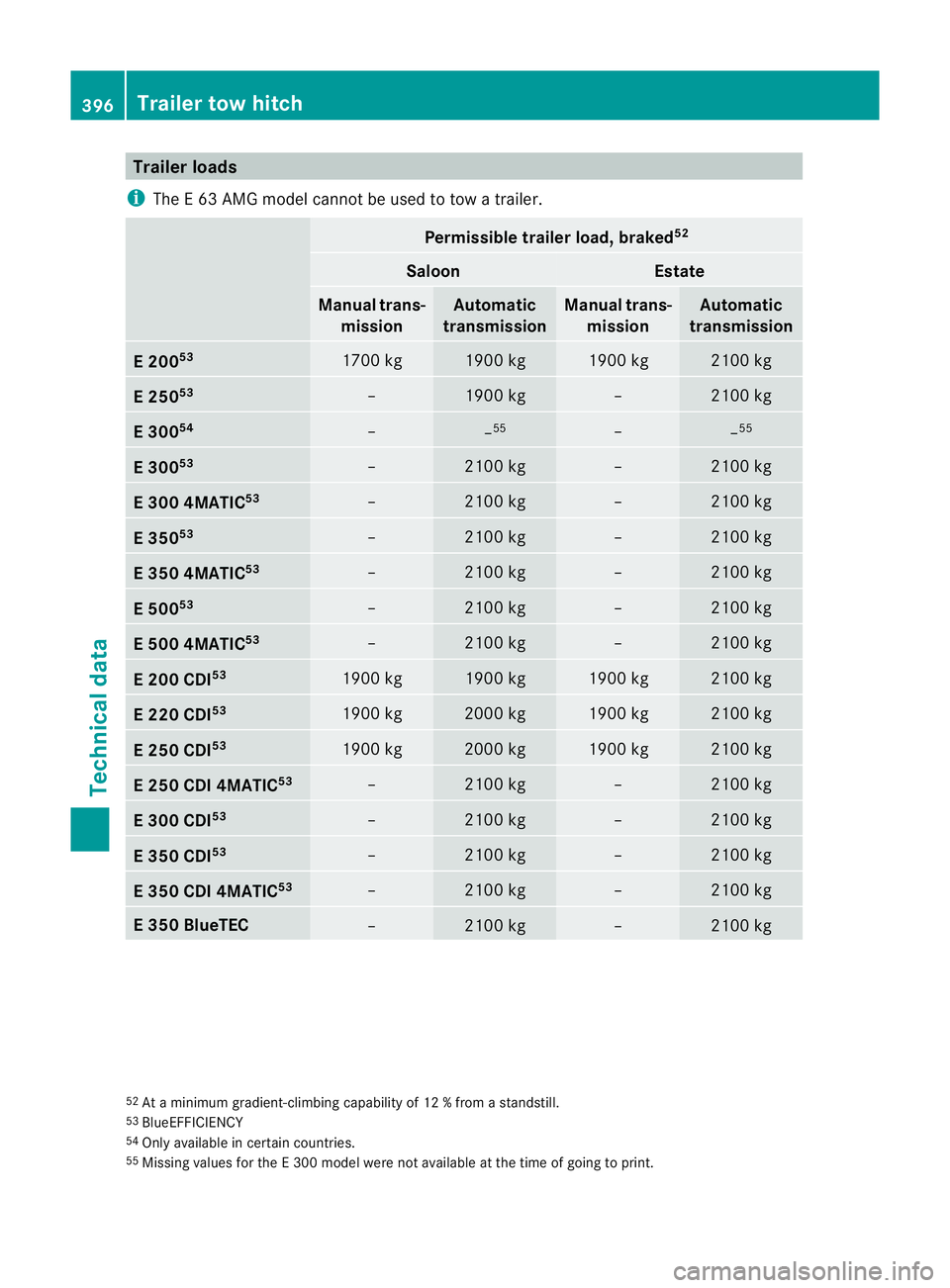

Trailer loads
i The E63A MG model cannot be used to tow a trailer. Permissible trailer load, braked
52 Saloon Estate
Manual trans-
mission Automatic
transmission Manual trans-
mission Automatic
transmission E 200
53 1700 kg 1900 kg 1900 kg 2100 kg
E 250
53 – 1900 kg – 2100 kg
E 300
54 –
–
55 –
–
55 E 300
53 – 2100 kg – 2100 kg
E 300 4MATIC
53 – 2100 kg – 2100 kg
E 350
53 – 2100 kg – 2100 kg
E 350 4MATIC
53 – 2100 kg – 2100 kg
E 500
53 – 2100 kg – 2100 kg
E 500 4MATIC
53 – 2100 kg – 2100 kg
E 200 CDI
53 1900 kg 1900 kg 1900 kg 2100 kg
E 220 CDI
53 1900 kg 2000 kg 1900 kg 2100 kg
E 250 CDI
53 1900 kg 2000 kg 1900 kg 2100 kg
E 250 CDI 4MATIC
53 – 2100 kg – 2100 kg
E 300 CDI
53 – 2100 kg – 2100 kg
E 350 CDI
53 – 2100 kg – 2100 kg
E 350 CDI 4MATIC
53 – 2100 kg – 2100 kg
E 350 BlueTEC
– 2100 kg – 2100 kg
52
At a minimum gradient-climbing capability of 12 % from a standstill.
53 BlueEFFICIENCY
54 Only available in certain countries.
55 Missing values for the E300 model were not available at the time of going to print. 396
Trailer tow hitchTechnical data

All models
56 Permissible traile
rload ,unbraked 750 kg
Maximum drawbar noseweight
57 84 kg
Permissible rear axle load when towing
atrailer Saloon Estate
Manual trans-
mission Automatic
transmission Manual trans-
mission Automatic
transmission E 200
58 1265 kg 1265 kg 1465 kg 1465 kg
E 250
58 – 1265 kg – 1465 kg
E 300
59 –
–
60 –
–
60 E 300
58 – 1335 kg – 1505 kg
E 300 4MATIC
58 – 1340 kg – 1515 kg
E 350
58 – 1335 kg – 1505 kg
E 350 4MATIC
58 – 1355 kg – 1520 kg
E 500
58 – 1445 kg – 1560 kg
E 500 4MATIC
58 – 1405 kg – 1520 kg
E 200 CDI
58 1265 kg 1265 kg 1480 kg 1480 kg
E 220 CDI
58 1265 kg 1265 kg 1480 kg 1480 kg
E 250 CDI
58 1265 kg 1265 kg 1480 kg 1480 kg
E 250 CDI 4MATIC
58 – 1325 kg – 1500 kg
E 300 CDI
58 – 1350 kg – 1520 kg
E 350 CDI
58 – 1350 kg – 1520 kg
E 350 CDI 4MATIC
58 – 1345 kg – 1515 kg
E 350 BlueTEC
– 1265 kg – 1550 kg
56
Except E 300 model.
57 The drawbar noseweigh tis not included in the trailer load.
58 BlueEFFICIENCY
59 Only available in certain countries.
60 Missing values for the E300 model were not available at the time of going to print. Trailer tow hitch
397Technical data Z

24 GHz radar sensor system (country overview)
The 24 GHz radar senso rsystem requires separat eapproval for each country. If you are driving
in a country in which the radar senso rsystem is no tapproved, you must deactivate the system
using the on-board computer (Y page 247). The current country overview can be obtained
from a Mercedes-Benz Service Centre.
Vehicles with anavigation system: the radar sensor system is deactivated automatically
near radio telescope facilities.
The currently active systems are automatically deactivated:
R DISTRONIC PLUS (Y page 185)
R Blind Spot Assist (Y page 212)
R Active Blind Spot Assist(Y page 216)
R PRE-SAFE ®
Brake (Y page 75)
Ad isplay message appears in the multifunction display to tell you that the radar sensor system
is being switched off (Y page 268).
BAS PLUS (Y page 70) is the nalso unavailable.
If the deactivation does not occur automatically, you must deactivate the radar sensor system
using the on-board computer (Y page 247).
Vehicles withou tnavigation and vehicles for Australia: you must deactivate the radar
sensor system using the on-board computer whe nyou are near a radio telescope facility
(Y page 247). Country Radio telescope
facilities Geographical latitude and
longitude Distance to be
maintained
from the facility Egypt – – –
Andorra – – –
Australia Parkes 32°59'59" S, 148°15'44" E 10 km
Narrabri 30°18'52" S, 149°32'56" E 10 km
Canberra 35°23'54" S, 148°58'40" E 3 km
Western Australia 26°37'13" S, 117°30'40" E 10 km
Bahrain – – –
Belgium – – –
Bosnia-Herzego-
vina – – –
Bulgaria – – –
Denmark – – –
Germany Effelsberg 50°31'32" N, 06°53'00" E 6.5 km398
24 GHz radar sensor system (country overview)Technical data

Country Radio telescope
facilities Geographica
llatitude and
longitude Distance to be
maintained
from the facility Estonia – – –
Finland Metsähovi 60°13'04" N, 24°23'37" E 7 km
Tuorla 60°24'56" N, 22°26'31" E 5 km
France Plateau de Bure 44°38'01" N, 05°54'26" E 35 km
Floirac 44°50'10" N, 00°31'37" W 35 km
Gibraltar – – –
Greece – – –
United Kingdom Cambridge 52°09'59" N, 00°02'20" E 9 km
Darnhall 53°09'22" N, 02°32'03" W 5 km
Jodrell Bank 53°14'10" N, 02°18'26" W 9 km
Knockin 52°47'24" N, 02°59'45" W 5 km
Pickmere 53°17'18" N, 02°26'38" W 5 km
Ireland – – –
Iceland – – –
Italy Medicina 44°31'14" N, 11°38'49" E 20 km
Noto 36°52'34" N, 14°59'21" E 8 km
Sardinia 39°29'50" N, 09°14'40" E 15 km
Yemen – – –
Jordan – – –
Canada – – –
Qatar – – –
Croatia – – –
Kuwait – – –
Latvia Ventspils 57°33'12" N, 21°51'17" E 8.5 km
Lebanon – – –
Lithuania – – –
Luxembourg – – –
Malaysia – – –24 GHz radar sensor system (country overview)
399Technical data Z
