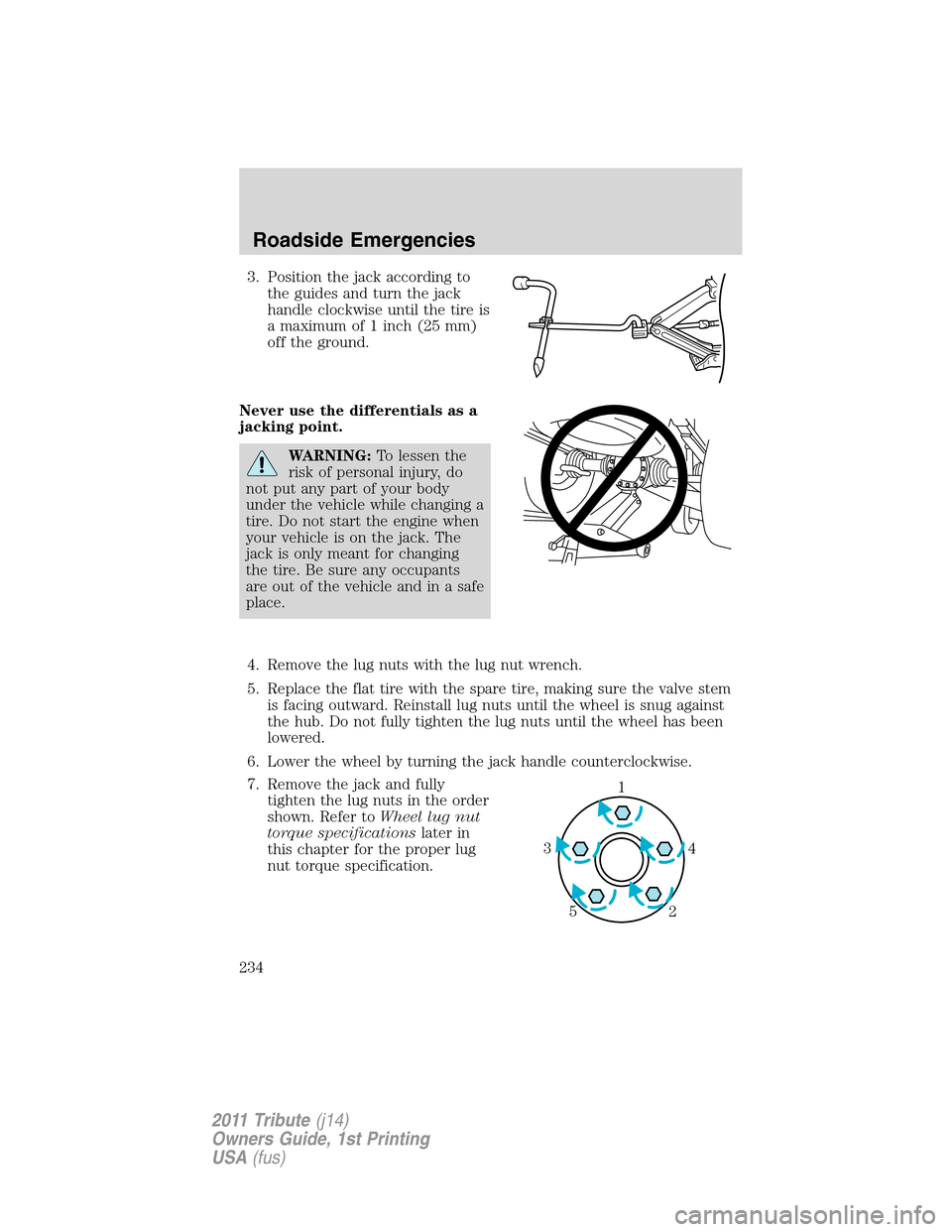

3. Position the jack according to
the guides and turn the jack
handle clockwise until the tire is
a maximum of 1 inch (25 mm)
off the ground.
Never use the differentials as a
jacking point.
WARNING:To lessen the
risk of personal injury, do
not put any part of your body
under the vehicle while changing a
tire. Do not start the engine when
your vehicle is on the jack. The
jack is only meant for changing
the tire. Be sure any occupants
are out of the vehicle and in a safe
place.
4. Remove the lug nuts with the lug nut wrench.
5. Replace the flat tire with the spare tire, making sure the valve stem
is facing outward. Reinstall lug nuts until the wheel is snug against
the hub. Do not fully tighten the lug nuts until the wheel has been
lowered.
6. Lower the wheel by turning the jack handle counterclockwise.
7. Remove the jack and fully
tighten the lug nuts in the order
shown. Refer toWheel lug nut
torque specificationslater in
this chapter for the proper lug
nut torque specification.
1
4 3
2 5
Roadside Emergencies
234
