2011 MAZDA MODEL TRIBUTE clock

AUDIO SYSTEMS
AM/FM/single CD or in-dash CD6/MP3 satellite compatible sound
system
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Mazda strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving and that you comply with all applicable laws.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the radio and other electrical accessories may be used for
up to ten minutes after the ignition is turned off or until either front
door is opened.
Note:Your vehicle is equipped with
a unique audio system. If your
display shows six small circles in the
display, your audio system is a CD6
system. If not, your system is a
Single CD system.
Setting the clock
To set the time, press CLOCK. The display will read SET TIME. Use the
memory preset numbers (0–9) to enter in the desired time–hours and
minutes and press OK. The clock will then begin from that time.
Entertainment Systems
19
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

HEADLAMP CONTROL
Rotate the headlamp control to the
first position
to turn on the
parking lamps.
Rotate to the second position
to
turn on the headlamps.
Rotate back to
to turn the
headlamps off.
Autolamp control
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system is factory
programmed to keep the lights on
for 20 seconds after the ignition
switch is turned to off. This delay
can be programmed, using the
procedure listed below, to any value
up to 180 seconds. It can also be
programmed through the message center.
•To turn autolamps on, rotate the control counterclockwise.
•To turn autolamps off, rotate the control clockwise to the off position.
Note:Your vehicle has aheadlamps on with windshield wipers
feature. If the windshield wipers are turned on for a brief period of time,
the exterior lamps will turn on with the headlamp control in the
autolamp position.
Autolamp delay system
With autolamps, you can set the delay time to keep the headlights on for
up to three minutes after the key is turned off. The delay time is set to
20 seconds at the factory, but the delay time may be changed by
following the steps below (Steps 1 through 6 must be done within
10 seconds).
1. Turn the key to the off position.
Lights
40
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

5. Locate the vertical adjuster on
the headlamp, then usea4mm
socket to turn the adjuster
either counterclockwise (to
adjust up) or clockwise (to
adjust down) aligning the upper
edge of the light pattern to the
horizontal line.
6. Move the opaque cloth to cover
the right-hand headlamp and
repeat Steps 4 and 5 for the
left-hand headlamp.
7. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The front dome lamp is located overhead between the driver and
passenger seats.
The dome lamp is preset to
illuminate when a door is opened
and will remain on for 25 seconds
after the door is closed. To manually
turn on the dome lamp, rotate the
panel dimmer control, located on
the instrument panel, to the full
upright position past the detent.
To turn off the dome lamp, rotate the panel dimmer control to the full
down position past the detent.Note:When manually in the off position,
the dome lamp will not illuminate when the door(s) are opened.
Lights
44
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing headlamp bulbs
1. Make sure that the headlamp control is in the off position.
2. Open the hood.
3. Reach over the front bolster.
4. Remove the bulb by turning it
counterclockwise and then
pulling it straight out.
WARNING:Handling Halogen Bulbs: When a halogen bulb
breaks, it is dangerous. These bulbs contain pressurized gas. If
one is broken, it will explode and serious injuries could be caused by
the flying glass. If the glass portion of the bulb is touched with bare
hands, body oil could cause the bulb to overheat and explode when lit.
Never touch the glass portion of the bulb with your bare hands and
always wear eye protection when handling or working around halogen
bulbs.
5. Disconnect the electrical
connector from the bulb.
WARNING:Children and
Halogen Bulbs: Playing with
a halogen bulb is dangerous.
Serious injuries could be caused
by dropping a halogen bulb or
breaking in some other way.
Always keep halogen bulbs out of
the reach of children.
6. Connect the electrical connector on the new bulb.
7. Insert the glass end of the new bulb into the headlamp assembly.
When the grooves in the plastic base are aligned, turn the new bulb
clockwise to install.
Lights
47
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Replacing front parking lamp/turn signal bulbs
For bulb replacement, see your authorized Mazda dealer.
Replacing tail/stop/turn/backup lamp bulbs
The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same
portion of the tail lamp assembly, one just below the other. Follow the
same steps to replace either bulb:
1. Make sure the headlamp switch
is in the off position, then open
the liftgate to expose the lamp
assembly screws.
2. Remove the two screws from
the lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle
by pulling the assembly straight
out to expose the bulb socket.
4. Rotate the bulb socket counterclockwise and remove from lamp
assembly.
5. Pull bulb straight out of socket and push in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle and secure
with two screws.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch
is in the off position.
2. Press the tab and carefully pry
the license plate lamp assembly
(located above the license
plate) from the liftgate.
3. Rotate the bulb socket
counterclockwise and remove
from lamp assembly.
Lights
48
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

4. Pull bulb straight out of socket
and push in the new bulb.
5. Install the bulb socket into the
lamp assembly and rotate
clockwise.
6. To install, carefully press the
lamp assembly into liftgate.
Replacing high-mount brake lamp bulbs
To remove the lamp assembly:
1. Remove the two screws and
move the lamp assembly away
from the liftgate.
2. Remove the bulb holder from
the lamp assembly by pressing
the snaps.
3. Pull the bulb straight out of the
socket and push in the new
bulb.
To complete installation, follow the
removal procedure in reverse order.
Lights
49
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

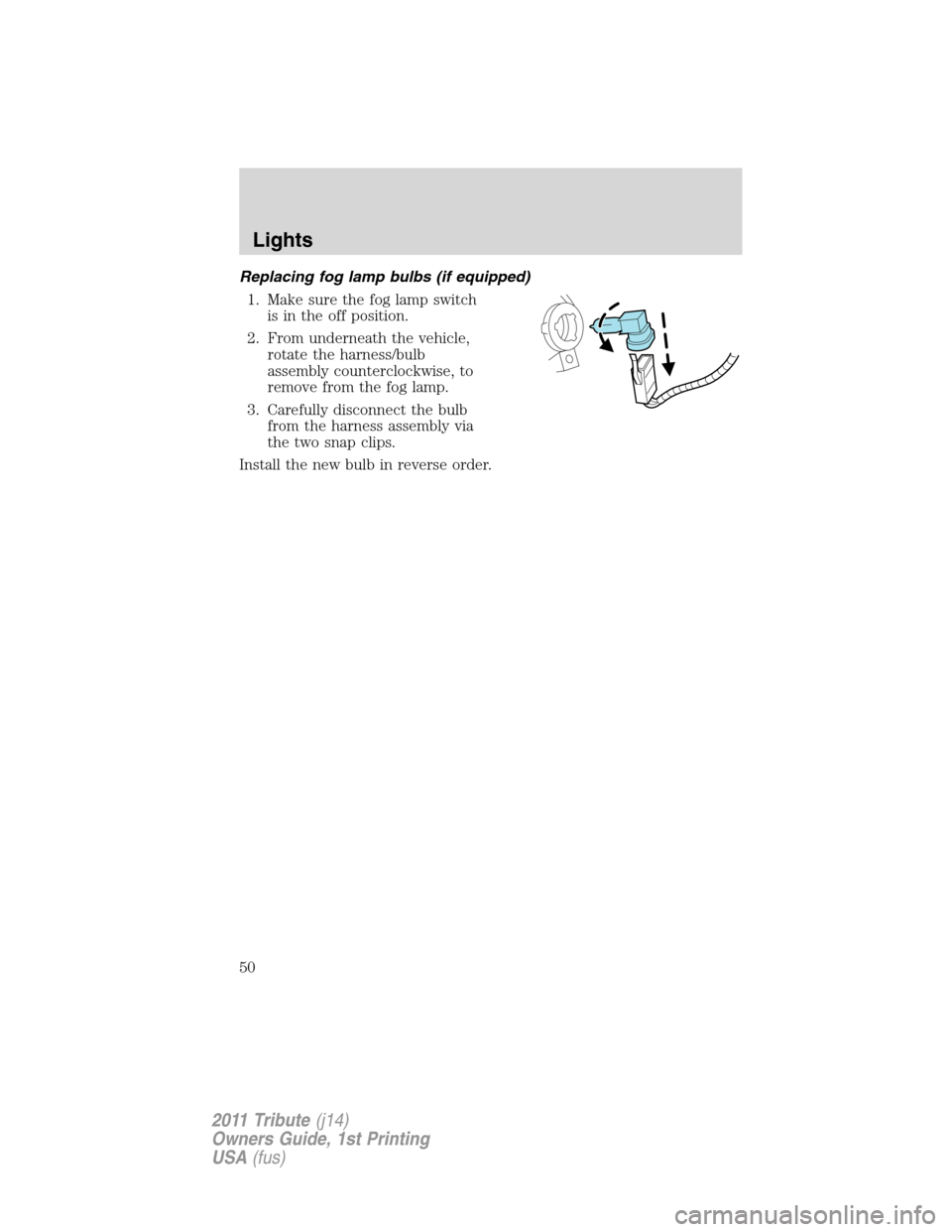

Replacing fog lamp bulbs (if equipped)
1. Make sure the fog lamp switch
is in the off position.
2. From underneath the vehicle,
rotate the harness/bulb
assembly counterclockwise, to
remove from the fog lamp.
3. Carefully disconnect the bulb
from the harness assembly via
the two snap clips.
Install the new bulb in reverse order.
Lights
50
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Note:A rear center passenger and/or raised rear center headrest (if
equipped) may also block the light from reaching the sensor.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Note:If equipped with a rearview camera system, a video image will
display in the mirror or the navigation system display (if equipped) when
the vehicle is put in R (Reverse). As you shift into any other gear from R
(Reverse), the image will remain for a few seconds and then turn off.
Refer toRearview camera systemin theDrivingchapter.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and
rotate the control
counterclockwise to adjust the
left mirror.
2. Move the control in the
direction you wish to tilt the
mirror.
3. Return to the center position to lock mirrors in place.
Fold-away mirrors
Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Driver Controls
