Driver and Passenger Occupant Classification System
First, please read“Supplemental Restraint System (SRS) Precautions ”(page 2-30)
carefully.
q Driver Seat Slide Position Sensor
Your vehicle is equipped with a driver seat slide position sensor as a part of the
supplemental restraint system. The sensor is located under the driver seat. The sensor
determines whether the driver seat is fore or aft of a reference position and sends the seat
position to the diagnostic module (SAS unit). The SAS unit is designed to control the
deployment of the driver air bag depending on how close the driver seat is to the steering
wheel.
The air bag/seat belt pretensioner system warning light flashes if the sensor has a possible
malfunction (page 2-38).
qPassenger Seat Weight Sensors
Your vehicle is equipped with a passenger seat weight sensors as a part of the supplemental
restraint system. These sensors are located under both of the passenger seat rails. These
sensors determine the total seated weight on the passenger seat and monitor the seat belt
buckle for the passenger seat. The SAS unit is designed to prevent the passenger front and
side air bags and seat belt pretensioner system from deploying if the passenger air bag
deactivation indicator light illuminates.
To reduce the chance of injuries caused by deployment of the passenger air bag, the system
deactivates the passenger front and side air bags and also the seat belt pretensioner system
when the passenger air bag deactivation indicator light illuminates. Refer to the following
table for the passenger air bag deactivation indicator light illumination conditions.
This system shuts off the passenger front and side air bags and seat belt pretensioner
system, so make sure the passenger air bag deactivation indicator light illuminates
according to the following table.
The air bag seat belt pretensioner system warning light flashes and the passenger air bag
deactivation indicator light illuminates if the sensors have a possible malfunction. If this
happens, the passenger front and side air bags and seat belt pretensioner system will not
deploy.
Essential Safety Equipment
SRS Air Bags
2-47
MX-5_8BR3-EA-10F_Edition3 Page59
Wednesday, March 2 2011 5:25 PM
Form No.8BR3-EA-10F

Black plate (60,1)
Passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the passenger front and side air bags and
seat belt pretensioner will not deploy during a collision.
If the passenger weight sensors are normal, the indicator light illuminates when the ignition
is switched ON. The light turns off after a few seconds.
The passenger air bag deactivation indicator light illuminates or is off under the following conditions:Condition detected by the passenger occupant
classification system Passenger air bag
deactivation indicator light Passenger front and side
air bags Passenger seat belt
pretensioner system
Empty (Not occupied)
*1Off Deactivated Deactivated
Child or child-restraint
system
*2On Deactivated Deactivated
Adult
*3Off ReadyReady
If the passenger air bag has been deactivated using the key, the passenger air bag deactivation indicator light will
remain illuminated as long you leave the passenger air bag turned off, and the chart above no longer applies.
Refer to Passenger air bag deactivation switch on page 2-43.
*1 : If the passenger seat belt is buckled, the passenger air bag deactivation indicator light illuminates, however this does not indicate a malfunction.
*2 : If a larger child sits on the passenger seat, the sensors might detect the child as being an adult depending on the child's physique.
*3 : If a smaller adult sits on the passenger seat, the sensors might detect the person as being a child depending on the person's physique.
If the passenger air bag deactivation indicator light does not illuminate when the ignition is
switched ON and does not illuminate as indicated in the above chart, do not allow a child
to sit in the passenger seat and consult an Authorized Mazda Dealer as soon as possible.
The system may not work properly in an accident. You must deactivate the passenger air
bag using the key (page 2-43) and consult an Authorized Mazda Dealer.
2-48
Essential Safety Equipment
SRS Air Bags
MX-5_8BR3-EA-10F_Edition3 Page60
Wednesday, March 2 2011 5:25 PM
Form No.8BR3-EA-10F

Black plate (61,1)

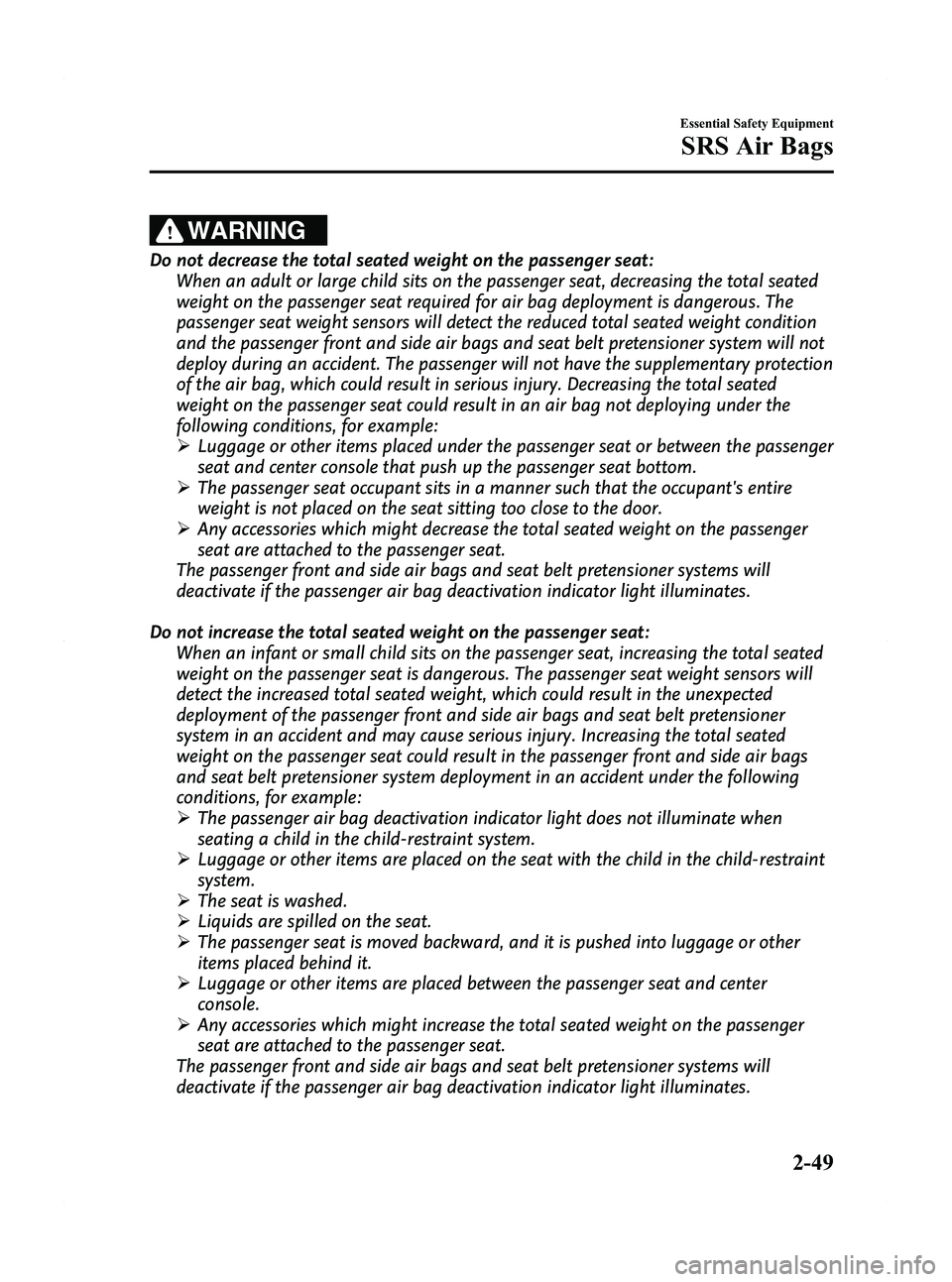

WARNING
Do not decrease the total seated weight on the passenger seat:When an adult or large child sits on the passenger seat, decreasing the total seated
weight on the passenger seat required for air bag deployment is dangerous. The
passenger seat weight sensors will detect the reduced total seated weight condition
and the passenger front and side air bags and seat belt pretensioner system will not
deploy during an accident. The passenger will not have the supplementary protection
of the air bag, which could result in serious injury. Decreasing the total seated
weight on the passenger seat could result in an air bag not deploying under the
following conditions, for example:
ØLuggage or other items placed under the passenger seat or between the passenger
seat and center console that push up the passenger seat bottom.
Ø The passenger seat occupant sits in a manner such that the occupant's entire
weight is not placed on the seat sitting too close to the door.
Ø Any accessories which might decrease the total seated weight on the passenger
seat are attached to the passenger seat.
The passenger front and side air bags and seat belt pretensioner systems will
deactivate if the passenger air bag deactivation indicator light illuminates.
Do not increase the total seated weight on the passenger seat: When an infant or small child sits on the passenger seat, increasing the total seated
weight on the passenger seat is dangerous. The passenger seat weight sensors will
detect the increased total seated weight, which could result in the unexpected
deployment of the passenger front and side air bags and seat belt pretensioner
system in an accident and may cause serious injury. Increasing the total seated
weight on the passenger seat could result in the passenger front and side air bags
and seat belt pretensioner system deployment in an accident under the following
conditions, for example:
ØThe passenger air bag deactivation indicator light does not illuminate when
seating a child in the child-restraint system.
Ø Luggage or other items are placed on the seat with the child in the child-restraint
system.
Ø The seat is washed.
Ø Liquids are spilled on the seat.
Ø The passenger seat is moved backward, and it is pushed into luggage or other
items placed behind it.
Ø Luggage or other items are placed between the passenger seat and center
console.
Ø Any accessories which might increase the total seated weight on the passenger
seat are attached to the passenger seat.
The passenger front and side air bags and seat belt pretensioner systems will
deactivate if the passenger air bag deactivation indicator light illuminates.
Essential Safety Equipment
SRS Air Bags
2-49
MX-5_8BR3-EA-10F_Edition3 Page61
Wednesday, March 2 2011 5:25 PM
Form No.8BR3-EA-10F

Black plate (62,1)
CAUTION
ØTo assure proper deployment of the front air bag and to prevent damage to the
sensors in the seat bottoms:
ØDo not place sharp objects on the seat bottoms or leave heavy luggage on
them.
ØDo not spill any liquids on the seats or under the seats.
Ø To allow the sensors to function properly, always perform the following:
ØAdjust the seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
ØIf you place your child on the passenger seat, secure the child-restraint system
properly and slide the passenger seat as far back as possible.
NOTE
lThe system requires about 10 seconds to alternate between turning the passenger front and side
air bags and seat belt pretensioner system on or off.
lThe passenger air bag deactivation indicator light may illuminate repeatedly if luggage or other
items are put on the passenger seat, or if the temperature of the vehicle's interior changes
suddenly.
lThe passenger air bag deactivation indicator light may illuminate for 10 seconds if the total
seated weight on the passenger seat changes.
lThe air bag seat belt pretensioner system warning light might illuminate if the passenger seat
receives a severe impact.
lYou must deactivate the passenger air bag using the key (page 2-43) and consult an Authorized
Mazda Dealer.
lIf the passenger air bag deactivation indicator light illuminates when an adult is seated in the
passenger seat, have the passenger re-adjust their posture by sitting with their feet on the floor,
and then re-fastening the seat belt. If the passenger air bag deactivation indicator light still
illuminates, slide the passenger seat as far back as possible.
q Driver and Passenger Buckle Switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
2-50
Essential Safety Equipment
SRS Air Bags
MX-5_8BR3-EA-10F_Edition3 Page62
Wednesday, March 2 2011 5:25 PM
Form No.8BR3-EA-10F

Black plate (63,1)
Monitoring and Maintenance
qConstant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:
lCrash sensors, and diagnostic module (SAS unit)lFront air bag sensorlAir bag moduleslSide crash sensorsí
lAir bag/Seat belt pretensioner system warning lightlSeat belt pretensionerslRelated wiringlFront passenger air bag deactivation indicator lightlFront passenger air bag deactivation switchlDriver seat slide position sensorlFront passenger seat weight sensorslFront passenger seat weight sensor control module
The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.
q Maintenance
The air bag systems do not require regular maintenance. But if any of the following occurs,
take your vehicle to an Authorized Mazda Dealer as soon as possible:
lThe air bag system warning light flashes.lThe air bag system warning light remains illuminated.lThe air bag system warning light does not illuminate when the ignition is switched ON.lThe air bags have deployed.lPassenger air bag deactivation indicator light does not illuminate when the ignition is
switched ON or does not illuminate as indicated in the chart or when you manually
deactivate the passenger air bag with the key.
For more details about passenger air bag deactivation, refer to:
lPassenger seat weight sensors (page 2-47)lPassenger air bag deactivation switch (page 2-43)
Essential Safety Equipment
SRS Air Bags
2-51íSome models.
MX-5_8BR3-EA-10F_Edition3 Page63
Wednesday, March 2 2011 5:25 PM
Form No.8BR3-EA-10F

Black plate (64,1)
WARNING
Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components:Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a
trained Authorized Mazda Dealer can fully evaluate these systems to see that they
will work in any subsequent accident. Driving with an expended or damaged air bag
or pretensioner unit will not afford you the necessary protection in the event of any
subsequent accident which could result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as the seats, dashboard, the steering wheel or parts
on the front and rear window pillars and along the roof edge, containing air bag
parts or sensors is dangerous. These parts contain essential air bag components. The
air bag could accidentally activate and cause serious injuries. Always have an
Authorized Mazda Dealer remove these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury can result. Ask an
Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air
bag equipped vehicle.
NOTE
If it becomes necessary to have the components or wiring system for the supplementary restraint
system modified to accommodate a person with certain medical conditions in accordance with a
certified physician, contact an Authorized Mazda Dealer, refer to “Customer Assistance (U.S.A.) ”
(page 9-2).
2-52
Essential Safety Equipment
SRS Air Bags
MX-5_8BR3-EA-10F_Edition3 Page64
Wednesday, March 2 2011 5:25 PM
Form No.8BR3-EA-10F

Black plate (140,1)
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lFor information regarding the 3 buttons
(
,,) on the auto-dimming
mirror, refer to HomeLink Wireless Control
System (page 5-63).
3-76
Knowing Your Mazda
Steering Wheel and Mirrors
MX-5_8BR3-EA-10F_Edition3 Page140
Wednesday, March 2 2011 5:26 PM
Form No.8BR3-EA-10F

Black plate (142,1)

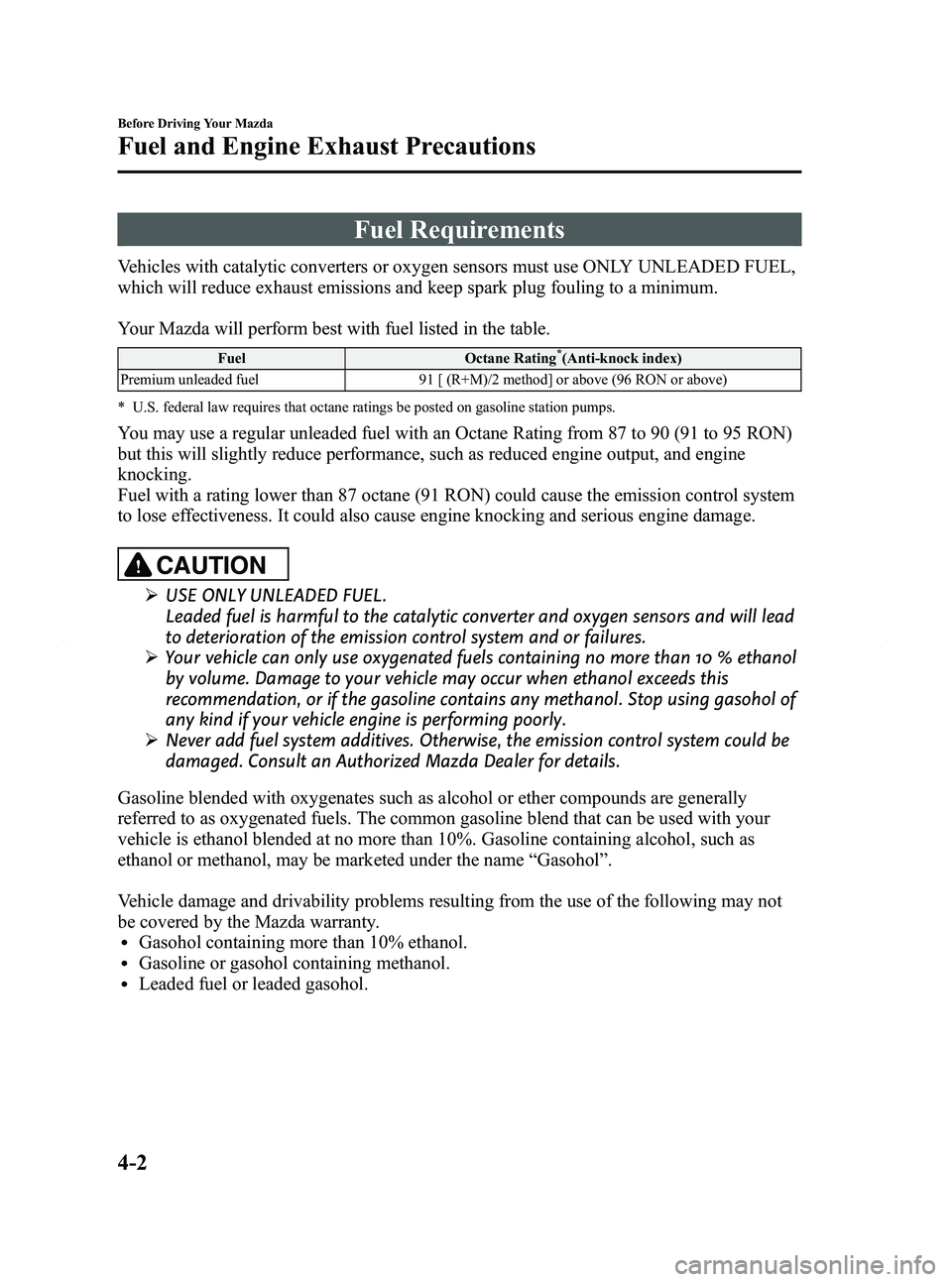

Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R+M)/2 method] or above (96 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
You may use a regular unleaded fuel with an Octane Rating from 87 to 90 (91 to 95 RON)
but this will slightly reduce performance, such as reduced engine output, and engine
knocking.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10 % ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Otherwise, the emission control system could be
damaged. Consult an Authorized Mazda Dealer for details.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
MX-5_8BR3-EA-10F_Edition3 Page142
Wednesday, March 2 2011 5:26 PM
Form No.8BR3-EA-10F
