Black plate (19,1)
Operation using the seat-side buttons
Programming
Park the vehicle in a safe location before
performing the seat position
programming. (Vehicle must be stopped)
1. Adjust the seat to the desired position.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-5)
Height Adjustment (page 2-6)
2. While holding the SET button in, press
the desired programming button 1, 2,
or 3 until a beep sound is heard.
The button is programmed after a beep
sound is heard. Other buttons can be
programmed using the same procedure.
NOTE
Vehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Setting the driver's seat to a pre-
programmed position
There are two methods for setting the
driver's seat to a pre-programmed
position. For example, the type A method
can be used before sitting in the seat and
while the driver's door is open, and the
type B method can be used after getting in
the vehicle with the driver's door closed.
TYPE A
When the ignition is switched off and the
driver's door is open, press the
programming button 1, 2, or 3 for the
desired seating position.NOTE
In the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe SET button is pressed.lA programming button 1, 2, or 3 is pressed.lThe vehicle starts moving.lVehicle locking/unlocking is done using the
transmitter.
lVehicle locking/unlocking is done using the
advanced keyless functions.
TYPE B
When the ignition is switched ON or the
driver's door is closed, press and hold the
desired programming button 1, 2, or 3.
NOTE
In the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe SET button is pressed.lThe vehicle starts moving.
Operation using the advanced key/
retractable type key
Programming
One seat position can be programmed into
each advanced key/retractable type key.
After the following conditions have been
met, operate the seat and the advanced
key/retractable type key to program the
seat positions.
lThe ignition is switched off
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
Essential Safety Equipment
Seats
2-7
CX-7_8BM8-EA-10I_Edition1 Page19
Friday, September 10 2010 4:21 PM
Form No.8BM8-EA-10I

Black plate (91,1)
NOTElWhen switching the ignition to OFF/LOCK,
the ignition switch has to be pushed in from
the ACC position and turned. Without being
pushed in, the ignition switch stops at the
ACC position and the vehicle battery may
be discharged if the ignition switch is left in
the ACC position. When leaving the vehicle,
make sure the ignition is switched to OFF/
LOCK.
lIf the vehicle is left with the ignition not
switched to OFF/LOCK, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-18).
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and the liftgate.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob installed in the OFF/
LOCK position, the system is fully
operational. If the ignition is not switched
off or the start knob is pushed in, the system
does not operate.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
CX-7_8BM8-EA-10I_Edition1 Page91
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

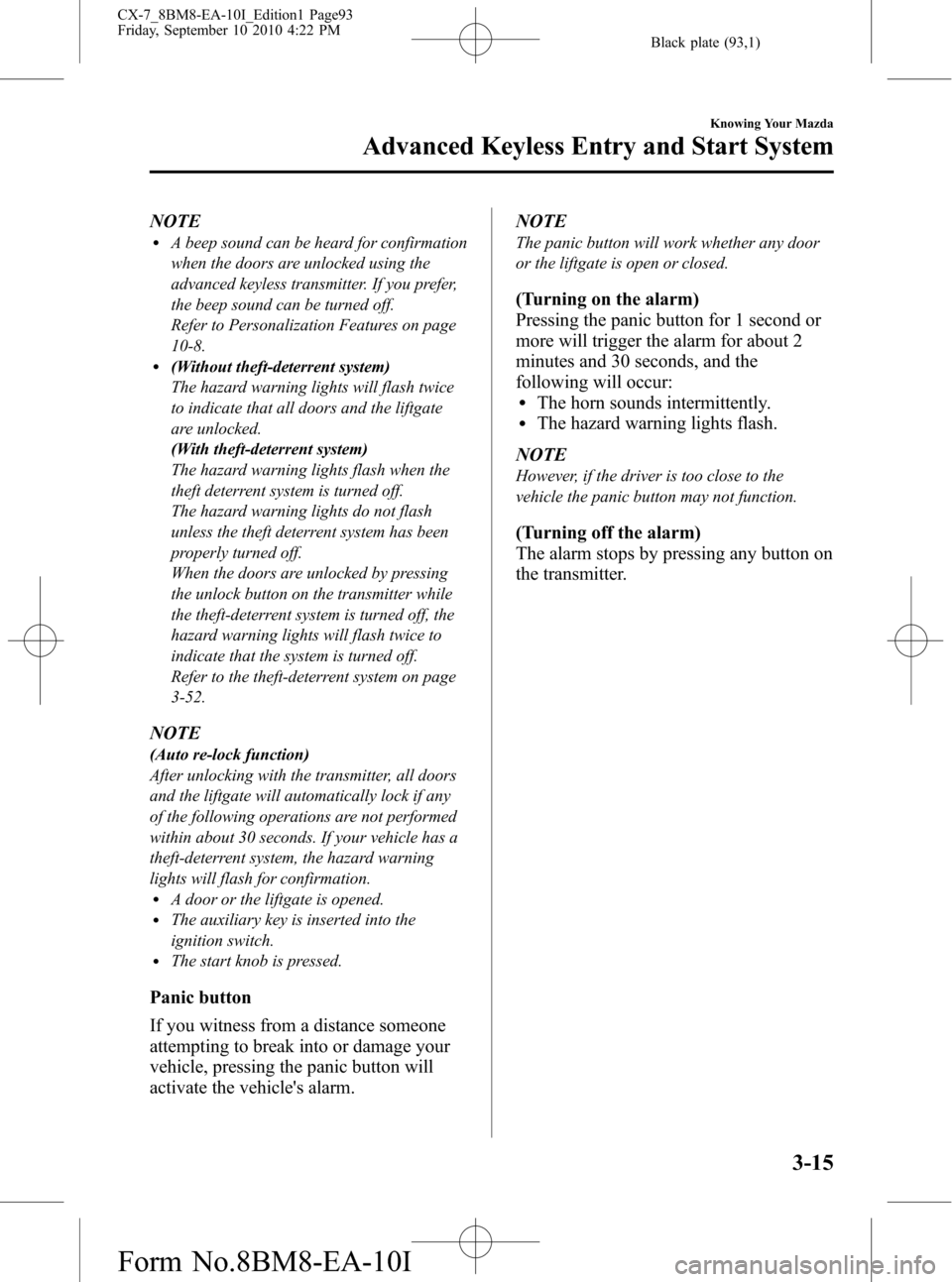

Black plate (93,1)
NOTElA beep sound can be heard for confirmation
when the doors are unlocked using the
advanced keyless transmitter. If you prefer,
the beep sound can be turned off.
Refer to Personalization Features on page
10-8.
l(Without theft-deterrent system)
The hazard warning lights will flash twice
to indicate that all doors and the liftgate
are unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash
unless the theft deterrent system has been
properly turned off.
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
Refer to the theft-deterrent system on page
3-52.
NOTE
(Auto re-lock function)
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if any
of the following operations are not performed
within about 30 seconds. If your vehicle has a
theft-deterrent system, the hazard warning
lights will flash for confirmation.
lA door or the liftgate is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pressed.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.NOTE
The panic button will work whether any door
or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
CX-7_8BM8-EA-10I_Edition1 Page93
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (96,1)
Warning and Beep Sounds
qSystem Malfunction Warning Light
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive
the vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Ignition Switch (page 5-2).
qStart Knob Not in LOCK
Warning Beep
If the ignition is switched to ACC and the
driver's door is opened, a continuous beep
sound will be heard to notify the driver
that the ignition has not been switched off.
In this case, the keyless entry system does
not operate, the car cannot be locked, and
the battery will run down.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the advanced key has
been removed. The KEY warning light
(red) will stop flashing when the advanced
key is back inside the vehicle:
lThe ignition has not been switched off,
the driver's door is open, and the
advanced key is removed from the
vehicle. (A beep sound will be heard
three times.)
However the beep sound will be heard
continuously when the ignition is
switched to ACC and the door is open
due to the activation of the warning
beep sound indicating that the ignition
is not switched off.
lThe ignition has not been switched off
and all the doors are closed after
removing the advanced key from the
vehicle. (A beep sound will be heard
six times.)
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area
within the vehicle.
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8BM8-EA-10I_Edition1 Page96
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (114,1)
Canceling the two-step down function
To cancel the two-step down function,
carry out the following procedure using
the master control switches.
1. Switch the ignition ON and complete
the following procedure within 5
seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
2. Switch the ignition off.
3. With the ignition off, and within 40
seconds, switch the ignition ON and
complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.
NOTE
lThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first switch the ignition off and
proceed from the beginning.
lIf you are unable to cancel the function
despite doing the cancellation procedure,
consult an Authorized Mazda Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function and it
will be restored.
NOTE
If you are unable to restore the function despite
carrying out the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.
3-36
Knowing Your Mazda
Doors and Locks
CX-7_8BM8-EA-10I_Edition1 Page114
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (132,1)
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and switch the ignition ON.
l(With advanced key)lPress a request switch or the unlock
button on the transmitter.
lSwitch the ignition ON with the
start knob.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or using the
key while the theft-deterrent system is turned
off, the hazard warning lights will flash twice
to indicate that the system is turned off.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key.
l(With advanced key)lPress a request switch.lPress the unlock button on the
transmitter.
lThe engine is started with the start
knob.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-54
Knowing Your Mazda
Security System
CX-7_8BM8-EA-10I_Edition1 Page132
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (141,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-5
CX-7_8BM8-EA-10I_Edition1 Page141
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (143,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm for extended
periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.lDo not tow a trailer.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:
Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
Before Driving Your Mazda
Driving Tips
4-7
CX-7_8BM8-EA-10I_Edition1 Page143
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I
