6. When finished, carefully disconnect thecables in the reverse order described in
the illustration.
NOTE
Verify that the covers are securely installed.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it: Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transaxle. It can damage
the emission control system.
NOTE
You can't start a vehicle with an automatic
transaxle by pushing it.
7-22
In Case of an Emergency
Emergency Starting
Mazda3_8BM6-EC-10F_Edition1 Page368
Monday, June 7 2010 2:34 PM
Form No.8BM6-EC-10F

Black plate (369,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
In Case of an Emergency
Emergency Towing
7-23
Mazda3_8BM6-EC-10F_Edition1 Page369
Monday, June 7 2010 2:34 PM
Form No.8BM6-EC-10F

Black plate (370,1)
Tiedown Hook
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hook-Front
Type A
1. Remove the tiedown eyelet and the lug
wrench from the trunk (page 7-3).
2. Wrap the lug wrench with a soft cloth to prevent damage to the bumper and
open the cap located on the front
bumper.
CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface. 3. Securely install the tiedown eyelet
using the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
ØIf the tiedown eyelet is not securely
tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.
Ø The front tiedown hook is
designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.
7-24
In Case of an Emergency
Emergency Towing
Mazda3_8BM6-EC-10F_Edition1 Page370
Monday, June 7 2010 2:34 PM
Form No.8BM6-EC-10F

Black plate (371,1)

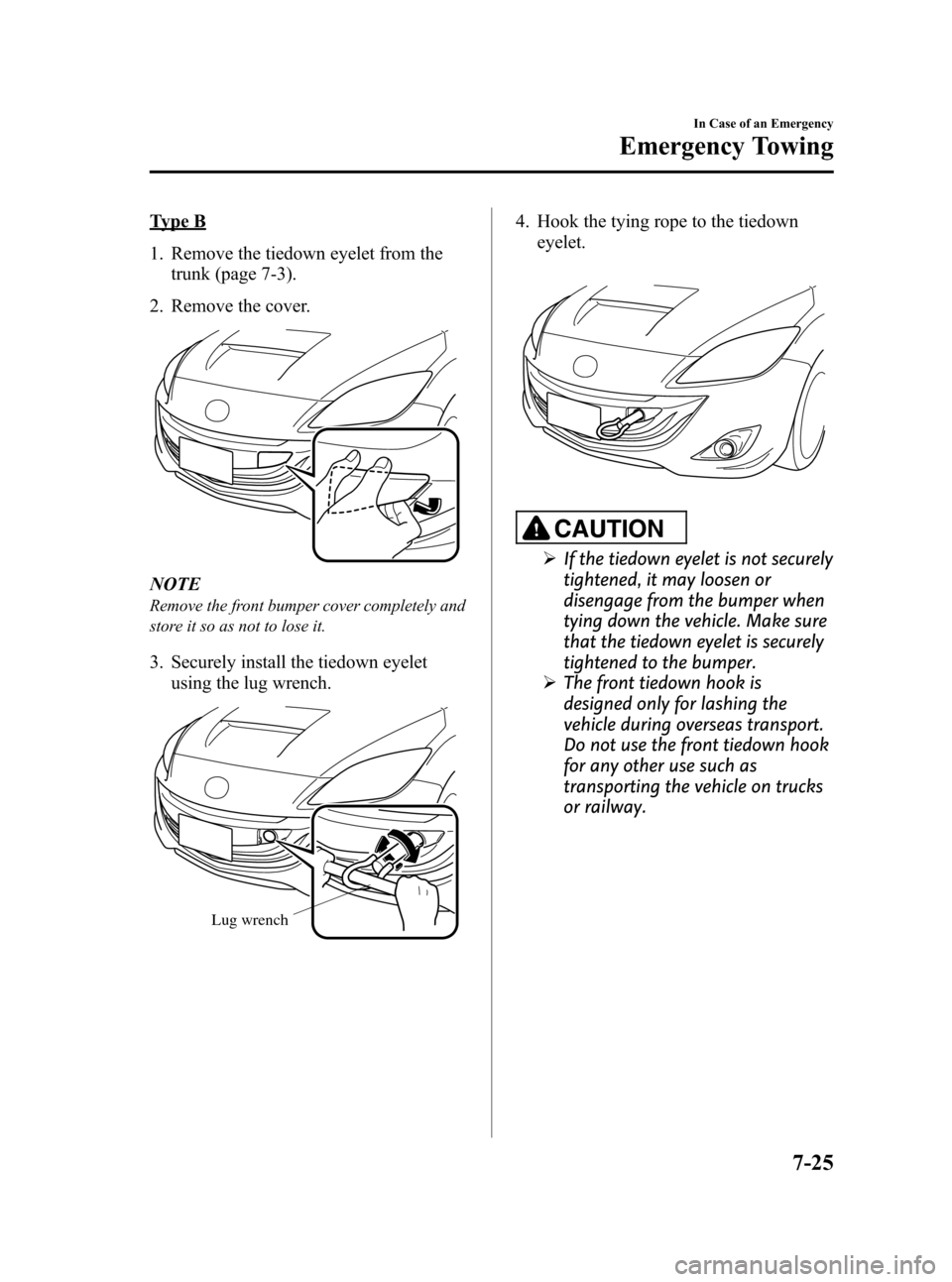

Type B
1. Remove the tiedown eyelet from thetrunk (page 7-3).
2. Remove the cover.
NOTE
Remove the front bumper cover completely and
store it so as not to lose it.
3. Securely install the tiedown eyelet using the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedowneyelet.
CAUTION
ØIf the tiedown eyelet is not securely
tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.
Ø The front tiedown hook is
designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.
In Case of an Emergency
Emergency Towing
7-25
Mazda3_8BM6-EC-10F_Edition1 Page371
Monday, June 7 2010 2:34 PM
Form No.8BM6-EC-10F

Black plate (372,1)
qTiedown Hook-Rear
Tiedown hook
CAUTION
The rear tiedown hook is designed
only for lashing the vehicle during
overseas transport. Do not use the
rear tiedown hook for any other use
such as transporting the vehicle on
trucks or railway.
Recreational Towing
An example of “recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-23) and
“ Tiedown Hook ”(page 7-24) and
carefully follow the instructions.
7-26
In Case of an Emergency
Emergency Towing
Mazda3_8BM6-EC-10F_Edition1 Page372
Monday, June 7 2010 2:34 PM
Form No.8BM6-EC-10F

Black plate (401,1)
CAUTION
ØDon't bend or discard the stiffener.
You need to use them again.
Ø If the metal stiffeners are
switched, the blade's wiping
efficiency could be reduced.
So don't use the driver's side metal
stiffener on the passenger's side,
or vice versa.
Ø Be sure to reinstall the metal
stiffener in the new blade rubber
so that the curve is the same as it
was in the old blade rubber.
4. Carefully insert the new blade rubber. Then install the blade assembly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are toward the
bottom of the wiper arm.
qReplacing Rear Wiper Blade (5
Door)
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, don't try to
sweep the wiper arm by hand.
1. Remove the cover and raise the wiper arm.
2. Firmly rotate the wiper blade to theright until it unlocks, then remove the
blade.
CAUTION
To prevent damage to the rear
window let the wiper arm down
easily, don't let it slap down on the
rear window.
Maintenance and Care
Owner Maintenance
8-29
Mazda3_8BM6-EC-10F_Edition1 Page401
Monday, June 7 2010 2:34 PM
Form No.8BM6-EC-10F

Black plate (438,1)
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
Front passenger's side instrument panel
top (soft pad)
lExtremely soft material is used for the
soft pad surface. When cleaning, it is
recommended that you use a clean
towel dampened in a mild detergent to
remove soiling.
lIf the soft pad surface is rubbed
harshly, it could result in the surface
being damaged leaving white scratch
marks.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather is not uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap. Wipe it with a
dampsoft cloth; then dry
and buff it with a drysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Multi information display edge panelí,
Panel beside the multi information
displayí
Multi information display edge panel and
panel beside the multi information display
are fitted with panels that have been
treated with a special coating that resists
scratching.
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels resulting from
the use of a hard brush or cloth may not be
repairable.
8-66
Maintenance and Care
íSome models.
Appearance Care
Mazda3_8BM6-EC-10F_Edition1 Page438
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (474,1)
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended that tires
generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high
loading conditions can accelerate the aging process. You should replace the spare tire when you
replace the other road tires due to the aging of the spare tire. The date that the tire was manufactured
(both week and year) is indicated by a 4-digit number.
Refer to The tire labeling on page 9-23.
qSafety Practices
The way you drive has a great deal to do with your tire mileage and safety. So cultivate
good driving habits for your own benefit.
lObserve posted speed limitslAvoid fast starts, stops and turnslAvoid potholes and objects on the roadlDo not run over curbs or hit the tire against the curb when parking
CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your
tire or vehicle has been damaged, immediately reduce your speed. Drive with caution
until you can safely pull off the road. Stop and inspect the tire for damage. If the tire
is under-inflated or damaged, deflate it, remove the tire and rim and replace it with
your spare tire. If you cannot detect a cause, have the vehicle towed to the nearest
vehicle or tire dealer to have the vehicle inspected.
9-34
Customer Information
Tire Information (U.S.A.)
