Black plate (492,1)

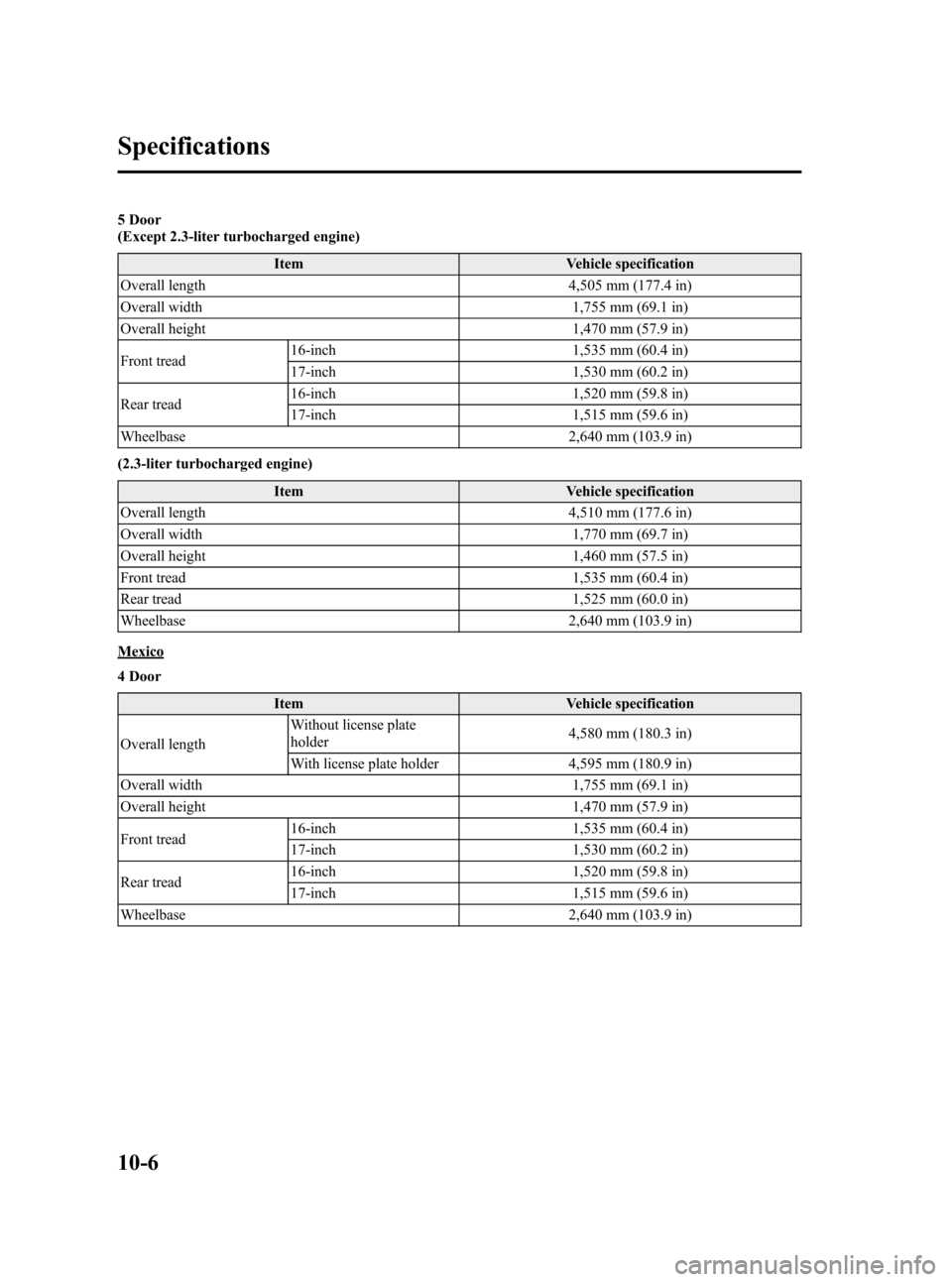

5 Door
(Except 2.3-liter turbocharged engine)Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch
1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch
1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
Mexico
4 Door
Item Vehicle specification
Overall length Without license plate
holder
4,580 mm (180.3 in)
With license plate holder 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch
1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch
1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
10-6
Specifications
Mazda3_8BM6-EC-10F_Edition1 Page492
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F
Black plate (493,1)
5 Door
(Except 2.3-liter turbocharged engine)Item Vehicle specification
Overall length Without license plate
holder
4,490 mm (176.8 in)
With license plate holder 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
qWeights
Except Mexico
4 Door
(2.0-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,768 kg (3,898 lbs) 1,800 kg (3,968 lbs)
GAWR (Gross Axle Weight Rating) Front 933 kg (2,057 lbs) 967 kg (2,132 lbs)
Rear 835 kg (1,841 lbs) 833 kg (1,836 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,816 kg (4,004 lbs) 1,851 kg (4,081 lbs)
GAWR (Gross Axle Weight Rating) Front 971 kg (2,141 lbs) 1,002 kg (2,209 lbs)
Rear 845 kg (1,863 lbs) 849 kg (1,872 lbs)
Specifications
10-7
Mazda3_8BM6-EC-10F_Edition1 Page493
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F
