2011 MAZDA MODEL 2 tow

Black plate (210,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda2_8BX2-EA-10K_Edition2 Page210
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (211,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Jack lever
Lug wrench
Jack
Tool bag
Spare tire Flat tire belt
Towing eyelet
In Case of an Emergency
Flat Tire
7-3
Mazda2_8BX2-EA-10K_Edition2 Page211
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (229,1)
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transaxle. It can damage
the emission control system.
NOTE
You can't start a vehicle with an automatic
transaxle by pushing it.
In Case of an Emergency
Emergency Starting
7-21
Mazda2_8BX2-EA-10K_Edition2 Page229
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (230,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
7-22
In Case of an Emergency
Emergency Towing
Mazda2_8BX2-EA-10K_Edition2 Page230
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (231,1)
Tiedown Hooks
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hook-Front
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-3).
2. Wrap the jack lever with a soft cloth to prevent damage to the bumper and
open the cap located on the front
bumper.
CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface. 3. Securely install the tiedown eyelet
using the lug wrench.
Lug wrench
Tiedown eyelet
4. Hook the tying rope to the tiedowneyelet.
Tiedown eyelet
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
In Case of an Emergency
Emergency Towing
7-23
Mazda2_8BX2-EA-10K_Edition2 Page231
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (232,1)
qTiedown Hook-Rear
CAUTION
The rear tiedown hook is designed
only for lashing the vehicle during
overseas transport. Do not use the
rear tiedown hook for any other use
such as transporting the vehicle on
trucks or railway.
Recreational Towing
An example of “recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-22) and
“ Tiedown Hook ”(page 7-23) and
carefully follow the instructions.
7-24
In Case of an Emergency
Emergency Towing
Mazda2_8BX2-EA-10K_Edition2 Page232
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (253,1)

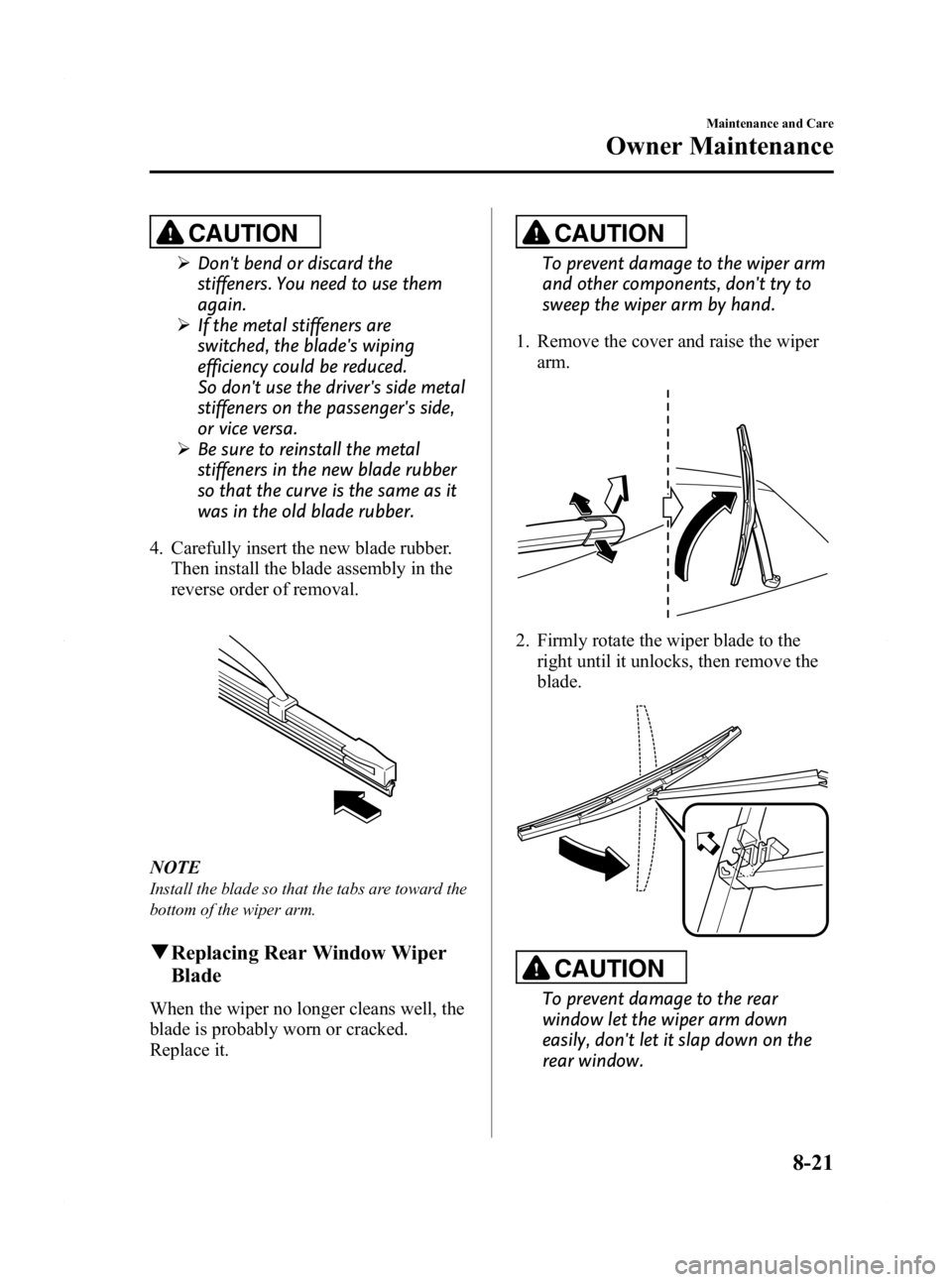

CAUTION
ØDon't bend or discard the
stiffeners. You need to use them
again.
Ø If the metal stiffeners are
switched, the blade's wiping
efficiency could be reduced.
So don't use the driver's side metal
stiffeners on the passenger's side,
or vice versa.
Ø Be sure to reinstall the metal
stiffeners in the new blade rubber
so that the curve is the same as it
was in the old blade rubber.
4. Carefully insert the new blade rubber. Then install the blade assembly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are toward the
bottom of the wiper arm.
qReplacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, don't try to
sweep the wiper arm by hand.
1. Remove the cover and raise the wiper arm.
2. Firmly rotate the wiper blade to theright until it unlocks, then remove the
blade.
CAUTION
To prevent damage to the rear
window let the wiper arm down
easily, don't let it slap down on the
rear window.
Maintenance and Care
Owner Maintenance
8-21
Mazda2_8BX2-EA-10K_Edition2 Page253
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (316,1)
CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your
tire or vehicle has been damaged, immediately reduce your speed. Drive with caution
until you can safely pull off the road. Stop and inspect the tire for damage. If the tire
is under-inflated or damaged, deflate it, remove the tire and rim and replace it with
your spare tire. If you cannot detect a cause, have the vehicle towed to the nearest
vehicle or tire dealer to have the vehicle inspected.
