2011 LINCOLN NAVIGATOR display

3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
Check MyKey™ system status
The vehicle system check will provide the status of the following
MyKey™ parameters:
•MYKEY MILES — This odometer only tracks mileage when a MyKey™
is used. If mileage does not accumulate as expected, then the
MyKey™ is not being used by the intended user. The only way to
reset this odometer to zero is by clearing MyKey™. If this odometer is
lower than the last time you checked, then the MyKey™ system has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeys™ are
programmed to the vehicle. Can be used to detect deletion of a
MyKey™.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle
Refer toMessage centerin theInstrument Clusterchapter for MyKey™
system warnings displays.
Using MyKey™ with remote start systems
MyKey™ is not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional admin key with
its associated privileges. You should program the remote start system as
a MyKey™ in addition to the key that you have already programmed as a
MyKey™. To program the remote start system as MyKey™, do the
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow Steps 1-4 in theCreate a MyKey™section.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKey™ system
status menus will include the remote start system as an additional key in
the total count. See theCheck MyKey™ system statussection.
Locks and Security
100
2011 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

During trailer sway control events, the stability control light in the
instrument cluster will flash momentarily. The cluster message center
will also displayTRAILER SWAY REDUCE SPEED. In some cases
when trailer sway is detected, the vehicle speed is too high and may be
above a speed at which trailer sway will not grow continuously. This may
cause the system to activate multiple times, causing a gradual reduction
in speed.
Note:The trailer sway control will only activate at speeds greater than
40 mph (64 km/h).
Disabling trailer sway control
Trailer sway control can be disabled during any key cycle. SeeMessage
centerin theInstrument Clusterchapter. Note that regardless of
chosen enable state, trailer sway control will be re-enabled at each new
key cycle.
WARNING:Turning off trailer sway control increases the risk of
loss of vehicle control, serious injury, or death. Ford does not
recommend disabling this feature except in situations where speed
reduction may be detrimental (e.g., hill climbing), the driver has
significant trailer towing experience, and can control trailer sway and
maintain safe operation.
STEERING
Your vehicle is equipped with power steering. Power steering uses energy
from the engine to decrease the driver’s effort in steering the vehicle.
To help prevent damage to the power steering pump:
•Never hold the steering wheel to the extreme right or the extreme left
for more than a few seconds when the engine is running.
•Do not operate the vehicle with the power steering pump fluid level
below the MIN mark on the reservoir.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the MAX mark on
the reservoir, as this may result in leaks from the reservoir.
Driving
231
2011 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Note:If the system cannot be turned off, refer toMyKey™in theLocks
and Securitychapter for more information.
The system defaults toenabledevery time the ignition is switched on.
Press the control to disable or enable the system
Keep the sensors (located on the front and rear bumper/fascia)
free from snow, ice and large accumulations of dirt (do not clean
the sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the sensing system.
If your vehicle sustains damage to the front or rear
bumper/fascia, leaving it misaligned or bent, the sensing zone may
be altered causing inaccurate measurement of obstacles or false
alarms.
REARVIEW CAMERA SYSTEM
The camera system located on the
liftgate provides a video image,
which appears in the rearview
mirror or on the navigation screen
(if equipped), of the area behind the
vehicle. It adds assistance to the
driver while reversing or reverse
parking the vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display on the left portion of the rearview mirror or on the
navigation screen (if equipped). The area displayed on the screen may
vary according to the vehicle orientation and/or road condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
•(5) Centerline of vehicle
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as they move from the green zone to
the yellow or red zones.
XX XXXX
XXXXXXXX
Driving
241
2011 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

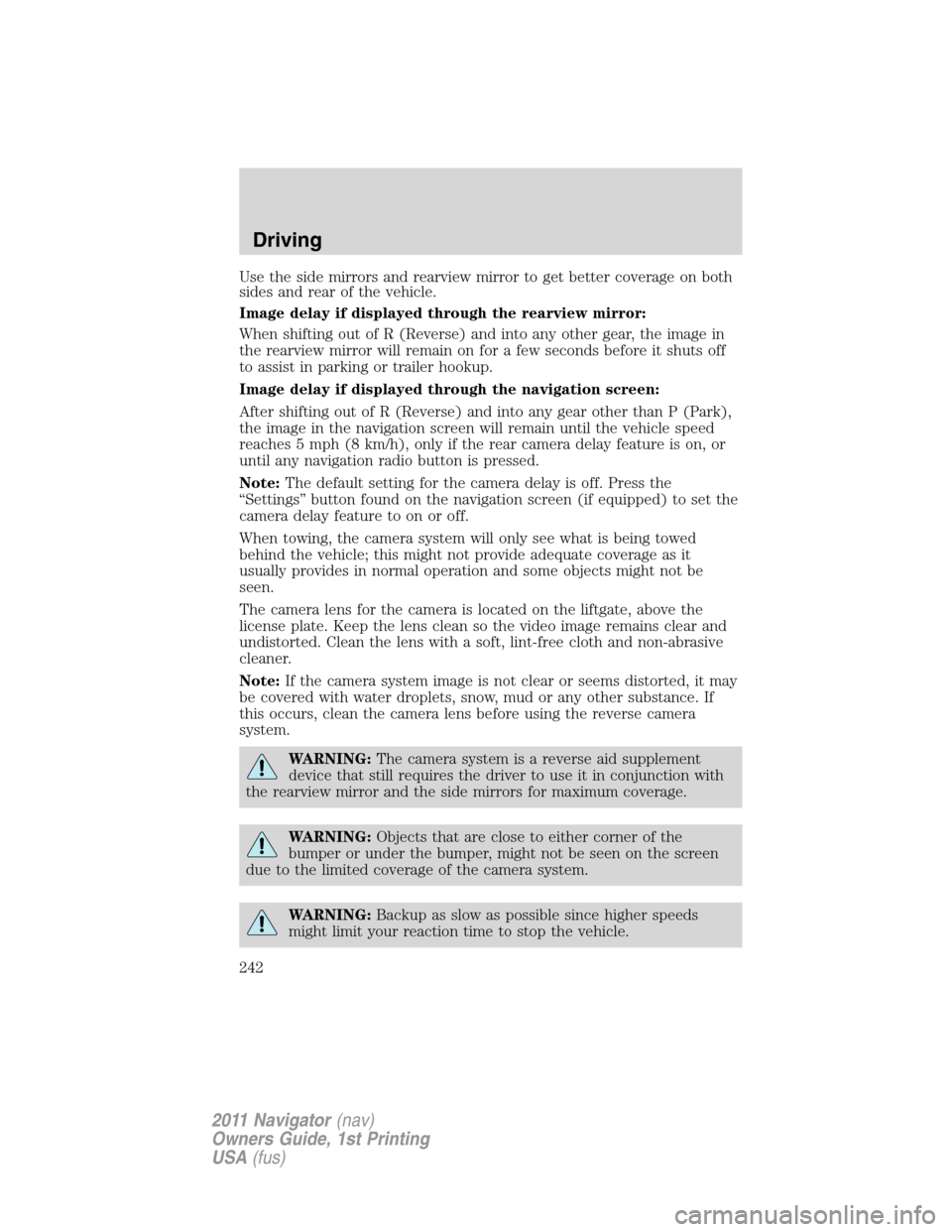

Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.
Image delay if displayed through the rearview mirror:
When shifting out of R (Reverse) and into any other gear, the image in
the rearview mirror will remain on for a few seconds before it shuts off
to assist in parking or trailer hookup.
Image delay if displayed through the navigation screen:
After shifting out of R (Reverse) and into any gear other than P (Park),
the image in the navigation screen will remain until the vehicle speed
reaches 5 mph (8 km/h), only if the rear camera delay feature is on, or
until any navigation radio button is pressed.
Note:The default setting for the camera delay is off. Press the
“Settings” button found on the navigation screen (if equipped) to set the
camera delay feature to on or off.
When towing, the camera system will only see what is being towed
behind the vehicle; this might not provide adequate coverage as it
usually provides in normal operation and some objects might not be
seen.
The camera lens for the camera is located on the liftgate, above the
license plate. Keep the lens clean so the video image remains clear and
undistorted. Clean the lens with a soft, lint-free cloth and non-abrasive
cleaner.
Note:If the camera system image is not clear or seems distorted, it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the reverse camera
system.
WARNING:The camera system is a reverse aid supplement
device that still requires the driver to use it in conjunction with
the rearview mirror and the side mirrors for maximum coverage.
WARNING:Objects that are close to either corner of the
bumper or under the bumper, might not be seen on the screen
due to the limited coverage of the camera system.
WARNING:Backup as slow as possible since higher speeds
might limit your reaction time to stop the vehicle.
Driving
242
2011 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

4WD indicator lights
The indicator lights illuminate in the message center in the
reconfigurable telltale (RTT) location under the following conditions.
Refer toWarning lights and chimesin theInstrument Clusterchapter.
•4X2- Momentarily illuminates
when 2H is selected.
•4X4 AUTO– Illuminates when
4X4 AUTO is selected.
•4X4– Illuminates when 4X4 is
selected.
Modes of the Control Tracsystem
The Control Trac system functions
in three modes:
•4X2 (2WD)delivers power to
the rear wheels only. The
message center will momentarily
display “4x2” when this mode is
selected. This is appropriate for
normal on-road driving on dry
pavement and provides best fuel economy.
•4X4 AUTOprovides electronic control four-wheel drive with power
delivered to all four wheels, as required, for increased traction. The
message center will display “4X4 AUTO” when this position is
selected. This mode is acceptable for all on-road driving but
recommended when wet pavement, snow, or loose gravel conditions
are expected.
•4X4provides electronically locked four-wheel drive power to front and
rear wheels. The message center will display “4X4” when this position
is selected. This position is not recommended for use on dry
pavement. This position is only intended for severe winter or off-road
conditions, such as deep snow, ice or shallow sand.
4x2
4x4
AUTO
4x4
4X24X4
AUTO4X4
Driving
244
2011 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Note:The AdvanceTracwith RSCstability enhancement system can
be turned off manually by pressing the AdvanceTracwith RSCbutton
(refer toAdvanceTracwith Roll Stability Control™ (RSC) Stability
Enhancement Systemin this chapter) while operating in 2H, 4A or 4H
while driving in deep sand, very deep snow or more strenuous off-road
maneuvers. This will disable the engine management feature, allowing
the vehicle to maintain full power and enhanced momentum through the
obstacle.
WARNING:Utility and four-wheel drive vehicles arenot
designed for cornering at speeds as high as passenger cars any
more than low-slung sports cars are designed to perform satisfactorily
under off-road conditions. Avoid sharp turns or abrupt maneuvers in
these vehicles.
Note:The Control Trac selector switch should not be changed while the
rear wheels are slipping.
Shifting between Control Trac system modes
Press any button (4X2, 4X4 AUTO or 4X4) at any forward speed. The
message center may display4X4 SHIFT IN PROGRESSduring the
system shift. The message center will then display “4X4 AUTO” if 4X4
AUTO is selected or “4X4” if 4X4 is selected. The message center will
momentarily display “4X2” if 4X2 is selected
Note:Some noise may be heard as the system shifts or engages.
Driving off-road with truck and utility vehicles
Four–wheel drive vehicles are specially equipped for driving on sand,
snow, mud and rough terrain and have operating characteristics that are
somewhat different from conventional vehicles, both on and off the road.
The AdvanceTracwith RSC stability enhancement system can be turned
off manually by pressing the AdvanceTracwith RSC button (refer to
AdvanceTracwith Roll Stability Control (RSC) Stability
Enhancement Systemin this chapter) while operating in 4X2, 4X4
AUTO or 4X4 while driving in deep sand, very deep snow or more
strenuous off-road maneuvers. This will disable the engine management
feature, allowing the vehicle to maintain full power and enhanced
momentum through the obstacle.
Driving
245
2011 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

SecuriCode keyless entry
system ........................................113
SecuriLock passive anti-theft
system ........................................114
Servicing your vehicle ..............295
Snowplowing .................................6
SOS Post Crash Alert ...............161
Spark plugs, specifications ......330,
334–335
Special notice
utility-type vehicles ....................6
Specification chart,
lubricants ...................................331
Speed control ..............................80
Stability system .........................226
Starting a flex fuel vehicle .......220
Starting your vehicle ........217–220
jump starting ..........................274
Steering wheel
controls ......................................82
tilting .........................................67
SYNC..........................................47
T
Third-row power fold seat .......137
Tire Pressure Monitoring
System (TPMS)
Driving .....................................249
Tires, Wheels and Loading ....198
Warning Displays ................12, 26
Tires ...........................183–185, 264
alignment ................................192
care ..........................................188
changing ..........................264, 268
checking the pressure ............188
inflating ...................................186label .........................................197
replacing ..................................190
rotating ....................................192
safety practices .......................191
sidewall information ...............193
snow tires and chains ............202
spare tire .................................264
terminology .............................185
tire grades ...............................184
treadwear ........................184, 188
Towing .......................................210
recreational towing .................216
trailer towing ..........................210
wrecker ....................................277
Transmission .............................235
brake-shift interlock (BSI) ....233
fluid, checking and adding
(automatic) .............................325
fluid, refill capacities ..............331
lubricant specifications ..........331
Turn signal ..................................58
U
Universal garage door opener ....84
USB port ......................................38
V
Vehicle Identification Number
(VIN) ..........................................336
Vehicle loading ..........................202
Ventilating your vehicle ...........221
W
Warning lights (see Lights) .......12
Washer fluid ..............................298
Water, Driving through .............252
Index
369
2011 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
