2011 LINCOLN MKX Driver

System Check*
Oil Life
Wash Fluid
Doors
Liftgate
B lind spot
Cross Traffic
Brakes
Fuel (distance to empty)
*Some items will only display during a system check if a problem has
been detected. If an issue exists on one of the monitored systems, the
message center will display the number of warnings that need immediate
attention in red and the number of informational warnings will be listed
in amber. Use the up/down arrow buttons to scroll through the list; press
the right arrow button to display specific information on the highlighted
warning.
System warnings and status messages
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Types of messages and warnings:
•Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
•Some messages will appear once and then again when the vehicle is
restarted.
•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
•Some messages can be acknowledged and reset by pressing RESET.
This allows you to use the full message center functionality by clearing
the message.
DRIVER DOOR AJAR— Displayed when the driver door is not
completely closed.
Instrument Cluster
27
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

message after driving a short distance with the road tire re-installed or
after the system is allowed to cool.
CHECK AWD— Displayed in conjunction with the Throttle
Control/Transmission/AWD
light when the AWD system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
FOR HILL DESCENT REDUCE SPEED 20 MPH OR LESS (if
equipped)— Displayed when hill descent speed exceeds 20 MPH.
FOR HILL DESCENT REDUCE SPEED 32 KM/H OR LESS (if
equipped)— Displayed when hill descent speed exceeds 32 KM/H.
FOR HILL DESCENT SHIFT INTO GEAR (if equipped)—
Displayed when hill descent control mode requires driver shift
transmission into gear.
FOR OFF ROAD SLOW TO 5 MPH (if equipped)— Displayed when
the vehicle speed requirement for off road mode entry has not been met.
DRIVER RESUME CONTROL (if equipped)— Displayed when the
hill control and off road mode require the driver to resume control.
HILL DESCENT CONTROL ACTIVE (if equipped)— Displayed
when hill descent control mode becomes active.
HILL DESCENT CONTROL FAULT (if equipped)— Displayed when
a hill descent system fault is present.
HILL DESCENT CONTROL OFF (if equipped)— Displayed when hill
descent control mode becomes inactive.
HILL DESCENT CONTROL OFF SYSTEM COOLING (if equipped)
— Displayed when hill descent control mode is disabled to cool the
brake system.
HILL DESCENT CONTROL READY (if equipped)— Displayed
when hill descent control mode is ready.
MODE CHANGE NOT ACCEPTED, RETRY (if equipped)—
Displayed when hill descent control mode cannot be changed at time of
driver request.
ACCESSORY POWER ACTIVE (if equipped)— Displayed when the
vehicle is in the accessory ignition state.
CHECK SPEED DRIVE SAFELY— Displayed when a MyKey™ is in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer toMyKey™in theLocks and Securitychapter for more
information.
Instrument Cluster
30
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

STARTING SYSTEM FAULT— This message is displayed when there
is a problem with your vehicle’s starting security system; your vehicle
will not be able to start. See your authorized dealer for service.
VEHICLE AT TOP SPEED OF MYKEY SETTING— Displayed when
a MyKey™ is in use and the MyKey speed limit is on and the vehicle
speed is 80 mph (130 km/h). Refer toMyKey™in theLocks and
Securitychapter for more information.
VEHICLE NEAR MYKEY TOP SPEED— Displayed when a MyKey™
is in use and the MyKey speed limit is on and the vehicle speed is
approaching 80 mph (130 km/h). Refer toMyKey™in theLocks and
Securitychapter for more information.
WAIT XZ MINUTES— Displays time required before security access is
granted to program keys.
CRUISE CONTROL AUTOMATIC BRAKING TURNED OFF (if
equipped)— Displayed when adaptive cruise control automatic braking
is turned off.
ADAPTIVE CRUISE MALFUNCTION (if equipped)— Displayed
when a radar malfunction is preventing the ACC from engaging.
ADAPTIVE CRUISE NOT AVAILABLE (if equipped)— Displayed
when conditions exist such that the adaptive cruise cannot function
properly.
ADAPTIVE CRUISE NOT AVAILABLE SENSOR BLOCKED SEE
MANUAL (if equipped)— Displayed when the radar is blocked
because of poor radar visibility due to bad weather or ice/mud/water in
front of radar. Driver can typically clean the sensor to resolve.
FRONT SENSOR NOT ALIGNED (if equipped)— Displayed when
the adaptive cruise system detects the front sensor is not aligned
correctly. See your authorized dealer for service.
COLLISION WARN NOT AVAILABLE(if equipped)— Displayed
when there is a system malfunction with the collision warning system.
The system will be disabled.
COLLISION WARNING NOT AVAILABLE SENSOR BLOCKED SEE
MANUAL (if equipped)— Displayed when the collision warning
system radar is blocked because of poor radar visibility due to bad
weather or ice/mud/water in front of the radar. Driver can typically clean
the sensor to resolve.
COLLISION WARNING MALFUNCTION (if equipped)— Displayed
when there is a system malfunction with the collision warning system.
The system will be disabled.
Instrument Cluster
32
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

TO STOP ALARM START VEHICLE— Displayed when the perimeter
alarm system is armed and the vehicle is entered using the key on the
driver’s side door. In order to prevent the perimeter alarm system from
triggering, the ignition must be turned to start or on before the
12 second chime expires. SeePerimeter alarm systemin theLocks and
securitychapter.
TRAILER SWAY REDUCE SPEED (if equipped)— Displayed when
the trailer sway control has detected trailer sway. For more information,
refer to theDrivingchapter for more information.
TRANSPORT MODE CONTACT DEALER— Contact your authorized
dealer as soon as possible.
Instrument Cluster
34
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

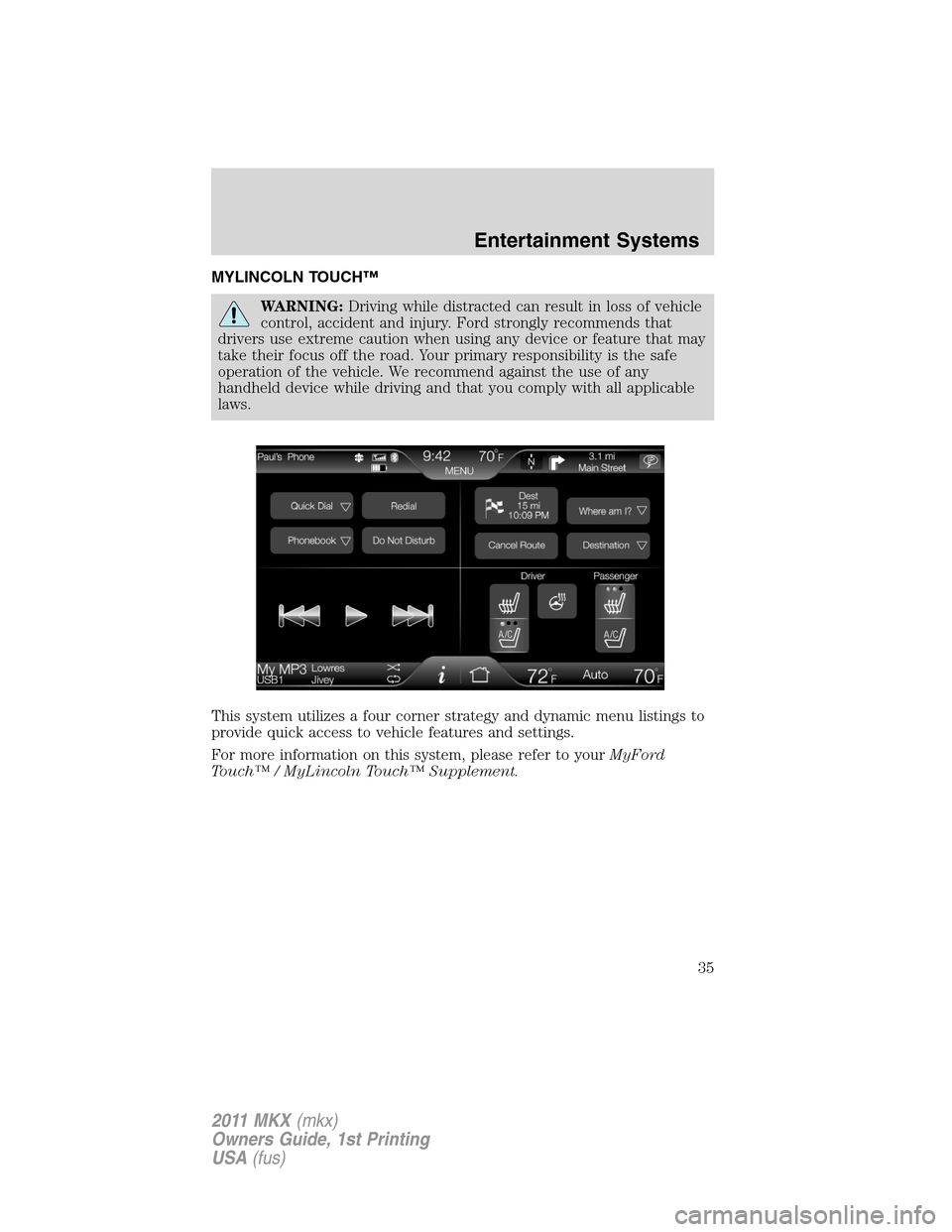

MYLINCOLN TOUCH™
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
This system utilizes a four corner strategy and dynamic menu listings to
provide quick access to vehicle features and settings.
For more information on this system, please refer to yourMyFord
Touch™ / MyLincoln Touch™ Supplement.
Entertainment Systems
35
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM
WITH MYTEMP
Note:Your climate control system is touch sensitive. You need only
lightly touch the control graphic to activate the feature.
Note:Your vehicle is also equipped with touchscreen climate control
features. To access, press the lower right corner of the touchscreen.
Refer toTouchscreen featureslater in this section for more information.
Temperature conversion:To access the temperature setting, press
Menu on the touchscreen. Then press Settings > System > Temperature.
Select to view the temperature in either Fahrenheit and Celsius.
1.Passenger temperature control:Touch to activate dual zone
temperature and to increase (+) or decrease (-) the temperature on the
passenger side of the vehicle.
DUAL:Touch to activate dual zone (separate passenger temperature
control). Touch again to deactivate and return to single zone
temperature control (where the driver settings control the temperature
for the entire vehicle).
2.
(Recirculated air):Touch to activate/deactivate air recirculation
in the vehicle. Recirculated air may reduce the amount of time needed to
cool down the interior of the vehicle and may also help reduce undesired
odors from reaching the interior of the vehicle. Recirculated air engages
automatically when MAX A/C is selected or can be engaged manually in
any airflow mode except
(defrost). Recirculated air may turn off
automatically in all airflow modes except MAX A/C to reduce fog
potential.
3.MAX A/C:Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more
101
92
876543
Climate Controls
36
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle. Touch MAX A/C again for
normal A/C operation.
4.A/C control:Touch to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. Engages
automatically in MAX A/C,
(defrost) and(floor/defrost).
5.
(Power):Touch to activate/deactivate the climate control system.
When the system is off, outside air is prevented from entering the
vehicle through the vents.
6.
(Fan speed):Slide your finger over the fan bar to increase or
decrease the fan speed.
7.AUTO:Touch to engage full automatic operation. Select the desired
temperature using the temperature control. The system will
automatically determine fan speed, airflow distribution, A/C on or off,
and outside or recirculated air, to heat or cool the vehicle in order to
reach the desired temperature.
8.
R(Rear defroster):Touch to activate/deactivate the rear
defroster. This button will also activate/deactivate the heated mirrors (if
equipped). Refer toRear window defrosterlater in this chapter for
more information.
9.
(Defrost):Distributes outside air through the windshield
defroster vents and demister vents. Can be used to clear the windshield
of fog and thin ice. The system will automatically provide outside air to
reduce window fogging. Touch this button again to return to the previous
air flow selection. To return to full automatic control, touch AUTO.
10.Driver temperature control:Touch to increase (+) or decrease (-)
the temperature on the driver side of the vehicle. If the passenger
temperature controls are not activated (dual zone), the driver’s settings
will determine the temperature setting for the entire vehicle cabin.
MyTemp:Touch and hold to save the desired temperature for MyTemp.
To access this setting again, simply touch the indicator.
The MyTemp feature can be used to store and recall a preset driver’s
temperature. This feature is provided so this temperature can be quickly
adjusted to a frequently used setting with a single button touch.
To save a new preset temperature for the active user, manually adjust
the driver’s temperature to the desired value then touch and hold the
MyTemp button for at least two seconds. Any subsequent touch of the
MyTemp button will automatically change to this set temperature for this
user.
Climate Controls
37
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

5.MAX A/C:Press to distribute recirculated air through the instrument
panel vents to cool the vehicle. This is more economical and efficient
than normal A/C mode. Recirculated air may also help reduce
undesirable odors from entering the vehicle. Press again for normal A/C
operation.
6.A/C:Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. Engages
automatically in MAX A/C,
(defrost) and(floor/defrost).
7.AUTO:Press to engage full automatic operation. Select the desired
temperature using the temperature control. The system will
automatically determine fan speed, airflow distribution, A/C on or off,
and outside or recirculated air, to heat or cool the vehicle in order to
reach the desired temperature.
8.
R(Rear defroster):Press to activate/deactivate the rear window
defroster. This button will also activate/deactivate the heated mirror (if
equipped). Refer toRear window defrosterlater in this chapter for
more information.
9.
(Defrost):Press to distribute outside air through the windshield
defroster vents and demister vents. Can be used to clear the windshield
of fog and thin ice. The system will automatically provide outside air to
reduce window fogging. Press this button again to return to the previous
air flow selection. To return to full automatic control, press AUTO.
10.Manual controls:Select any of the following to determine where
airflow is directed:
•
:Distributes air through the windshield defroster vents, demister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging. To return
to full automatic control, press AUTO.
•
:Distributes air through the instrument panel vents. To return to
full automatic control, press AUTO.
•
:Distributes air through the instrument panel vents, demister
vents, floor vents, rear seat floor vents. To return to full automatic
control, press AUTO.
•
:Distributes air through the demister vents, floor vents and rear
seat floor vents. To return to full automatic control, press AUTO.
11.Driver settings:
•Press the red arrow to increase the temperature and press the blue
arrow to decrease the temperature.
Climate Controls
40
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
