IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.7L V6 engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery
5. Power distribution box
6. Air filter assembly
7. Automatic transmission fluid dipstick
8. Engine oil dipstick
9. Engine oil filler cap
10. Windshield washer fluid reservoir
Maintenance and Specifications
298
2011 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

3.5L V6 EcoBoost™ engine
1. Engine coolant reservoir
2. Brake fluid reservoir
3. Battery
4. Power distribution box
5. Air filter assembly
6. Automatic transmission fluid dipstick (out of view)
7. Engine oil dipstick
8. Engine oil filler cap
9. Windshield washer fluid reservoir
9
1234
6587
Maintenance and Specifications
299
2011 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

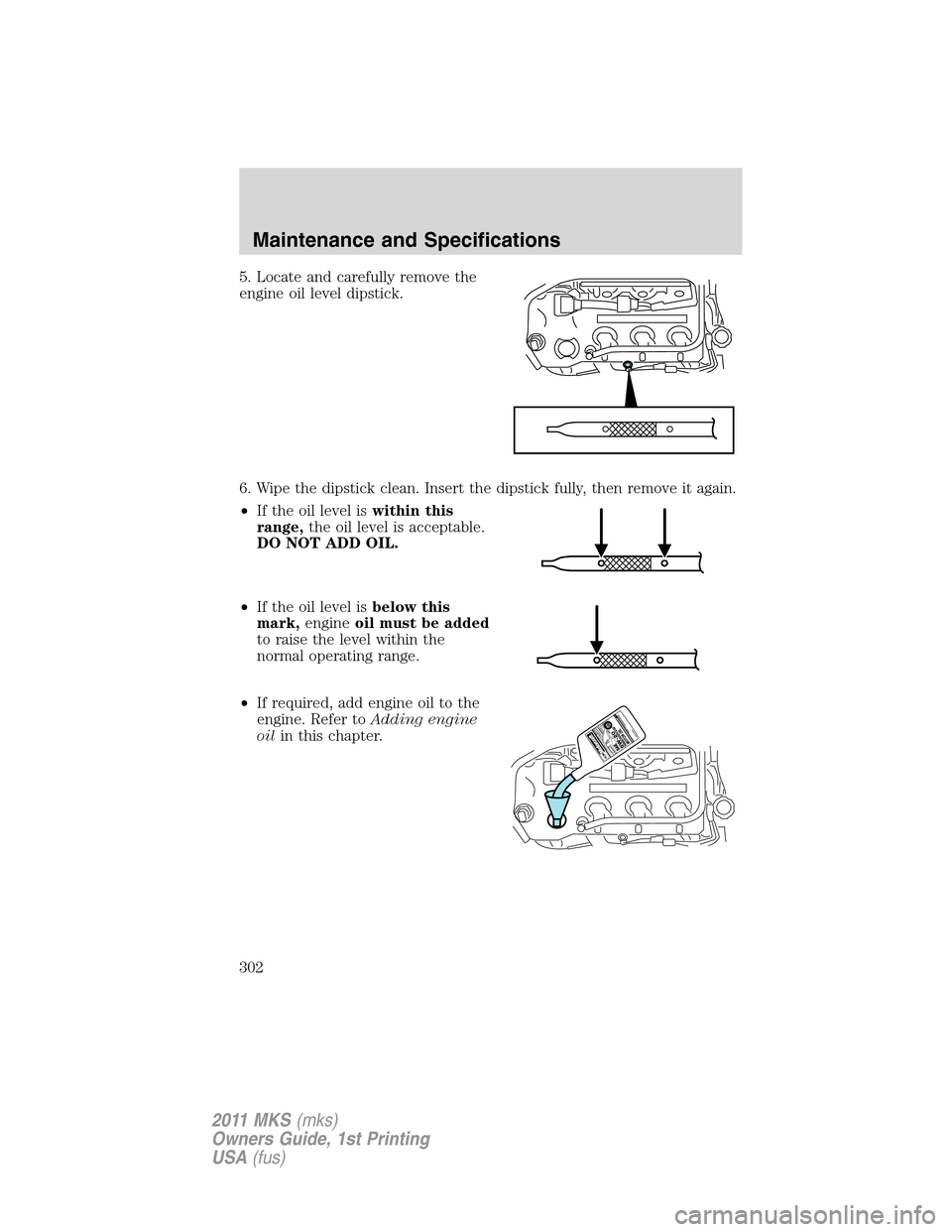

5. Locate and carefully remove the
engine oil level dipstick.
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again.
•If the oil level iswithin this
range,the oil level is acceptable.
DO NOT ADD OIL.
•If the oil level isbelow this
mark,engineoil must be added
to raise the level within the
normal operating range.
•If required, add engine oil to the
engine. Refer toAdding engine
oilin this chapter.
Maintenance and Specifications
302
2011 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

•Do not overfill the engine
with oil. Oil levels above this
mark may cause engine
damage.If the engine is
overfilled, some oil must be
removed from the engine by an
authorized dealer.
7. Put the dipstick back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal operating range, add
only certified engine oil of the recommended viscosity. Remove the
engine oil filler cap and use a funnel to pour the engine oil into the
opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level dipstick.
4. Install the dipstick and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level dipstick and/or the engine oil filler cap removed.
Engine oil and filter recommendations
3.7L V6 engine
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils certified for gasoline engines by the American Petroleum
Institute (API). An oil with this trademark symbol conforms to the
Maintenance and Specifications
303
2011 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehicle. It’s
your checklist that gives you immediate feedback on the overall
condition of your vehicle. You’ll know what’s been checked, what’s okay,
as well as those things that may require future or immediate attention.
The multi-point vehicle inspection is one more way to keep your vehicle
running great!
Mutli-point inspection - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
354
2011 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Oil Change Service Interval* 1 2 345678910
Change engine oil and filter• •••••••••
Rotate tires, inspect tire wear and measure tread
depth• •••••••••
Inspect the wheels and related components for
abnormal noise, wear, looseness or drag• •••••••••
Perform multi-point inspection (recommended)• •••••••••
Inspect automatic transmission fluid level (if
equipped with a dipstick); consult dealer for
requirements• •••••••••
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake• •••••••••
Inspect engine cooling system for strength, and
hoses• •••••••••
Inspect exhaust system and heat shields• •••••••••
Inspect half-shaft boots (if equipped)• •••••••••
Inspect and lubricate steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and U-joints if
equipped with grease fittings• •••••••••
Inspect cabin air filter (if equipped)• ••••
*Oil change service intervals should be completed as indicated by the instrument cluster message center
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter change; refer to theInstrument Clusterchapter
Scheduled Maintenance Guide
357
2011 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Oil Change Service Interval* 11 12 13 14 15
Change engine oil and filter• ••••
Rotate tires, inspect tire wear and measure tread depth• ••••
Inspect the wheels and related components for abnormal noise, wear,
looseness or drag• ••••
Perform multi-point inspection (recommended)• ••••
Inspect automatic transmission fluid level (if equipped with a
dipstick); consult dealer for requirements• ••••
Inspect brake pads, shoes, rotors, drums, brake linings, hoses and
parking brake• ••••
Inspect engine cooling system for strength, and hoses• ••••
Inspect exhaust system and heat shields• ••••
Inspect half-shaft boots (if equipped)• ••••
Inspect and lubricate steering linkage, ball joints, suspension, tie-rod
ends, driveshaft and U-joints if equipped with grease fittings• ••••
Inspect cabin air filter (if equipped)•••
*Oil change service intervals should be completed as indicated by the instrument cluster message center
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter change; refer to theInstrument Clusterchapter
Scheduled Maintenance Guide
358
2011 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

in rear seat ..............................173
LATCH .....................................176
recommendations ...................170
Child safety seats - booster
seats ...........................................181
Cleaning your vehicle
engine compartment ..............288
instrument panel ....................291
interior .....................................292
plastic parts ............................290
washing ....................................287
waxing .....................................288
wheels ......................................288
wiper blades ............................290
Climate control (see Air
conditioning or Heating) ......48, 51
Clock adjust
AM/FM/CD/MP3 ........................32
Collision Warning System .........244
Compass, electronic ....................72
calibration .................................73
set zone adjustment .................73
Console
overhead ....................................71
Controls
power seat ...............................129
steering column ........................90
Coolant
checking and adding ..............307
refill capacities ................310, 336
specifications ..........................336
Cooled Seats ..............................131
Cruise control
(see Speed control) ....................80
Cupholder(s) .............................137
Customer Assistance ................256
Ford Extended Service
Plan ..................................346, 349Getting assistance outside the
U.S. and Canada .....................283
Getting roadside assistance ...256
Getting the service you
need .........................................279
Ordering additional owner’s
literature .................................285
Utilizing the
Mediation/Arbitration
Program ...................................283
D
Daytime running lamps
(see Lamps) ................................61
Defrost
rear window ..............................48
rear window and rearview
mirrors .......................................51
windshield ...........................48, 51
Dipstick
automatic transmission
fluid ..........................................326
engine oil .................................301
Doors
central unlocking ....................106
Driving under special
conditions ..........................250, 252
sand .........................................251
snow and ice ...........................253
through water .................252, 255
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................273
running out of fuel .........273, 318
Emission control system ..........322
Engine ........................................340
